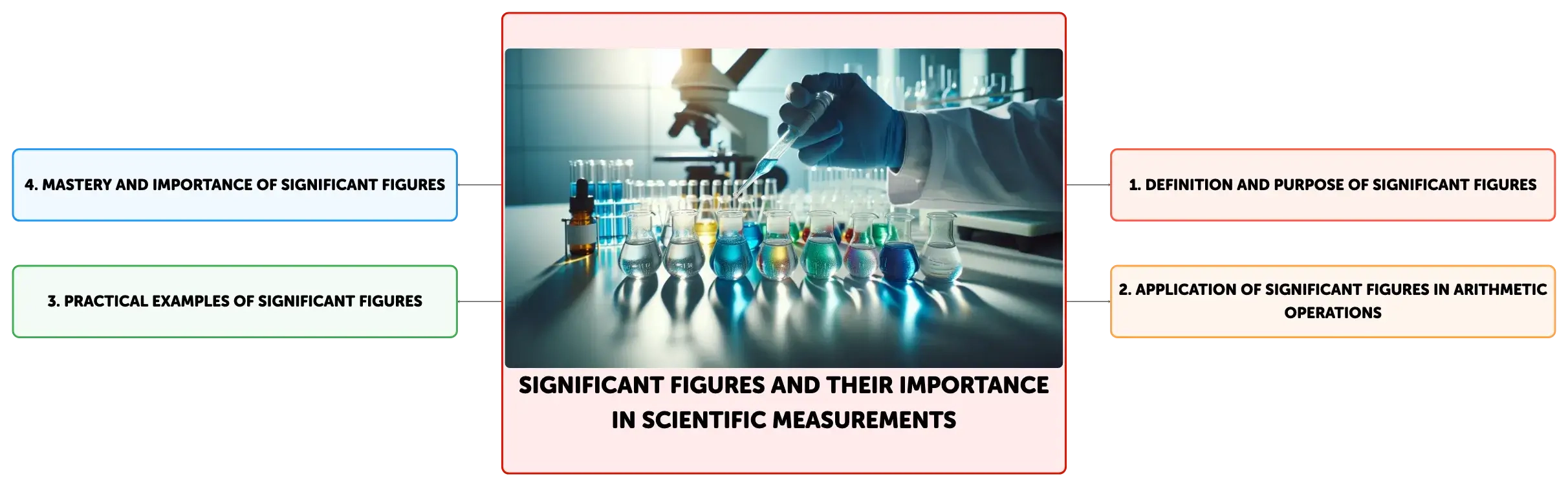

Significant Figures and Their Importance in Scientific Measurements
Concept Map
The main topic of this text is the role of significant figures in scientific measurements, which are crucial for indicating the precision of an instrument and the reliability of a measurement. Significant figures include all known digits plus one estimated digit, and are essential in fields like physics, chemistry, and biology for accurately conveying data. The text also discusses the rules for identifying significant figures, their application in mathematical operations, practical examples, and the principles of rounding.
Summary
Outline
The Role of Significant Figures in Scientific Measurements
Significant figures are integral to scientific measurements, indicating the precision of an instrument and the reliability of a measurement. They encompass all known digits plus one estimated digit, reflecting the level of certainty in the measurement. This concept is vital in fields such as physics, chemistry, and biology for accurately conveying data. Precision refers to the repeatability of measurements, while accuracy relates to how close a measurement is to the true value. For example, a car's mass reported as 1159 kg implies the last digit is estimated; if the mass is known precisely, it would be recorded as 1159.0 kg to indicate five significant figures.Identifying Significant Figures: A Set of Rules
A series of rules assists in identifying significant figures within a number. All non-zero digits are significant. Zeros situated between non-zero digits are significant, whereas leading zeros are not. Trailing zeros are significant if they follow a decimal point or if there is a decimal present in the number. For instance, the number 0.0012 has two significant figures (1 and 2), and 13900 has two significant figures unless it is written as 13900.0, where all zeros become significant. Adhering to these rules ensures consistency and precision in scientific communication and computation.Significant Figures in Mathematical Operations
The application of significant figures in arithmetic operations requires specific rules. In addition and subtraction, the result is limited to the least number of decimal places in any of the numbers being combined. For example, adding 5.36 and 99.124 should be rounded to two decimal places, giving 104.48. In multiplication and division, the result should match the least number of significant figures in any of the numbers used. Multiplying 15.322 by 3.12, for instance, yields a product that should be rounded to three significant figures, resulting in 47.8.Practical Application of Significant Figures
Practical examples illustrate the application of significant figures. When determining the density of a box with a mass of 6.817 kg and a volume of 18.39 cm³, the density calculation should reflect the least number of significant figures from the measurements, which is the volume in this case. Therefore, the density is correctly reported as 0.37 kg/cm³. When calculating the perimeter of a building with sides of 373.71 feet and 175.2 feet, the perimeter should be expressed with the precision of the least precise measurement, resulting in a perimeter of 1096.8 feet.Rounding in Relation to Significant Figures
Rounding plays a critical role in the use of significant figures. It is best practice to retain all figures in intermediate steps and round only the final result to the appropriate number of significant figures. The general rule for rounding is as follows: if the digit beyond the last significant figure is less than five, the last significant figure remains the same. If it is five or greater, the last significant figure is increased by one. For example, rounding 24.8364 to three significant figures yields 24.8, while rounding 3.9556 to three significant figures gives 3.96.Concluding Thoughts on Significant Figures
In conclusion, significant figures represent the meaningful digits in a measurement, excluding any leading zeros, and are essential for the accurate reporting of scientific data. They ensure that scientific calculations are performed with consistency and that experimental results are reliable. Mastery of significant figures is a critical skill in the sciences, influencing the validity of research findings and the communication of data. With diligent practice, students and professionals can proficiently apply these rules to achieve the necessary precision in their work.
Show More

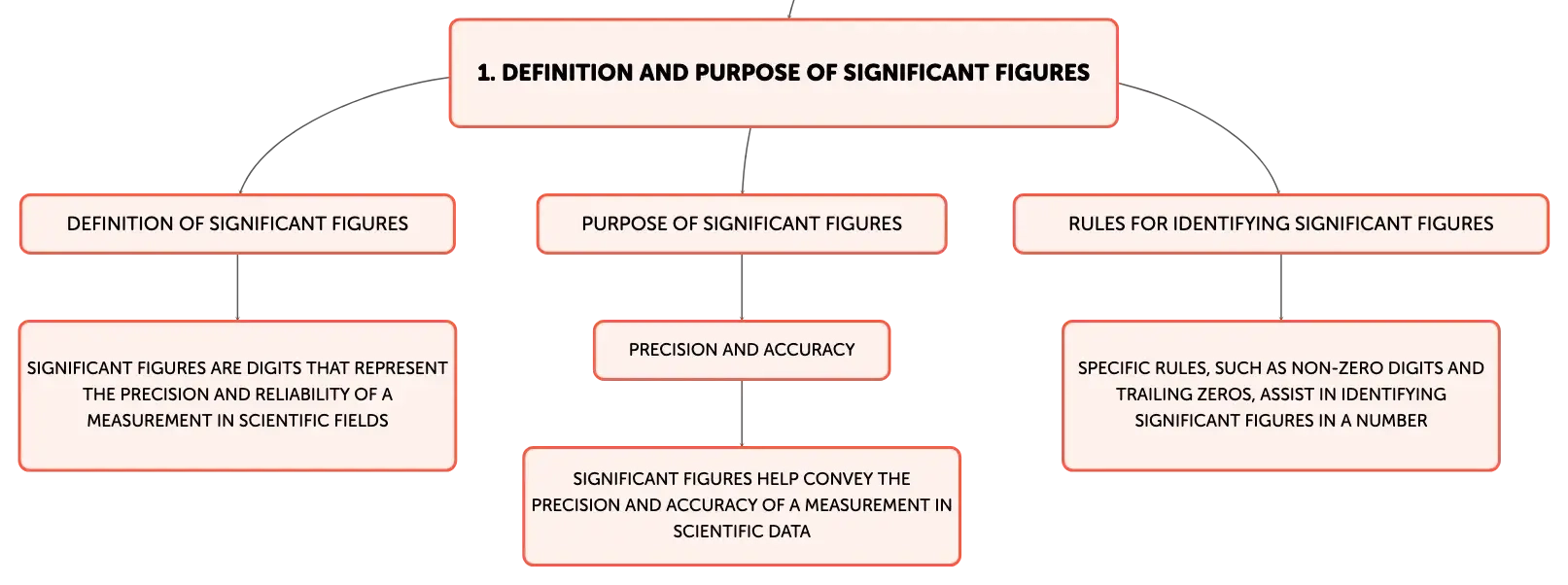

Definition and Purpose of Significant Figures
Definition of Significant Figures
Significant figures are digits that represent the precision and reliability of a measurement in scientific fields
Purpose of Significant Figures
Precision and Accuracy
Significant figures help convey the precision and accuracy of a measurement in scientific data
Rules for Identifying Significant Figures
Specific rules, such as non-zero digits and trailing zeros, assist in identifying significant figures in a number

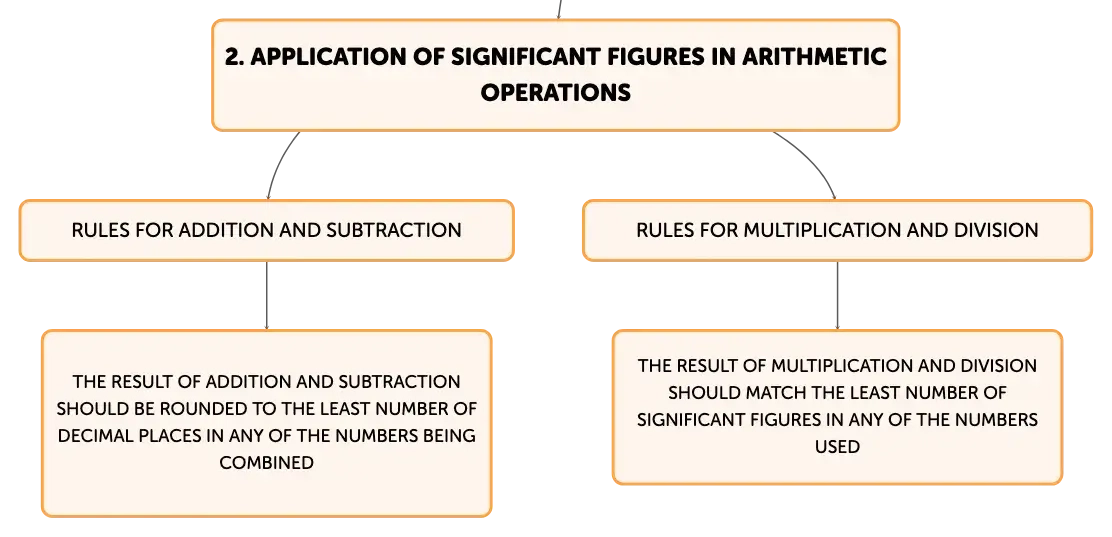

Application of Significant Figures in Arithmetic Operations
Rules for Addition and Subtraction
The result of addition and subtraction should be rounded to the least number of decimal places in any of the numbers being combined
Rules for Multiplication and Division
The result of multiplication and division should match the least number of significant figures in any of the numbers used

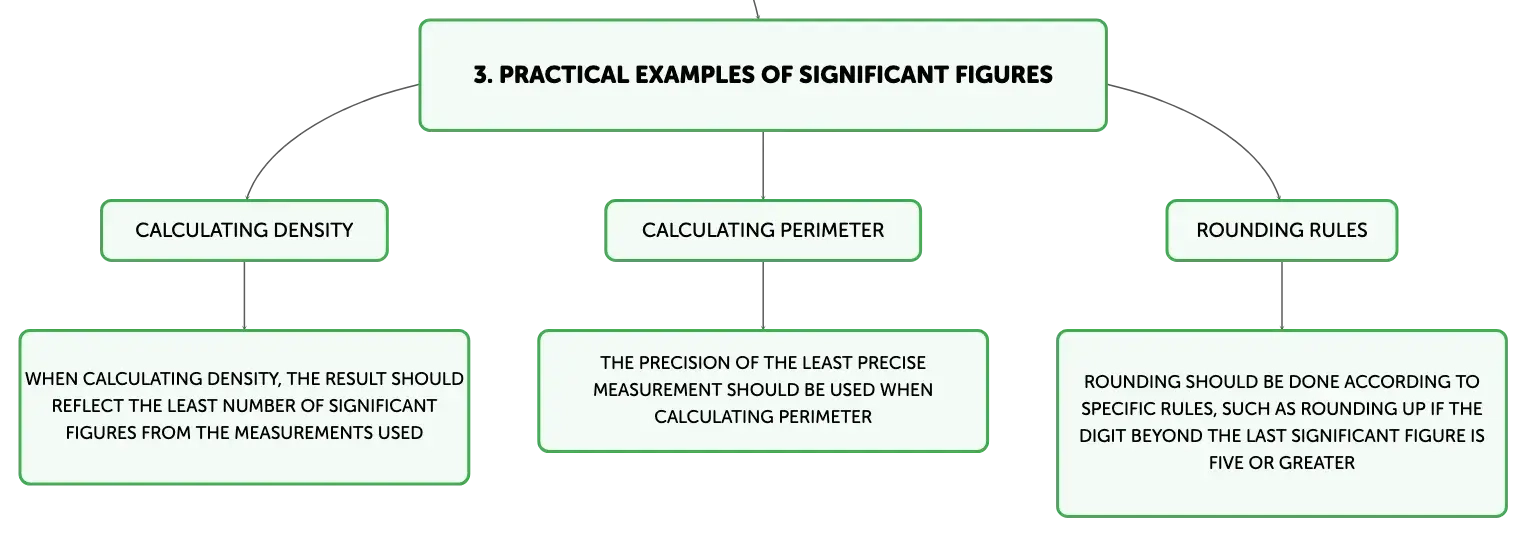

Practical Examples of Significant Figures
Calculating Density
When calculating density, the result should reflect the least number of significant figures from the measurements used
Calculating Perimeter
The precision of the least precise measurement should be used when calculating perimeter
Rounding Rules
Rounding should be done according to specific rules, such as rounding up if the digit beyond the last significant figure is five or greater

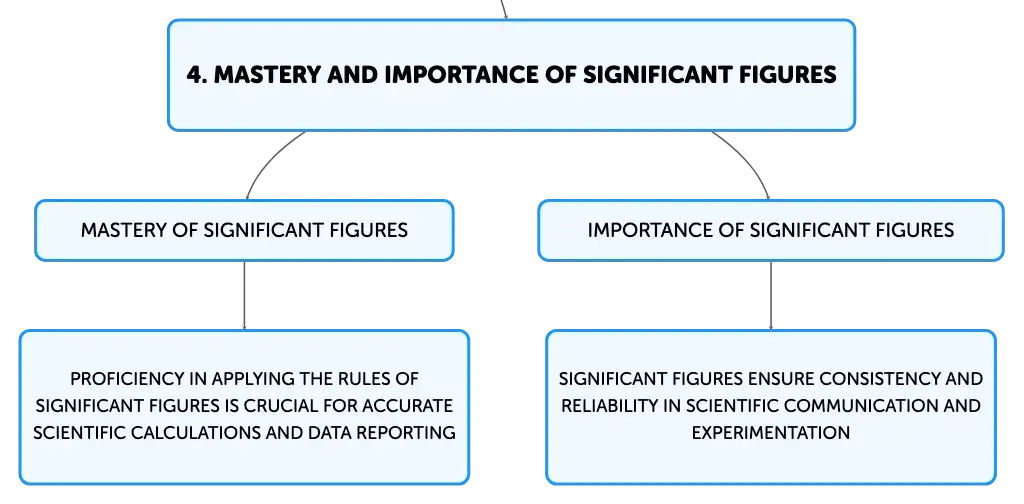

Mastery and Importance of Significant Figures
Mastery of Significant Figures
Proficiency in applying the rules of significant figures is crucial for accurate scientific calculations and data reporting
Importance of Significant Figures
Significant figures ensure consistency and reliability in scientific communication and experimentation
Significant Figures and Their Importance in Scientific Measurements
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
A car's mass reported as 1159 kg suggests the last digit is an ______; for greater precision, it would be 1159.0 kg, indicating ______ significant figures.
estimate
five
01
Non-zero digits significance
All non-zero digits in a number are always significant.
02
Significance of zeros between non-zeros
Zeros between non-zero digits are significant.
