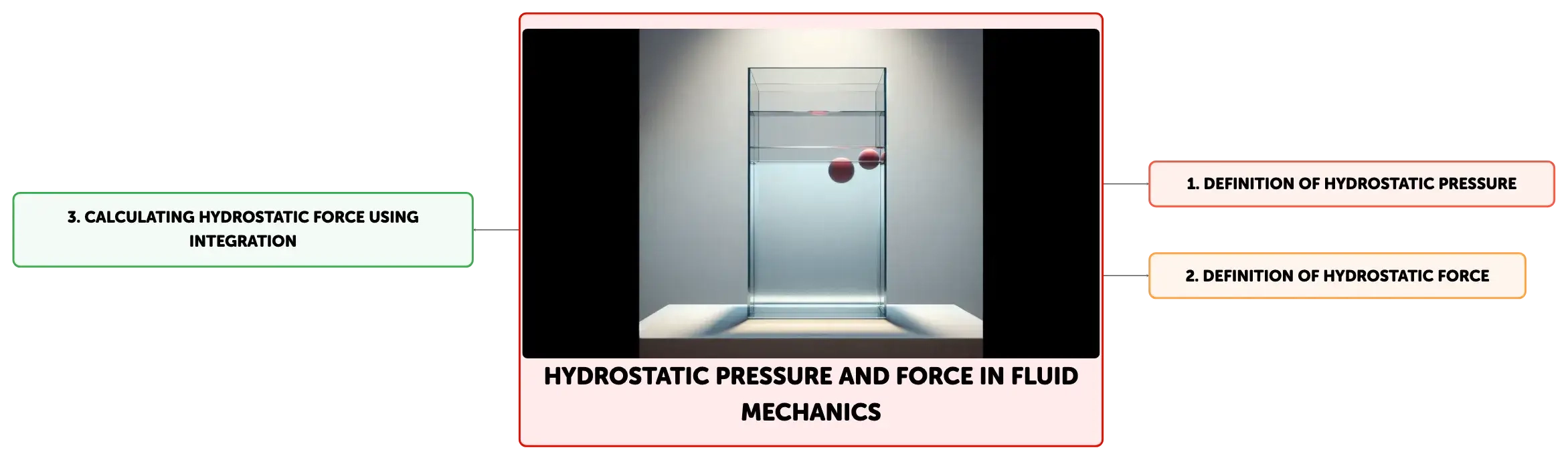

Hydrostatic Pressure and Force in Fluid Mechanics

Hydrostatic pressure is crucial for divers and underwater activities, as it affects safety and physiological responses. This text delves into the concept of hydrostatic pressure, its calculation using the formula P = ρgh, and the distinction between hydrostatic pressure and force. It also covers the calculation of hydrostatic forces on complex surfaces using calculus and integration, highlighting the importance of these principles in diving and engineering.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ pressure is crucial in fluid mechanics, especially for divers, as it is the pressure caused by a non-moving fluid due to gravity.

Click to check the answer

Hydrostatic

2

The pressure experienced by divers increases as they descend because it is directly related to the ______ of the fluid column.

Click to check the answer

height

3

To prevent decompression sickness, also known as 'the bends,' divers must ascend slowly to adjust to the ______ pressure.

Click to check the answer

reduced

4

Hydrostatic pressure unit

Click to check the answer

Measured in pascals (Pa).

5

Fluid density symbol in hydrostatic pressure formula

Click to check the answer

Represented by rho (ρ), in kg/m³.

6

Gravity's role in hydrostatic pressure

Click to check the answer

Gravity (g) affects pressure, standard value is 9.81 m/s² on Earth.

7

Hydrostatic force calculation principle

Click to check the answer

Uses calculus and integration to determine force on submerged surfaces.

8

Submerged flat plate force analysis

Click to check the answer

Divide plate into horizontal strips, integrate forces over surface for total force.

9

Influence of depth in hydrostatic force

Click to check the answer

Force calculation accounts for varying depth, affecting pressure on each element.

10

The overall force exerted by a fluid on a submerged object is found by ______ the forces calculated for each section of the object.

Click to check the answer

summing

11

Hydrostatic Pressure Equation

Click to check the answer

P = ρgh, where P is pressure, ρ is fluid density, g is gravity, h is depth.

12

Hydrostatic Force Calculation

Click to check the answer

F = PA, where F is force, P is pressure, A is area of submerged surface.

13

Integration in Hydrostatics

Click to check the answer

Used for complex shapes/varying depths to calculate forces on submerged objects.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Elastic Energy

View document

Physics

Work and Energy in Classical Mechanics

View document

Physics

Standard Units of Measurement

View document

Physics

Projectile Motion

View document

Exploring the Principles of Hydrostatic Pressure in Diving

Hydrostatic pressure is a key concept in fluid mechanics that is particularly pertinent to divers and those involved in underwater activities. It is the pressure exerted by a stationary fluid due to the gravitational force acting on the fluid column above the measurement point. This pressure increases with depth, as it is proportional to the height of the fluid column. For divers, a thorough understanding of hydrostatic pressure is vital for their safety. As divers go deeper, they experience greater water pressure, which can have significant physiological effects, such as decompression sickness if the ascent is not properly controlled. Divers must ascend gradually to allow their bodies to adapt to the reduced pressure and avoid the potentially life-threatening condition known as "the bends."
Clear glass aquarium with a metal divider creating two sections, a red rubber ball floats on the right side, set against a light grey background.

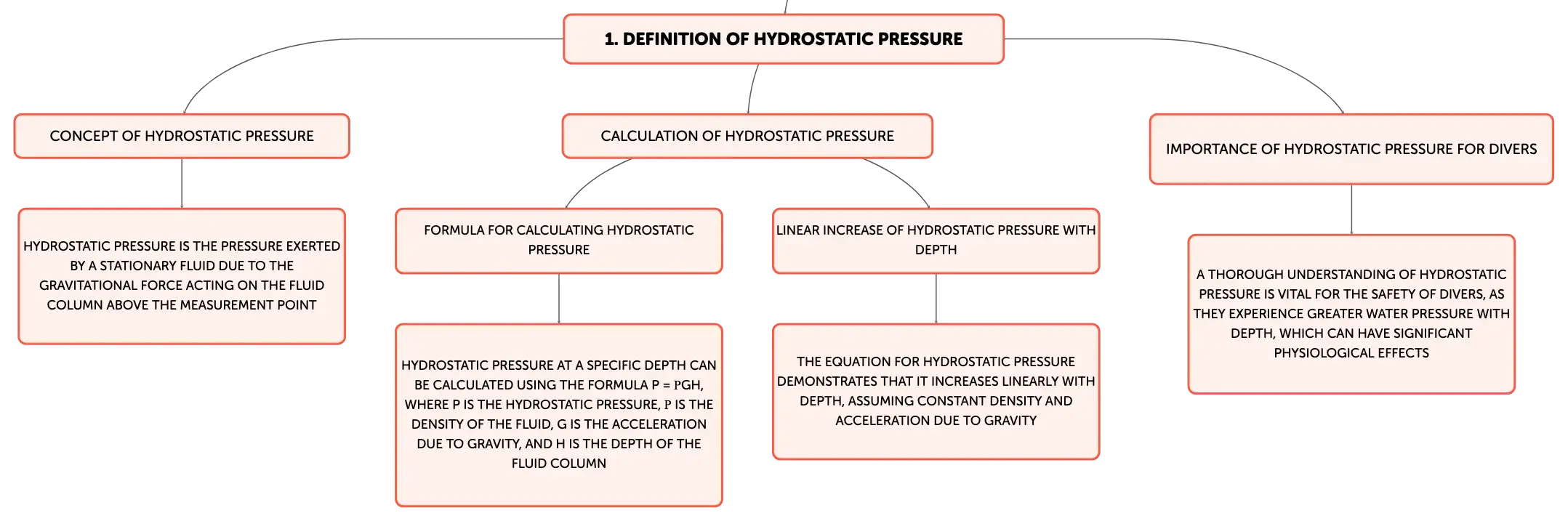

The Formula for Hydrostatic Pressure

Hydrostatic pressure at a specific depth can be calculated using the formula \(P = \rho gh\), where \(P\) is the hydrostatic pressure in pascals (\(\text{Pa}\)), \(\rho\) is the density of the fluid in kilograms per cubic meter (\(\text{kg}/\text{m}^3\)), \(g\) is the acceleration due to gravity (approximately \(9.81 \, \text{m}/\text{s}^2\) on Earth), and \(h\) is the depth of the fluid column in meters (\(\text{m}\)). This equation demonstrates that hydrostatic pressure increases linearly with depth, assuming that the fluid's density and the acceleration due to gravity are constant.

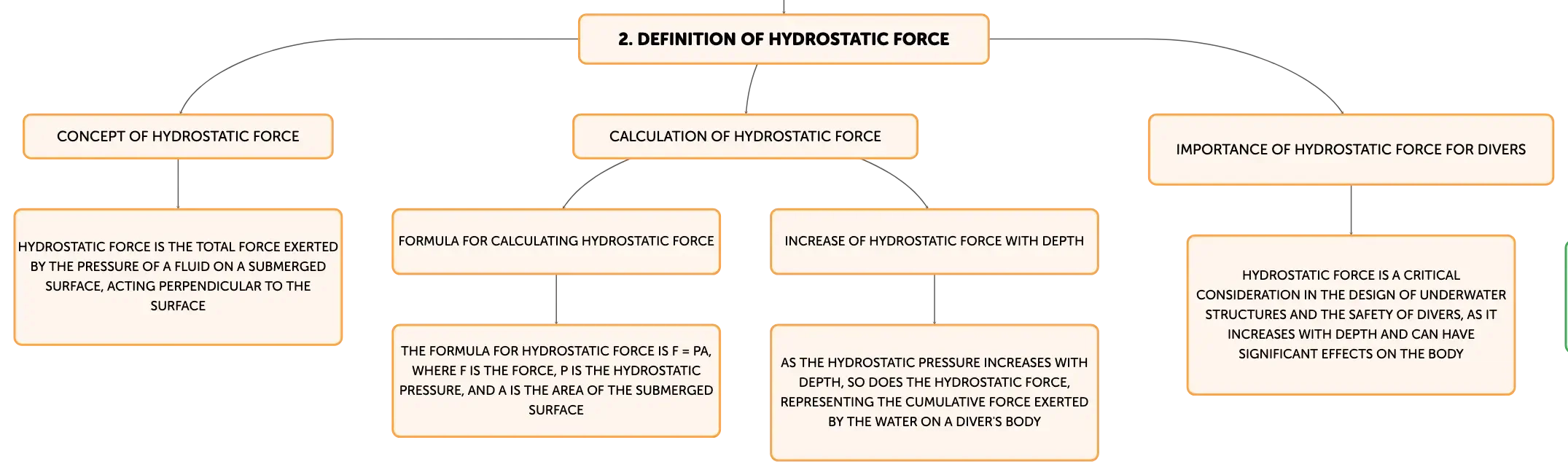

Distinguishing Between Hydrostatic Pressure and Hydrostatic Force

Hydrostatic pressure is the pressure exerted by a fluid at a given depth, while hydrostatic force is the total force exerted by this pressure on a submerged surface. Hydrostatic force is a vector quantity with both magnitude and direction, acting perpendicular to the surface in contact with the fluid. The formula to calculate hydrostatic force is \(F = PA\), where \(F\) is the force in Newtons (\(\text{N}\)), \(P\) is the hydrostatic pressure, and \(A\) is the area of the submerged surface in square meters (\(\text{m}^2\)). For divers, the hydrostatic force represents the cumulative force exerted by the water on their bodies, which increases with depth as the hydrostatic pressure increases.

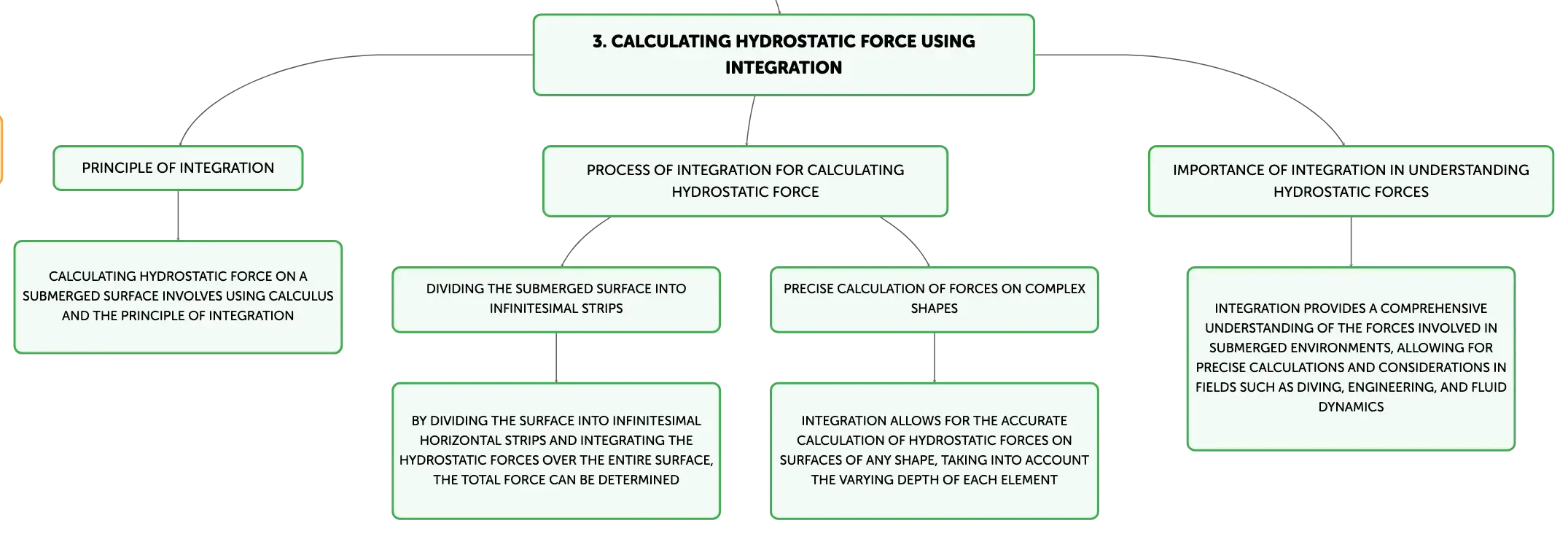

Calculating Hydrostatic Forces on Complex Surfaces

The calculation of hydrostatic force on a submerged surface, especially one with a complex shape, involves the use of calculus and the principle of integration. For instance, consider a flat plate submerged at an angle in water. By dividing the plate into infinitesimal horizontal strips, each with a differential height \(dy\) and width \(x(y)\), and integrating the hydrostatic forces over the entire surface, one can determine the total hydrostatic force on the plate. This approach allows for the precise calculation of forces on surfaces of any shape, taking into account the varying depth of each element.

Integrative Analysis of Hydrostatic Forces

An integrative approach to analyzing hydrostatic forces involves creating a detailed diagram of the submerged object and applying calculus to determine the total force. By integrating the pressure distribution over the entire submerged surface area, considering the varying depth of each element, a precise calculation of the total hydrostatic force can be achieved. For example, the forces on different sections of a submerged object can be calculated separately and then combined to ascertain the overall force exerted by the fluid. This process entails setting up the appropriate integrals for each section, evaluating them, and summing the results to find the total hydrostatic force.

Concluding Insights on Hydrostatic Pressure and Force

Hydrostatic pressure is an essential concept for understanding the behavior of fluids at rest and their interactions with submerged objects. The equation \(P = \rho gh\) is fundamental for calculating this pressure, which is crucial in fields such as diving, engineering, and fluid dynamics. Hydrostatic force, determined by the equation \(F = PA\), is the practical outcome of this pressure acting on a surface area. It is a critical consideration in the design of underwater structures and the safety of divers. Calculations involving complex shapes and varying depths can be accurately conducted using integration, providing a comprehensive understanding of the forces involved in submerged environments.
