Force Resolution in Physics and Engineering

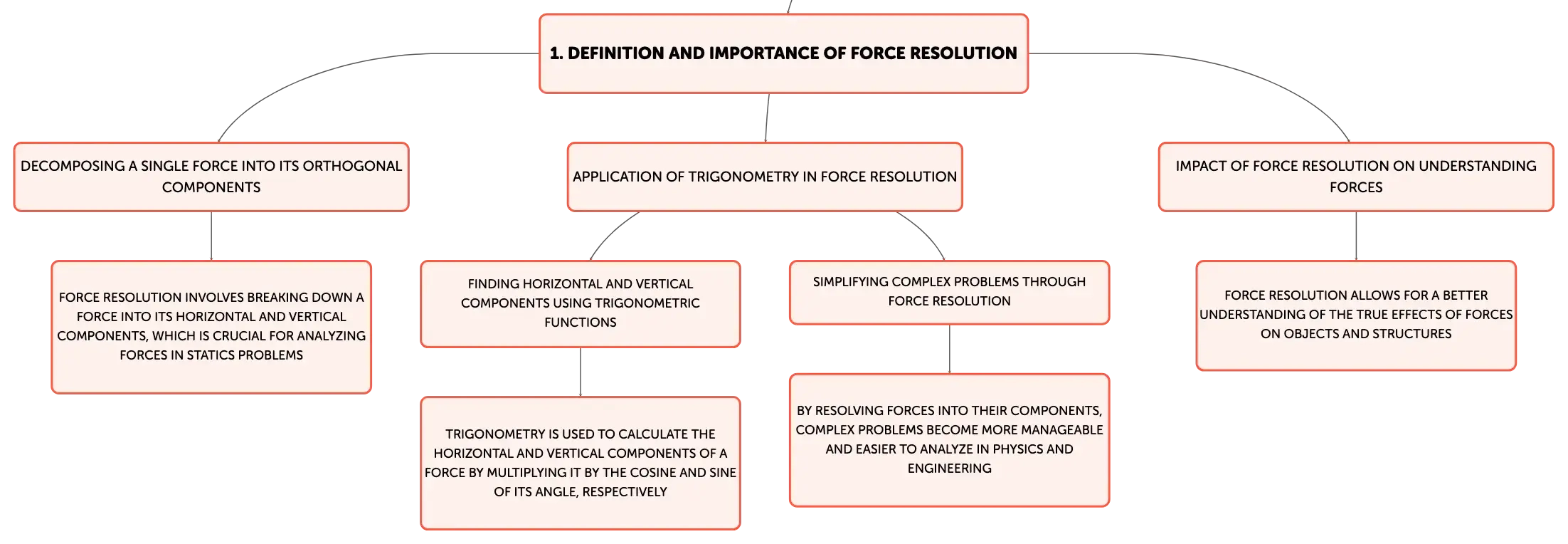

Principles of Force Resolution in Physics

Force resolution is a crucial technique in physics that entails decomposing a single force into its orthogonal components, typically along the horizontal and vertical axes. This method is vital for analyzing forces in statics problems, where forces are not aligned with the coordinate axes. By resolving a force into perpendicular components, the analysis of motion and the application of Newton's laws become more manageable. The horizontal component of a force is found by multiplying the force by the cosine of its angle with the horizontal, while the vertical component is obtained by multiplying the force by the sine of the angle. This breakdown simplifies complex problems and is essential for understanding the true impact of forces on objects.

Trigonometric Applications in Force Resolution

The application of trigonometry is integral to resolving forces into their Cartesian components. Consider a force of 60N applied at a 40-degree angle to the horizontal. This force can be resolved into a horizontal component (F1) and a vertical component (F2). By constructing a right-angled triangle with the force vector, F1 is calculated as 60N cos(40°), and F2 as 60N sin(40°), yielding F1 as approximately 45.9N and F2 as approximately 38.6N. These calculations allow the original force to be expressed in terms of its components along the standard axes, facilitating further analysis in physics and engineering problems.

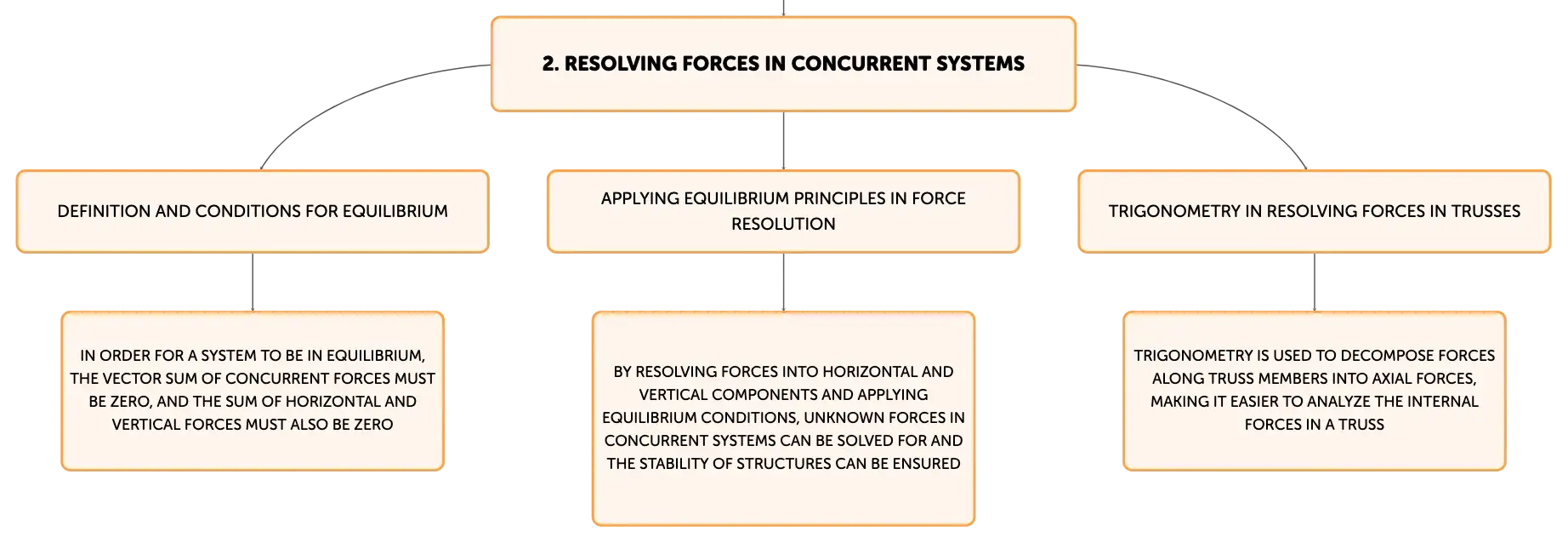

Equilibrium Conditions for Concurrent Forces

Concurrent forces are a set of forces that intersect at a common point. For a system to be in equilibrium, the vector sum of these forces must be zero, meaning there is no resultant force causing acceleration. To analyze such systems, forces are resolved into their horizontal and vertical components, and the conditions for equilibrium are applied: the sum of horizontal forces must equal zero, and the sum of vertical forces must also equal zero. By employing trigonometric relationships and the principles of equilibrium, one can solve for unknown forces and ensure the stability of structures or mechanical systems.

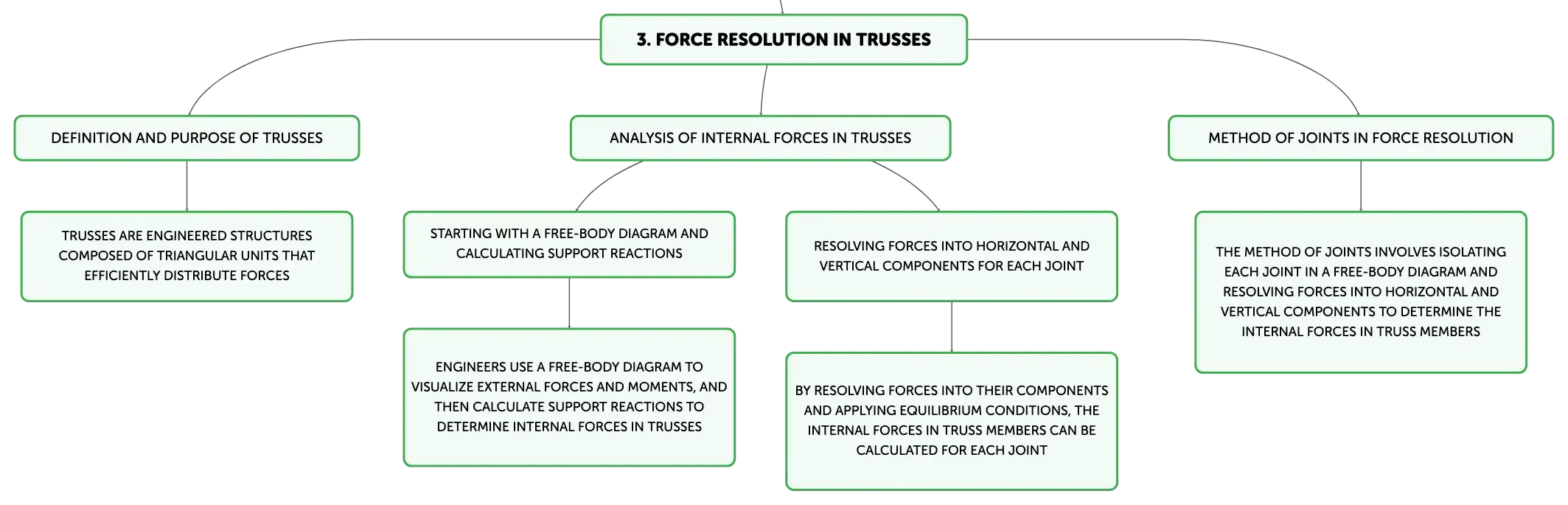

Force Analysis in Truss Structures

Trusses are engineered structures composed of triangular units that distribute forces efficiently. To analyze the internal forces in a truss, engineers start with a free-body diagram to visualize all external forces and moments. By choosing a joint with the most unknown forces as a pivot, the moments about that point can be calculated to determine the reaction forces. The analysis proceeds by resolving forces into horizontal and vertical components for the truss as a whole and then for each joint individually. Trigonometry is used to decompose the forces along the members into axial forces, which are easier to analyze.

The Method of Joints in Truss Analysis

The method of joints is a systematic approach to determine the forces in truss members, identifying whether they are in tension or compression. After the support reactions are computed, each joint is isolated in a free-body diagram, showing the forces exerted by connected members. By resolving these forces into horizontal and vertical components and applying equilibrium conditions, the internal forces in the truss members can be calculated. This process is repeated for each joint, allowing for a detailed assessment of the truss's structural behavior under load.

Concluding Insights on Force Resolution

Mastering the resolution of forces is essential in physics and engineering for the accurate analysis of systems in equilibrium. By decomposing a force into horizontal and vertical components, the effects of forces acting at various angles can be thoroughly understood. Trigonometry plays a pivotal role in this process, enabling precise calculations of component forces. A firm grasp of force resolution and equilibrium principles is indispensable for solving statics problems and ensuring the design of stable and safe structures.
