Projectile Motion

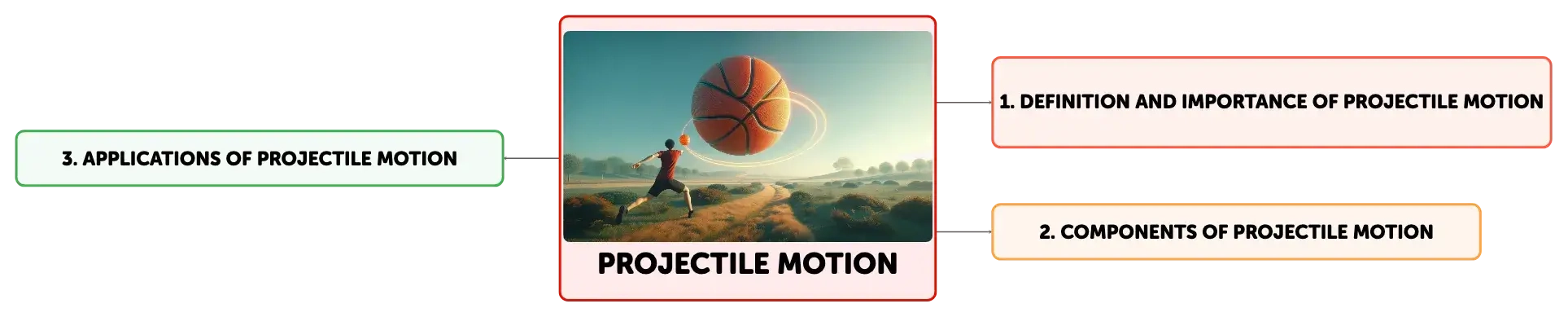

Concept Map
Projectile motion in mechanics involves analyzing the trajectory of objects under gravity's influence. It's essential for solving practical problems in engineering, sports, and physical sciences. The motion is broken down into horizontal and vertical components, with equations describing each. These principles are applied in designing vehicles, optimizing sports techniques, and understanding physical laws. Adapting trajectory equations for different scenarios, such as air resistance, showcases their versatility.
Summary
Outline
Understanding Projectile Motion in Mechanics
Projectile motion is a key concept in mechanics, an area of physics that is integral to solving practical problems and deepening the understanding of physical principles. The trajectory of a projectile is the path it takes under the influence of gravity and other forces. Analyzing this motion involves decomposing it into horizontal and vertical components. Horizontally, the motion is uniform, while vertically, it is uniformly accelerated due to gravity. The equations of motion for each component are \( x = v_{0x}t \) for horizontal displacement and \( y = v_{0y}t - \frac{1}{2}gt^2 \) for vertical displacement, where \(x\) and \(y\) are the displacements, \(v_{0x}\) and \(v_{0y}\) are the initial velocity components, \(g\) is the acceleration due to gravity, and \(t\) is the time.The Significance of Projectile Trajectory Analysis
The study of projectile trajectories is crucial in fields such as engineering, sports, and the physical sciences. Engineers use these principles to design vehicles and structures, with aerospace engineers calculating rocket trajectories and civil engineers considering the forces on bridges. In sports, the principles of projectile motion can optimize techniques, such as the angle at which a soccer ball is kicked. In physics and mathematics education, projectile motion serves as an introduction to the laws of motion and gravity, paving the way for more complex topics like energy conservation and oscillatory motion.Derivation of the Projectile Trajectory Equation
Deriving the projectile trajectory equation is fundamental for its analysis. The equation is derived by considering the constant horizontal velocity and the vertically accelerated motion due to gravity. The horizontal displacement is \( x = v_{0x}t \), and the vertical displacement is \( y = v_{0y}t - \frac{1}{2}gt^2 \). By eliminating the time variable with \( t = \frac{x}{v_{0x}} \) and substituting it into the vertical displacement equation, we obtain the trajectory equation: \( y = v_{0y}\frac{x}{v_{0x}} - \frac{1}{2}g\frac{x^2}{v_{0x}^2} \), which relates the horizontal and vertical components of the motion.Components of the Trajectory Equation
The trajectory equation includes several components that determine the path of the projectile. These are the initial velocity components (\(v_{0x}\) and \(v_{0y}\)), which set the launch conditions; the displacements (\(x\) and \(y\)), which trace the projectile's path; the time (\(t\)), which indicates the duration of flight; and the gravitational acceleration (\(g\)), which influences the vertical motion. Understanding these factors is essential for comprehending projectile dynamics.Utilizing the Trajectory Equation in Mechanics Problems
Applying the trajectory equation in mechanics problems involves using the formula to find unknown variables or to predict the projectile's path. This includes calculating the initial velocity components, determining the horizontal and vertical displacements, and finding the maximum height, range, and time of flight. For instance, with a known initial velocity and launch angle, one can calculate the projectile's maximum height, range, and duration of flight by applying the trajectory equation.Practical Applications of Projectile Trajectories
Projectile trajectories are widely applied in various industries. In space exploration, they are crucial for spacecraft trajectory design and re-entry calculations. Military applications include targeting and guidance systems for artillery and missiles. Civil engineers use these principles for structural design and fluid dynamics analysis. In sports, understanding projectile motion can enhance athletic techniques and performance. For example, in designing a dam, engineers would study the trajectories of water particles to predict flow patterns and construct spillways that effectively manage flood risks.Adapting Trajectory Equations for Various Scenarios
Trajectory equations can be adapted for different scenarios, such as horizontal or angled launches, and can be modified to account for air resistance. For horizontal launches, the trajectory equation simplifies, while for angled launches, the initial velocities are determined by the launch angle. When air resistance is considered, the equations become more complex and may require numerical methods for solution. These adaptations show the flexibility of trajectory equations in analyzing diverse practical situations.
Show More

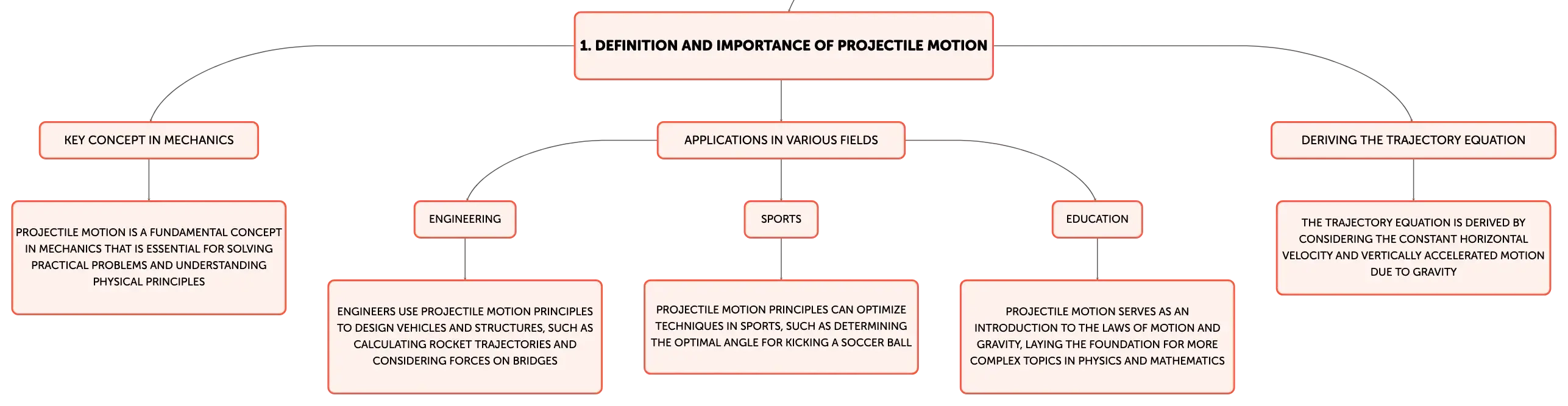

Definition and Importance of Projectile Motion
Key concept in mechanics
Projectile motion is a fundamental concept in mechanics that is essential for solving practical problems and understanding physical principles
Applications in various fields
Engineering
Engineers use projectile motion principles to design vehicles and structures, such as calculating rocket trajectories and considering forces on bridges
Sports
Projectile motion principles can optimize techniques in sports, such as determining the optimal angle for kicking a soccer ball
Education
Projectile motion serves as an introduction to the laws of motion and gravity, laying the foundation for more complex topics in physics and mathematics
Deriving the trajectory equation
The trajectory equation is derived by considering the constant horizontal velocity and vertically accelerated motion due to gravity

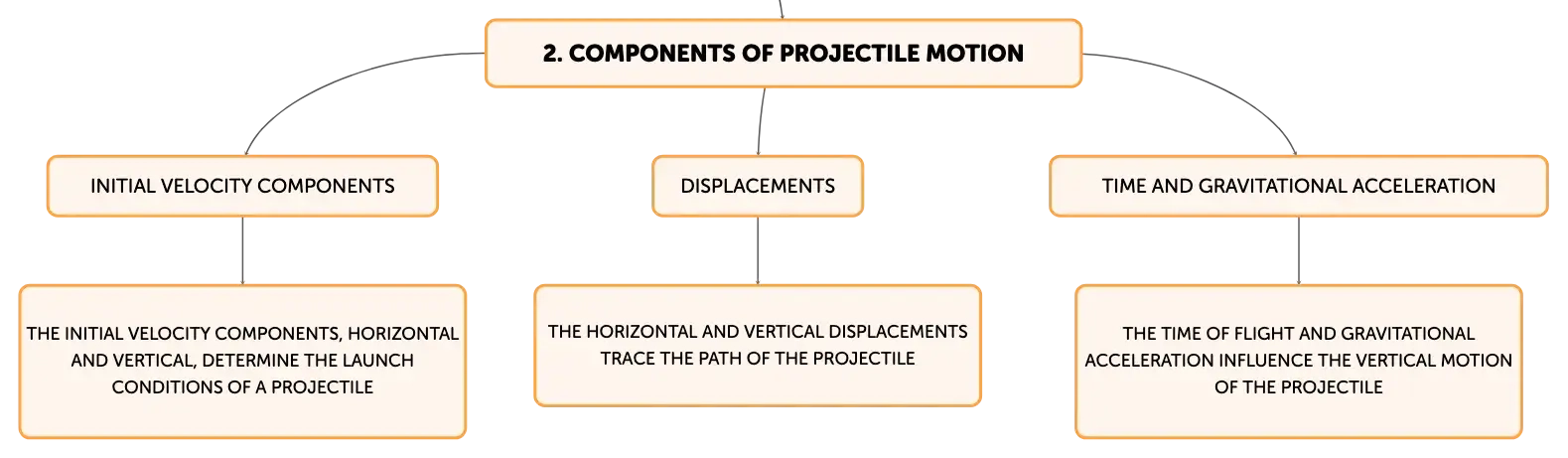

Components of Projectile Motion
Initial velocity components
The initial velocity components, horizontal and vertical, determine the launch conditions of a projectile
Displacements
The horizontal and vertical displacements trace the path of the projectile
Time and gravitational acceleration
The time of flight and gravitational acceleration influence the vertical motion of the projectile

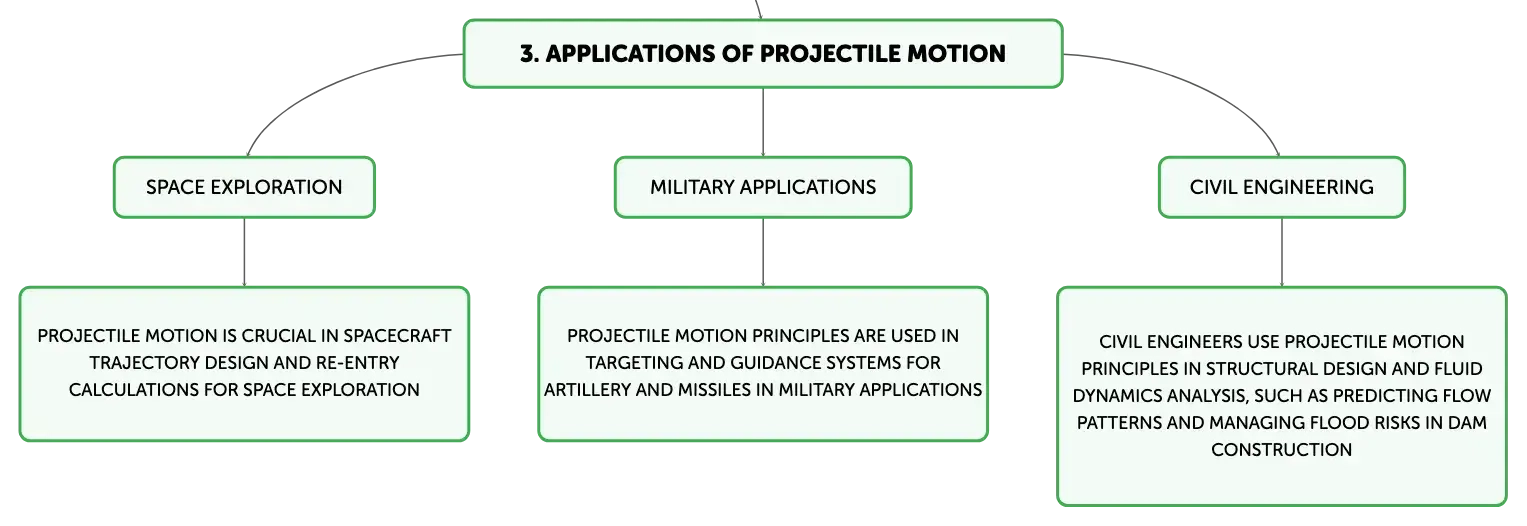

Applications of Projectile Motion
Space exploration
Projectile motion is crucial in spacecraft trajectory design and re-entry calculations for space exploration
Military applications
Projectile motion principles are used in targeting and guidance systems for artillery and missiles in military applications
Civil engineering
Civil engineers use projectile motion principles in structural design and fluid dynamics analysis, such as predicting flow patterns and managing flood risks in dam construction
Projectile Motion
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Projectile trajectory definition
Path taken by a projectile under gravity and other forces' influence.
01
Horizontal motion characteristic in projectile motion
Uniform motion with constant velocity, no acceleration.
02
Vertical motion equations for projectile motion
Displacement y = v0yt - 1/2gt^2, with uniformly accelerated motion due to gravity.
