Kinematics

Exploring the Fundamentals of Kinematics

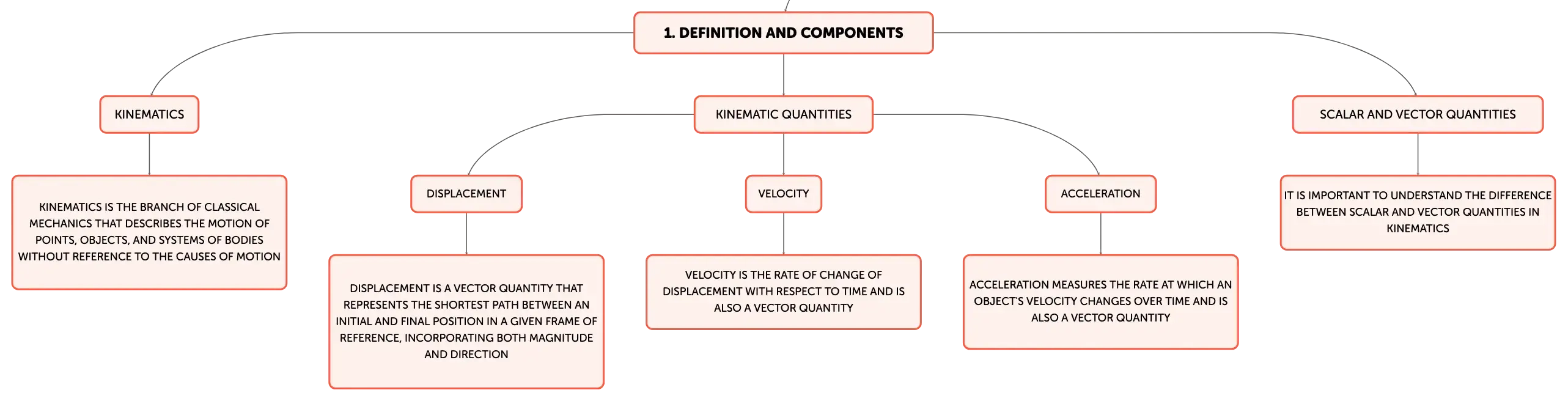

Kinematics is the branch of classical mechanics that describes the motion of points, objects, and systems of bodies without reference to the causes of motion, namely forces. It encompasses the study of the trajectories of objects and involves the analysis of various kinematic quantities such as displacement, velocity, and acceleration. Displacement is a vector quantity that represents the shortest path between an initial and final position in a given frame of reference, incorporating both magnitude and direction. Velocity is the rate of change of displacement with respect to time and is also a vector quantity. Acceleration, another vector, measures the rate at which an object's velocity changes over time.

Distinguishing Scalar and Vector Quantities

In kinematics, it is essential to understand the difference between scalar and vector quantities. Scalar quantities, such as mass, temperature, and time, have only magnitude and are described by a numerical value in a specific unit. They can be added, subtracted, multiplied, and divided like ordinary numbers. Vector quantities, on the other hand, have both magnitude and direction. Examples include displacement, velocity, and force. Vectors are graphically represented by arrows, where the length corresponds to the magnitude and the arrowhead indicates the direction. Vector operations, such as addition and multiplication by a scalar, follow specific rules that differ from those applied to scalars.

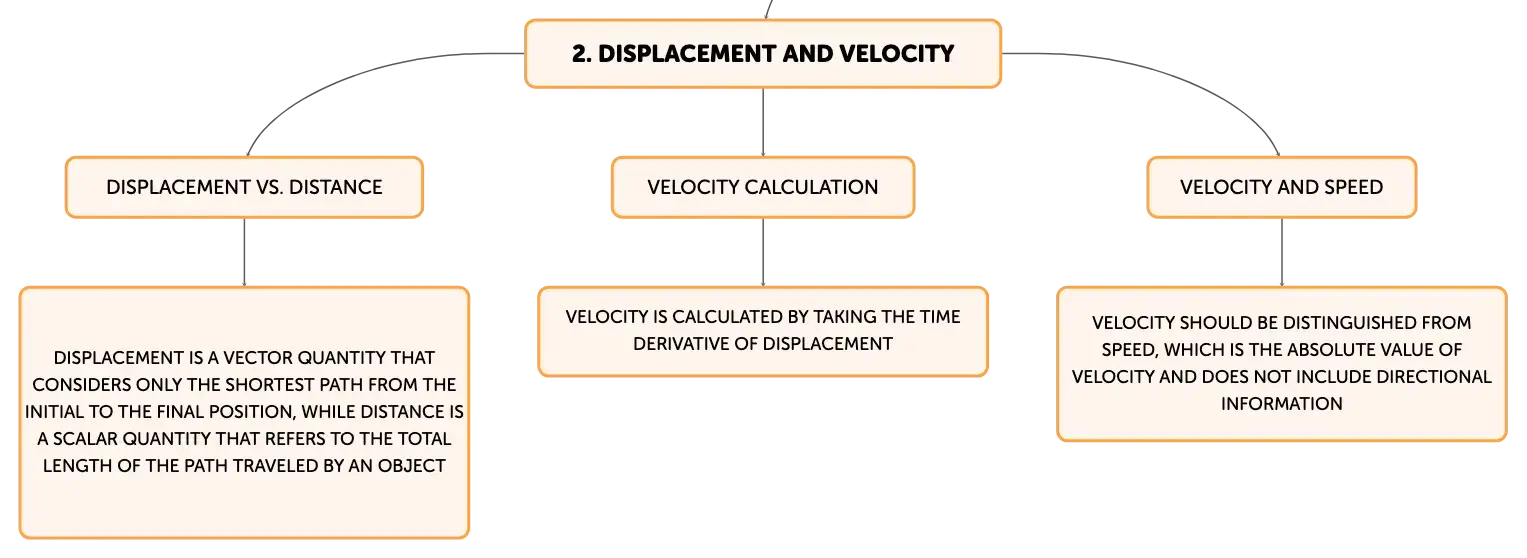

Displacement Versus Distance

It is important not to confuse displacement with distance. Distance is a scalar quantity that refers to the total length of the path traveled by an object, without regard to direction. Displacement, being a vector, considers only the shortest path from the initial to the final position, along with the direction of that path. For example, if an object travels in a circle and returns to its starting point, the distance traveled is the circumference of the circle, while the displacement is zero because the initial and final positions coincide.

Calculating Velocity from Displacement

Velocity is calculated by taking the time derivative of displacement. Represented by the symbol 'v', velocity is the first derivative of displacement (s) with respect to time (t), mathematically expressed as \(v = \frac{ds}{dt}\). The direction of velocity is indicated by its sign, with positive values typically denoting motion in one direction (e.g., to the right) and negative values denoting motion in the opposite direction (e.g., to the left). When velocity is zero, the object is at rest. A change in the sign of velocity indicates a reversal in direction. Velocity should be distinguished from speed, which is the absolute value of velocity and does not include directional information.

Determining Displacement from Velocity

To find displacement when given velocity, one must integrate the velocity function with respect to time. This mathematical operation is the reverse of differentiation and is symbolized by the integral sign. The result of integrating velocity is the displacement function, which includes a constant of integration. This constant can be determined by knowing the initial conditions of the system, such as the initial displacement. The constant is crucial for accurately describing the motion of the object over time.

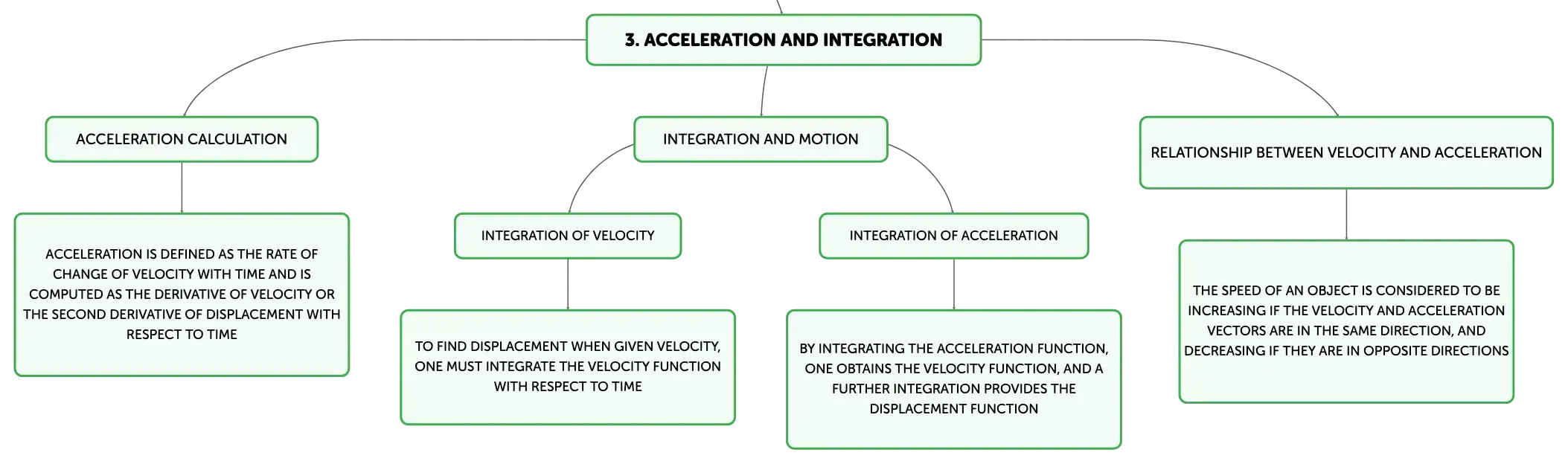

Understanding Acceleration in Motion

Acceleration, denoted by 'a', is defined as the rate of change of velocity with time and is computed as the derivative of velocity or the second derivative of displacement with respect to time. Its units are meters per second squared (m/s²). Acceleration can be positive, indicating an increase in velocity, or negative, indicating a decrease. By integrating the acceleration function, one obtains the velocity function, and a further integration provides the displacement function. These integrations introduce constants of integration that are determined by the initial conditions of the motion.

Analyzing Speed and Acceleration

The speed of an object is considered to be increasing if the velocity and acceleration vectors are in the same direction, whether both are positive or negative. If velocity and acceleration vectors are in opposite directions, the object's speed is decreasing. This principle is vital for interpreting the behavior of moving objects and for predicting their future motion based on current kinematic variables.

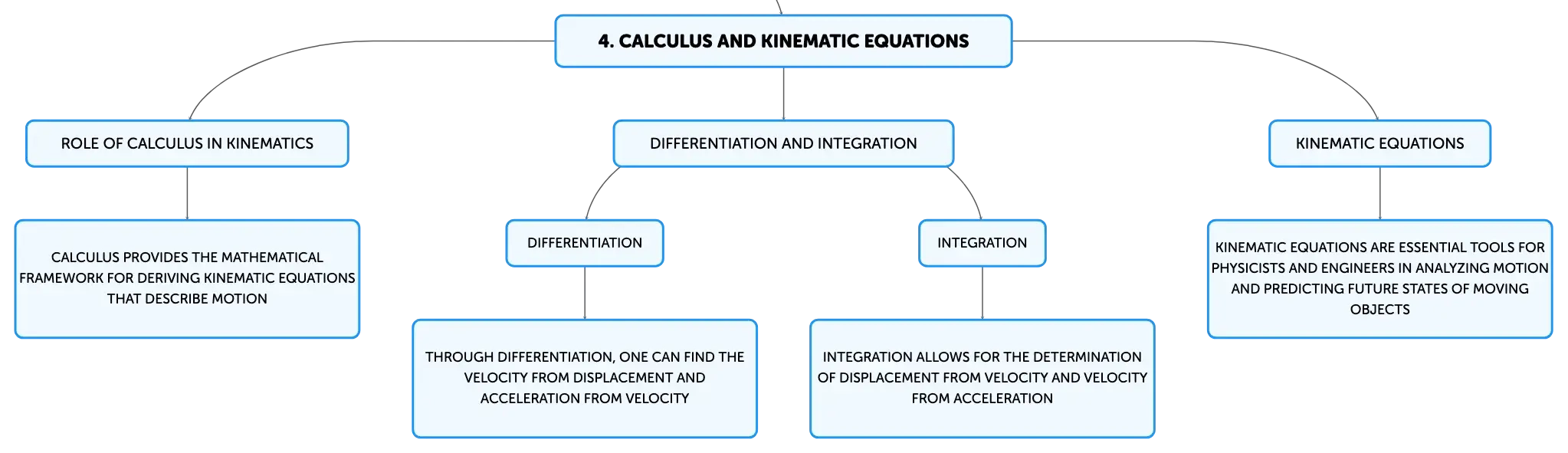

The Role of Calculus in Kinematic Equations

Calculus is integral to kinematics, providing the mathematical framework for deriving kinematic equations that describe motion. Through differentiation, one can find the velocity from displacement and acceleration from velocity. Conversely, integration allows for the determination of displacement from velocity and velocity from acceleration. These relationships are summarized in kinematic equations, which are essential tools for physicists and engineers in analyzing motion and predicting future states of moving objects.
