Quadratic Functions and Graphs

Exploring the Characteristics of Quadratic Graphs

Quadratic graphs represent quadratic functions, which are second-degree polynomials characterized by their highest power of the variable \(x\) being 2. These graphs are depicted as parabolas, symmetrical curves that open either upwards or downwards. The vertex form of a quadratic function is \(f(x)=a(x-h)^2+k\), where \(a\), \(h\), and \(k\) are constants that define the parabola's shape and position. The coefficient \(a\) affects the parabola's width and orientation, with positive values indicating an upward opening and negative values a downward opening. The parameters \(h\) and \(k\) correspond to the vertex's horizontal and vertical positions, respectively, allowing for easy identification of the parabola's maximum or minimum point.

The Vertex Form of a Quadratic Function

The vertex form of a quadratic function, \(f(x)=a(x-h)^2+k\), is particularly useful for graphing as it directly reveals the parabola's vertex at the point \( (h, k) \) and the direction of its opening based on the sign of \(a\). The vertex represents the peak or trough of the parabola, and the value of \(a\) determines its width; a larger absolute value of \(a\) results in a narrower parabola, while a smaller absolute value yields a wider one. This form is more convenient than the general form \(ax^2+bx+c\) for graphing purposes, as it simplifies the identification of the parabola's key features and the effects of shifts along the axes.

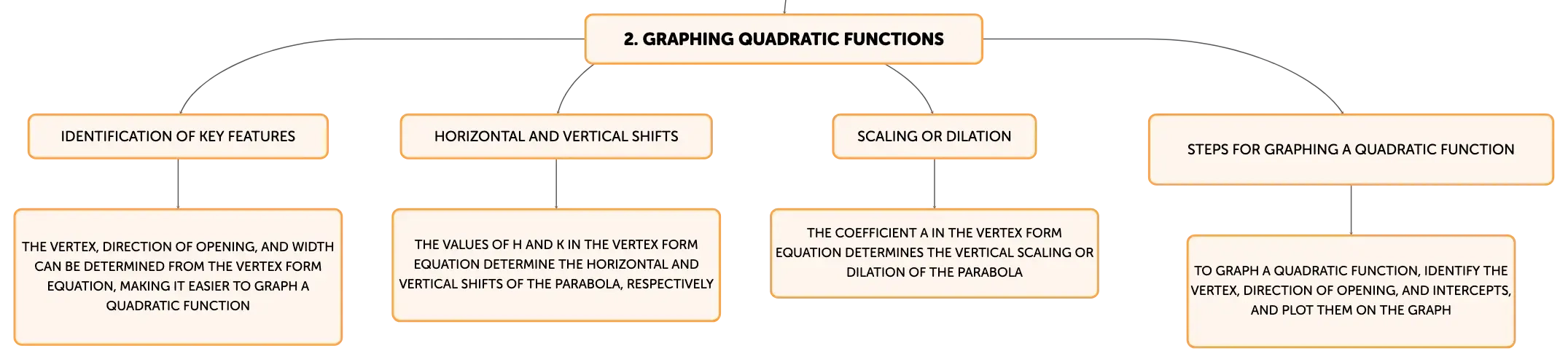

Plotting Quadratic Functions Using Vertex Form

When plotting a quadratic function in vertex form, it is essential to understand how the constants \(a\), \(h\), and \(k\) influence the graph. The coefficient \(a\) determines whether the parabola opens upwards or downwards and its degree of stretch or compression. A parabola is narrower when \(|a|>1\) and wider when \(0

The Significance of the Vertex in Quadratic Graphs

The vertex is a pivotal feature in the graph of a quadratic function, marking the highest or lowest point on the parabola, depending on its orientation. Located at \( (h, k) \), the vertex is the point from which the parabola is symmetrically shaped and is the key to understanding the graph's response to horizontal and vertical shifts. Recognizing the vertex's location allows for a straightforward determination of the parabola's direction and the extent of its translation, thereby facilitating the graphing process.

Translating and Scaling Parabolas

Translation of a parabola refers to its movement along the coordinate axes without changing its shape. A parabola is translated horizontally by changing the value of \(h\), with positive values indicating a shift to the right and negative values to the left. Vertical translation is achieved by adjusting \(k\), with positive values raising the parabola and negative values lowering it. Scaling, or dilation, involves changing the parabola's size vertically through the coefficient \(a\). An absolute value of \(a\) greater than 1 results in a steeper, more compressed parabola, while an absolute value between 0 and 1 produces a flatter, more expanded shape.

Step-by-Step Guide to Sketching Quadratic Functions

To sketch a quadratic function, begin by identifying the vertex from the vertex form equation, which provides the initial reference point. Determine the direction of the parabola's opening based on the sign of \(a\) and assess the width by the absolute value of \(a\). Calculate the \(x\)-intercepts by setting \(f(x)\) to zero and solving for \(x\), and find the \(y\)-intercept by setting \(x\) to zero and solving for \(y\). Plot these intercepts along with the vertex to outline the parabola's shape on the graph.

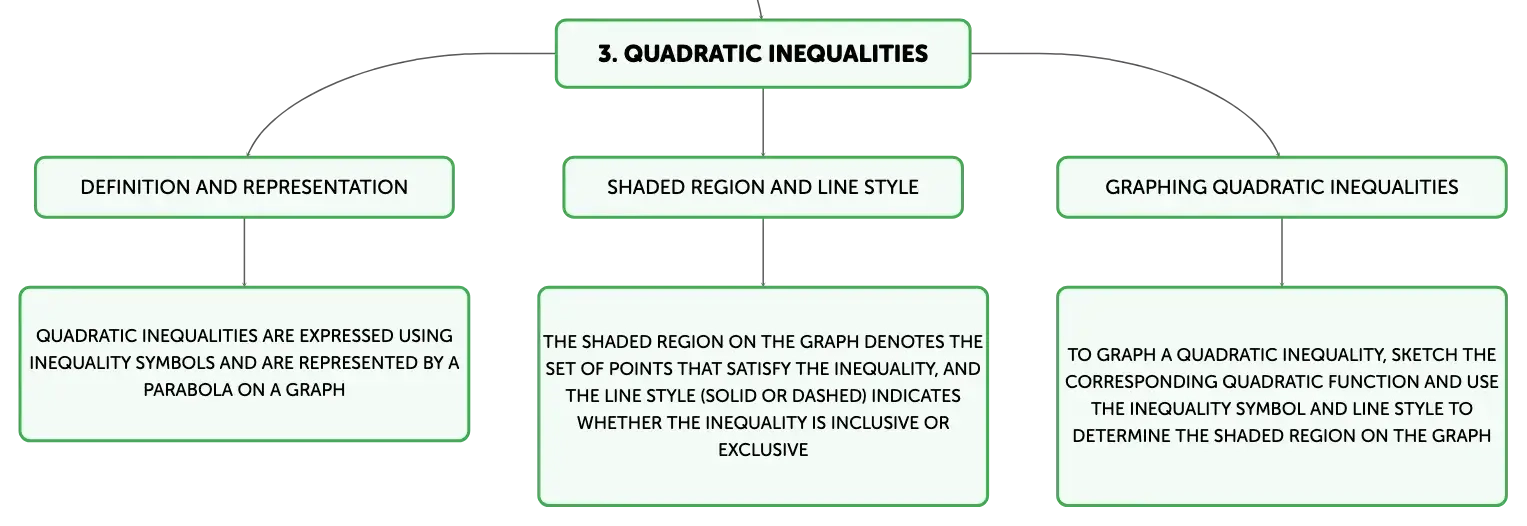

Interpreting Quadratic Inequalities and Their Graphical Representations

Quadratic inequalities are expressed using inequality symbols rather than an equal sign and involve the same quadratic expressions as quadratic functions. The graph of a quadratic inequality features a parabola that may be represented by a solid or dashed line, indicating whether the inequality is inclusive (\(\ge\) or \(\le\)) or exclusive (\(>\) or \(

Graphing Quadratic Inequalities: A Step-by-Step Approach

To graph a quadratic inequality, start by sketching the corresponding quadratic function to establish the parabola's shape and position. The vertex, direction of opening, and intercepts are identified in the same manner as for a quadratic function. The inequality symbol determines whether the solution set, represented by the shaded area, is above or below the parabola. Use a dashed line for strict inequalities (\(>\) or \(

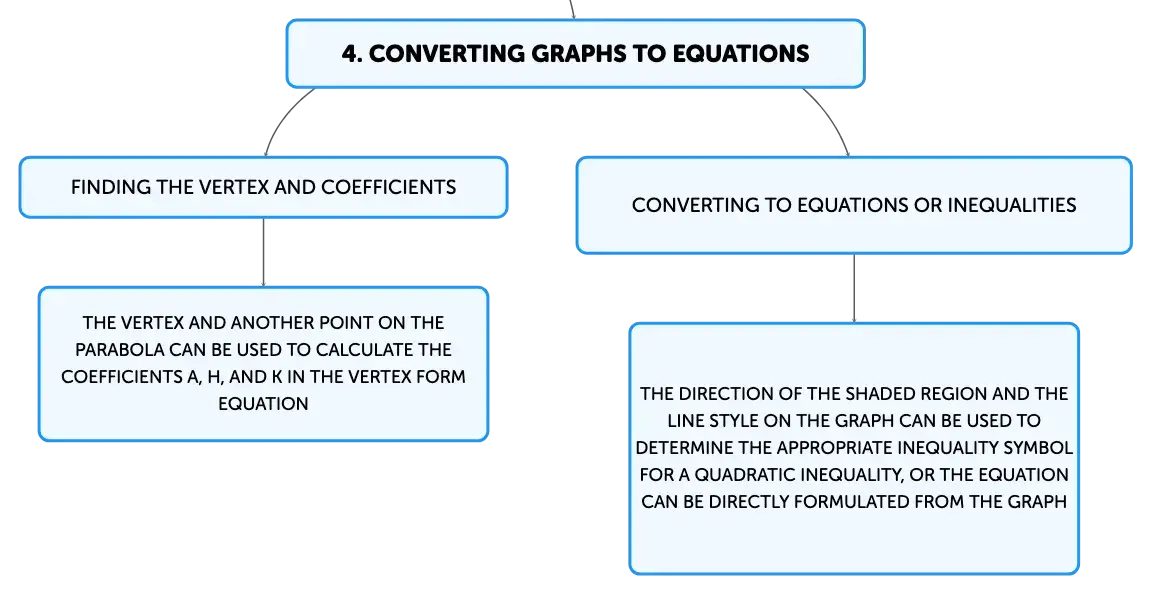

Deriving the Equation of a Quadratic Function from Its Graph

To formulate the equation of a quadratic function from its graph, locate the vertex to obtain the \(h\) and \(k\) values for the vertex form equation. Identifying another point on the parabola allows for the calculation of the coefficient \(a\). When dealing with an inequality, the direction of the shaded area and the line style used on the graph (solid or dashed) indicate the appropriate inequality symbol. This method enables the conversion of a graphical representation into a precise mathematical equation or inequality.
