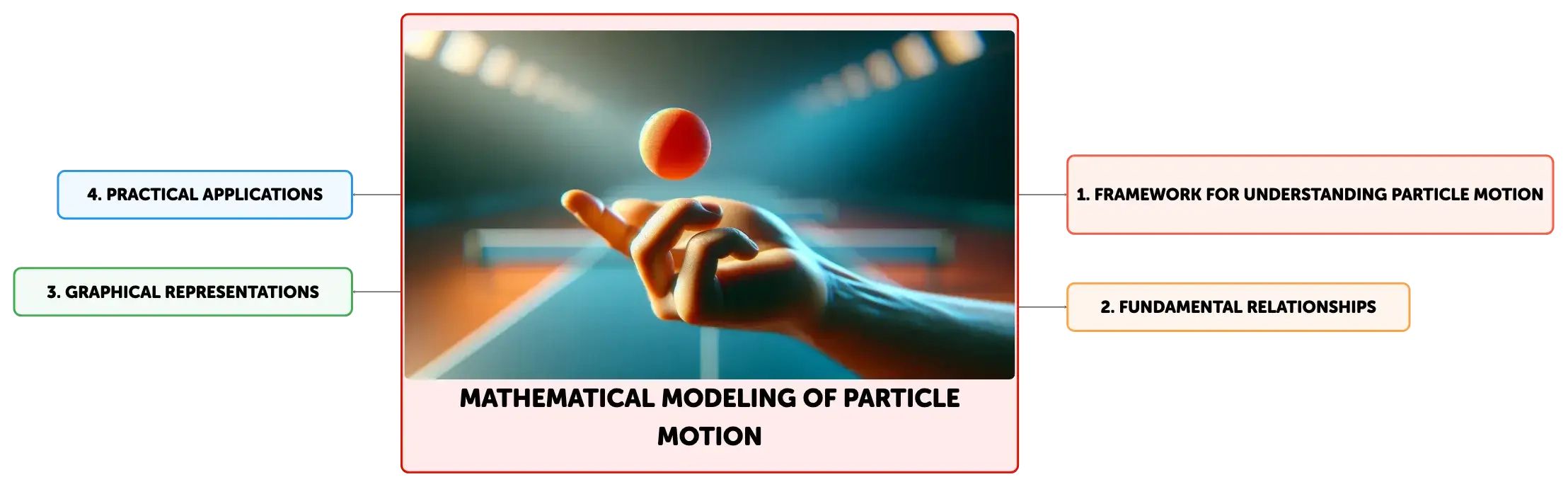

Mathematical Modeling of Particle Motion

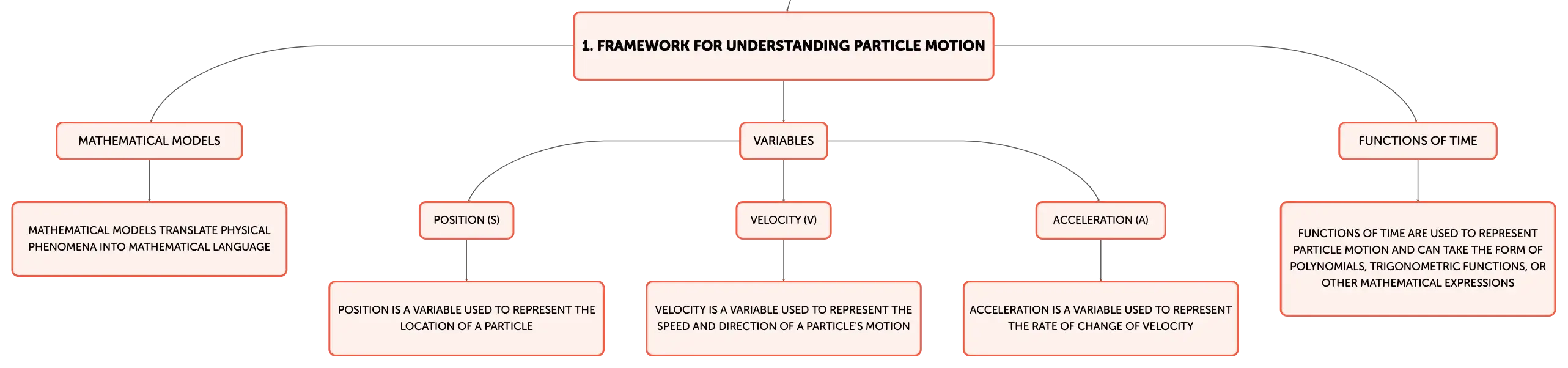

Framework for Understanding Particle Motion

Mathematical Models

Mathematical models translate physical phenomena into mathematical language

Variables

Position (s)

Position is a variable used to represent the location of a particle

Velocity (v)

Velocity is a variable used to represent the speed and direction of a particle's motion

Acceleration (a)

Acceleration is a variable used to represent the rate of change of velocity

Functions of Time

Functions of time are used to represent particle motion and can take the form of polynomials, trigonometric functions, or other mathematical expressions

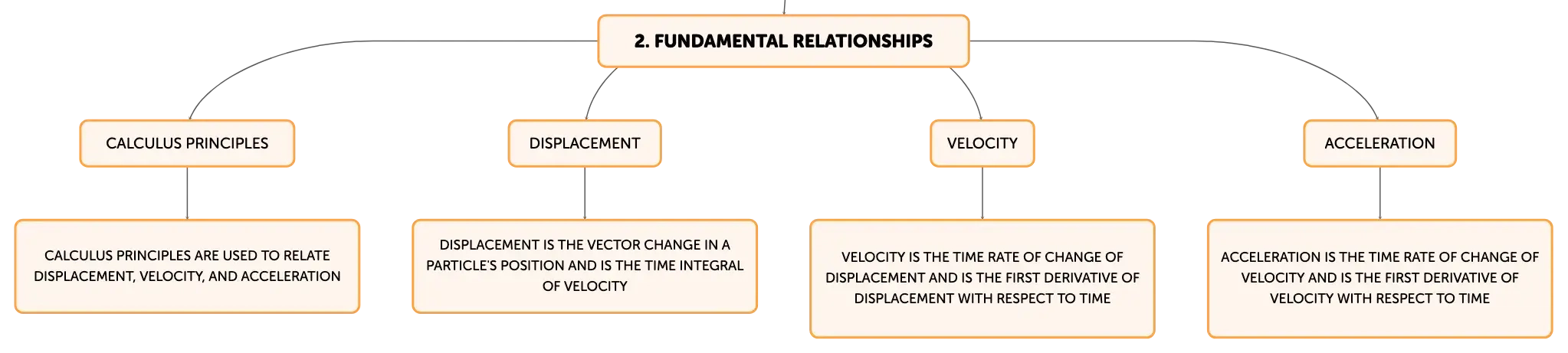

Fundamental Relationships

Calculus Principles

Calculus principles are used to relate displacement, velocity, and acceleration

Displacement

Displacement is the vector change in a particle's position and is the time integral of velocity

Velocity

Velocity is the time rate of change of displacement and is the first derivative of displacement with respect to time

Acceleration

Acceleration is the time rate of change of velocity and is the first derivative of velocity with respect to time

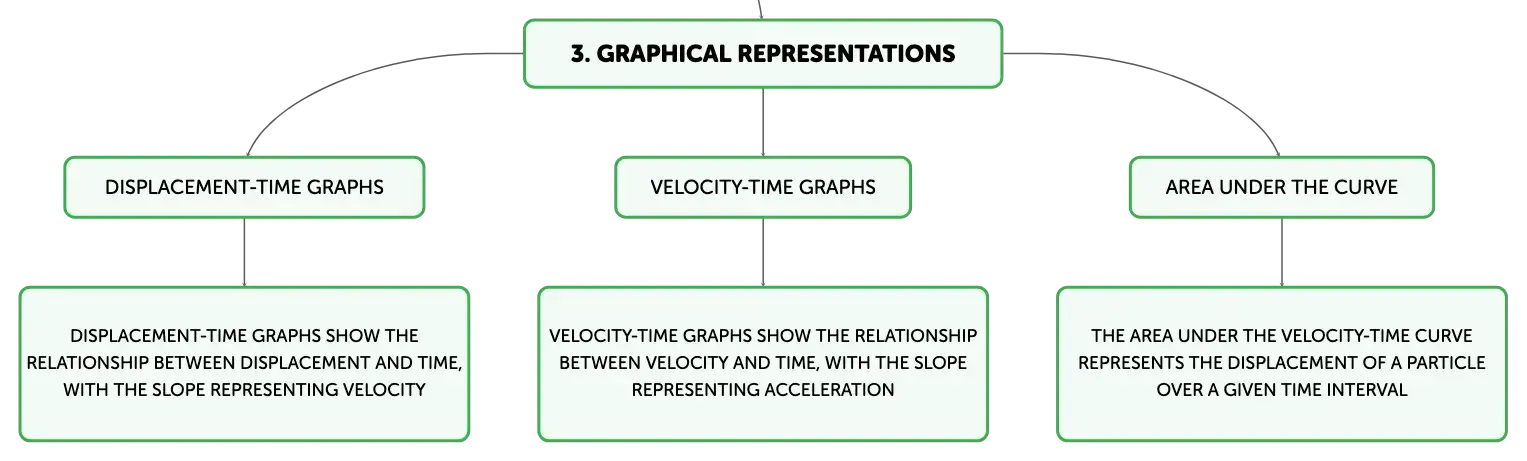

Graphical Representations

Displacement-Time Graphs

Displacement-time graphs show the relationship between displacement and time, with the slope representing velocity

Velocity-Time Graphs

Velocity-time graphs show the relationship between velocity and time, with the slope representing acceleration

Area Under the Curve

The area under the velocity-time curve represents the displacement of a particle over a given time interval

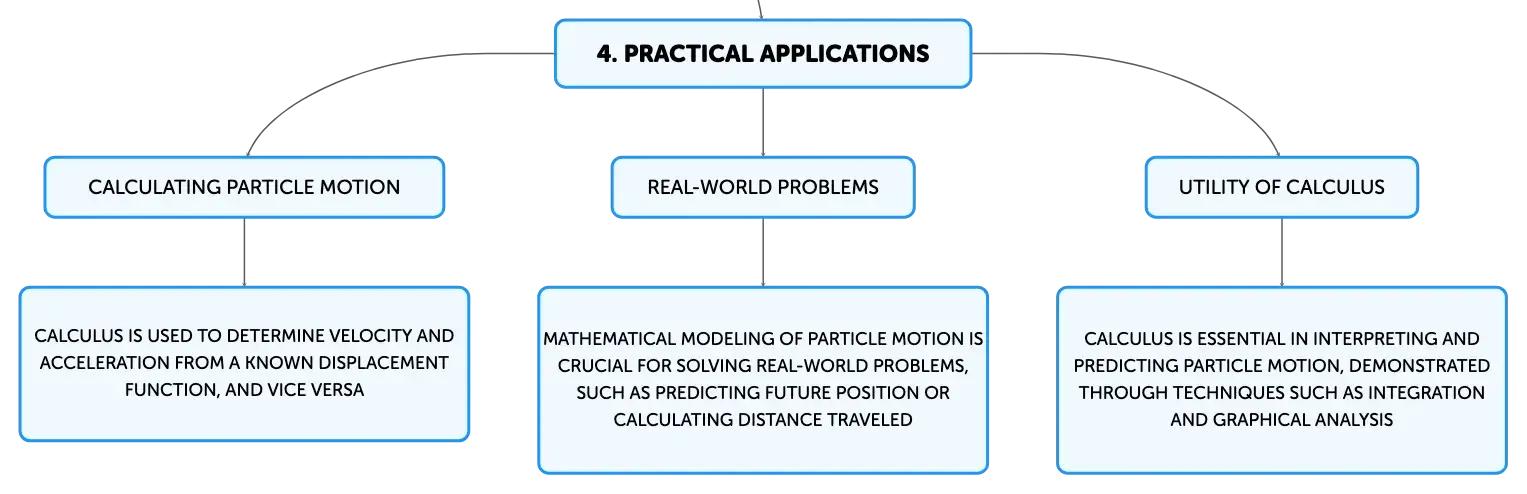

Practical Applications

Calculating Particle Motion

Calculus is used to determine velocity and acceleration from a known displacement function, and vice versa

Real-World Problems

Mathematical modeling of particle motion is crucial for solving real-world problems, such as predicting future position or calculating distance traveled

Utility of Calculus

Calculus is essential in interpreting and predicting particle motion, demonstrated through techniques such as integration and graphical analysis

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Define displacement function s(t)

s(t) represents particle position over time, often a polynomial.

Relationship between s(t), v(t), and a(t)

v(t) is the first derivative of s(t), a(t) is the first derivative of v(t).

Interpretation of acceleration function a(t)

a(t) describes the rate of change of velocity over time.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Wooden seesaw with metallic sphere weight on one end, balanced on a triangular fulcrum in a grassy field under a clear blue sky.

Work and Energy in Classical Mechanics

Laser beam experiment setup on a white table with a protractor and a stationary spherical pendulum in a blurred laboratory background.

The Small Angle Approximation

Soccer player in red shirt and black shorts kicking a ball mid-air in a grassy field under a clear blue sky.

Projectile Motion

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring Particle Motion Through Mathematical Models

Mathematical models provide a framework for understanding particle motion by translating physical phenomena into the language of mathematics. These models typically represent motion as functions of time, incorporating variables such as position (s), velocity (v), and acceleration (a). In advanced placement (AP) mathematics and physics, these functions are often continuous and can take the form of polynomials, trigonometric functions, or other mathematical expressions. For instance, displacement might be modeled as \(s(t) = t^3 - 5t^2 + 2t + 1\), with corresponding velocity \(v(t) = \frac{ds}{dt} = 3t^2 - 10t + 2\) and acceleration \(a(t) = \frac{dv}{dt} = 6t - 10\). These functions enable precise calculations of a particle's motion at any given time.

High-speed capture of an orange table tennis ball in mid-flight with a blurred hand following through after a hit, against a soft-lit blue-green background.

The Integral and Derivative Relationships of Motion

Displacement, velocity, and acceleration are fundamentally related through the principles of calculus. Displacement, defined as the vector change in a particle's position, is the time integral of velocity. Velocity, the time rate of change of displacement, is the first derivative of displacement with respect to time. Acceleration, defined as the time rate of change of velocity, is the first derivative of velocity with respect to time. These relationships form the core of kinematic equations and can be expressed as \(s(t) = \int v(t) \, dt + s_0\) and \(v(t) = \int a(t) \, dt + v_0\), where \(s_0\) and \(v_0\) are the initial displacement and velocity, respectively.

Graphical Interpretation of Particle Motion

Graphical representations such as displacement-time and velocity-time graphs offer valuable insights into particle motion. On a displacement-time graph, the slope at any point represents the velocity of the particle at that instant. Conversely, on a velocity-time graph, the slope corresponds to the particle's acceleration. The area under the velocity-time curve represents the displacement of the particle over a given time interval. These graphical tools are instrumental in visualizing and analyzing motion, complementing the algebraic approach and aiding in the interpretation of a particle's trajectory.

The Role of Calculus in Particle Motion Analysis

Calculus is indispensable in analyzing particle motion, as it allows for the determination of velocity and acceleration from a known displacement function, and conversely, the computation of displacement from a known acceleration function. For example, given a displacement function \(s(t) = 4t^2 + 2t\), the velocity is obtained by differentiation, yielding \(v(t) = \frac{ds}{dt} = 8t + 2\), and acceleration by further differentiation, \(a(t) = \frac{dv}{dt} = 8\). If acceleration is known, such as \(a(t) = 4t\), velocity and displacement are found by integration, with constants of integration determined by initial conditions.

Practical Applications of Particle Motion Calculations

The mathematical modeling of particle motion is crucial for solving real-world problems, such as predicting a particle's future position or calculating the distance traveled over a time period. For example, to determine the distance a particle travels between \(t=1\,s\) and \(t=3\,s\) with a velocity function \(v(t) = 3t^2 - 2t + 1\), one would integrate the velocity function over the specified interval. The area under the velocity-time graph also represents the particle's displacement, offering a graphical method to determine displacement when the velocity function is known. These techniques demonstrate the practical utility of calculus in interpreting and predicting particle motion.

Concluding Insights on Particle Motion Modeling

In conclusion, the mathematical modeling of particle motion is a critical component of physics and mathematics education, employing calculus to articulate the dynamics of moving objects. The key concepts of displacement, velocity, and acceleration are interrelated through derivatives and integrals, forming the basis for kinematic analysis. Mastery of these concepts and their mathematical relationships enables students to predict and analyze particle behavior, whether through algebraic manipulation or graphical analysis. This foundational knowledge is vital for students pursuing further studies in physics, engineering, and related fields.
