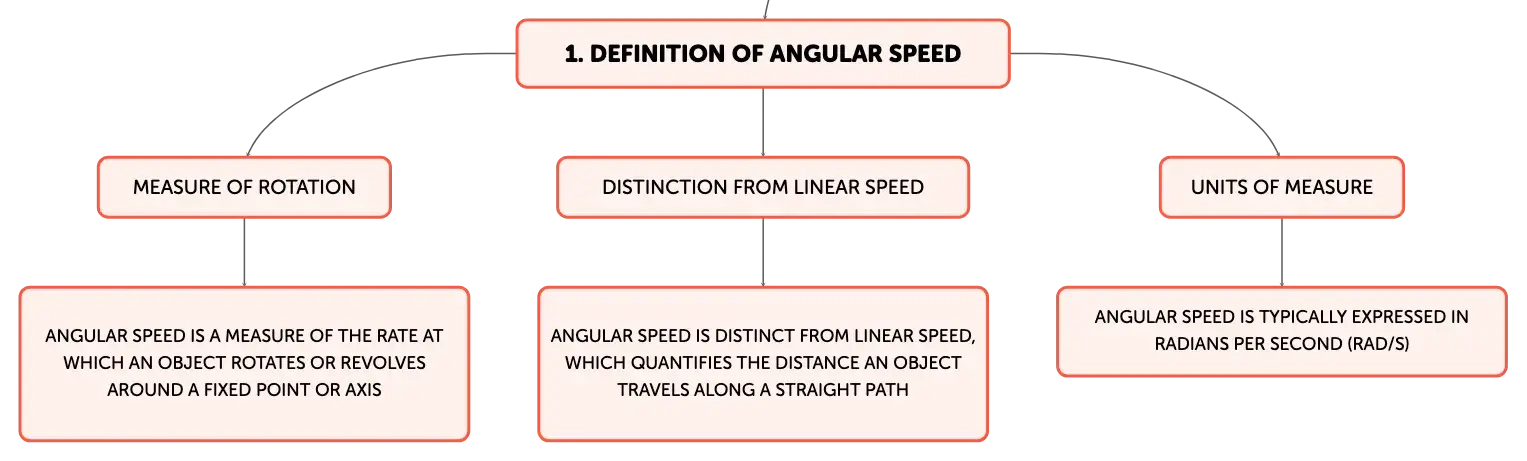

Exploring the Concept of Angular Speed

Angular speed is a measure of the rate at which an object rotates or revolves around a fixed point or axis. It is distinct from linear speed, which quantifies the distance an object travels along a straight path. Angular speed is concerned with the angular distance covered during rotation and is typically expressed in radians per second (rad/s). For example, when you adjust the settings on a ceiling fan, you are altering its angular speed, which changes the rate at which it completes rotations within a given time frame.

Close-up view of a central matte silver gear surrounded by smaller, rapidly rotating polished golden gears against a gradient gray background.

Distinguishing Angular Speed from Angular Velocity

Although angular speed and angular velocity are related concepts, they are not identical. Angular speed is a scalar quantity, indicating only the magnitude of rotation without regard to its direction. It measures how fast an object spins around an axis. In contrast, angular velocity is a vector quantity that includes both magnitude and the direction of rotation. The direction of angular velocity is typically indicated as clockwise or counterclockwise and can be determined using the Right Hand Rule, a technique used in physics to ascertain the orientation of vectors in a three-dimensional context.

The Interconnection Between Angular Speed and Frequency

Frequency is the term used to describe the number of complete revolutions an object makes in one second and is measured in Hertz (Hz). Angular frequency, on the other hand, specifies the angular rotation in radians per second. Despite their different units of measure, angular speed and angular frequency are intimately linked, as they both describe aspects of rotational motion. This connection is vital for comprehending the behavior of rotating systems, such as gears and propellers, where both the number of rotations and the angular extent of each rotation are of interest.

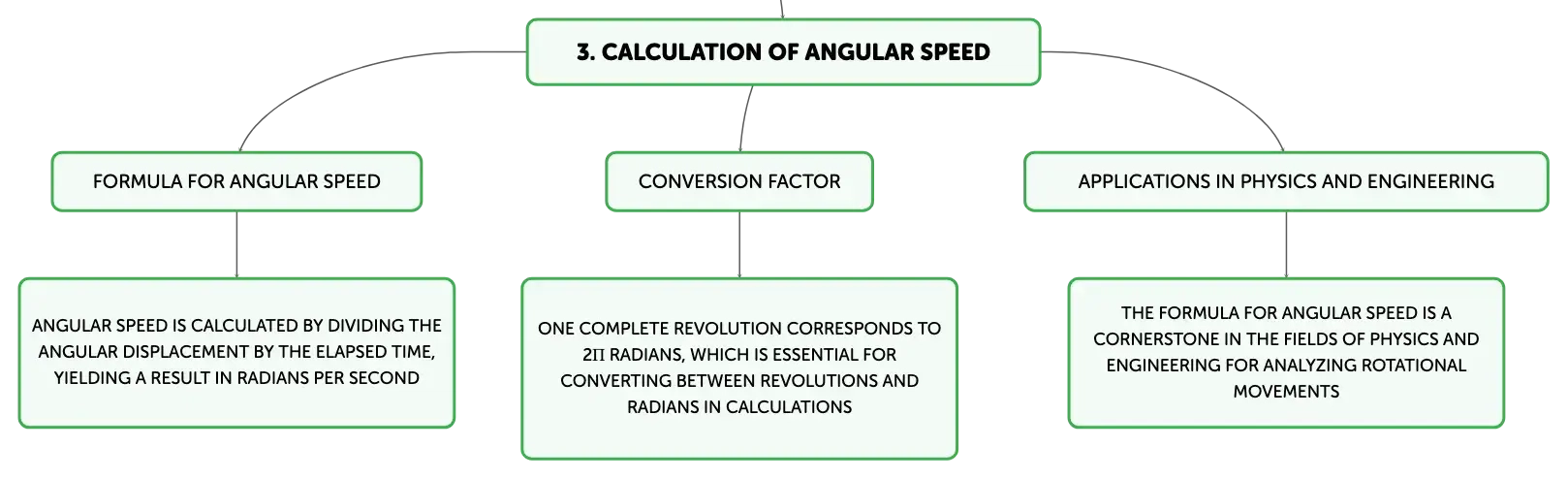

Computing Angular Speed

The calculation of angular speed (\(\omega\)) is achieved by dividing the angular displacement (\(\Theta\)), measured in radians, by the elapsed time (\(t\)), measured in seconds, yielding a result in radians per second (rad/s). Since one complete revolution corresponds to \(2\pi\) radians, this conversion factor is essential when translating between revolutions and radians in calculations. This formula is a cornerstone in the fields of physics and engineering for the analysis of rotational movements.

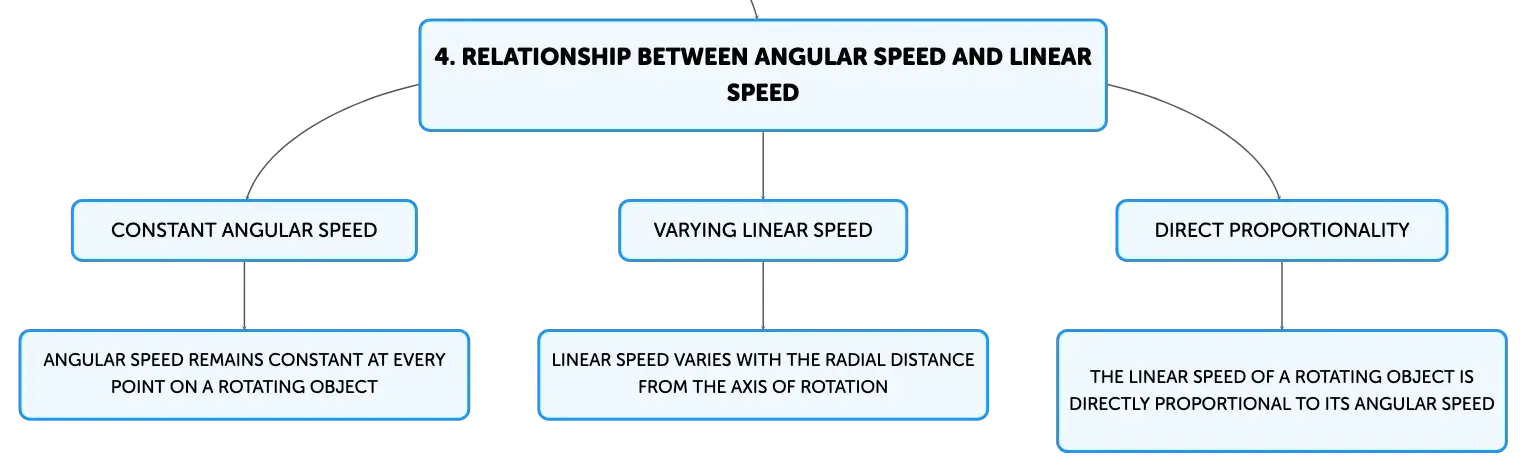

Comparing Angular and Linear Speed

Angular speed remains constant at every point on a rotating object, whereas linear speed varies with the radial distance from the axis of rotation. For example, all points on a ceiling fan blade share the same angular speed, as they complete rotations simultaneously. However, the blade's tip travels a longer linear distance in one rotation than a point closer to the hub, resulting in a higher linear speed. The linear speed (\(v\)) of a point on a rotating object can be calculated by multiplying the radius (\(r\)) of the circular path by the angular speed (\(\omega\)), as shown in the formula \(v=r\omega\). This demonstrates that the linear speed of a rotating object, such as a wheel, is directly proportional to its angular speed.

Angular Speed in Practical Applications

The principles of angular speed are widely applied in various technological and everyday contexts. For instance, the angular speed of a bicycle's wheels is directly linked to the bike's linear speed. By determining the angular displacement in radians and the duration of the wheels' rotation, one can calculate the angular speed and consequently the bike's linear speed. This knowledge is crucial for the design and operation of machinery and vehicles where rotational motion is fundamental. Additionally, angular speed is pertinent in fields such as robotics, aerospace, and mechanical engineering, where precise control over rotational dynamics is paramount.

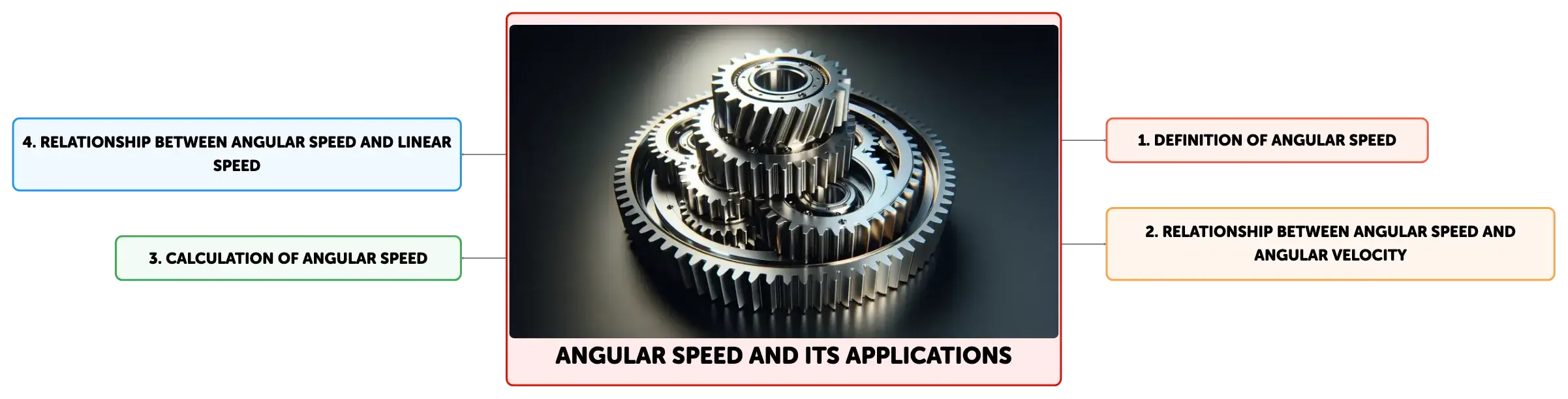

Angular Speed and Its Applications
