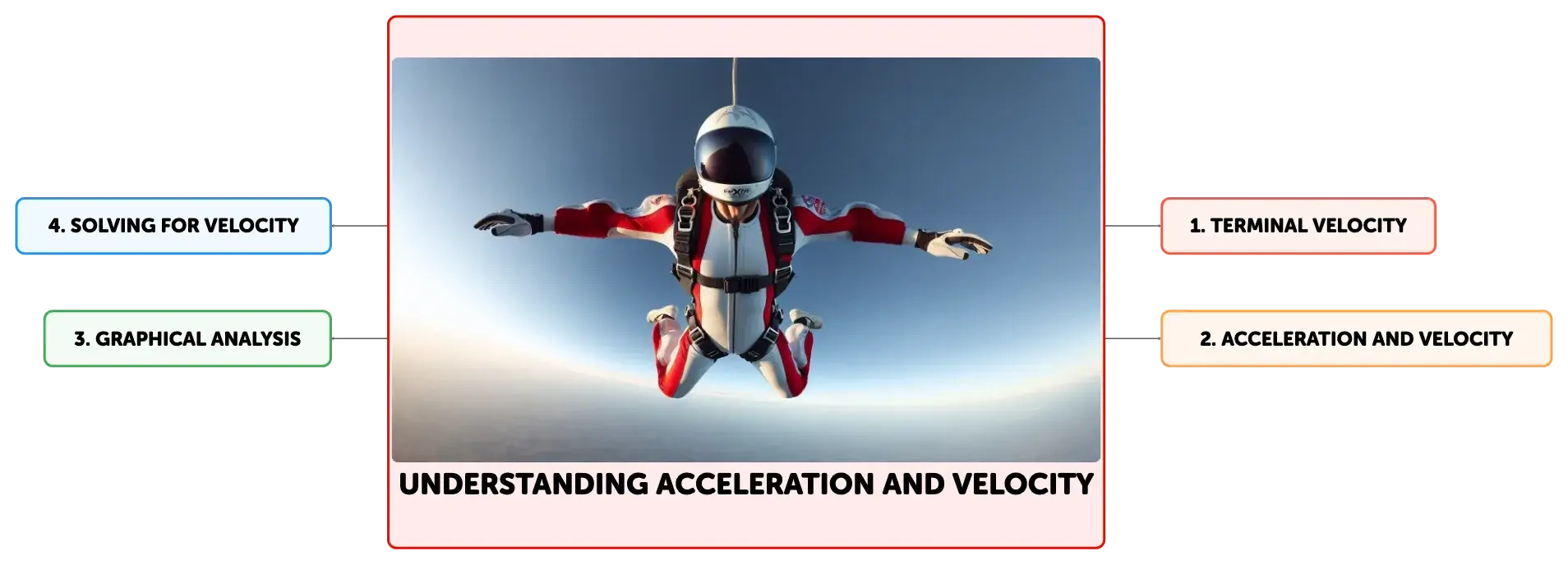

Understanding Acceleration and Velocity
Concept Map
Exploring the concept of terminal velocity in skydiving, this content delves into how a skydiver reaches a constant speed when the forces of gravity and air resistance balance out. It discusses the fundamental link between acceleration and velocity, the use of derivatives and integrals in motion analysis, and the application of SUVAT equations to motion with variable velocity. Understanding these principles is crucial for predicting the behavior of falling objects and ensuring skydiver safety.
Summary
Outline
Exploring Terminal Velocity in Skydiving
Terminal velocity is a concept well-illustrated by skydiving. It occurs when a skydiver's acceleration due to gravity is exactly counteracted by the drag force of air resistance, resulting in zero net acceleration. At this point, the skydiver falls at a constant speed, having reached terminal velocity. This speed depends on the mass of the skydiver and the surface area exposed to the air. Understanding terminal velocity is crucial for predicting the behavior of falling objects and ensuring the safety of skydivers.The Fundamental Link Between Acceleration and Velocity
Acceleration is defined as the rate at which an object's velocity changes with time. It is a vector quantity, meaning it has both magnitude and direction. Acceleration can be positive, indicating an increase in velocity, or negative, known as deceleration, when velocity decreases. The relationship between acceleration and velocity is expressed mathematically, where acceleration is the derivative of velocity with respect to time, and velocity is the integral of acceleration over time.Distinguishing Acceleration from Velocity
Acceleration and velocity are distinct yet related physical quantities. Acceleration measures the change in velocity per unit time, while velocity indicates the speed and direction of motion. For example, a car coming to a stop experiences negative acceleration (deceleration), but its velocity remains positive until it ceases movement. Understanding the difference between these two is essential for analyzing motion accurately.Utilizing Derivatives and Integrals in Motion Analysis
In kinematics, the motion of objects is described by displacement, velocity, and acceleration. Displacement is the change in position, velocity is the rate of change of displacement, and acceleration is the rate of change of velocity. These relationships are mathematically represented using derivatives and integrals. Acceleration is the second derivative of displacement with respect to time, and velocity is the integral of acceleration. These tools are fundamental in translating between the various quantities that describe motion.Interpreting Graphs of Acceleration and Velocity
Graphical analysis is a powerful tool in understanding the dynamics of acceleration and velocity. On a velocity-time graph, the slope at any given point represents the acceleration at that instant. Conversely, on an acceleration-time graph, the area under the curve between two time points gives the change in velocity. These graphical methods are invaluable for visualizing and interpreting the relationship between acceleration and velocity over time.Calculating Velocity in the Presence of Variable Acceleration
When dealing with variable acceleration, velocity can be determined by integrating the acceleration function with respect to time. This process often involves separating variables and integrating to find a velocity-time relationship. Initial conditions, such as the starting velocity, are used to solve for specific velocity values at particular times. This method is essential for understanding motion in scenarios where acceleration is not constant.Determining Terminal Velocity
To calculate terminal velocity, one must equate the net force on the object to zero, as this indicates no further acceleration. This involves setting the gravitational force equal to the drag force and solving for the velocity at which this balance occurs. The resulting value is the terminal velocity, which is the constant speed an object maintains during freefall when the forces of gravity and air resistance are in equilibrium.Applying SUVAT Equations to Motion with Variable Velocity
The SUVAT equations are a set of kinematic equations that relate the five variables of displacement (s), initial velocity (u), final velocity (v), acceleration (a), and time (t) in linear motion with constant acceleration. These equations are invaluable for solving problems where the acceleration is known to be constant, even if the velocity changes. By selecting the appropriate equation based on the known and unknown variables, one can solve for the desired quantity in a range of motion scenarios.Key Insights in Motion Analysis Involving Acceleration and Velocity
In conclusion, a thorough understanding of acceleration and velocity is essential for analyzing motion, especially in contexts like skydiving where terminal velocity is a key factor. The ability to use derivatives and integrals to transition between displacement, velocity, and acceleration provides a comprehensive approach to motion analysis. Graphical representations are crucial for visualizing these relationships, while the separation of variables technique is vital for addressing variable acceleration. The SUVAT equations offer a robust framework for addressing problems of uniformly accelerated motion, facilitating the calculation of various motion parameters when velocity is not constant.
Show More

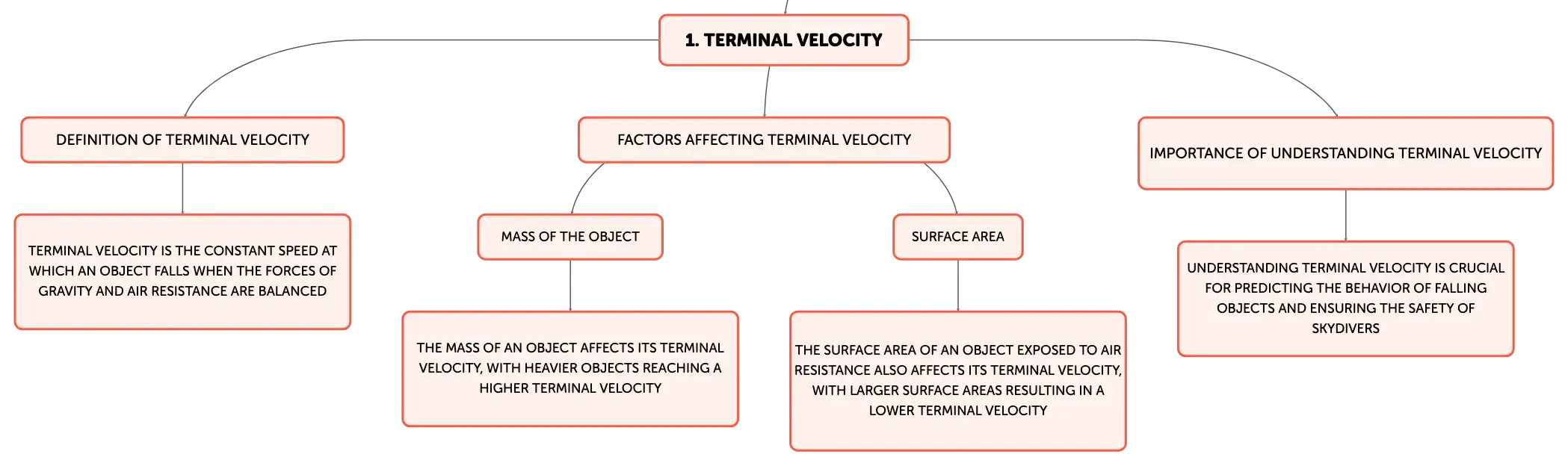

Terminal Velocity
Definition of Terminal Velocity
Terminal velocity is the constant speed at which an object falls when the forces of gravity and air resistance are balanced
Factors Affecting Terminal Velocity
Mass of the Object
The mass of an object affects its terminal velocity, with heavier objects reaching a higher terminal velocity
Surface Area
The surface area of an object exposed to air resistance also affects its terminal velocity, with larger surface areas resulting in a lower terminal velocity
Importance of Understanding Terminal Velocity
Understanding terminal velocity is crucial for predicting the behavior of falling objects and ensuring the safety of skydivers

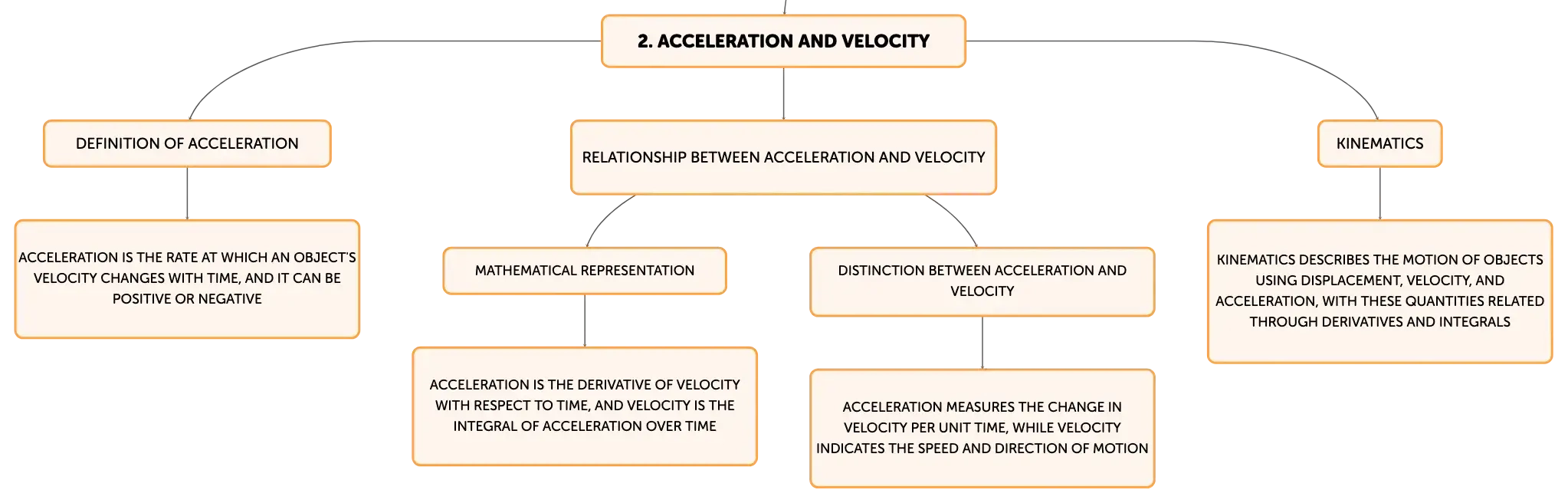

Acceleration and Velocity
Definition of Acceleration
Acceleration is the rate at which an object's velocity changes with time, and it can be positive or negative
Relationship between Acceleration and Velocity
Mathematical Representation
Acceleration is the derivative of velocity with respect to time, and velocity is the integral of acceleration over time
Distinction between Acceleration and Velocity
Acceleration measures the change in velocity per unit time, while velocity indicates the speed and direction of motion
Kinematics
Kinematics describes the motion of objects using displacement, velocity, and acceleration, with these quantities related through derivatives and integrals

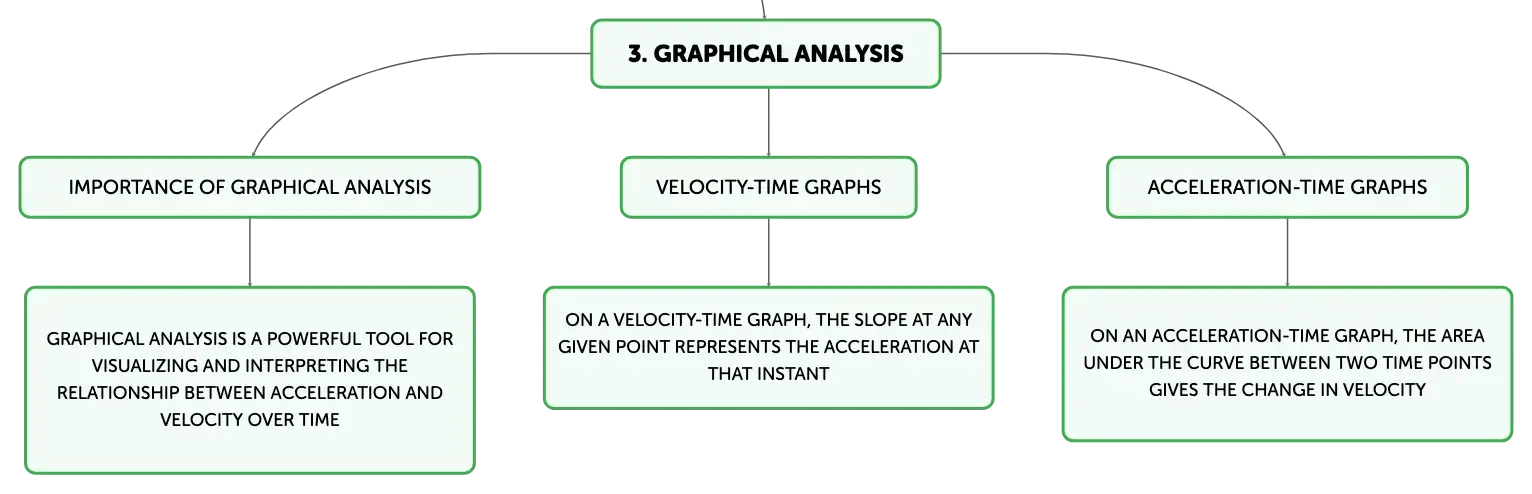

Graphical Analysis
Importance of Graphical Analysis
Graphical analysis is a powerful tool for visualizing and interpreting the relationship between acceleration and velocity over time
Velocity-Time Graphs
On a velocity-time graph, the slope at any given point represents the acceleration at that instant
Acceleration-Time Graphs
On an acceleration-time graph, the area under the curve between two time points gives the change in velocity

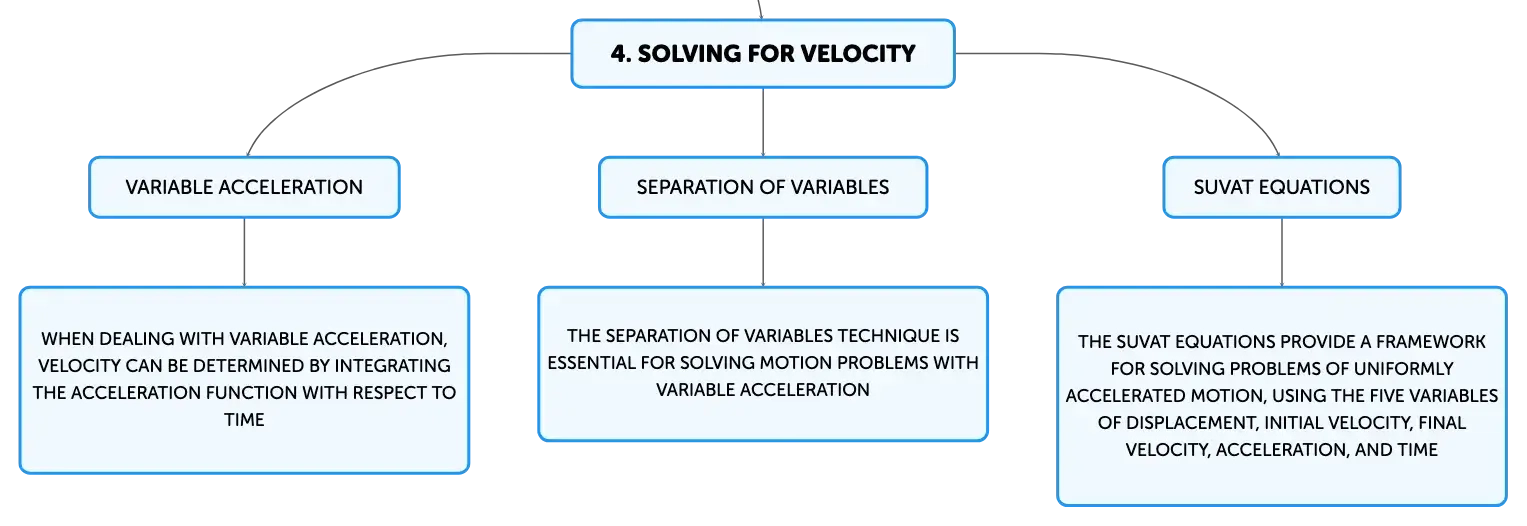

Solving for Velocity
Variable Acceleration
When dealing with variable acceleration, velocity can be determined by integrating the acceleration function with respect to time
Separation of Variables
The separation of variables technique is essential for solving motion problems with variable acceleration
SUVAT Equations
The SUVAT equations provide a framework for solving problems of uniformly accelerated motion, using the five variables of displacement, initial velocity, final velocity, acceleration, and time
Understanding Acceleration and Velocity
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In skydiving, when the force of ______ is balanced by air resistance, the skydiver stops accelerating and reaches ______.
gravity
terminal velocity
01
Definition of Acceleration
Rate of velocity change over time; vector with magnitude and direction.
02
Positive vs Negative Acceleration
Positive acceleration increases velocity; negative, or deceleration, decreases it.
