Continuity Equations: A Cornerstone in Physics and Engineering

Mathematical Expression of Continuity Equations

The continuity equation is mathematically represented as \(\frac{\partial \rho}{\partial t} + \nabla \cdot (\rho \mathbf{v}) = 0\), where \(\rho\) denotes the density of the conserved quantity, \(\mathbf{v}\) symbolizes the velocity field through which the quantity is moving, and \(\nabla \cdot\) signifies the divergence operator. This equation asserts that the rate of change of the quantity within a given volume is exactly balanced by the flux of the quantity across the volume's boundaries. This balance is analogous to the conservation of water in a pipe system, where the amount of water flowing into a section must equal the amount flowing out, assuming no leakage or addition of water occurs.

Core Elements and Conservation in Continuity Equations

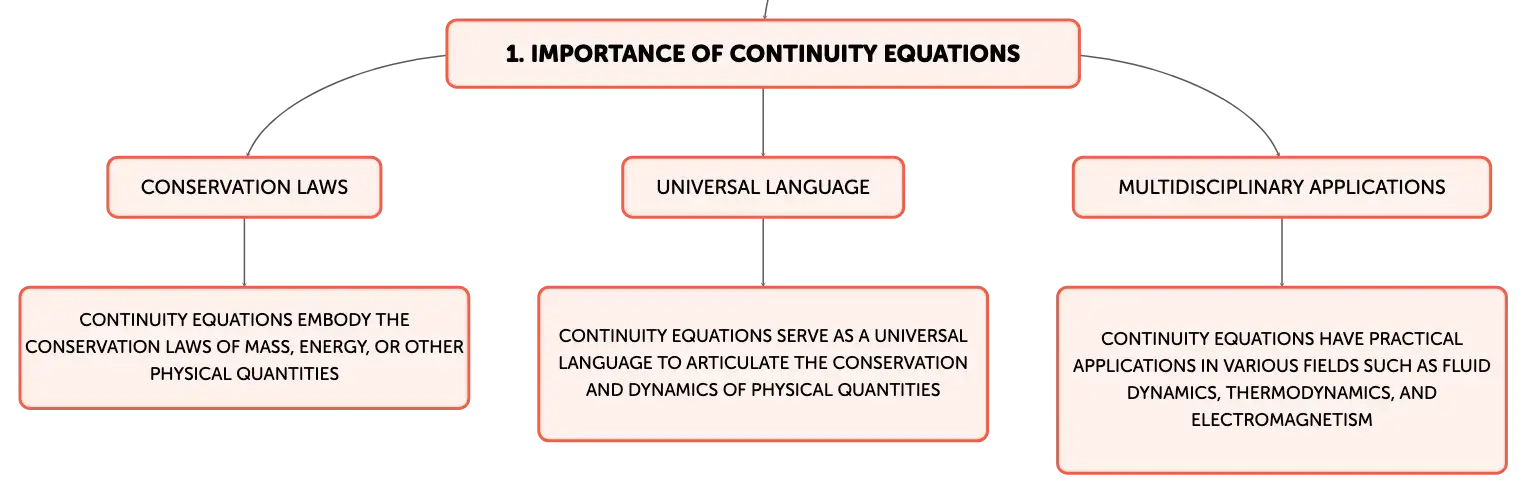

The key elements of continuity equations include the conserved quantity, the spatial domain through which it moves, and the laws that govern its conservation. The conservation principle, integral to these equations, dictates that the total amount of the conserved quantity within an isolated system remains unchanged over time. This principle is embedded within the equations and is a fundamental concept that transcends various branches of science and engineering, ensuring that these disciplines can accurately describe and predict natural phenomena.

Real-World Applications of Continuity Equations

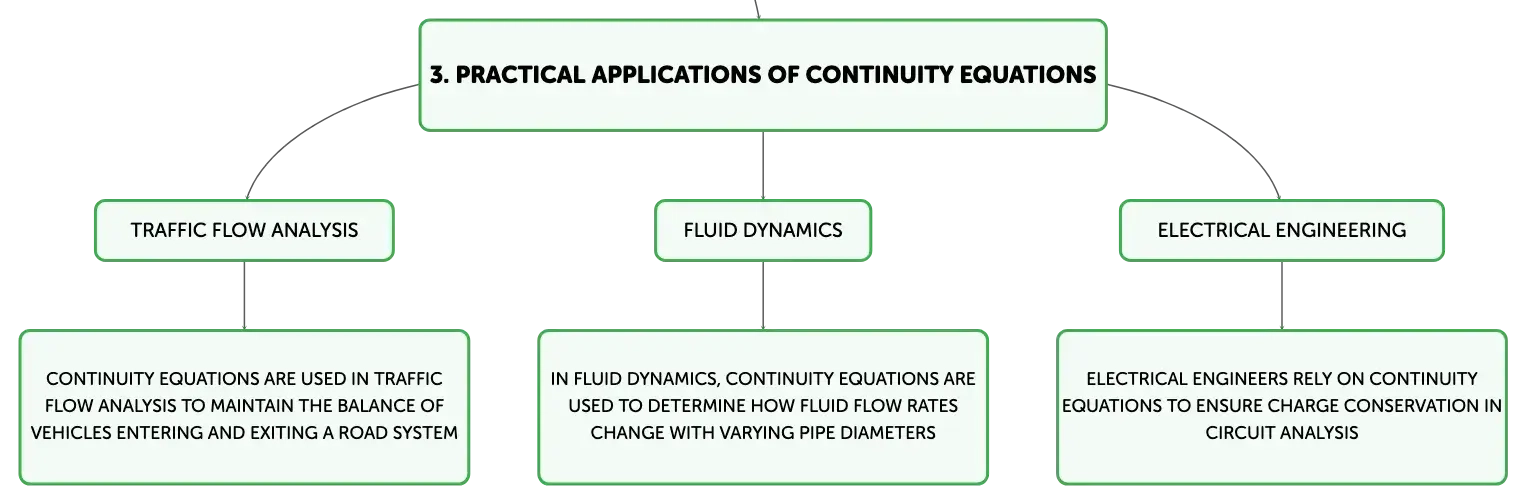

Continuity equations have practical applications in numerous fields, such as the analysis of traffic flow, where they help maintain the balance of vehicles entering and exiting a road system. In fluid dynamics, they are used to determine how fluid flow rates change with varying pipe diameters. Electrical engineers rely on them to ensure charge conservation in circuit analysis. Ecologists employ these equations in population modeling, and meteorologists use them to track atmospheric properties. These applications underscore the versatility and importance of continuity equations in modeling and solving complex real-life problems.

Problem-Solving with Continuity Equations

To solve problems using continuity equations, one must first identify the conserved quantity and the system boundaries. The equations are then applied to relate the changes or flows of the quantity within the system. For instance, in a garden hose with a non-uniform diameter, the continuity equation \(A_1v_1 = A_2v_2\) can be utilized to find the flow speed at different points, assuming the fluid is incompressible. This example illustrates the practicality of continuity equations in analyzing and understanding the behavior of fluids in everyday situations.

Continuity Equation Applications in Fluid Mechanics

The continuity equation is a fundamental tool in fluid mechanics for ensuring mass conservation in fluid flow. It is instrumental in determining how fluid velocity is affected by changes in cross-sectional area, which in turn influences the flow rate. For incompressible fluids, the equation simplifies to \(A_1v_1 = A_2v_2\), which is particularly useful in solving problems involving the flow of liquids through conduits or the circulatory system, where the fluid density is assumed to be constant.

Deriving the Continuity Equation

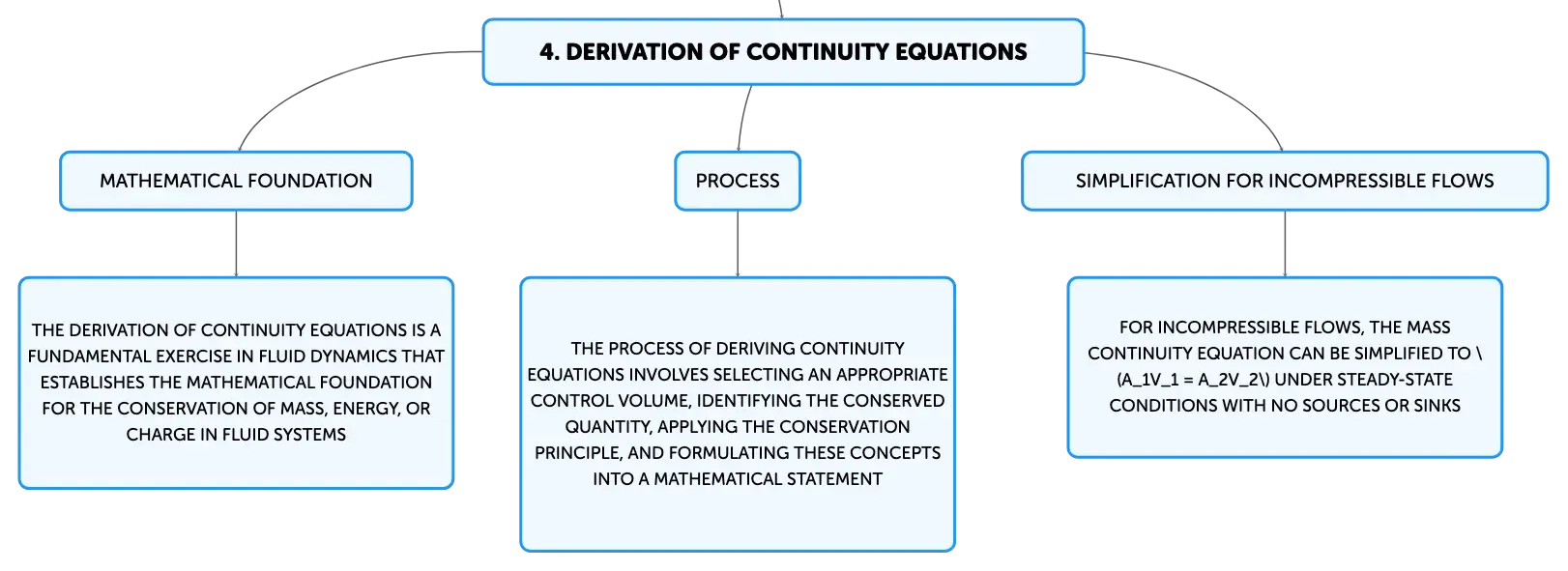

The derivation of the continuity equation is a fundamental exercise in fluid dynamics that establishes the mathematical foundation for the conservation of mass, energy, or charge in fluid systems. The process involves selecting an appropriate control volume, identifying the conserved quantity, applying the conservation principle, and formulating these concepts into a mathematical statement. For incompressible flows, the mass continuity equation is often expressed as \(\frac{\partial \rho}{\partial t} + \nabla \cdot (\rho \mathbf{v}) = 0\), which can be further simplified to \(A_1v_1 = A_2v_2\) under steady-state conditions with no sources or sinks. This derivation is crucial for the analysis and solution of fluid dynamics problems in various scientific and engineering applications.
