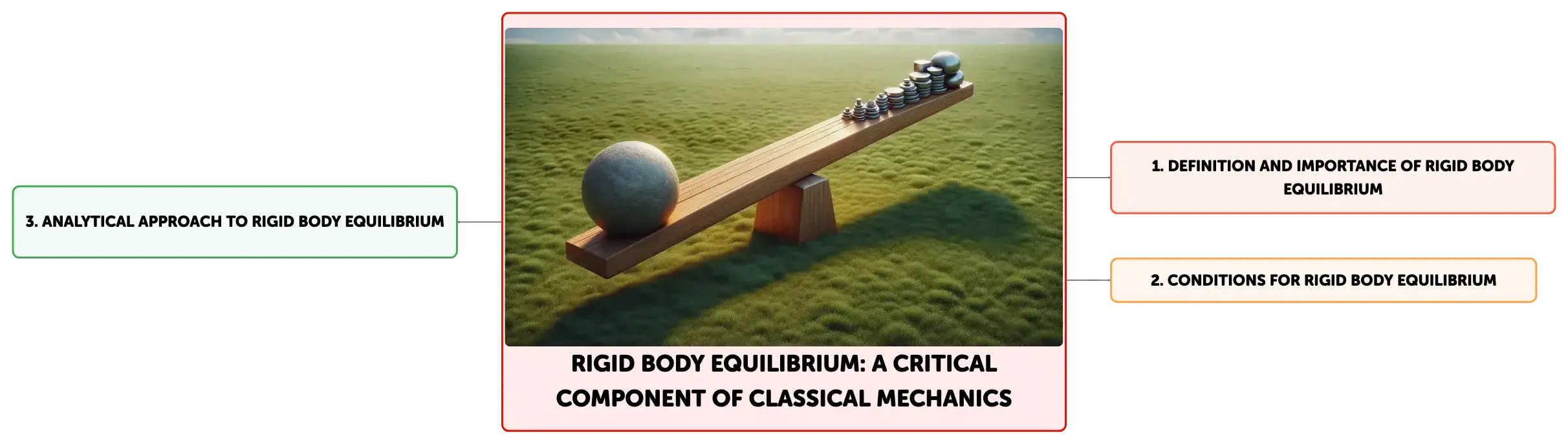

Rigid Body Equilibrium: A Critical Component of Classical Mechanics
Rigid body equilibrium is fundamental in classical mechanics, involving conditions for an object's balance under external forces and moments. It's crucial for the stability of structures and mechanical systems, requiring that the net force and torque be zero. This concept is applied in engineering fields like civil and mechanical engineering, as well as biomechanics, to ensure the safety and functionality of various systems.
See more1
4

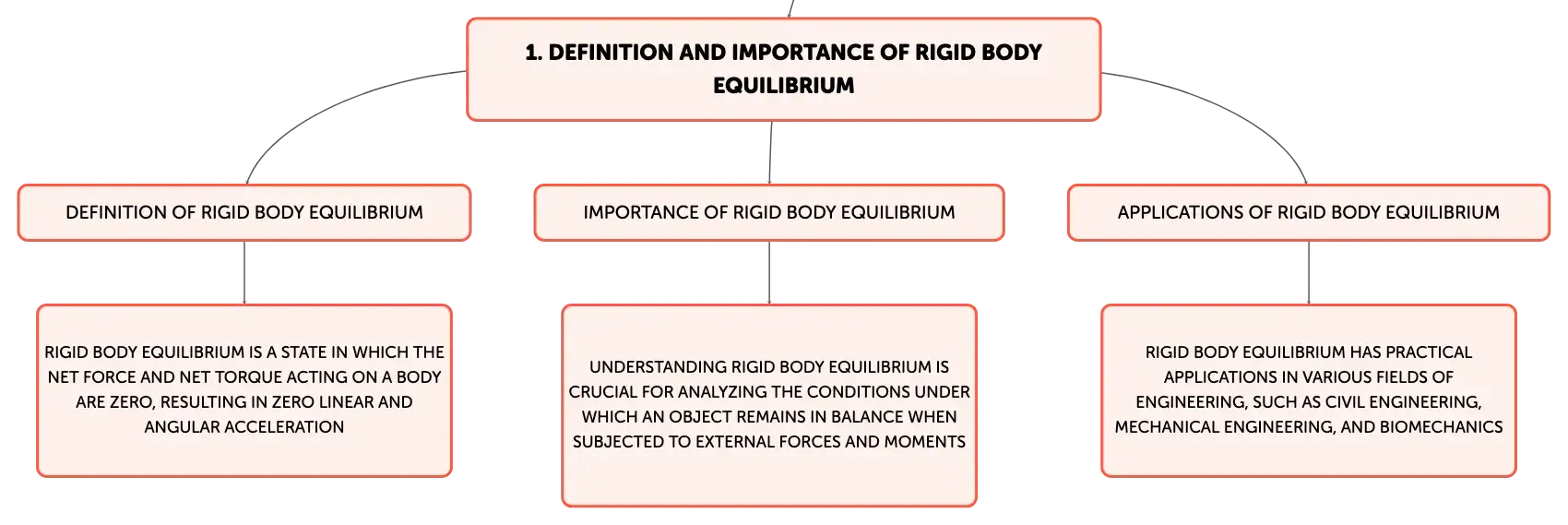

Fundamentals of Rigid Body Equilibrium
The analysis of rigid bodies in equilibrium is a critical component of classical mechanics, which is a branch of physics that deals with the motion of bodies under the action of forces. In the context of Further Mathematics, it is essential for understanding the conditions under which an object remains in a state of balance when subjected to external forces and moments. A rigid body is said to be in equilibrium when the net force and net torque acting on it are zero, which implies that both the linear and angular acceleration of the body are zero. This state can occur in both static situations, where the body is at rest, and dynamic situations, where the body moves with constant velocity. The assumption of a rigid body, an idealization where deformation is negligible, simplifies the analysis and is a good approximation for many engineering applications.Conditions for Rigid Body Equilibrium

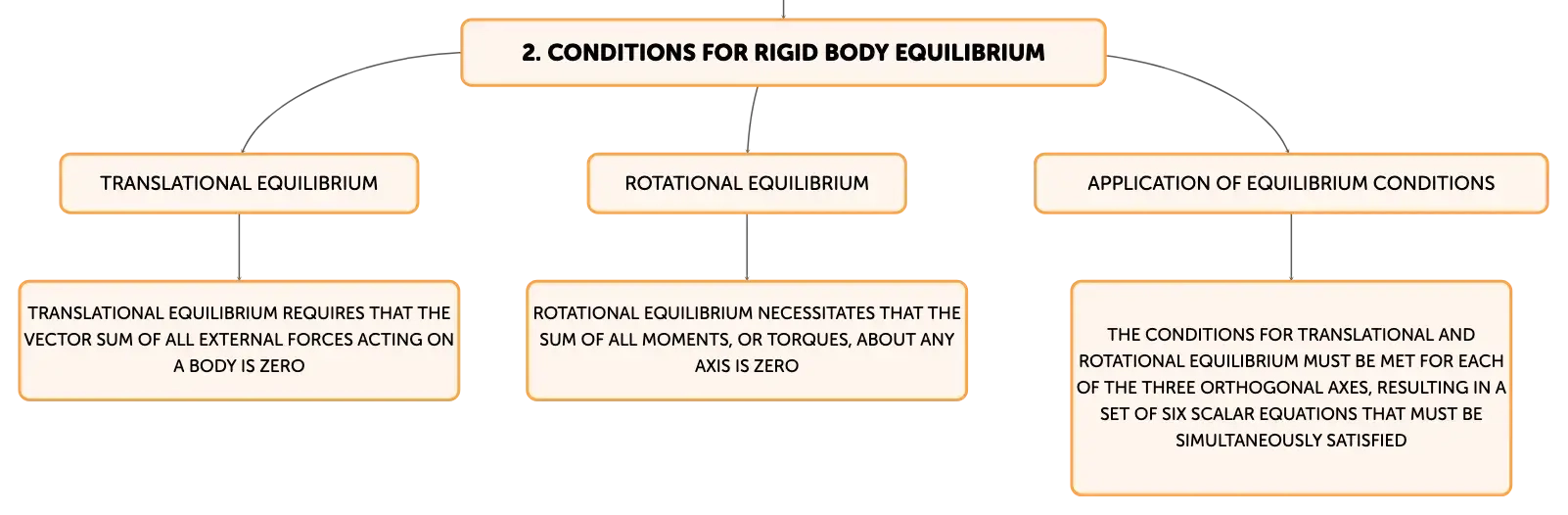

For a rigid body to be in equilibrium, it must satisfy two fundamental conditions derived from Newton's laws of motion. The first condition is translational equilibrium, which requires that the vector sum of all external forces acting on the body is zero (\(\sum \textbf{F} = 0\)). The second condition is rotational equilibrium, which necessitates that the sum of all moments, or torques, about any axis is zero (\(\sum \textbf{M} = 0\)). In three-dimensional space, these conditions must be met for each of the three orthogonal axes, leading to a set of six scalar equations (three for forces and three for moments) that must be simultaneously satisfied. The use of free-body diagrams is instrumental in visualizing and applying these conditions, as it allows for the representation of all external forces and moments, and facilitates the breakdown of vectors into their components along the chosen coordinate axes.Real-World Applications of Rigid Body Equilibrium
The concept of rigid body equilibrium has numerous practical applications in engineering and physics. For example, in civil engineering, it is used to determine the forces in the structural elements of a bridge or building. Mechanical engineers might apply these principles to design machinery parts that must remain stationary or move without acceleration under load. In biomechanics, the equilibrium of rigid bodies helps in understanding the forces acting on the human skeleton during various activities. These applications underscore the importance of mastering the principles of equilibrium to ensure the safety and functionality of structures and mechanical systems under the influence of various forces and moments.Analytical Methods for Rigid Body Equilibrium Problems
Addressing complex rigid body equilibrium problems requires a structured analytical approach. The process begins with the identification of all external forces and moments acting on the body. A free-body diagram is then drawn to represent these forces and moments, which is followed by the selection of an appropriate coordinate system. The conditions for translational and rotational equilibrium are applied, resulting in a set of equations that must be solved for the unknown quantities. Analytical techniques such as vector decomposition, trigonometry, and the use of scalar equations are employed to facilitate the solution. It is crucial to maintain consistency in units and sign conventions throughout the analysis to ensure the accuracy of the results. This systematic approach allows for the resolution of complex problems into manageable calculations, enhancing the understanding and application of equilibrium concepts.Concluding Insights on Rigid Body Equilibrium
In conclusion, the study of rigid body equilibrium is a cornerstone of mechanics that provides a framework for analyzing and designing systems that can withstand forces and moments without undergoing acceleration. The equilibrium conditions, which require the sum of forces and moments to be zero, are applicable in both two-dimensional and three-dimensional contexts and are essential for ensuring the stability of structures and mechanical systems. Practical applications in various fields of engineering demonstrate the relevance of these principles. A methodical approach, incorporating free-body diagrams, vector analysis, and consistent application of physical laws, is vital for solving equilibrium problems effectively. Mastery of these concepts is fundamental for students and professionals who aim to excel in fields that involve the analysis of forces and motion.Want to create maps from your material?
