Elasticity and its Applications

Elasticity in physics is the property of materials to resist and recover from deformation. This text explores the concept of elasticity, elastic potential energy, tension forces, and the differences between elastic strings and springs. It also delves into practical applications such as spring scales for measuring mass and oscillatory motion in elastic systems, highlighting the importance of Hooke's Law and the role of elasticity in engineering and recreational activities.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

A ______ exemplifies a material with elasticity by returning to its straight form after being bent, unlike a dry spaghetti noodle which breaks due to its brittleness.

Click to check the answer

plastic ruler

2

Elastic potential energy to kinetic energy transformation

Click to check the answer

Stored energy in deformed object converts to kinetic energy when object returns to initial state.

3

Work done on elastic materials

Click to check the answer

Work is force times displacement, imparting energy to the material, increasing its elastic potential energy.

4

Elastic potential energy vs. gravitational potential energy

Click to check the answer

Both involve storing energy due to position or deformation; gravitational is due to height, elastic due to deformation.

5

______ is a force that occurs in materials like ropes and springs when they are pulled.

Click to check the answer

Tension

6

Elastic potential energy in strings vs. springs

Click to check the answer

Strings store energy when stretched, limited when compressed. Springs store energy during both stretching and compression.

7

Hooke's Law principle

Click to check the answer

Force exerted by a spring is proportional to displacement from equilibrium, defined by spring constant.

8

Spring constant role in energy storage

Click to check the answer

Spring constant determines stiffness and energy capacity; higher constant means more force needed for same displacement.

9

The mass of an object can be calculated by observing the extension of a spring, based on ______ which is a principle from the ______ century.

Click to check the answer

Hooke's Law 18th

10

Oscillatory motion in elastic systems

Click to check the answer

Occurs when a mass-spring system is disturbed from equilibrium; system oscillates around equilibrium point.

11

Underdamped system behavior

Click to check the answer

An underdamped system oscillates before coming to rest; does not return to equilibrium immediately.

12

Gravity's effect on oscillation dynamics

Click to check the answer

Gravity affects equilibrium position but not the oscillation period or dynamics of an elastic system.

13

In ______, the jumper's safety relies on precise calculations of the cord's oscillation period and equilibrium length.

Click to check the answer

bungee jumping

14

During automotive testing, Hooke's Law is applied to determine a vehicle's maximum force endurance by measuring the ______ of an elastic cable.

Click to check the answer

displacement

15

Define Elasticity

Click to check the answer

Elasticity is the ability of a material to resist deformation and return to its original shape when external forces are removed.

16

State Hooke's Law

Click to check the answer

Hooke's Law states that the force exerted by an elastic object is directly proportional to its displacement, within the elastic limit.

17

Elastic Behavior in Tension and Compression

Click to check the answer

Elastic materials stretch under tension and compress under compression, but will return to original shape if not beyond elastic limit.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Newton's Second Law of Motion

View document

Physics

The Small Angle Approximation

View document

Physics

Forces and Resultant Force

View document

Physics

Elastic Energy

View document

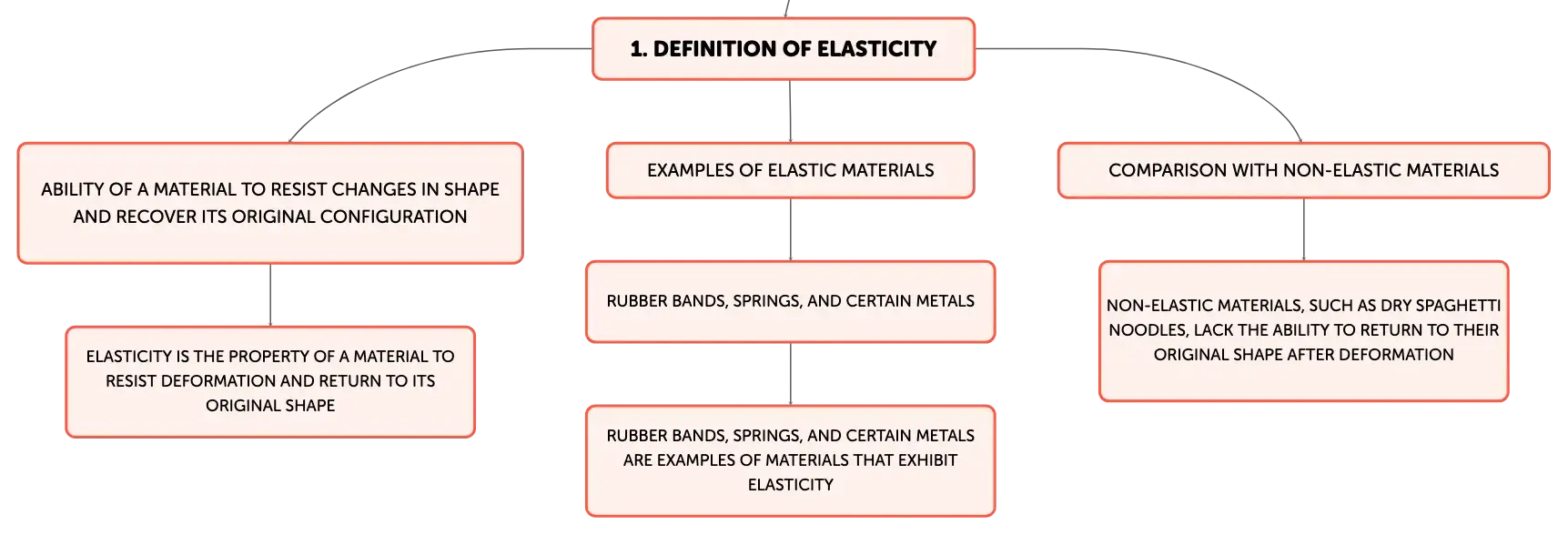

The Concept of Elasticity in Physics

Elasticity is a key concept in physics that pertains to the ability of a material to resist changes in shape and to recover its original configuration after external forces causing deformation are removed. This property is evident in various materials, such as rubber bands, springs, and certain metals. For instance, a plastic ruler demonstrates elasticity when it is bent; it resists the bending force and returns to its straight shape once the force is no longer applied. In contrast, materials lacking elasticity, such as a dry spaghetti noodle, will snap instead of reverting to their original shape, illustrating their brittle nature.
Close-up view of a compressed metallic coil spring with a human hand applying force, set against a light background and resting on a textured black surface.

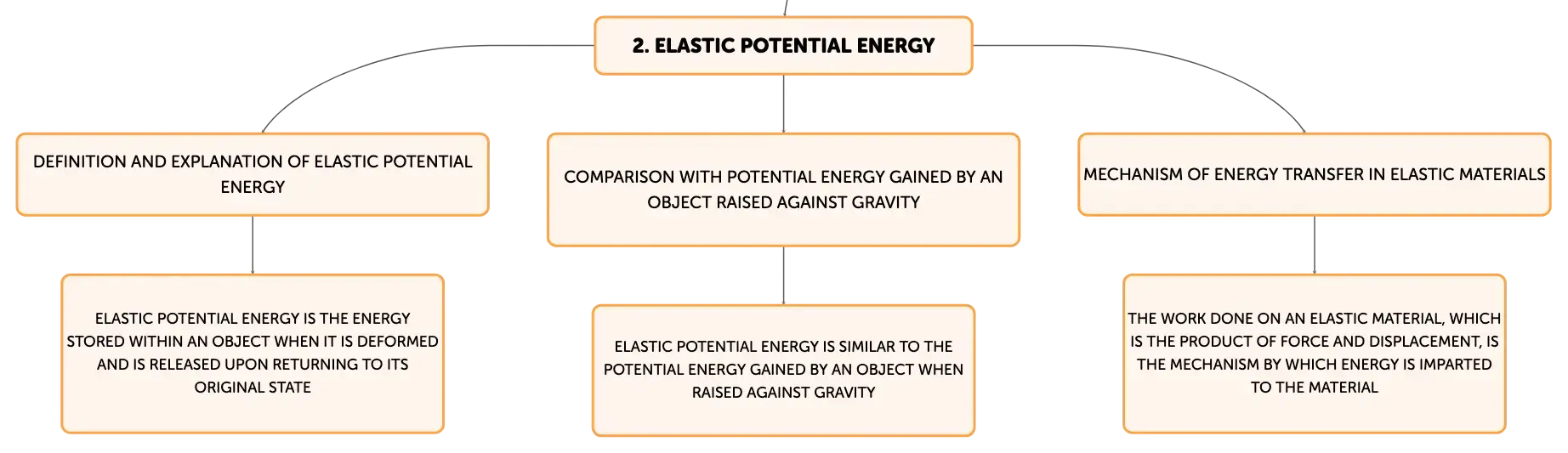

Elastic Potential Energy in Deformable Objects

Elastic potential energy is the energy stored within an object when it is deformed by an external force, like stretching a spring or compressing a sponge. Upon release, this stored energy is transformed into kinetic energy, propelling the object back to its initial state. This is similar to the potential energy gained by an object when raised against gravity. The work done on an object, which is the product of force and displacement, is the mechanism by which energy is imparted to the object. For elastic materials, the amount of elastic potential energy increases with the degree of deformation, enhancing the material's tendency to return to its undeformed state.

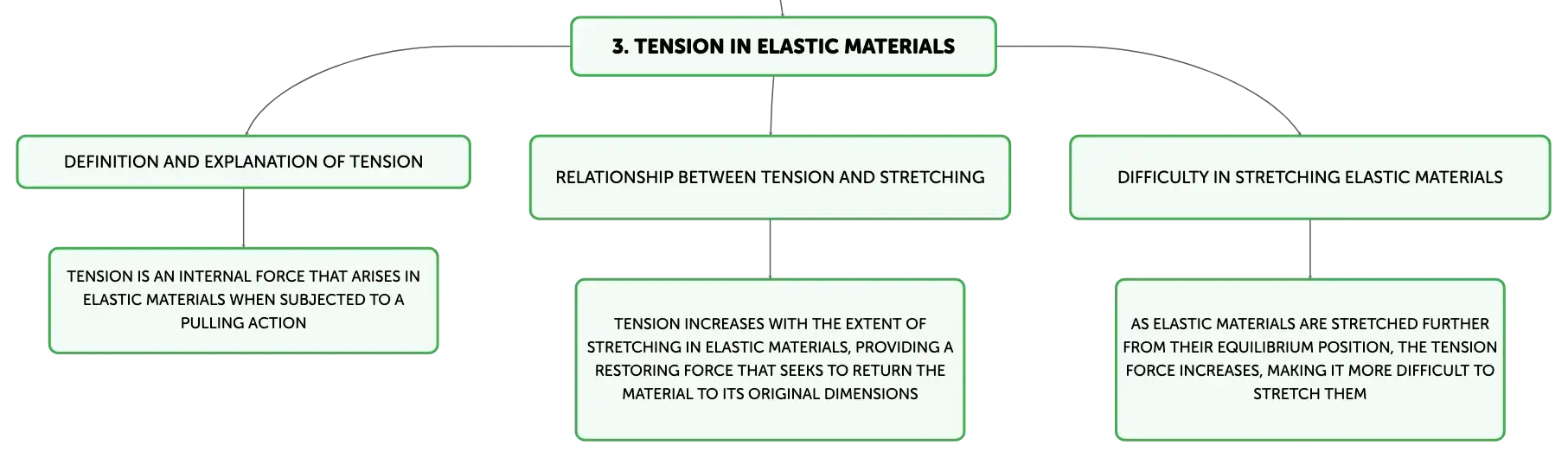

Tension Forces in Elastic Materials

Tension is a force that arises within materials such as ropes, strings, and springs when they are subjected to a pulling action. This internal force opposes the external pulling forces and is directed along the length of the material towards its center. In elastic materials, the tension force increases with the extent of stretching, providing a restoring force that seeks to return the material to its original dimensions. The progressive increase in tension explains why it becomes more difficult to stretch an elastic material as it is pulled further from its equilibrium position.

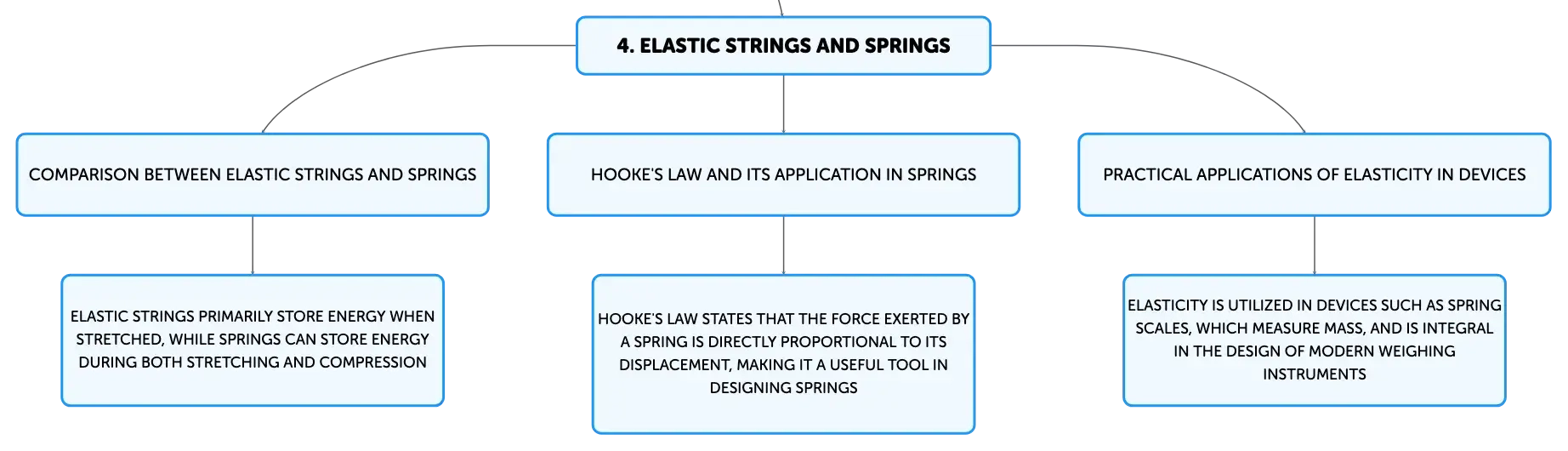

Comparing Elastic Strings and Springs

Elastic strings and springs are both capable of storing elastic potential energy, but they differ in their responses to forces and the way they store energy. Elastic strings, such as rubber bands, primarily store energy when stretched and have limited capacity to store energy when compressed. Springs, conversely, can be designed to store energy during both stretching and compression. The restoring force in springs follows Hooke's Law, which states that the force exerted by the spring is directly proportional to its displacement from the equilibrium position, with the spring constant being the proportionality constant.

Measuring Mass with Spring Scales

Elasticity has practical applications in devices like spring scales, which utilize the principles of elasticity to measure mass. When an object is suspended from a spring, the gravitational force of the object causes the spring to extend until the tension in the spring counteracts the object's weight, achieving equilibrium. The extension of the spring at this point can be used to determine the object's mass by applying Hooke's Law. This principle, which dates back to the 18th century, remains integral to the design of modern weighing instruments.

Oscillatory Motion in Elastic Systems

An elastic system, such as a mass attached to a spring, can exhibit oscillatory motion when disturbed from its equilibrium position. If the system is underdamped, it will oscillate around the equilibrium point before eventually coming to rest. The time period of these oscillations is an important characteristic that can be calculated using the mass of the system and the spring constant. Notably, the time period of oscillation is independent of gravity, which only affects the system's equilibrium position but not the dynamics of the oscillation itself.

Real-World Applications of Elasticity

Elasticity is not only a theoretical concept but also has numerous practical applications. For example, in bungee jumping, the safety and experience depend on accurately calculating the oscillation period and the equilibrium length of the bungee cord, which can be done using the mass of the jumper and the elasticity of the cord. In automotive testing, the maximum force a vehicle can withstand can be assessed by measuring the displacement of an elastic cable attached to the vehicle and applying Hooke's Law. These instances underscore the importance of understanding elasticity in engineering and recreational activities.

Concluding Insights on Elasticity

In conclusion, elasticity is a fundamental property that enables materials to resist deformation and to store and release potential energy. Hooke's Law is a central concept that relates the force exerted by an elastic object to its displacement. The behavior of elastic materials under tension, compression, and oscillation has significant implications in various fields, including engineering, physics, and everyday applications. A comprehensive understanding of these principles is crucial for analyzing and predicting the behavior of elastic systems.
