Regular Polygons and their Properties

Exploring regular polygons, this content delves into their defining features of equal sides and angles, and the importance of the apothem in symmetry and area calculations. It covers the area formula for regular polygons, utilizing trigonometry for determining unknown dimensions, and practical applications in calculating areas of shapes like squares and hexagons.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Characteristics of regular polygons

Click to check the answer

Equal side lengths, equal angle measures, equilateral and equiangular.

2

Minimum sides in a regular polygon

Click to check the answer

Three sides, as seen in an equilateral triangle.

3

Difference between regular and irregular polygons

Click to check the answer

Regular polygons have all sides and angles equal; irregular polygons do not.

4

To determine a polygon's center, angle bisectors or connections between opposite sides' ______ can be drawn.

Click to check the answer

midpoints

5

Regular polygon perimeter formula

Click to check the answer

Perimeter = side length × number of sides

6

Apothem definition in regular polygons

Click to check the answer

Apothem = height of isosceles triangles formed by dividing polygon

7

The general formula for the area of a regular polygon is expressed as Area = (______ × ______)/2.

Click to check the answer

a p

8

Calculating central angle θ for regular polygon

Click to check the answer

Central angle θ = 360°/n, where n = number of sides.

9

Determining apothem using trigonometry in regular polygons

Click to check the answer

Apothem found using right triangle trigonometry within divided isosceles triangles; relates to radius and central angle.

10

When dealing with a ______ with each side being 3 feet long, the apothem is determined using ______ and the resulting area is 9 square feet.

Click to check the answer

square trigonometry

11

Area formula for regular polygons

Click to check the answer

Area = (apothem × perimeter) / 2

12

Defining features of regular polygons

Click to check the answer

Equilateral sides and equiangular internal angles

13

Role of apothem in regular polygons

Click to check the answer

Determines symmetry and is essential in area calculation

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Parametric Equations for Hyperbolas

View document

Geometry

Triangles and Circles: Basic Geometric Shapes

View document

Geometry

The SAS Congruence and Similarity Criteria in Euclidean Geometry

View document

Geometry

Parallel Lines and Transversals

View document

Exploring the Characteristics of Regular Polygons

Regular polygons are geometric shapes with sides that are all equal in length and angles that are all equal in measure. These shapes, which include equilateral triangles, squares, and regular pentagons, are both equilateral and equiangular. A regular polygon has a minimum of three sides, and its uniformity sets it apart from irregular polygons, such as rectangles, which have unequal side lengths and angles. The interior angles of a regular polygon can be calculated using the formula (n-2)×180°/n, where 'n' is the number of sides.
Collection of regular polygons on white background, featuring a central blue pentagon, adjacent red hexagon, green octagon above, yellow triangle below, and purple square to the left.

The Significance of the Apothem in Polygonal Geometry

The apothem is a critical element in the study of regular polygons. It is a line segment from the center of the polygon perpendicular to a side, bisecting it. The apothem is essential for establishing the polygon's symmetry and is integral in computing its area. To find the center of a polygon, one can draw bisectors of the angles or connect the midpoints of opposite sides. The intersection of these bisectors or midlines is the center, from which the apothem is drawn.

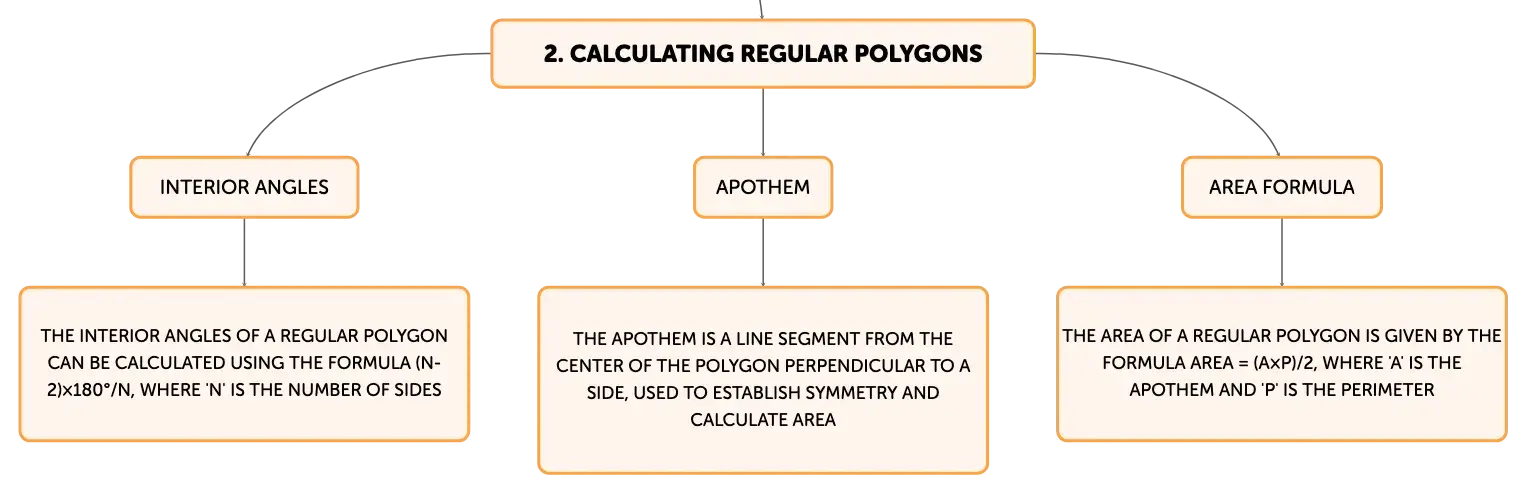

Area Calculation for Regular Polygons

The area of a regular polygon is given by the formula Area = (a×p)/2, where 'a' is the apothem and 'p' is the perimeter. The perimeter is the total length of all sides, found by multiplying the length of one side by the number of sides. This area formula is derived by dividing the polygon into 'n' isosceles triangles, each with a base equal to a side of the polygon and a height equal to the apothem, and then summing the areas of these triangles.

Deriving the Area Formula from Right Triangles

The area formula for regular polygons can be understood by dividing the polygon into congruent isosceles triangles, which can further be divided into right triangles. For example, a square can be split into four right triangles, each with a base 'x' (the side length) and height 'a' (the apothem). The area of one triangle is (a×x)/2, and multiplying by the number of triangles gives the total area. This demonstrates that the general formula for the area of a regular polygon is Area = (a×p)/2.

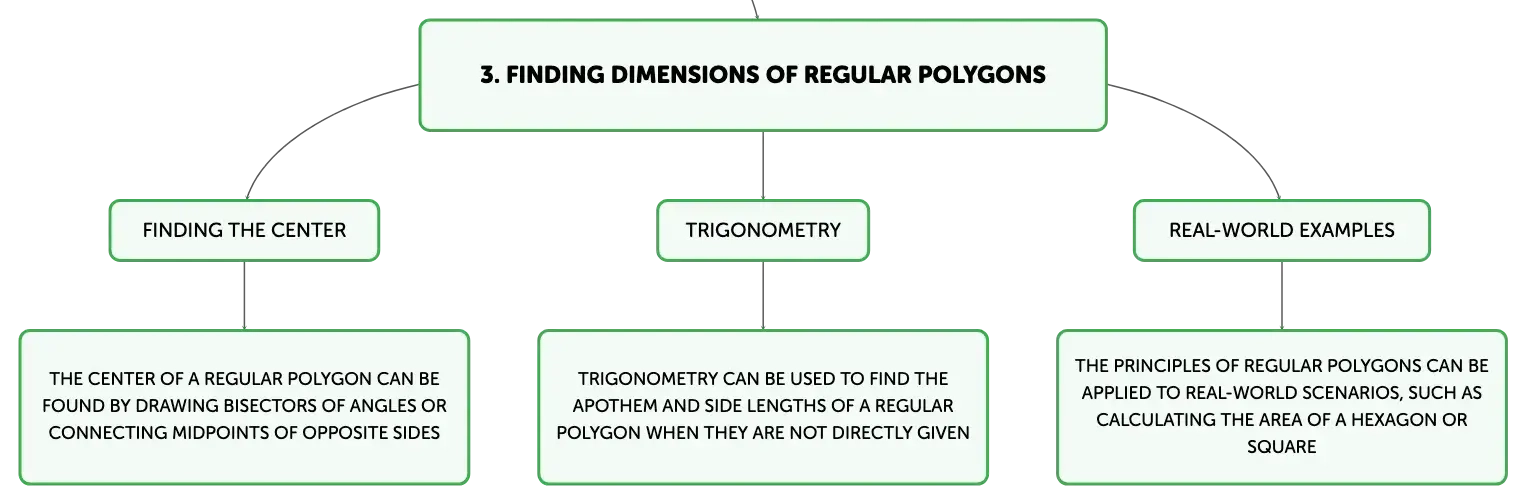

Utilizing Trigonometry in Area Determination of Regular Polygons

When the apothem or perimeter is unknown, trigonometry can be used to find these dimensions. For a regular polygon with 'n' sides, a radius 'r', and a side length 'x', the central angle θ is 360°/n. By dividing the polygon into isosceles triangles and then into right triangles with the apothem, trigonometric functions can calculate the apothem and side lengths. The area is then the sum of the areas of these triangles, using the trigonometrically found apothem and side length.

Practical Application in Area Calculation of Regular Polygons

To apply these principles, consider calculating the area of a regular polygon with a known apothem and side length. The area is found by multiplying the apothem by the perimeter and dividing by two. For instance, a hexagon with a side length of 4 cm and an apothem of 3.46 cm has a perimeter of 24 cm, resulting in an area of 41.52 cm². For a square with a side length of 3 feet, trigonometry can determine the apothem, and the area can be calculated as 9 square feet.

Concluding Insights on Regular Polygon Areas

In conclusion, the area of regular polygons is calculated using the apothem and perimeter, with the formula Area = (a×p)/2 being a key tool in geometric calculations. Regular polygons are defined by their equilateral and equiangular properties, and the apothem is vital for determining symmetry and area. Trigonometry aids in calculating dimensions when they are not directly given, and real-world examples show how these principles are applied. Mastery of these concepts is crucial for those engaging with geometric figures and their properties.
