Inscribed Angles in Circle Geometry

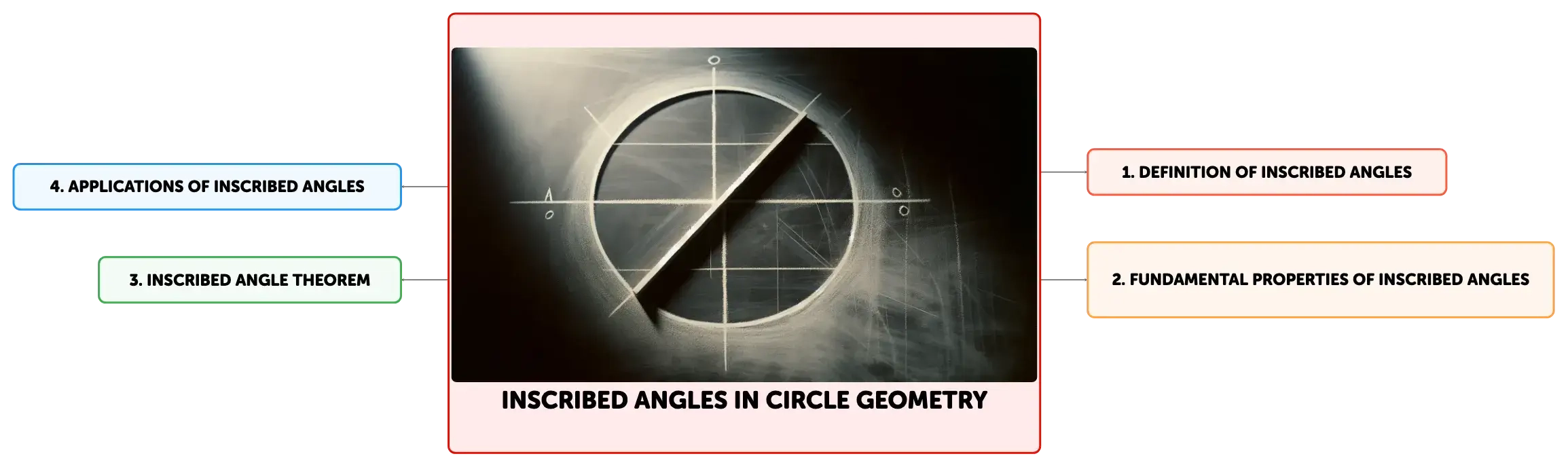

Concept Map
Inscribed angles in circle geometry are angles formed by two intersecting chords on a circle's circumference. These angles have unique properties, such as being half the measure of the intercepted arc or central angle. Inscribed angles that intercept the same arc are congruent, and if they intercept a semicircular arc, they are right angles. Opposite angles in inscribed quadrilaterals are supplementary, summing to 180 degrees. Understanding these principles is crucial for solving geometric problems involving circles.
Summary
Outline
Understanding Inscribed Angles in a Circle
Inscribed angles are an essential concept in circle geometry, defined as angles formed by two chords in a circle that intersect at a point on the circle's circumference. This point is the vertex of the angle. For instance, if chords AB and BC intersect at point B on the circle, they create an inscribed angle, labeled as ∠ABC. The chords' other endpoints, A and C, span an arc on the circle, which is classified as a minor arc if it is less than 180 degrees, or a major arc if it exceeds 180 degrees.Characteristics of Chords and Arcs
A chord is a line segment with both endpoints on the circle's circumference, and it is fundamental to understanding circles' geometric properties. An arc represents the portion of the circle's circumference between two points, and its length is related to the central angle that subtends the arc. The degree measure of an arc is equal to that of the central angle, and the arc's length can be calculated using the formula (θ/360) × 2π × r for degrees, or θ × r for radians, where θ is the central angle and r is the radius of the circle.The Inscribed Angle Theorem and Its Implications
The Inscribed Angle Theorem is a cornerstone of circle geometry, stating that an inscribed angle's measure is half that of its intercepted arc. This theorem also relates to the central angle, which is congruent to the arc it intercepts. Thus, if we have an inscribed angle ∠ABC, its measure is half that of the central angle ∠AOC that intercepts the same arc. This theorem is crucial for solving for unknown angles and underpins many properties of inscribed angles.Congruency and Right Angles in Inscribed Angles
Inscribed angles that intercept the same arc are congruent, meaning they have equal measures. This property is valuable for determining the measures of angles that share a common arc. A notable case occurs when an inscribed angle intercepts a semicircular arc; the inscribed angle is invariably a right angle, measuring 90 degrees. This follows from the Inscribed Angle Theorem, as a semicircle is an arc of 180 degrees, and half of this is 90 degrees.Properties of Inscribed Quadrilaterals
Quadrilaterals inscribed in a circle have the distinctive property that their opposite angles are supplementary, adding up to 180 degrees. This arises from the Inscribed Angle Theorem and the congruence of angles intercepting the same arcs. For example, in a quadrilateral inscribed in a circle with vertices A, B, C, and D, the measure of angle A plus the measure of angle C is 180 degrees, as is the measure of angle B plus the measure of angle D.Solving Problems Involving Inscribed Angles
To address problems involving inscribed angles, one should identify all known angles and construct a diagram if needed. By applying the Inscribed Angle Theorem and its associated properties, one can deduce unknown angle measures. For instance, if an intercepted arc measures 80 degrees, the corresponding inscribed angle would measure 40 degrees. In an inscribed quadrilateral, knowing two angle measures allows for the determination of the remaining angles using the supplementary property. This methodical approach is vital for comprehending and utilizing inscribed angle concepts in geometry.Key Takeaways on Inscribed Angles
In conclusion, inscribed angles are a significant aspect of circle geometry. They are formed by intersecting chords at a point on the circle's circumference, and their measure is half that of the intercepted arc or central angle. Inscribed angles that intercept the same arc are congruent, and those that intercept a semicircular arc are right angles. In inscribed quadrilaterals, opposite angles are supplementary. Mastery of these properties and theorems is essential for solving geometric problems and grasping the complex relationships in circular figures.
Show More

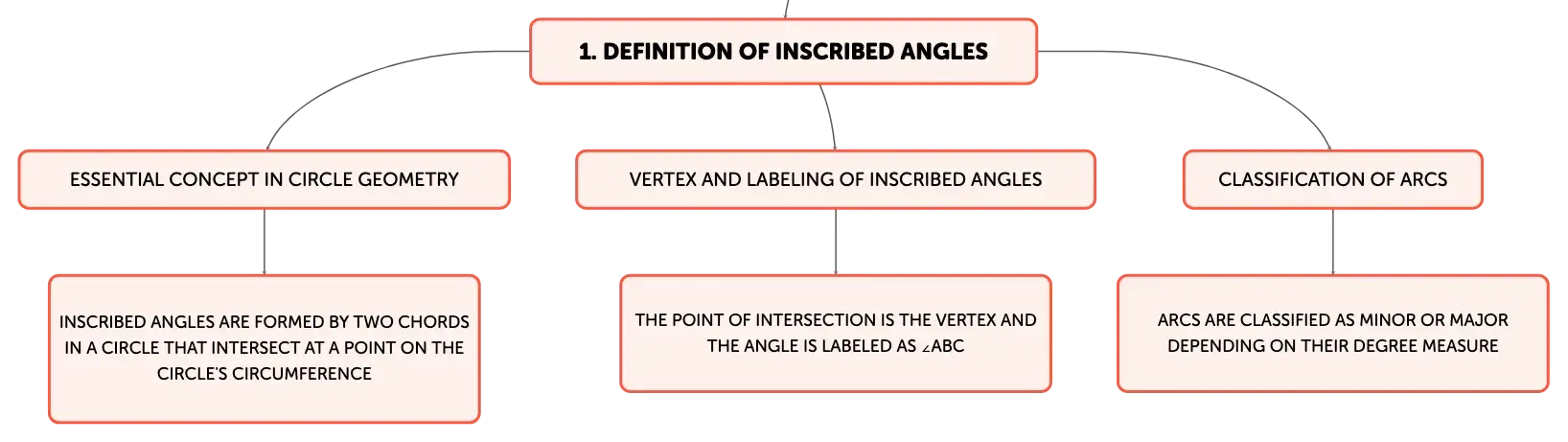

Definition of Inscribed Angles
Essential concept in circle geometry
Inscribed angles are formed by two chords in a circle that intersect at a point on the circle's circumference
Vertex and labeling of inscribed angles
The point of intersection is the vertex and the angle is labeled as ∠ABC
Classification of arcs
Arcs are classified as minor or major depending on their degree measure

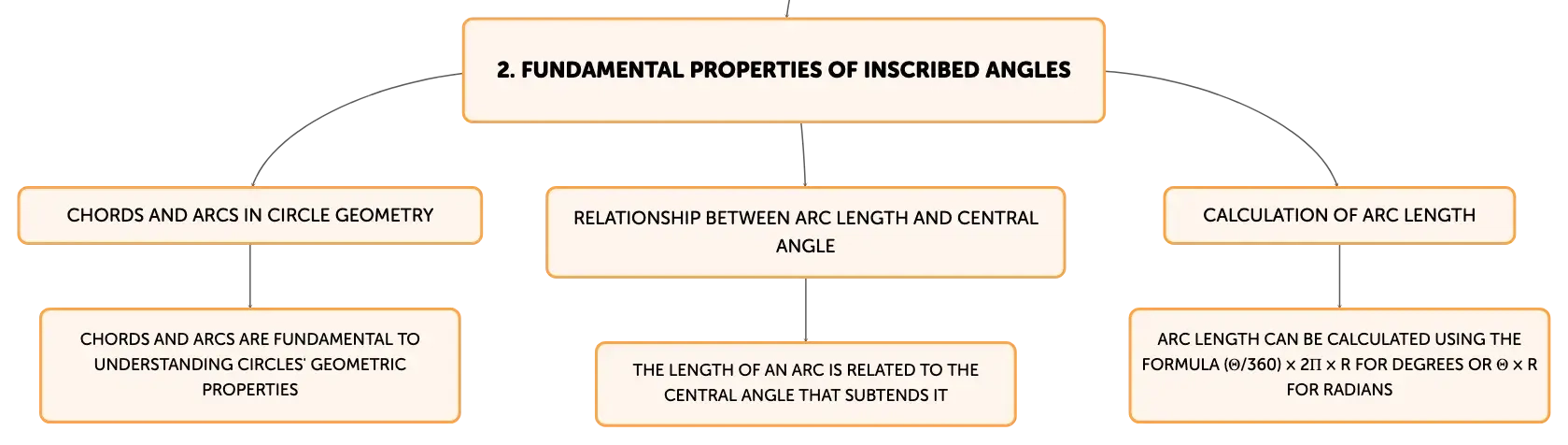

Fundamental Properties of Inscribed Angles
Chords and arcs in circle geometry
Chords and arcs are fundamental to understanding circles' geometric properties
Relationship between arc length and central angle
The length of an arc is related to the central angle that subtends it
Calculation of arc length
Arc length can be calculated using the formula (θ/360) × 2π × r for degrees or θ × r for radians

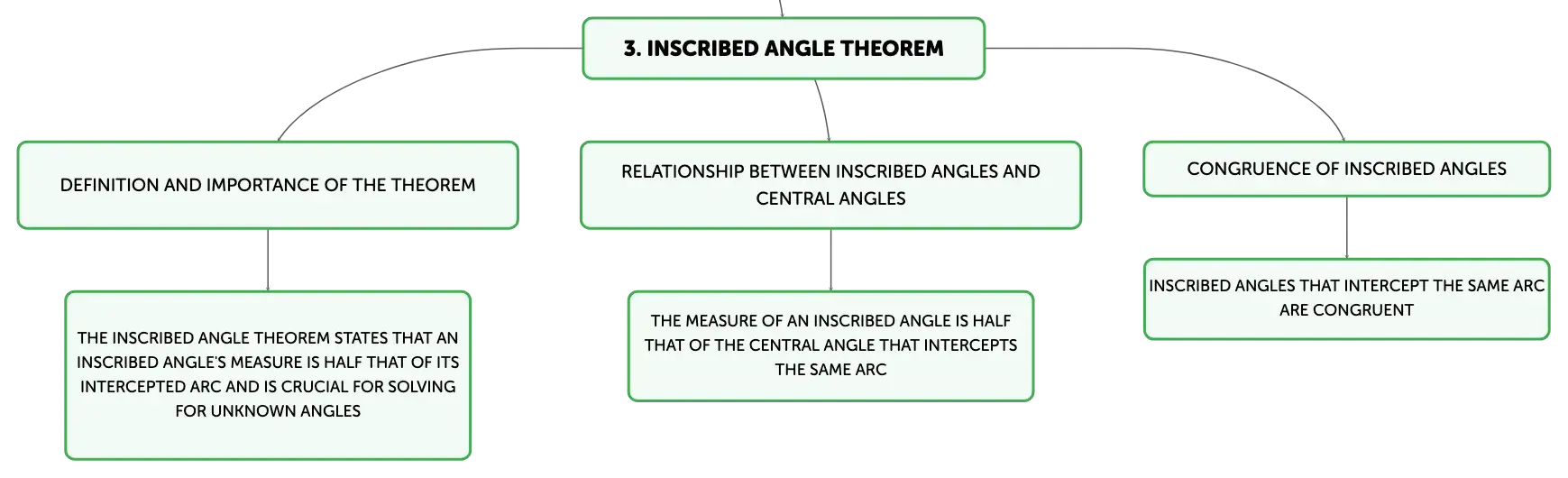

Inscribed Angle Theorem
Definition and importance of the theorem
The Inscribed Angle Theorem states that an inscribed angle's measure is half that of its intercepted arc and is crucial for solving for unknown angles
Relationship between inscribed angles and central angles
The measure of an inscribed angle is half that of the central angle that intercepts the same arc
Congruence of inscribed angles
Inscribed angles that intercept the same arc are congruent

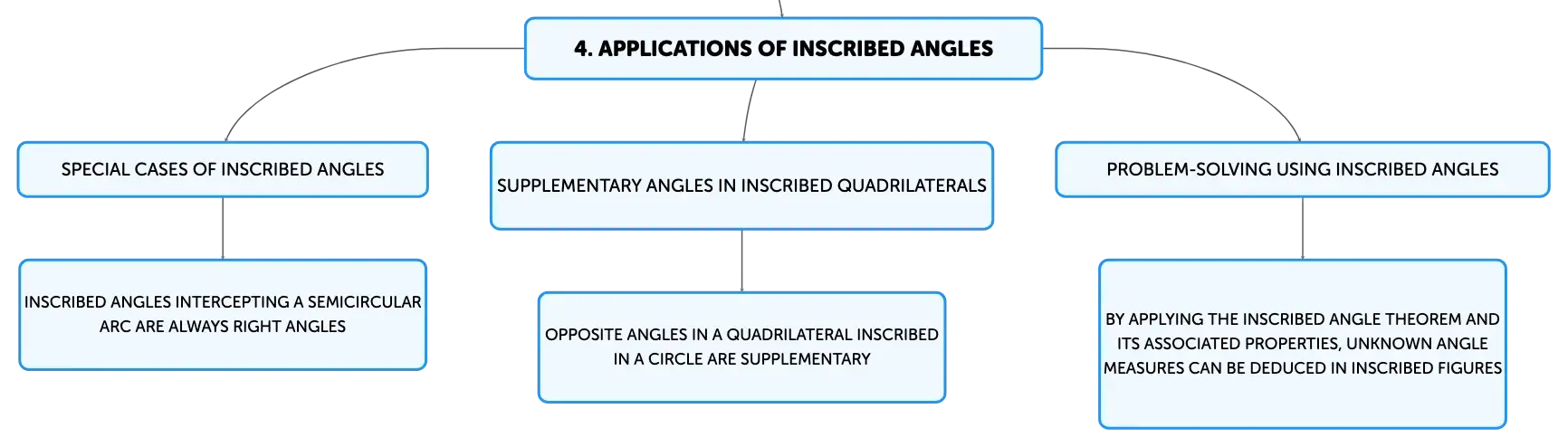

Applications of Inscribed Angles
Special cases of inscribed angles
Inscribed angles intercepting a semicircular arc are always right angles
Supplementary angles in inscribed quadrilaterals
Opposite angles in a quadrilateral inscribed in a circle are supplementary
Problem-solving using inscribed angles
By applying the Inscribed Angle Theorem and its associated properties, unknown angle measures can be deduced in inscribed figures
Inscribed Angles in Circle Geometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Inscribed Angle Formation
Formed by two intersecting chords at a point on the circle's circumference.
01
Inscribed Angle Example
∠ABC where B is the vertex on the circle's circumference.
02
Arc Types Spanned by Chords
Minor arc (<180 degrees), Major arc (>180 degrees).
