Understanding Thermal Energy Storage (TES) Systems

Thermal Energy Storage (TES) systems are crucial for energy management, allowing for the storage and release of heat to balance supply and demand. They support renewable energy integration by mitigating the intermittency of sources like solar and wind power. TES uses various media, including water, ice, and phase-change materials, to store energy efficiently for daily or seasonal use, aiding in the transition to sustainable energy infrastructures.

see more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ involves storing thermal energy when demand is low and releasing it when demand peaks.

Click to check the answer

Load leveling

2

______, a type of TES, stores heat or coolness for months to balance seasonal energy supply and demand.

Click to check the answer

Seasonal Thermal Energy Storage (STES)

3

Purposes of TES systems

Click to check the answer

Reduce peak electricity demand, enhance CHP plant efficiency, integrate excess renewables.

4

TES role in waste heat

Click to check the answer

Captures industrial waste heat for reuse, boosting energy efficiency.

5

TES impact on energy infrastructure

Click to check the answer

Promotes sustainable, resilient energy systems, supports shift to renewable reliance.

6

______ ______ Storage can help with both brief and long-term energy storage requirements.

Click to check the answer

Thermal Energy

7

Short-term TES offers a remedy for ______ or ______ variations in energy supply and demand.

Click to check the answer

daily weekly

8

Both long and brief duration storage methods improve the ______ and ______ of energy grids.

Click to check the answer

reliability stability

9

High ______ of variable renewable energy sources in energy grids can benefit from TES systems.

Click to check the answer

penetration

10

TES aids in reducing the inconsistency of ______ energy production.

Click to check the answer

renewable

11

Water and ice in TES

Click to check the answer

Favored for high heat capacity and latent heat during phase change.

12

Earth and bedrock usage

Click to check the answer

Used as natural storage with heat exchangers in boreholes.

13

Eutectic solutions in TES

Click to check the answer

Store high energy per volume, consistent release temperature.

14

______ with renewable energy systems is crucial for a sustainable and resilient energy grid.

Click to check the answer

Integrating Thermal Energy Storage (TES)

15

The stability of the energy grid relies on TES to store surplus energy when ______ is high and to supply energy during high demand.

Click to check the answer

production

16

TES is vital for matching renewable energy ______ with consumption patterns, enhancing energy systems and security.

Click to check the answer

production

17

The advancement of renewable energy systems towards ______ sustainability is critically supported by TES.

Click to check the answer

100%

18

Reducing greenhouse gas emissions is one of the benefits of TES in the development of ______ energy systems.

Click to check the answer

intelligent

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Technology

Thermal Energy Storage Systems

View document

Technology

Pumped-Heat Electricity Storage (PHES)

View document

Technology

Solar Thermal Energy Systems

View document

Technology

The Role of Thermal Energy Storage in Enhancing Solar Power

View document

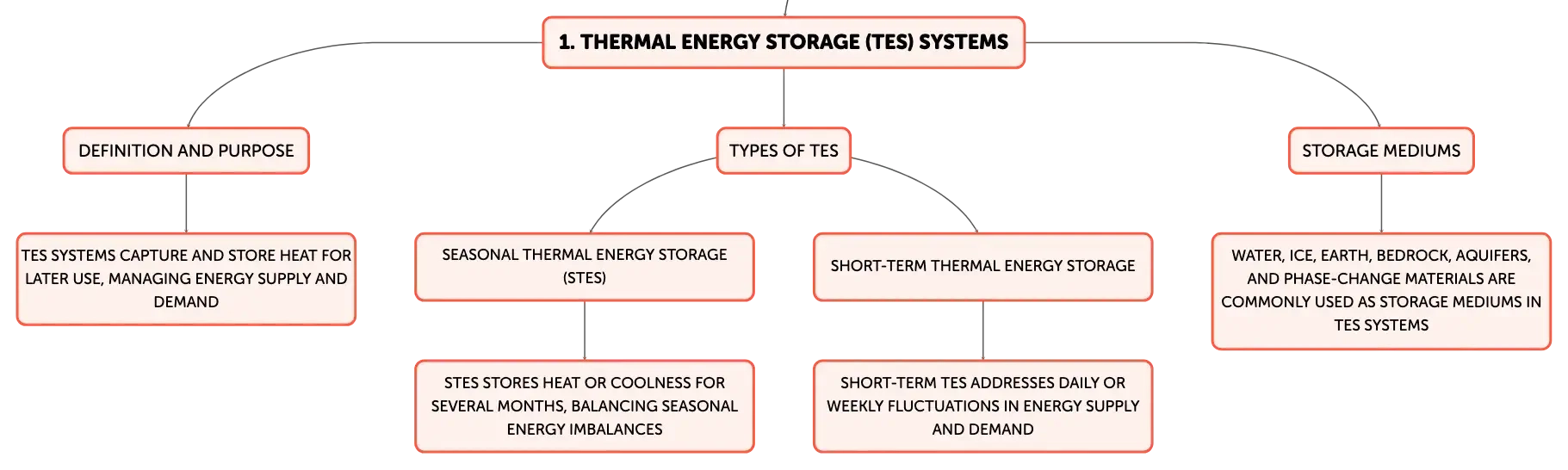

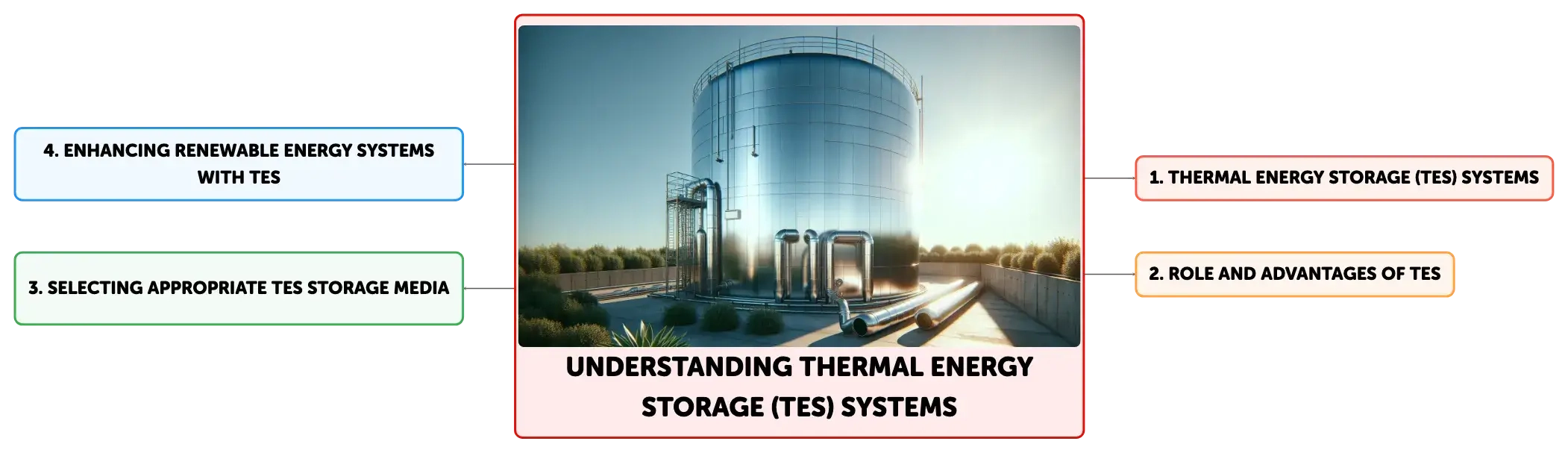

Understanding Thermal Energy Storage (TES) Systems

Thermal Energy Storage (TES) systems are designed to capture and store heat for later use, effectively managing the supply and demand of energy. These systems can be implemented on various scales, from small residential applications to large-scale industrial or community projects. TES is particularly useful for load leveling, which involves storing thermal energy during periods of low demand (such as nighttime) and releasing it during peak demand. Seasonal Thermal Energy Storage (STES) is a specific type of TES that stores heat or coolness for several months, mitigating the seasonal imbalances between energy supply and demand. Common storage mediums include water, ice, earth, bedrock, aquifers, and phase-change materials (PCMs), each chosen based on their thermal properties and the specific needs of the application.

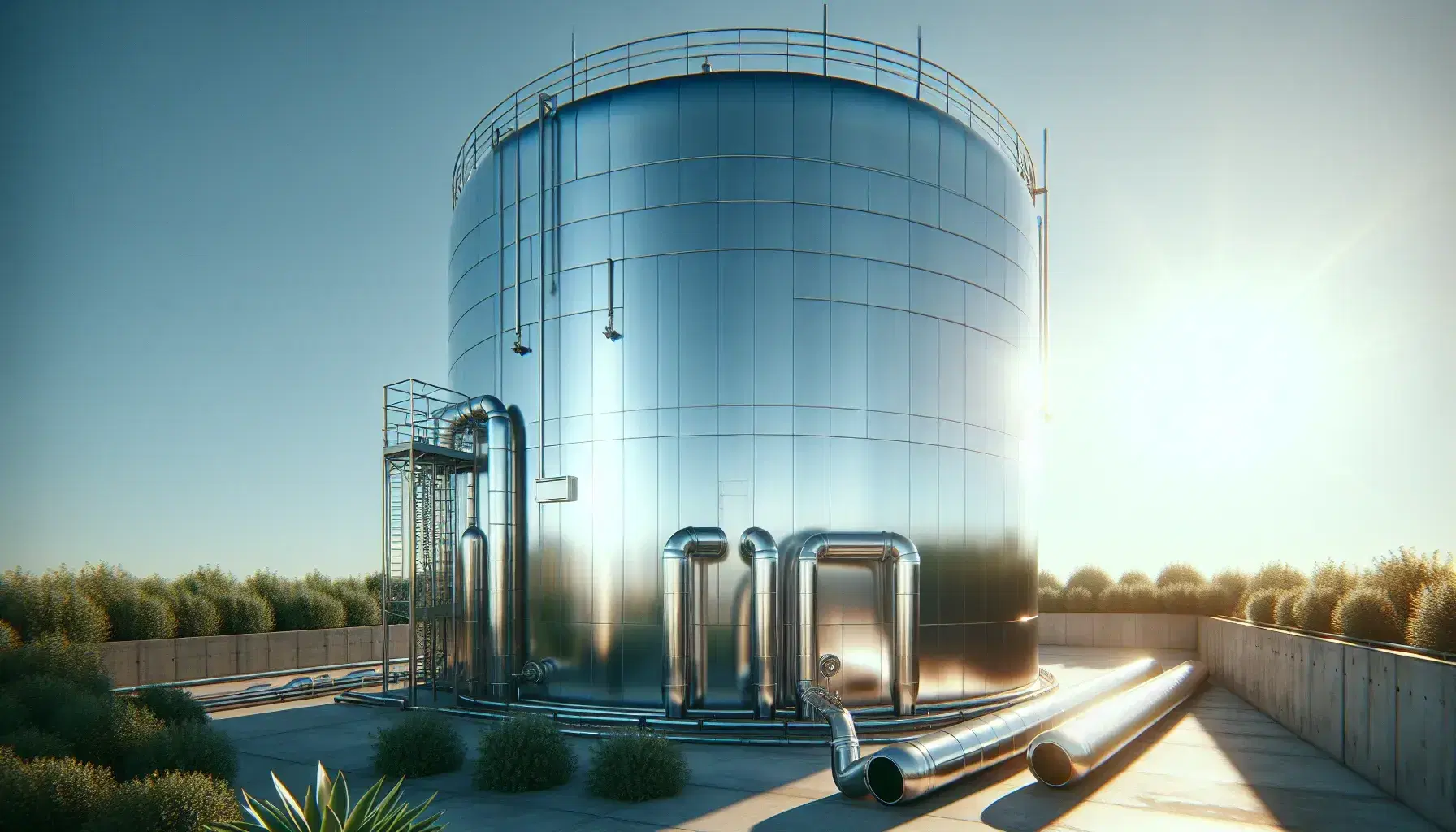

Insulated cylindrical tank outdoors on concrete platform, surrounded by green plants, with insulated pipes and sunny blue sky.

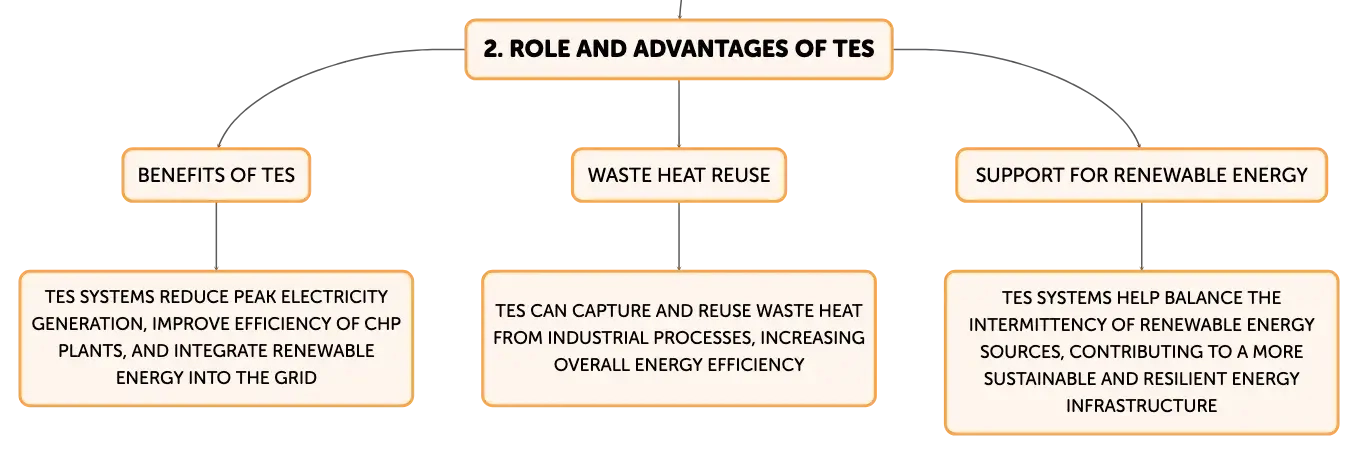

The Role and Advantages of Thermal Energy Storage

Thermal Energy Storage systems serve a multitude of purposes, including reducing the need for peak electricity generation, enhancing the efficiency of combined heat and power (CHP) plants, and enabling the integration of excess renewable energy into the grid. TES can also capture and reuse waste heat from industrial processes, contributing to improved overall energy efficiency. The ability to store energy in times of surplus and release it during shortages is particularly valuable for integrating renewable energy sources like wind and solar power, which are inherently intermittent. TES systems thus support a more sustainable and resilient energy infrastructure, facilitating the shift towards greater reliance on renewable energy.

Seasonal Versus Short-Term Thermal Energy Storage

Thermal Energy Storage is a versatile technology that can address both short-term and seasonal energy storage needs. Seasonal TES systems are designed to hold large amounts of thermal energy for several months, making them ideal for regions with significant seasonal temperature differences. Short-term TES, in contrast, provides a solution for daily or weekly fluctuations in energy supply and demand. Both types of storage are cost-effective methods to enhance the reliability and stability of energy grids, especially those with a high penetration of variable renewable energy sources. By mitigating the variability of renewable energy production, TES contributes to a more consistent and dependable energy supply.

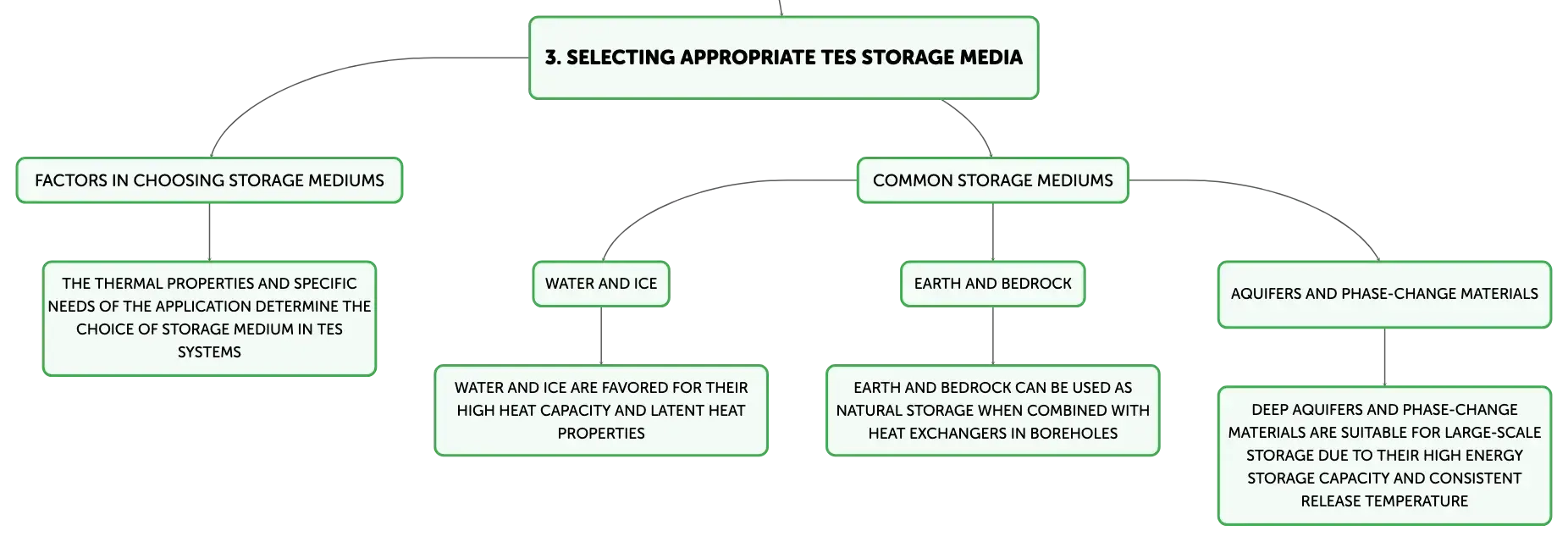

Selecting Appropriate TES Storage Media

The effectiveness of a Thermal Energy Storage system is highly dependent on the choice of storage media. Water and ice are favored for their high heat capacity and the latent heat properties of phase change. Earth and bedrock can be utilized as natural storage when combined with heat exchangers in boreholes. For large-scale storage, deep aquifers are an option, while lined pits filled with gravel and water are suitable for smaller applications. Eutectic solutions and phase-change materials are advantageous for their ability to store high amounts of energy per unit volume and maintain a consistent release temperature, which is crucial for maintaining the efficiency and reliability of TES systems.

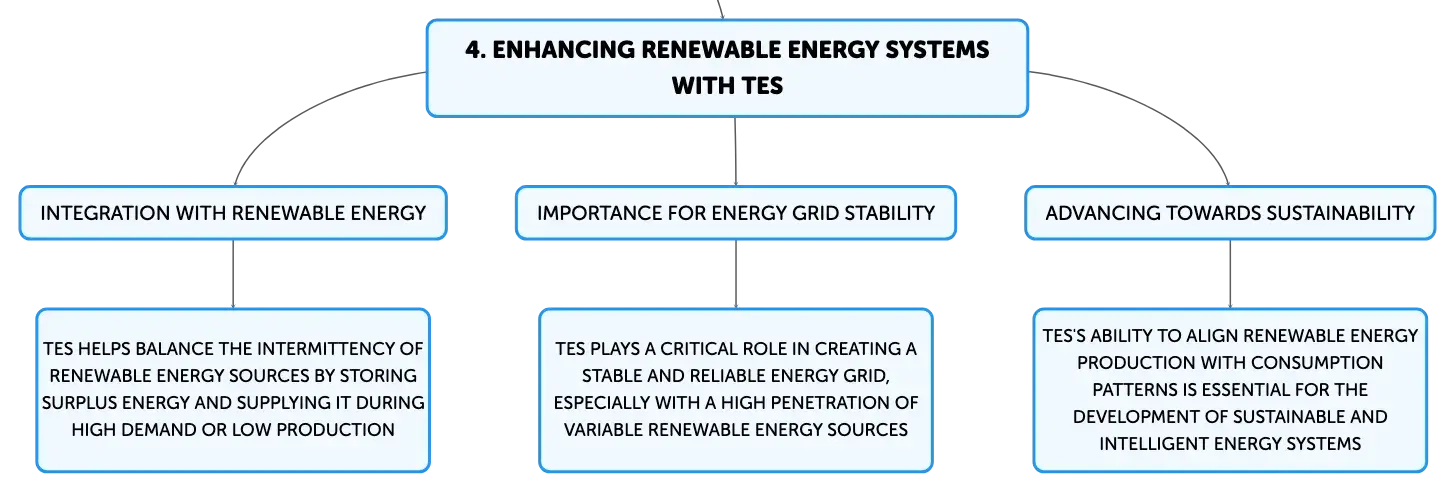

Enhancing Renewable Energy Systems with TES

Integrating Thermal Energy Storage with renewable energy systems is essential for creating a sustainable and resilient energy grid. TES helps to balance the intermittency of renewable sources by storing surplus energy when production is high and supplying energy when there is high demand or low production. This balancing act is critical for the stability of the energy grid and for the advancement of renewable energy systems towards 100% sustainability. TES's role in aligning renewable energy production with consumption patterns is indispensable for the development of intelligent energy systems, energy security, and the reduction of greenhouse gas emissions.
