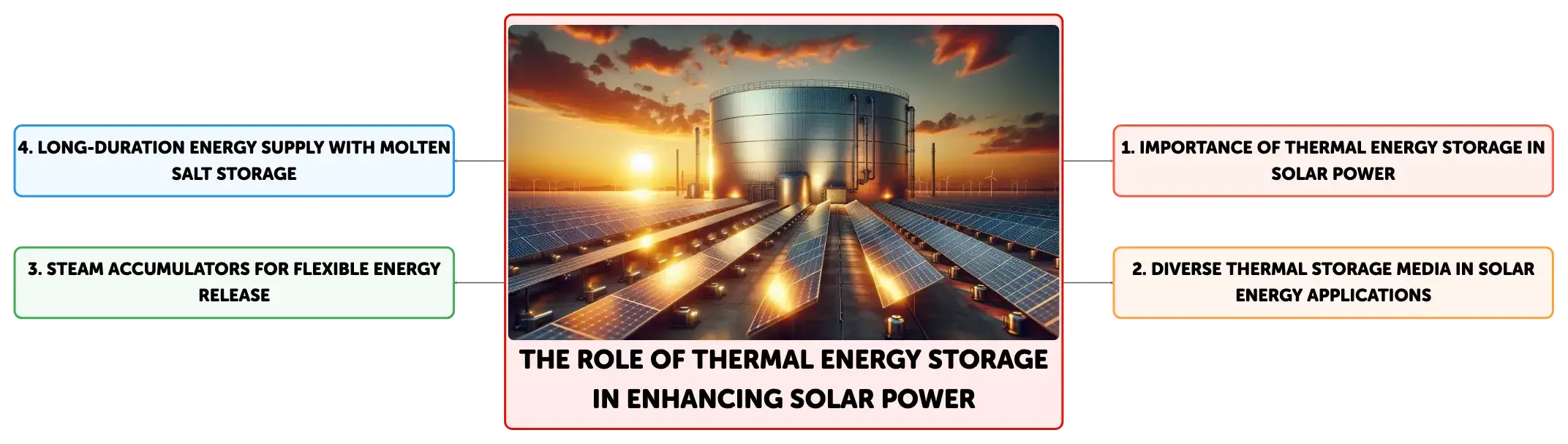

The Role of Thermal Energy Storage in Enhancing Solar Power

Thermal Energy Storage (TES) is crucial for solar thermal power plants, allowing electricity generation even without sunlight. It aids in grid reliability, meeting baseload and peak demands. Various TES media like molten salts, steam, concrete, and phase-change materials are discussed, each with unique benefits. Innovations like the PS10 and Andasol plants showcase TES applications, while water conservation efforts in plants like Ivanpah highlight sustainability.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Role of TES in solar power reliability

Click to check the answer

TES enables consistent electricity generation by solar power, balancing supply during sunless periods.

2

TES impact on solar plant efficiency

Click to check the answer

Stores excess heat for later use, increasing solar plant's operational efficiency and cost-effectiveness.

3

Mitigation of the 'duck curve'

Click to check the answer

TES helps smooth out energy supply by releasing stored heat to align with peak demand, reducing reliance on peaker plants.

4

Solar thermal energy systems can utilize various materials for heat retention, including ______, known for their superior thermal characteristics.

Click to check the answer

molten salts

5

______, a blend of sodium and potassium nitrate, is favored in solar energy storage for its high-temperature stability and safety.

Click to check the answer

Molten salts

6

Phase change materials (PCMs) are unique in that they manage heat by transitioning between ______ and ______ states.

Click to check the answer

solid liquid

7

The selection of a thermal storage medium in solar energy systems is influenced by the ______, ______, and how long the energy needs to be stored.

Click to check the answer

specific application cost

8

Function of steam accumulators in thermal energy storage

Click to check the answer

Capture heat as pressurized steam; release for electricity generation when needed.

9

PS10 solar power tower's use of steam

Click to check the answer

Uses high-pressure, high-temperature steam for short-term energy storage.

10

Steam accumulator's energy conversion process

Click to check the answer

Stored steam converted to water, reheated to generate steam, enabling flexible energy supply.

11

The ______ solar power station in Spain employs molten salt technology for energy storage.

Click to check the answer

Andasol

12

Molten salt systems allow solar thermal plants to generate electricity even when there's ______.

Click to check the answer

no sunlight

13

Heat is conserved in ______ tanks filled with molten salt at the Andasol station.

Click to check the answer

large insulated

14

The stored heat at Andasol can be converted into electricity for hours after ______ or during overcast weather.

Click to check the answer

sunset

15

A tank designed for a 100-megawatt turbine could supply power for ______ hours.

Click to check the answer

four

16

Andasol began using molten salt storage for commercial power generation in ______.

Click to check the answer

2009

17

Function of PCMs in thermal storage

Click to check the answer

PCMs absorb/release heat during solid-liquid transition at specific temperatures, enabling efficient thermal energy storage.

18

Difference between organic and inorganic PCMs

Click to check the answer

Organic PCMs: non-corrosive, stable, lower conductivity/capacity. Inorganic PCMs: higher capacity, potential for segregation/corrosion.

19

Criteria for PCM selection in solar energy systems

Click to check the answer

PCM selection involves balancing thermal performance with material properties to optimize solar energy storage.

20

Air-cooling in solar thermal power plants helps in preserving water, especially in ______ areas where water is limited.

Click to check the answer

arid

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

The Nature of Thermal Energy

View document

Technology

Understanding Thermal Energy Storage (TES) Systems

View document

Technology

Thermal Energy Storage Systems

View document

Technology

Pumped-Heat Electricity Storage (PHES)

View document

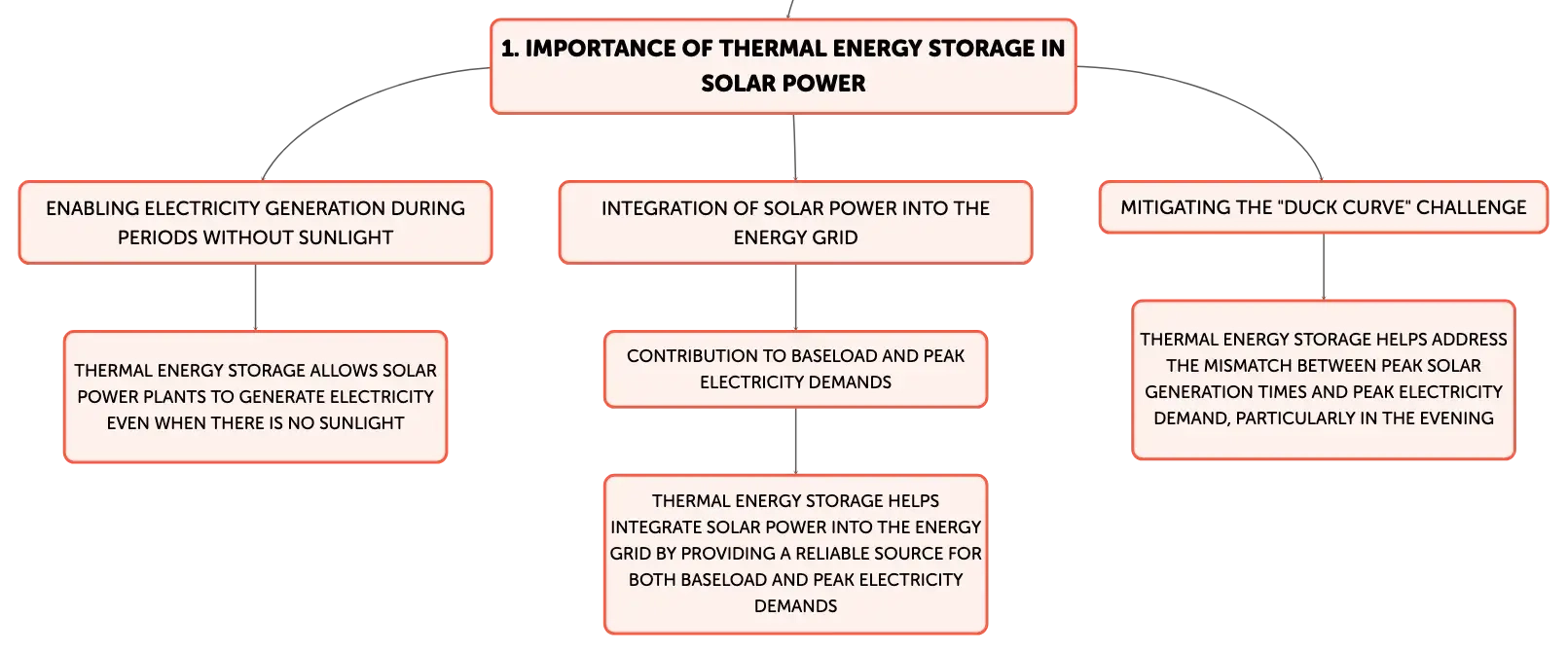

The Role of Thermal Energy Storage in Enhancing Solar Power

Thermal energy storage (TES) plays an essential role in solar thermal power plants by enabling the generation of electricity even during periods without sunlight. This technology is pivotal for integrating solar power into the energy grid as a reliable source that can contribute to both baseload and peak electricity demands. TES systems store excess heat collected during sunny periods and release it as needed, thereby increasing the efficiency and cost-effectiveness of solar power plants. They also help mitigate the "duck curve" challenge, which is the mismatch between peak solar generation times and peak electricity demand, particularly in the evening.
Solar system at sunset with reflective panels in a row and connected cylindrical tank, sky gradient from orange to blue.

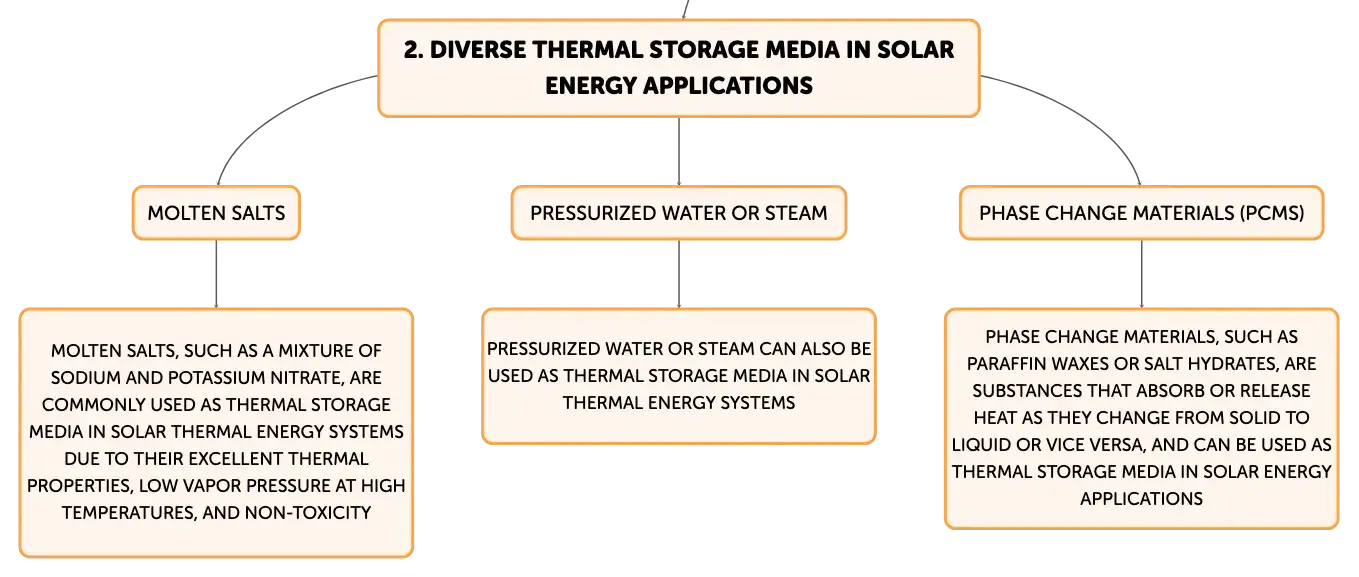

Diverse Thermal Storage Media in Solar Energy Applications

A variety of materials can be used as thermal storage media in solar thermal energy systems, each with unique characteristics and advantages. Common storage media include molten salts, such as a mixture of sodium and potassium nitrate, which are preferred for their excellent thermal properties, low vapor pressure at high temperatures, and non-toxicity. Other media include pressurized water or steam, concrete, and phase change materials (PCMs), which are substances that absorb or release heat as they change from solid to liquid or vice versa. The choice of storage medium depends on factors such as the specific application, cost, and the desired duration of energy storage.

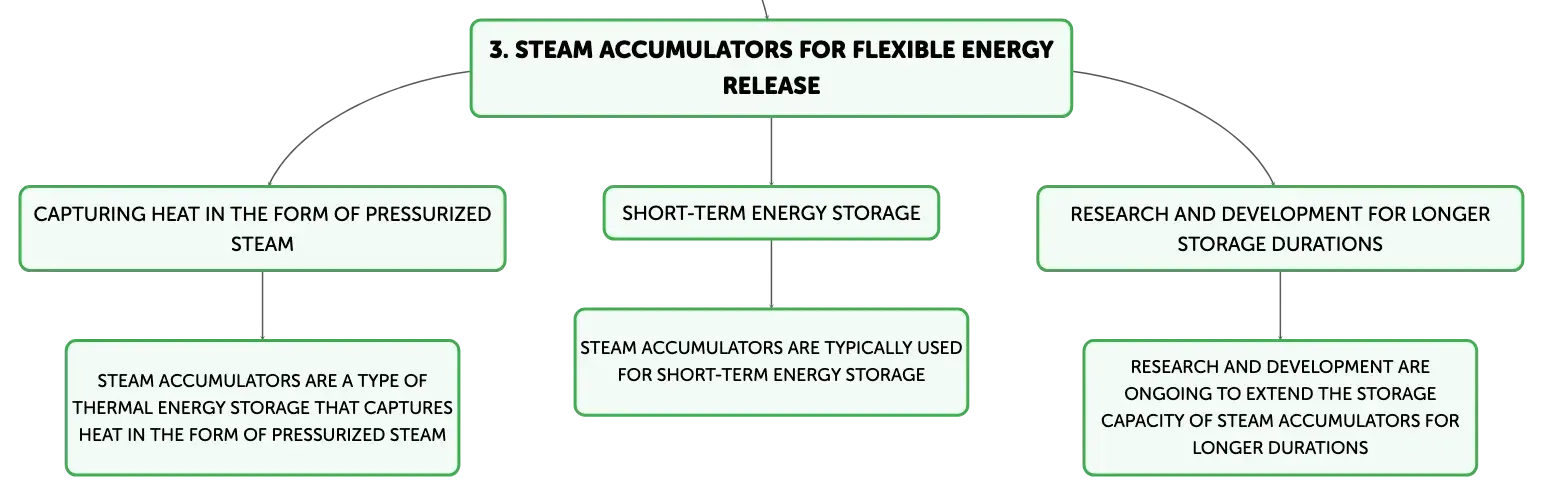

Steam Accumulators for Flexible Energy Release

Steam accumulators are a type of thermal energy storage that captures heat in the form of pressurized steam, which can be released to generate electricity when needed. This method is exemplified by the PS10 solar power tower in Spain, which uses steam at high pressure and temperature for short-term energy storage. The stored steam can be converted back to water and then reheated to generate steam again, providing a flexible and responsive energy source. While steam accumulators are typically used for short-term storage, research and development are ongoing to extend their storage capacity for longer durations.

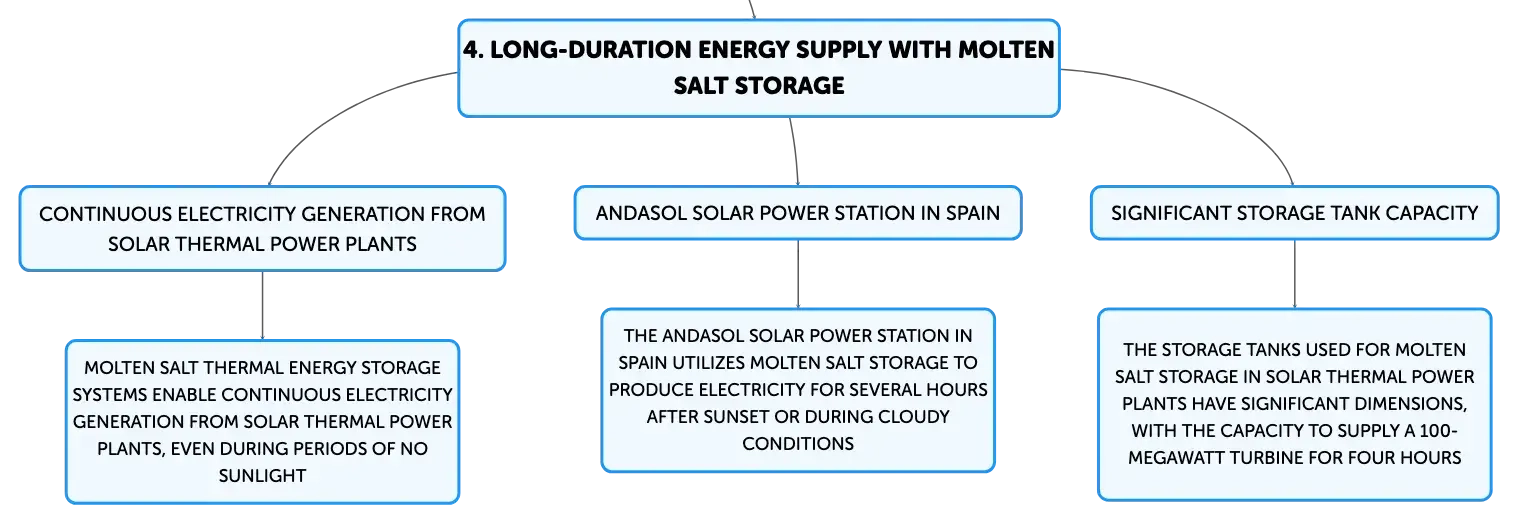

Long-Duration Energy Supply with Molten Salt Storage

Molten salt thermal energy storage systems are advanced solutions that enable continuous electricity generation from solar thermal power plants, even during periods of no sunlight. The Andasol solar power station in Spain utilizes this technology, storing heat in large insulated tanks filled with molten salt. This stored heat can be used to produce electricity for several hours after sunset or during cloudy conditions. The capacity of these storage tanks is significant; for instance, a tank designed to supply a 100-megawatt turbine for four hours would have substantial dimensions. The Andasol plant was a pioneer in using molten salt storage for commercial solar thermal power generation, starting operations in 2009.

Phase-Change Materials for High-Efficiency Thermal Storage

Phase-change materials (PCMs) are an efficient thermal storage option that operate by absorbing and releasing heat during their transition between solid and liquid states at predetermined temperatures. PCMs can be organic, such as paraffin waxes, or inorganic, like salt hydrates. Organic PCMs are typically non-corrosive and chemically stable but have lower thermal conductivity and heat storage capacity. In contrast, inorganic PCMs offer higher heat storage capacity but may present challenges such as phase segregation and corrosion. The selection of PCMs for solar energy storage systems is based on a balance between their thermal performance and material properties.

Water Conservation in Solar Thermal Power Generation

Water consumption is a critical issue for solar thermal power plants, particularly in arid regions where water resources are scarce. Traditional solar thermal systems may require significant amounts of water for processes such as cooling and condensation. To address this, some plants, like the Ivanpah Solar Power Facility in California, have adopted air-cooling technologies that drastically reduce water usage by up to 90% compared to conventional wet-cooling systems. Although air-cooling may slightly decrease efficiency, it offers a sustainable solution by conserving water and minimizing the environmental footprint of solar thermal power generation.
