Pumped-Heat Electricity Storage (PHES)

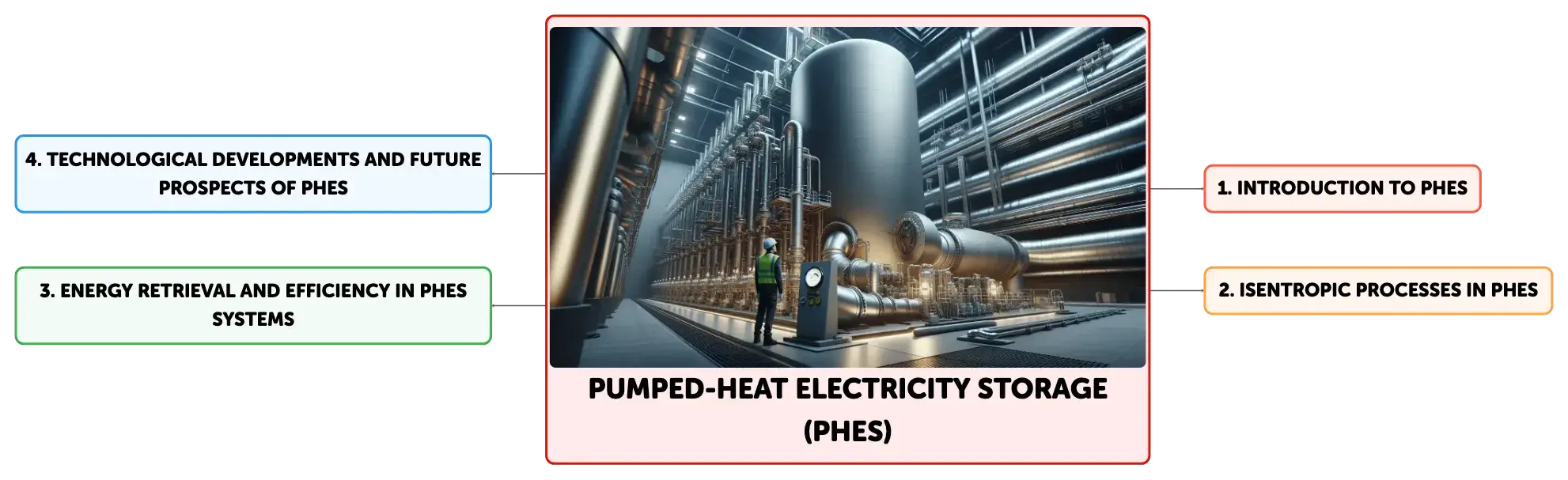

Concept Map
Pumped-Heat Electricity Storage (PHES) is a cutting-edge energy storage method using a heat-pump to create a temperature differential for storing energy. It's crucial for managing the supply and demand of electricity, particularly with renewable sources. PHES systems store surplus energy during low demand and release it during peak times, ensuring a stable power supply and aiding in the transition to sustainable energy infrastructures.
Summary
Outline
Exploring Pumped-Heat Electricity Storage (PHES)
Pumped-Heat Electricity Storage (PHES) is an advanced energy storage technology that employs a reversible heat-pump to store energy by creating a temperature differential between two thermal reservoirs. This system is instrumental in balancing electricity supply and demand by storing surplus energy during low-demand periods and releasing it during peak demand. The PHES operates by using electricity to power a heat pump, which moves heat from a colder to a hotter reservoir, storing the energy as thermal energy. When there is a need for electricity, the stored thermal energy is converted back to electrical energy through a reverse process.The Role of Isentropic Processes in PHES
Isentropic processes are fundamental to PHES systems, involving two insulated storage units filled with a solid material, such as crushed rock, that acts as the thermal storage medium. The system includes a 'hot' vessel for high-temperature, high-pressure thermal energy storage, and a 'cold' vessel for low-temperature storage. These vessels are connected by pipes and contain an inert gas like argon. During the storage phase, electricity drives a heat pump that compresses the argon, heating it through adiabatic compression. The heated gas transfers its heat to the storage medium in the hot vessel. Upon cooling, the gas expands, cools further, and then absorbs heat from the cold vessel, completing the cycle.Energy Retrieval and Efficiency in PHES Systems
The energy retrieval in PHES systems involves reversing the storage cycle. The hot gas from the hot vessel is expanded, which drives a generator to produce electricity. The now-cooled gas is compressed, warming it to ambient temperature before it cycles back to the hot vessel for reheating. This process is facilitated by a reciprocating machine with sliding valves. While some energy is lost as heat due to inefficiencies, PHES systems can achieve round-trip efficiencies between 72–80%. This is marginally lower than the efficiencies of pumped hydro storage systems, which can surpass 80%.Technological Developments and Future Prospects of PHES
PHES technology is under continuous development, with prototypes and new designs aimed at enhancing performance and efficiency. Some designs include turbomachinery for handling higher power capacities, while others investigate the use of phase change materials to improve thermal storage. These innovations are vital as they can lead to more effective energy storage solutions that support the integration of renewable energy into the power grid, fostering a sustainable energy landscape.PHES in the Context of Renewable Energy and Energy Conservation
PHES systems are pivotal in the context of renewable energy and energy conservation. They provide a mechanism for storing surplus energy, which is crucial for offsetting the variability of renewable sources like solar and wind. This storage capability ensures a stable and reliable electricity supply, even with the intermittent nature of renewable generation. PHES also promotes energy conservation by facilitating more efficient electricity use, reducing reliance on fossil fuels during peak times, and consequently decreasing greenhouse gas emissions. Thus, PHES is a key technology in the transition to a more sustainable and resilient energy infrastructure.
Show More
Introduction to PHES
Definition of PHES
PHES is an advanced energy storage technology that uses a reversible heat-pump to store energy
Purpose of PHES
PHES is used to balance electricity supply and demand by storing surplus energy during low-demand periods and releasing it during peak demand
Operation of PHES
PHES operates by using electricity to power a heat pump, which moves heat between two thermal reservoirs to store and retrieve energy

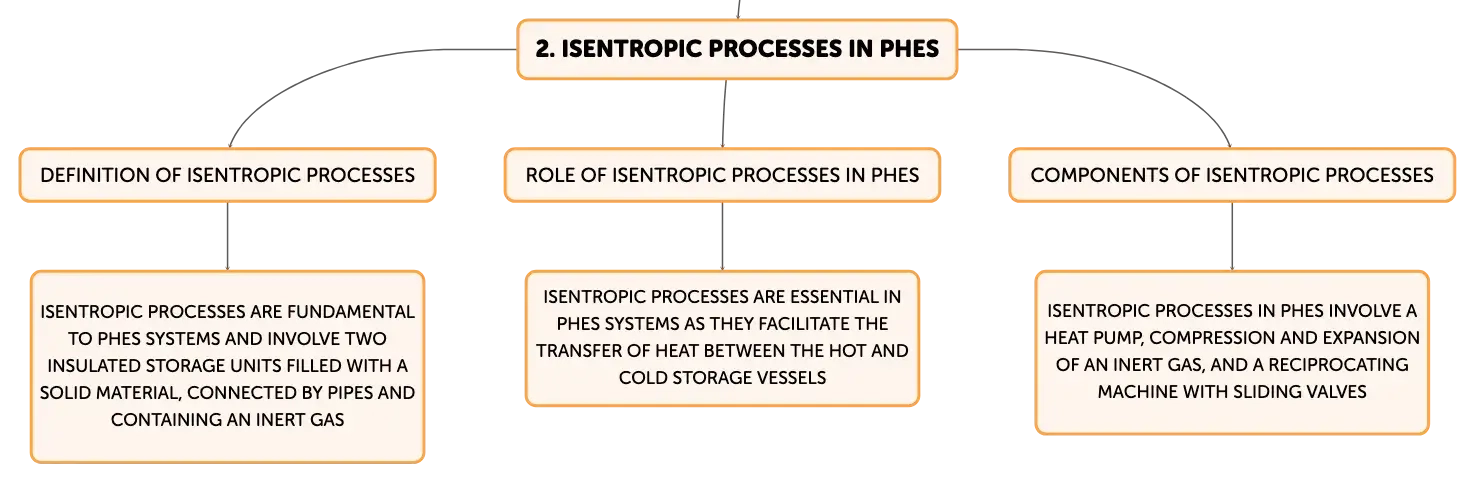

Isentropic Processes in PHES
Definition of Isentropic Processes
Isentropic processes are fundamental to PHES systems and involve two insulated storage units filled with a solid material, connected by pipes and containing an inert gas
Role of Isentropic Processes in PHES
Isentropic processes are essential in PHES systems as they facilitate the transfer of heat between the hot and cold storage vessels
Components of Isentropic Processes
Isentropic processes in PHES involve a heat pump, compression and expansion of an inert gas, and a reciprocating machine with sliding valves

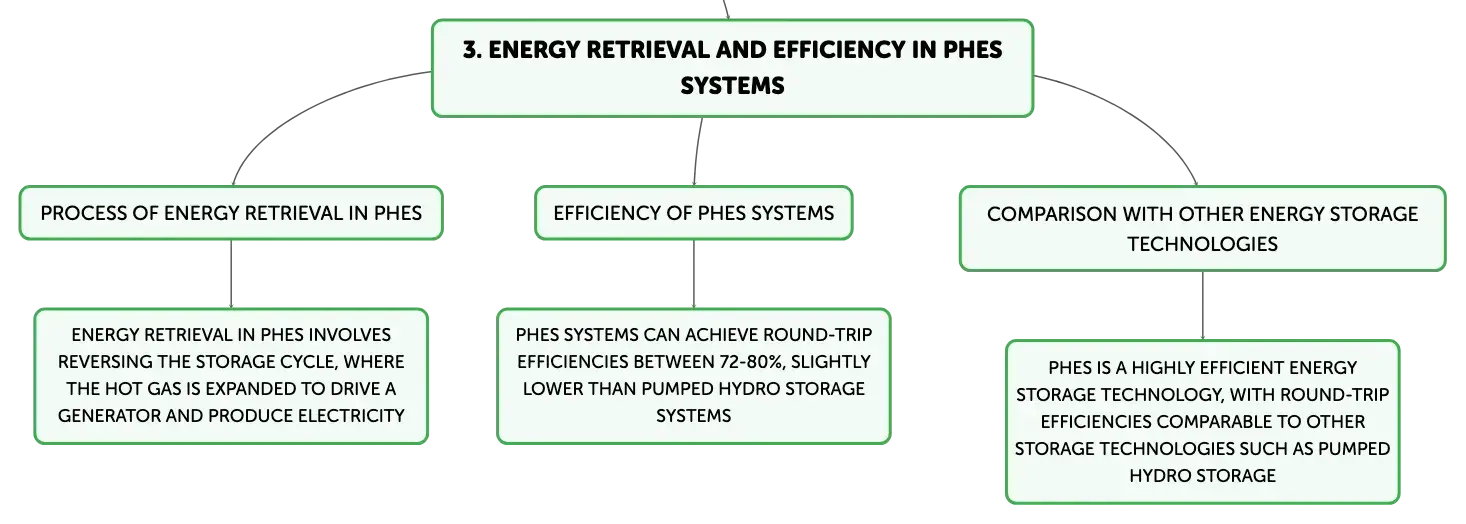

Energy Retrieval and Efficiency in PHES Systems
Process of Energy Retrieval in PHES
Energy retrieval in PHES involves reversing the storage cycle, where the hot gas is expanded to drive a generator and produce electricity
Efficiency of PHES Systems
PHES systems can achieve round-trip efficiencies between 72-80%, slightly lower than pumped hydro storage systems
Comparison with Other Energy Storage Technologies
PHES is a highly efficient energy storage technology, with round-trip efficiencies comparable to other storage technologies such as pumped hydro storage

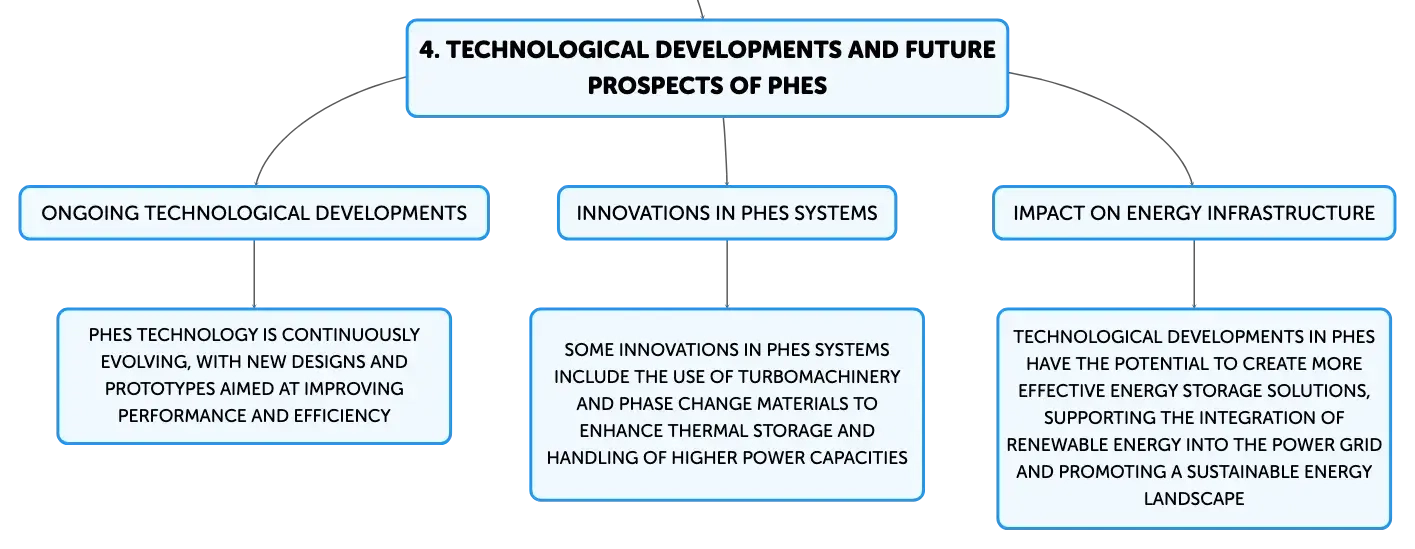

Technological Developments and Future Prospects of PHES
Ongoing Technological Developments
PHES technology is continuously evolving, with new designs and prototypes aimed at improving performance and efficiency
Innovations in PHES Systems
Some innovations in PHES systems include the use of turbomachinery and phase change materials to enhance thermal storage and handling of higher power capacities
Impact on Energy Infrastructure
Technological developments in PHES have the potential to create more effective energy storage solutions, supporting the integration of renewable energy into the power grid and promoting a sustainable energy landscape
Pumped-Heat Electricity Storage (PHES)
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
PHES helps in managing electricity supply by storing excess energy when demand is ______ and releasing it during ______ demand.
low
peak
01
The PHES system uses a ______ to transfer heat from a cooler to a warmer reservoir, thus storing energy as ______ energy.
heat pump
thermal
02
When electricity is needed, PHES converts the stored ______ energy back into electrical energy through a ______.
thermal
reverse process
