Computing the Circle's Area Using Radius or Diameter

To calculate the area of a circle when the radius is given, insert the radius value into the area formula. For example, a circle with a radius of 8 meters has an area of $A = \pi \times 8^2$, which is approximately 201.062 square meters. If the diameter is known, it must be divided by two to find the radius before applying the area formula. A circle with a diameter of 12 meters has a radius of 6 meters, resulting in an area of approximately 113.1 square meters. These calculations demonstrate the direct relationship between the radius, diameter, and the circle's area.

Determining Area from the Circle's Circumference

The circumference of a circle, which is the total distance around its edge, can be used to find the area. The circumference is related to the radius and diameter by the formulas $C = \pi D$ and $C = 2\pi r$, where $C$ stands for circumference. To derive the area from the circumference, one must first calculate the radius using the circumference formula and then apply the area formula. For instance, a circle with a circumference of 10 meters has a radius of approximately 1.591 meters, leading to an area of about 7.95 square meters.

Calculating Areas of Semicircles and Quarter-Circles

The principles of area and circumference also apply to semicircles and quarter-circles. The area of a semicircle is half that of a full circle, expressed as $\frac{1}{2}\pi r^2$, and its circumference includes half the circle's circumference plus the diameter, known as the semiperimeter. A quarter-circle has an area of $\frac{1}{4}\pi r^2$ and a circumference that is one quarter of the full circle's, plus the two radii that form the quarter-circle's straight edges. These formulas are vital for understanding the proportional relationships between segments of a circle and their areas and perimeters.

Essential Concepts in Circle Geometry

To conclude, the defining properties of a circle include its radius, diameter, and circumference. The area of a circle is given by the formula $\pi r^2$, emphasizing the significance of the radius in determining the size of a circle. The circumference, calculated as $2\pi r$, is another key element in circle geometry. Mastery of these concepts is essential in the study of geometry and has practical implications across various scientific and engineering disciplines, underscoring the circle's importance in both theoretical and applied contexts.

Circle Geometry

Concept Map

Summary

Outline

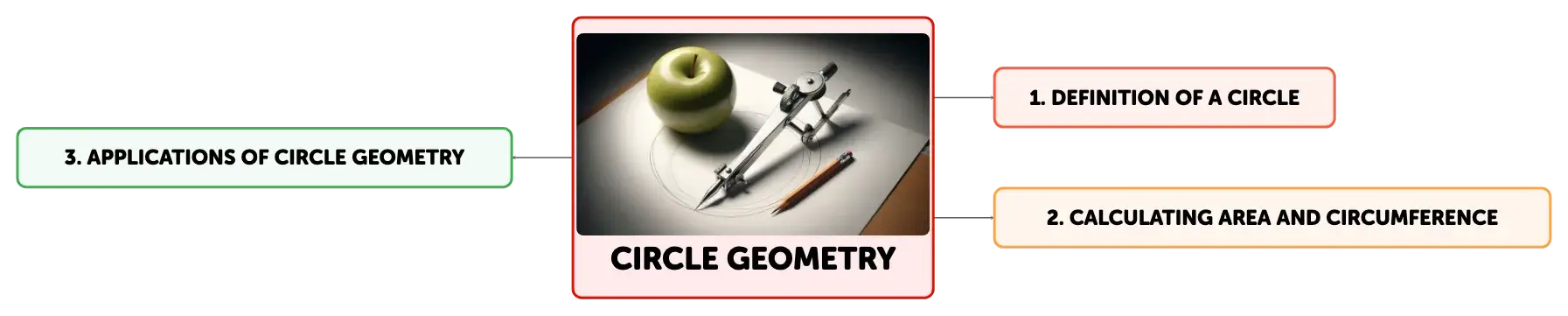

Circle Geometry

Definition of a Circle

Two-dimensional geometric shape

Radius and Center

Diameter and Chords

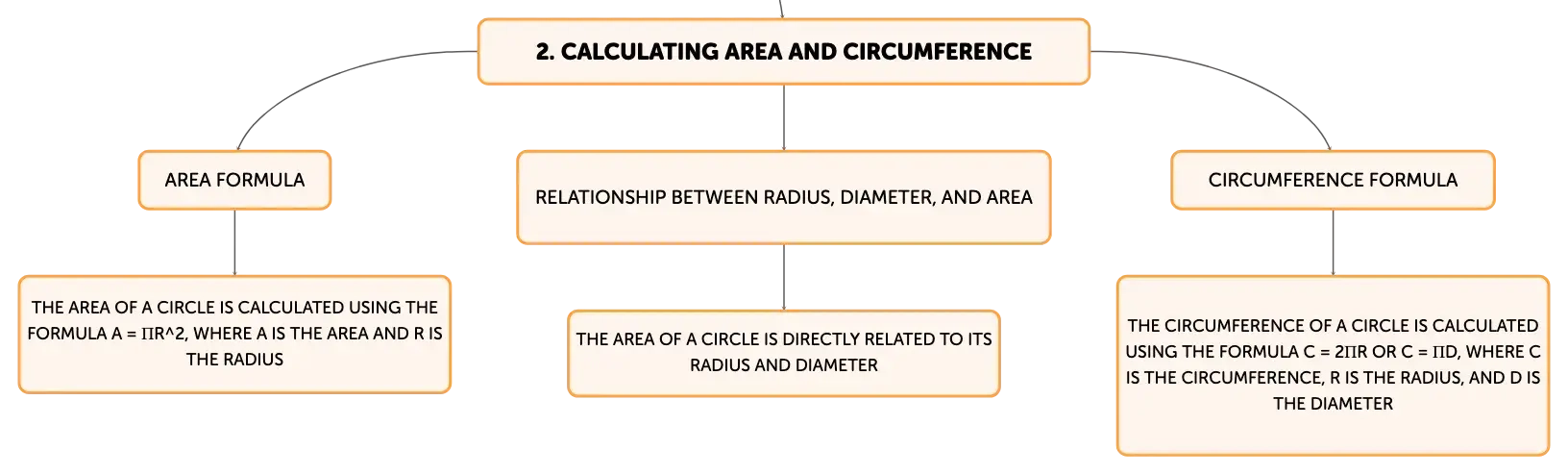

Calculating Area and Circumference

Area Formula

Relationship between Radius, Diameter, and Area

Circumference Formula

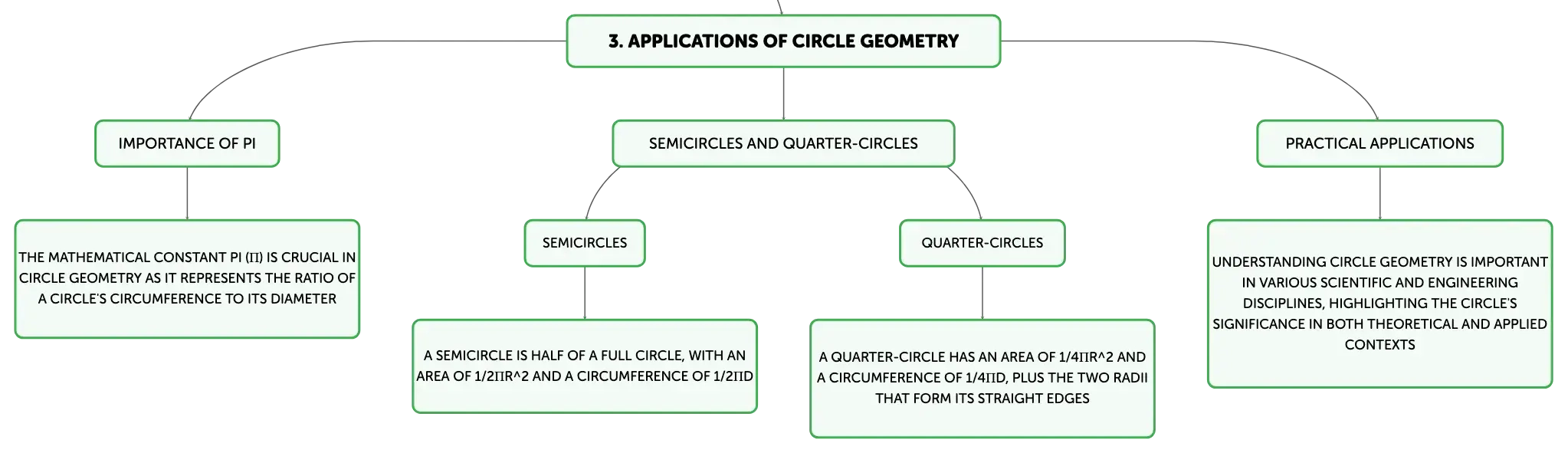

Applications of Circle Geometry
