Parallel Lines in Geometry

Parallel lines in geometry are defined by their equidistance and inability to intersect. This text delves into the angle relationships formed when a transversal intersects parallel lines, discussing theorems like Alternate Interior Angles and Corresponding Angles. These principles are essential for proving parallelism and solving geometric problems, highlighting the practical applications of these theorems in various geometric figures and calculations.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Properties of Parallel Lines

Click to check the answer

Coplanar, equidistant, never intersecting.

2

Parallel Lines in Real Life

Click to check the answer

Found in pedestrian crossings, railway tracks, ladders.

3

Parallel Lines and Parallelograms

Click to check the answer

Parallelograms have two pairs of parallel sides.

4

______ lines, in contrast to parallel lines, intersect at a ______ and are not consistently spaced apart.

Click to check the answer

Non-parallel single point

5

Transversal intersecting parallel lines: angle relationships

Click to check the answer

Creates corresponding, alternate interior, alternate exterior, and consecutive interior angles; these are congruent or supplementary.

6

Geometric theorems involving transversals and parallel lines

Click to check the answer

Provide proofs for angle congruence and supplementary angles, aiding in solving geometric problems.

7

The ______ Angles Theorem asserts that angles in matching corners when a line crosses through parallel lines are ______.

Click to check the answer

Corresponding equal

8

Converse of Alternate Interior Angles Theorem

Click to check the answer

If alternate interior angles formed by a transversal are congruent, lines are parallel.

9

Converse of Corresponding Angles Postulate

Click to check the answer

If corresponding angles formed by a transversal are equal, lines are parallel.

10

Converse of Consecutive Interior Angles Theorem

Click to check the answer

If consecutive interior angles formed by a transversal are supplementary, lines are parallel.

11

According to the ______ of Parallel Lines Theorem, if two lines are parallel to the same line, they are also parallel to each other.

Click to check the answer

Transitivity

12

Parallel Lines and Transversals: Angle Relationships

Click to check the answer

When a transversal intersects parallel lines, alternate, corresponding, and supplementary angles are congruent or sum to 180°, aiding angle calculation.

13

Determining Parallelism in Complex Figures

Click to check the answer

Use congruent corresponding angles or supplementary interior angles on the same side of a transversal to prove lines are parallel.

14

Proportional Segments from Parallel Lines

Click to check the answer

Parallel lines cut by transversals create proportional segments, useful in solving for unknown lengths and real-world scaling.

15

Understanding the congruence of alternate ______ angles is vital for a thorough grasp of geometry.

Click to check the answer

interior and exterior

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Angle Measurement in Geometry

Geometry

Parallel Lines and Transversals

Geometry

Three-Dimensional Shapes and Their Properties

Geometry

The SAS Congruence and Similarity Criteria in Euclidean Geometry

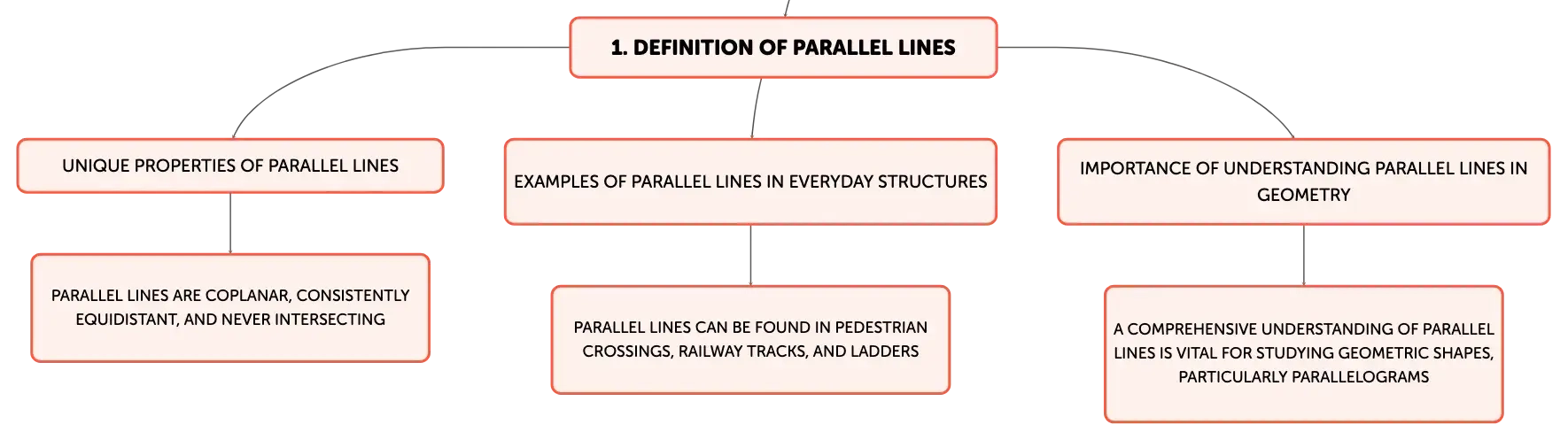

Exploring the Fundamentals of Parallel Lines in Geometry

Parallel lines are an essential element in the study of geometry, defined by their unique properties of being coplanar, consistently equidistant, and never intersecting. These lines are ubiquitous in the world around us, found in everyday structures such as pedestrian crossings, railway tracks, and ladders. A comprehensive understanding of parallel lines is vital for the study of various geometric shapes, particularly parallelograms, which are quadrilaterals with two pairs of parallel sides. This section will explore the foundational theorems and postulates that govern the behavior of parallel lines and the angles they form when intersected by a transversal.
Modern cityscape with glass skyscrapers, a minimalist pedestrian bridge over reflective water, and a clear blue sky, showcasing symmetrical designs and shadows.

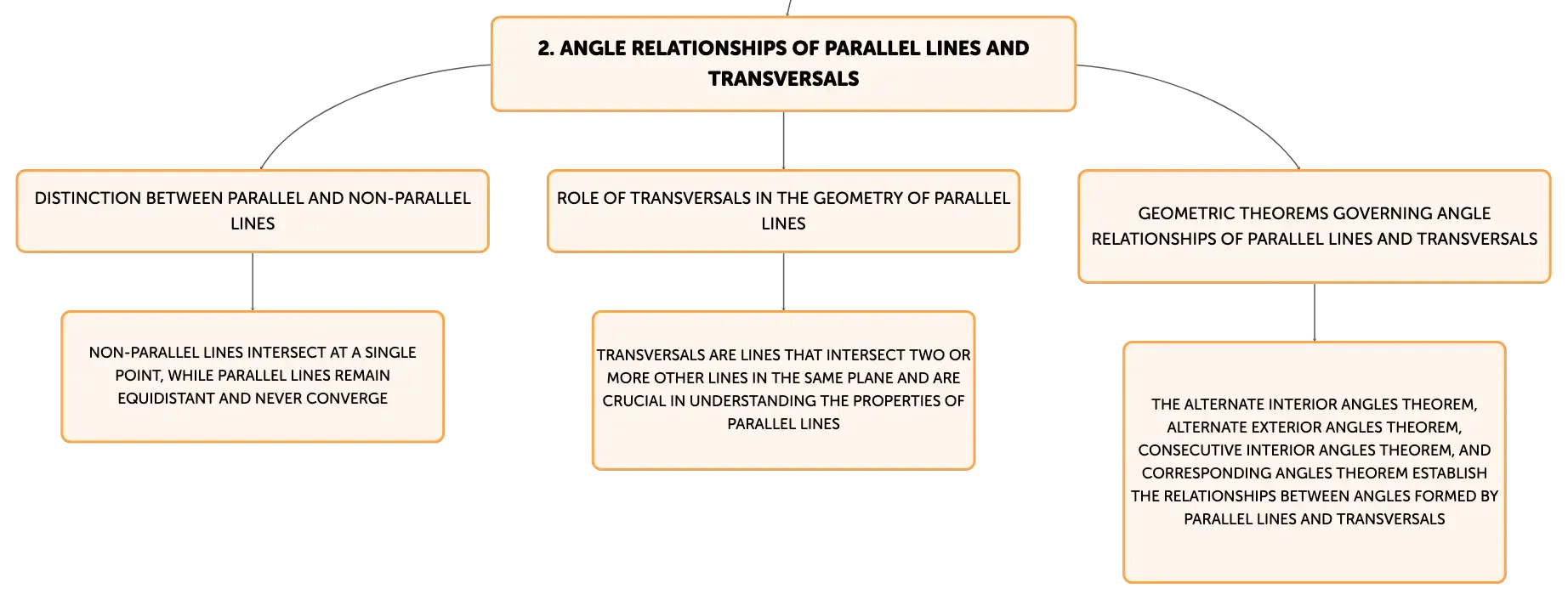

Identifying Parallel and Non-Parallel Lines

Distinguishing between parallel and non-parallel lines is foundational to geometry. Non-parallel lines, or intersecting lines, meet at a single point and are not equidistant at all locations. In contrast, parallel lines remain at a constant distance from each other and will never converge, no matter how far they are extended. This fundamental difference underpins the study of angles formed by parallel lines and transversals, which is a key concept in understanding the properties of these lines.

The Significance of Transversals in Parallel Line Geometry

Transversals are lines that intersect two or more other lines in the same plane at different points, and they are crucial in the geometry of parallel lines. The intersection of a transversal with parallel lines creates specific angle relationships that are predictable and consistent. These relationships are encapsulated in geometric theorems that provide the basis for understanding the congruence and supplementary nature of the angles formed by parallel lines and transversals.

Geometric Theorems on Angles and Parallel Lines

A series of geometric theorems detail the relationships between angles formed when a transversal cuts through parallel lines. The Alternate Interior Angles Theorem states that alternate interior angles are equal in measure. The Alternate Exterior Angles Theorem similarly declares that alternate exterior angles are equal. The Consecutive Interior Angles Theorem and the Consecutive Exterior Angles Theorem both establish that such angles are supplementary, adding up to 180 degrees. The Corresponding Angles Theorem maintains that corresponding angles are equal. These theorems are fundamental in establishing the parallelism of lines through angle measurements and are integral to geometric reasoning and proof.

Establishing Parallelism through Angle Correspondence

The converse statements of the angle theorems related to parallel lines offer a methodology for proving the parallelism of two lines. For example, the converse of the Alternate Interior Angles Theorem posits that if two lines are intersected by a transversal and the alternate interior angles are congruent, then the lines must be parallel. This principle is similarly applicable to alternate exterior angles, consecutive interior and exterior angles, and corresponding angles. These converse theorems are powerful in geometric proofs, enabling the determination of parallelism through the analysis of angle relationships.

Advanced Theorems Involving Parallel Lines

In addition to the fundamental angle theorems, there are advanced theorems that reveal more complex properties of parallel lines. The Perpendicular Transversal Theorem states that if a transversal is perpendicular to one of two parallel lines, it is also perpendicular to the other. The Transitivity of Parallel Lines Theorem elaborates that if two lines are each parallel to a third line, then they are parallel to each other. The Three Parallel Lines Theorem indicates that if three parallel lines are intersected by two transversals, then the segments created on the transversals are proportional. These theorems expand the understanding of parallel lines and are essential for more advanced geometric proofs and applications.

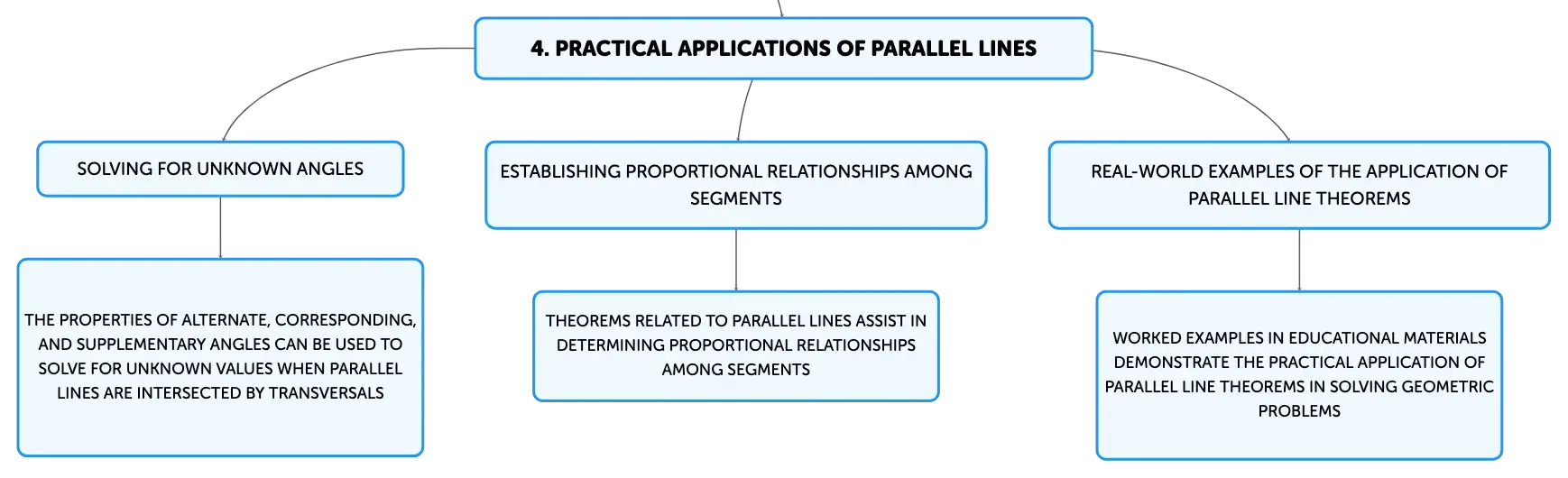

Practical Applications of Parallel Line Theorems in Geometry

The theorems pertaining to parallel lines have significant practical applications in geometry. They enable the calculation of unknown angles and the determination of parallelism within complex geometric figures. When parallel lines are intersected by transversals, the properties of alternate, corresponding, and supplementary angles can be used to solve for unknown values. These theorems also assist in establishing proportional relationships among segments. Worked examples in educational materials demonstrate the real-world application of these theorems, solidifying students' grasp of parallel line concepts.

Key Concepts in the Geometry of Parallel Lines

In conclusion, the study of parallel lines in geometry is enriched by a variety of theorems that elucidate the relationships between angles and lines. These theorems form a systematic framework for proving the parallelism of lines and for resolving geometric problems involving angles. The principles of angle congruence for alternate interior and exterior angles, the supplementary nature of consecutive angles, and the proportionality of segments intersected by transversals are central to the geometry of parallel lines. Mastery of these concepts is crucial for a comprehensive understanding of geometry as a whole.
