Properties and Classification of Polygons
Polygons are two-dimensional shapes with straight sides. Learn about convex and concave polygons, distinguish regular from irregular ones, and understand how to calculate their areas and angles. Regular polygons have equal sides and angles, with unique geometric properties such as circumradius and apothem, essential for various calculations.
See moreDefining Polygons: Basic Properties and Varieties

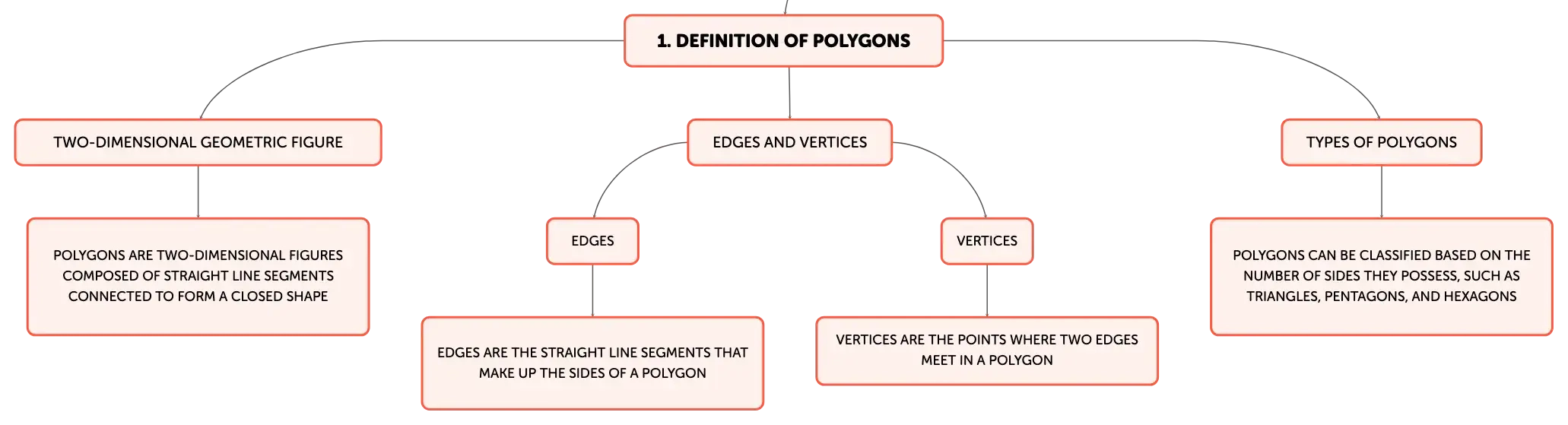

A polygon is a two-dimensional geometric figure composed of a finite number of straight line segments connected to form a closed polygonal chain or circuit. These segments are called edges or sides, and the points where two edges meet are the vertices or corners of the polygon. The simplest polygon is the triangle, with three sides, and more complex polygons are named based on the number of sides they possess, such as pentagons (5 sides), hexagons (6 sides), and so on. Polygons are primarily classified as either convex or concave and can be further distinguished as regular or irregular based on the equality of their angles and sides.Distinguishing Convex and Concave Polygons

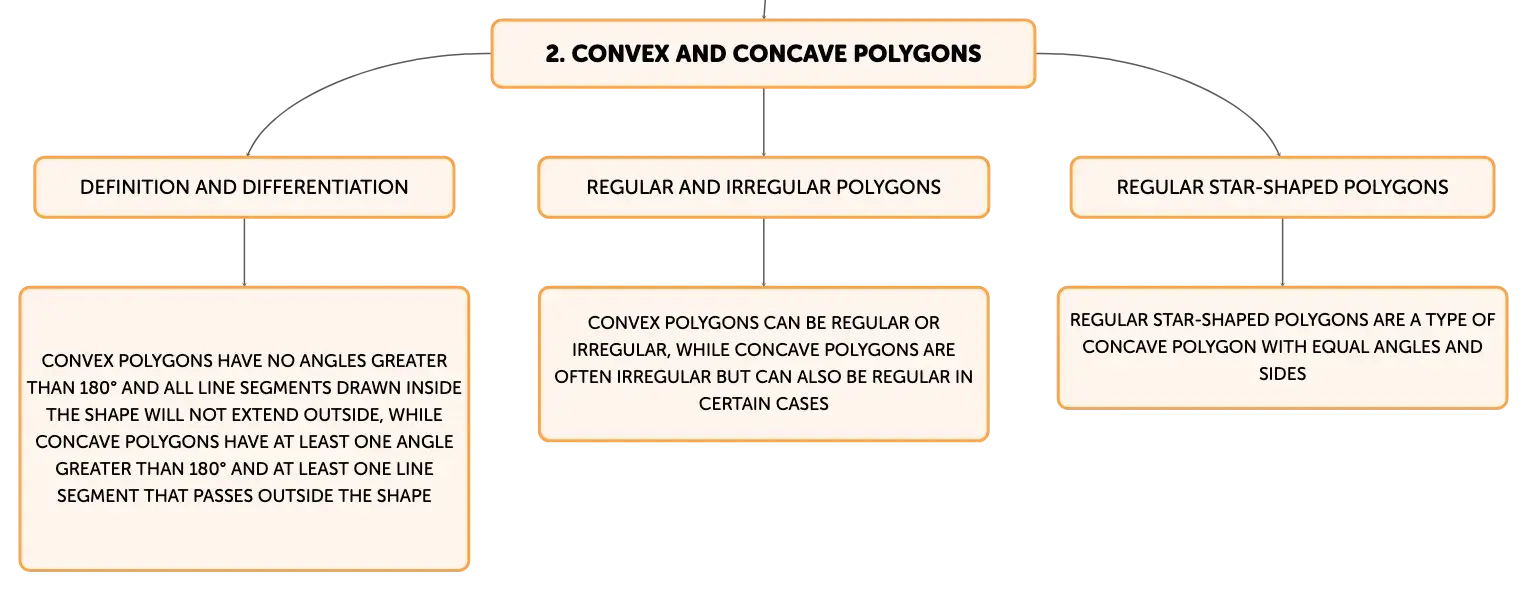

Convex and concave polygons are differentiated by the internal angles and the relative positions of their vertices. A convex polygon has no angles greater than 180°, and any line segment drawn between any two points inside the polygon will not extend outside it. Conversely, a concave polygon has at least one angle greater than 180°, and at least one line segment connecting two points inside the polygon will pass outside of it. Convex polygons can be regular or irregular, whereas concave polygons are often irregular. However, concave polygons can also be regular in certain cases, such as regular star-shaped polygons.Features of Regular Polygons

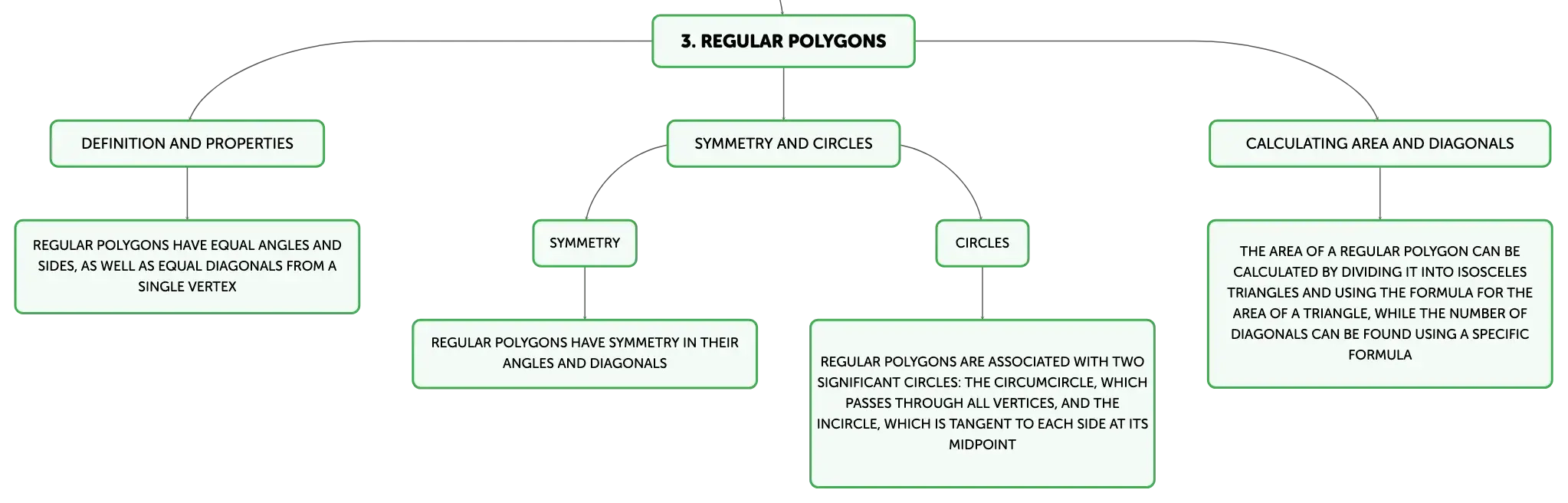

Regular polygons are a special category of convex polygons where all sides and interior angles are congruent. The symmetry of regular polygons extends to their diagonals, which are also of equal length when drawn from a single vertex. Regular polygons, such as equilateral triangles and squares, are associated with two significant circles: the circumcircle, which passes through all vertices, and the incircle, which is tangent to each side at its midpoint. The radius of the circumcircle is known as the circumradius, while the radius of the incircle is referred to as the apothem. These radii are important in defining the geometric properties of regular polygons.Calculating Areas of Regular Polygons
The area of a regular polygon can be calculated by decomposing it into isosceles triangles, each having a base equal to a side of the polygon and a height equal to the apothem. The area of the polygon is the sum of the areas of these triangles. For example, to find the area of a regular hexagon, one can divide it into six isosceles triangles and apply the formula for the area of a triangle (1/2 × base × height), where the base is the side of the hexagon and the height is the apothem. The total area of the polygon is then six times the area of one triangle.Angles and Diagonals in Regular Polygons
Regular polygons have predictable angle measures and diagonal lengths. The sum of the exterior angles of a regular polygon is always 360°, which allows for the calculation of each exterior angle by dividing 360° by the number of sides. The sum of the interior angles of a polygon can be found using the formula (N−2) × 180°, where N is the number of sides. The number of diagonals in a polygon is given by the formula N(N−3)/2, which represents the count of line segments that can be drawn between non-adjacent vertices.Summarizing Regular Polygon Properties

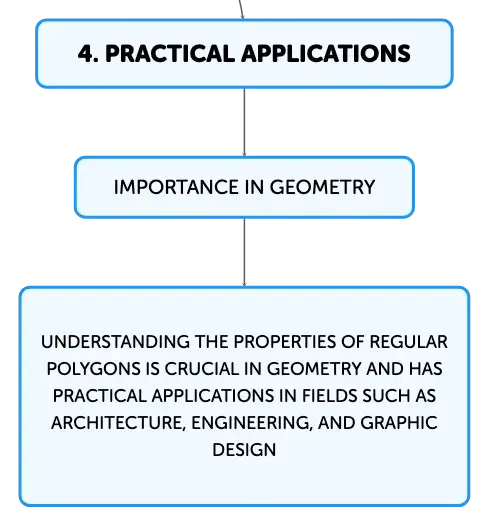

Regular polygons are characterized by their equiangular and equilateral properties, with diagonals that are equal in length from a single vertex. The circumcircle and incircle are unique to regular polygons, and their radii, the circumradius and apothem, are essential for calculating the polygon's area. The sum of exterior angles is invariant at 360°, while the sum of interior angles is determined by the formula (N−2) × 180°. The number of diagonals is calculated using N(N−3)/2. Mastery of these properties is crucial in geometry and has practical implications in fields such as architecture, engineering, and graphic design.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Polygons can be categorized as ______ or ______, and also as regular or irregular.
Click to check the answer
2
Convex polygon internal angles
Click to check the answer
3
Line segment within convex polygons
Click to check the answer
4
Regular concave polygons example
Click to check the answer
5
In geometry, the radius of the circle that touches all vertices of a regular polygon is called the ______, and the radius of the circle tangent to each side's midpoint is known as the ______.
Click to check the answer
6
Regular polygon area decomposition
Click to check the answer
7
Area formula for isosceles triangle in polygon
Click to check the answer
8
Total area calculation of regular hexagon
Click to check the answer
9
To determine the number of ______ in a polygon, use the formula ______.
Click to check the answer
10
Regular Polygon Diagonals
Click to check the answer
11
Regular Polygon Circumcircle and Incircle Radii
Click to check the answer
12
Sum of Regular Polygon Angles
Click to check the answer
