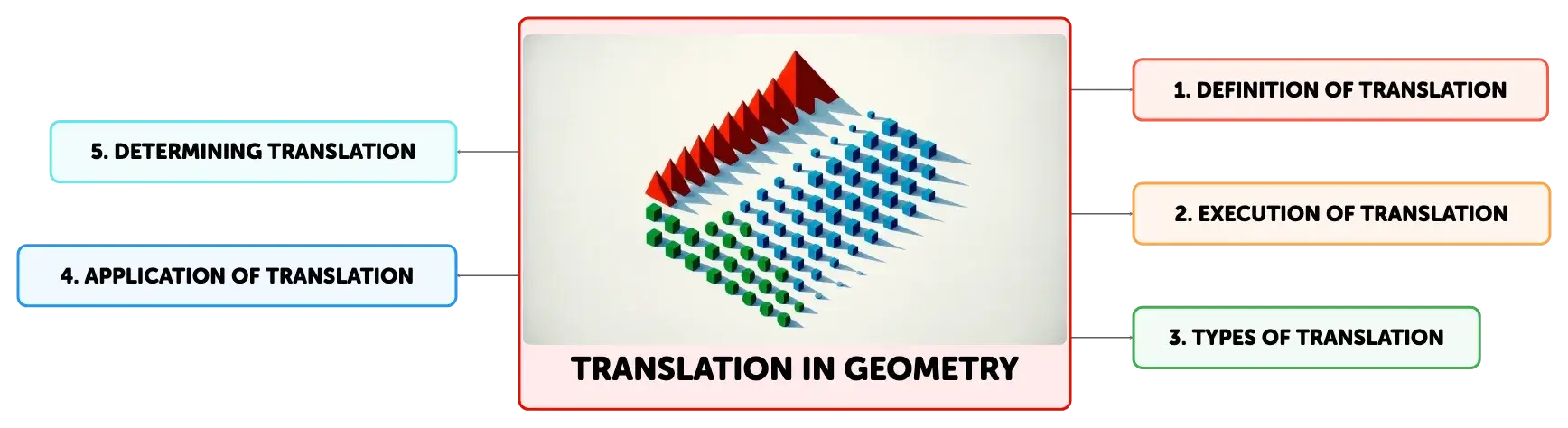

Translation in Geometry

Exploring Translation in Geometric Terms

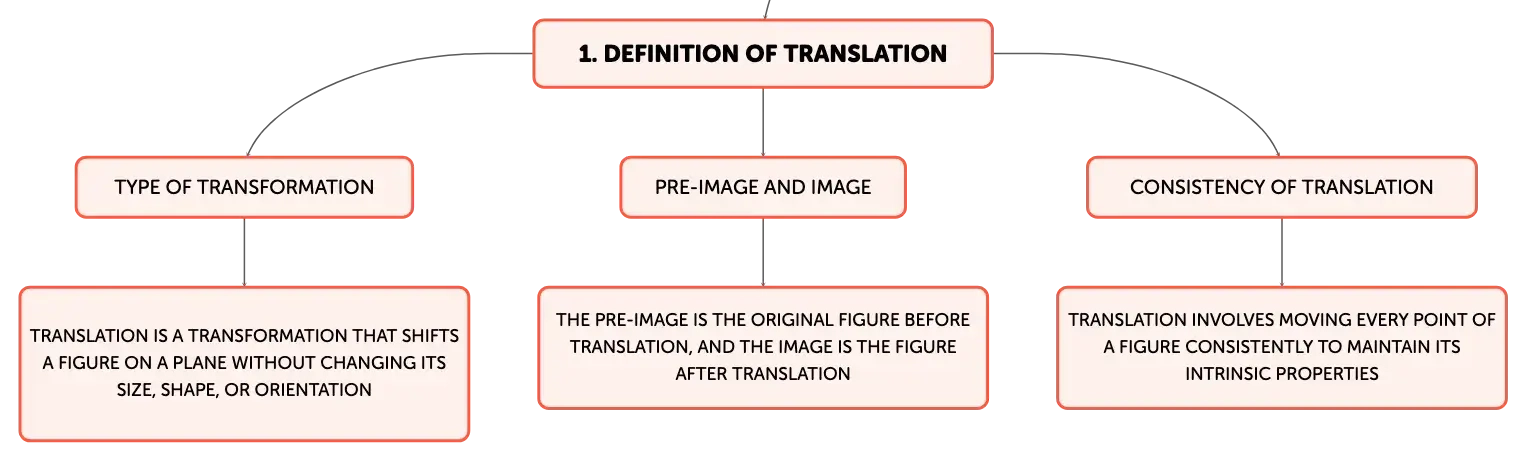

Translation in geometry is defined as a type of transformation that shifts a figure by a certain distance in a specified direction on a plane. This operation does not change the figure's size, shape, or orientation. The term 'pre-image' refers to the original figure before the translation, and the 'image' denotes the figure after the translation has been applied. It is essential to understand that translation involves moving every point of the figure consistently, ensuring that the figure's intrinsic properties remain unchanged.

Executing Translations Using Coordinate Systems

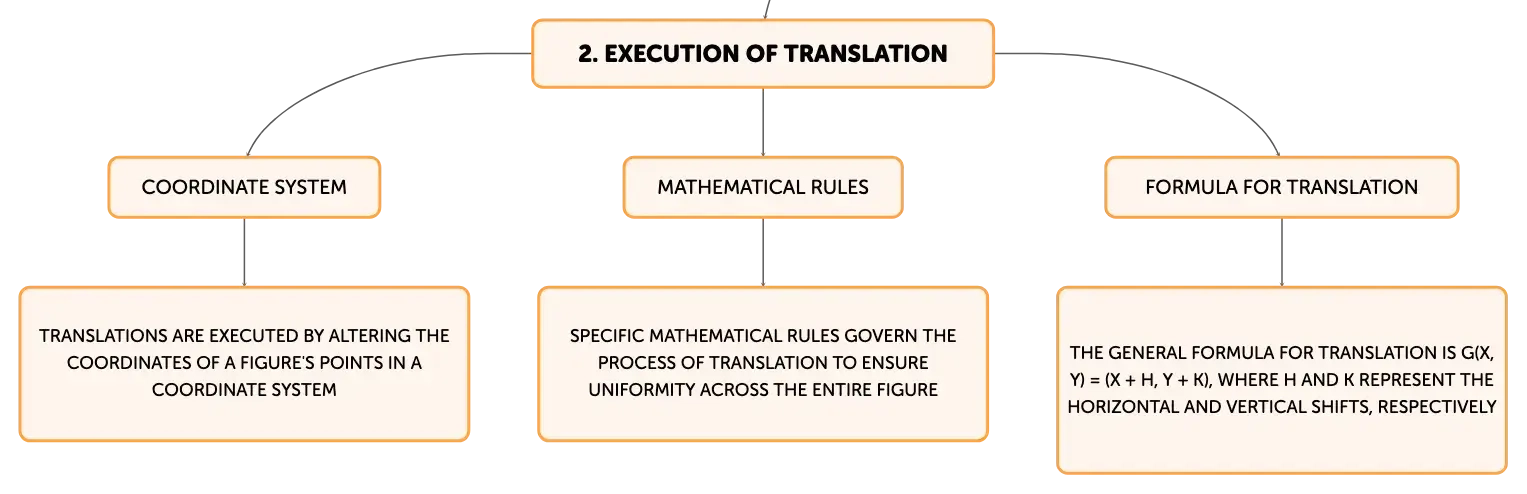

In a coordinate system, translations are executed by altering the coordinates of the figure's points. This system provides a structured way to describe the positions of points and to apply transformations. For a translation, the coordinates of each point in the pre-image are adjusted by adding or subtracting a fixed value, resulting in the coordinates of the translated image. This process is governed by specific mathematical rules that ensure the translation is performed uniformly across the entire figure.

Formulating Translation Through Mathematical Rules

The mathematical rules for translation are simple yet precise. To translate a figure horizontally, one adds to or subtracts from the x-coordinates of the figure's points. A positive adjustment translates the figure to the right, while a negative adjustment translates it to the left. Vertical translations involve the y-coordinates, where adding moves the figure up and subtracting moves it down. The general formula for translation is \( g(x, y) = (x + h, y + k) \), where \( h \) and \( k \) represent the horizontal and vertical shifts, respectively. It is crucial to apply the correct sign to \( h \) and \( k \) to achieve the desired direction of translation.

Distinguishing Horizontal and Vertical Translations

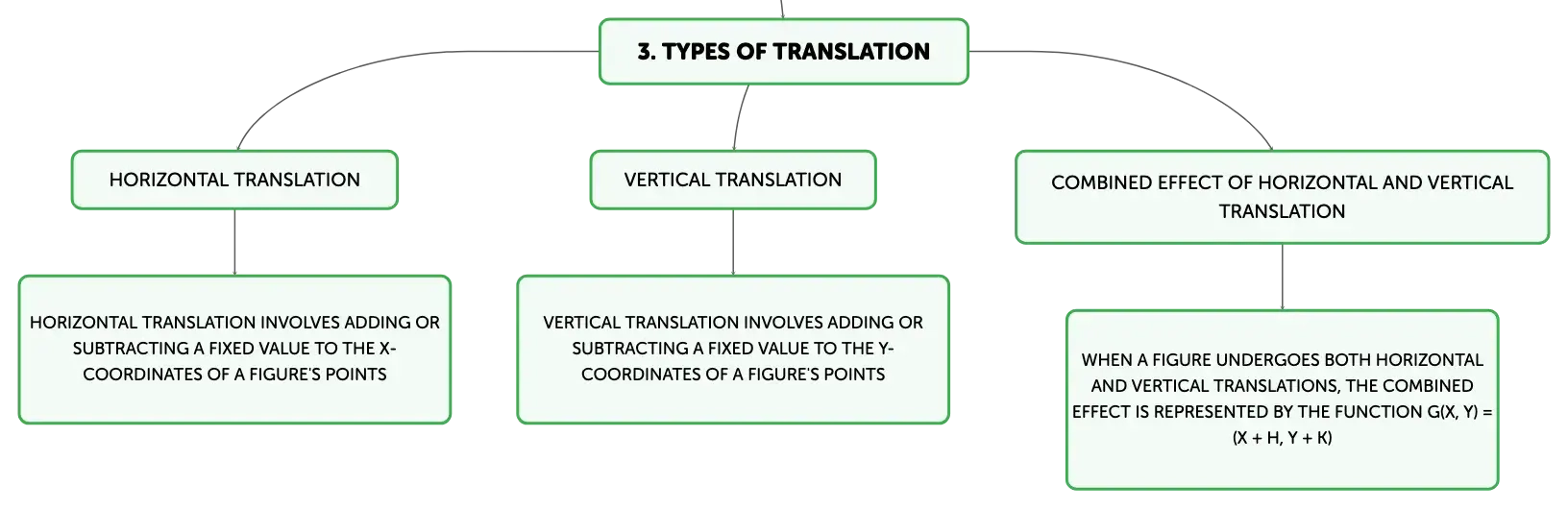

Horizontal and vertical translations are two distinct types of movements. A horizontal translation is represented by the function \( g(x, y) = (x + h, y) \), where \( h \) is the horizontal shift. For vertical translations, the function is \( g(x, y) = (x, y + k) \), with \( k \) being the vertical shift. When a figure undergoes both types of translations, the combined effect is represented by the function \( g(x, y) = (x + h, y + k) \), which accounts for the horizontal and vertical displacements simultaneously.

Implementing Translation on Geometric Shapes

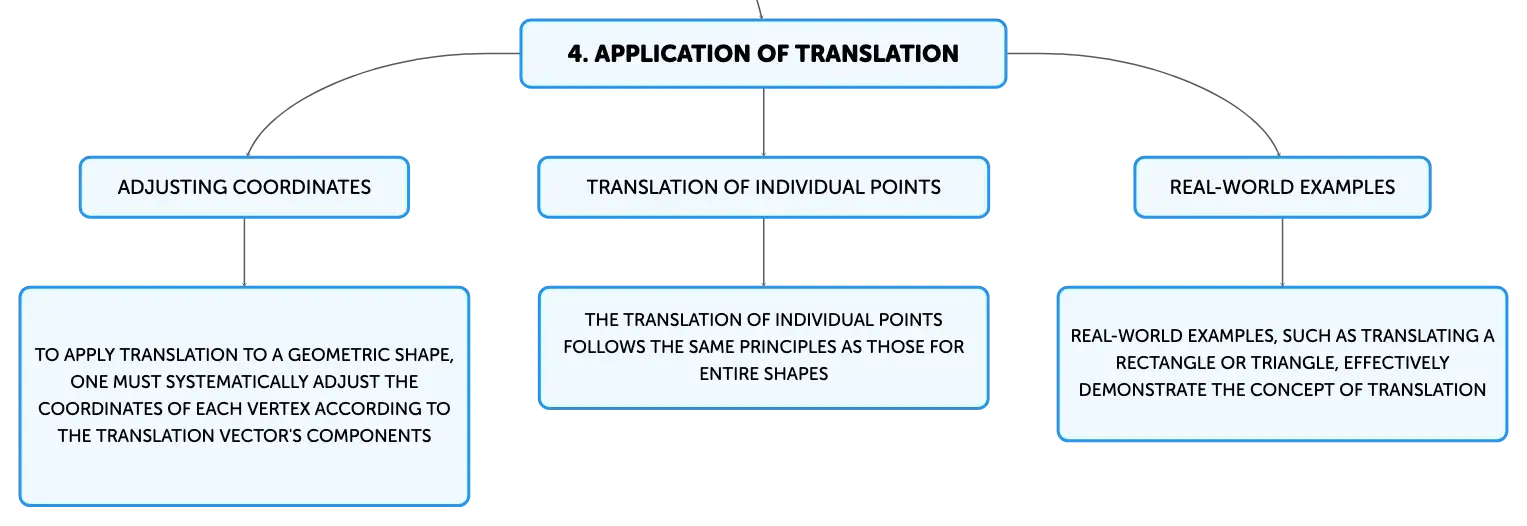

To apply translation to a geometric shape, one must systematically adjust the coordinates of each vertex according to the translation vector's components. For instance, translating a triangle with vertices at (x1, y1), (x2, y2), and (x3, y3) by a vector (h, k) results in new vertices at (x1 + h, y1 + k), (x2 + h, y2 + k), and (x3 + h, y3 + k). This process ensures that the triangle's size and shape are preserved, and the image is an exact replica of the pre-image, albeit in a different location.

Translation Procedures for Points and Coordinate Pairs

The translation of individual points follows the same principles as those for entire shapes. To translate a point (x, y) horizontally by \( h \) units, \( h \) is added to the x-coordinate. To translate it vertically by \( k \) units, \( k \) is added to the y-coordinate. These operations can be performed on each point of a figure to achieve a consistent translation, maintaining the integrity of the figure's geometry.

Real-World Examples of Geometric Translation

Real-world examples can effectively demonstrate the concept of translation. Consider a rectangle with vertices at (x1, y1), (x2, y2), (x3, y3), and (x4, y4). If this rectangle is translated downward by 5 units, the new y-coordinates become y1 - 5, y2 - 5, y3 - 5, and y4 - 5, while the x-coordinates remain the same. Conversely, translating a triangle to the right by 4 units involves adding 4 to the x-coordinates of its vertices. These examples show how translation alters the position of figures on the coordinate plane while their dimensions and orientation are preserved.

Analyzing Translation from Pre-image to Image

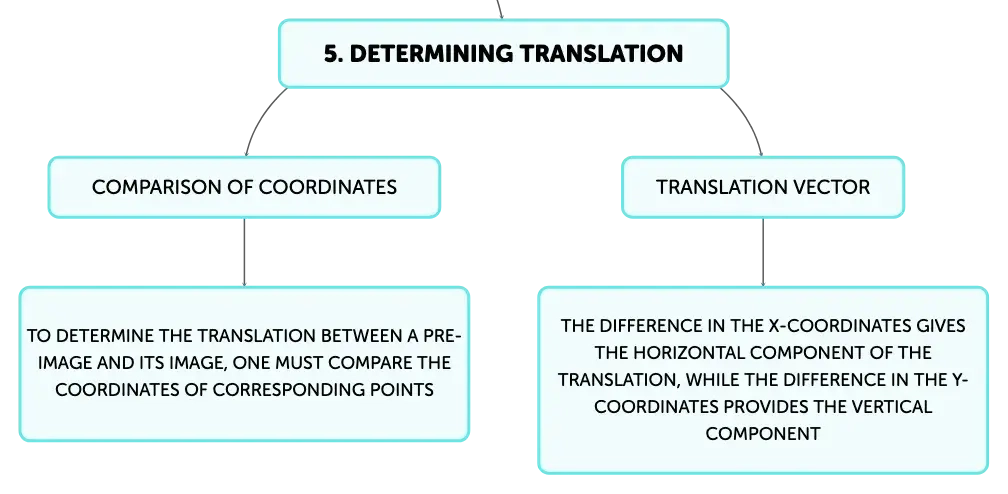

To determine the translation between a pre-image and its image, one must compare the coordinates of corresponding points. The difference in the x-coordinates gives the horizontal component of the translation, while the difference in the y-coordinates provides the vertical component. This comparison allows one to deduce the translation vector that has been applied to the pre-image to obtain the image, thus describing the transformation in precise geometric terms.
