Exploring the Fundamentals of Polygons

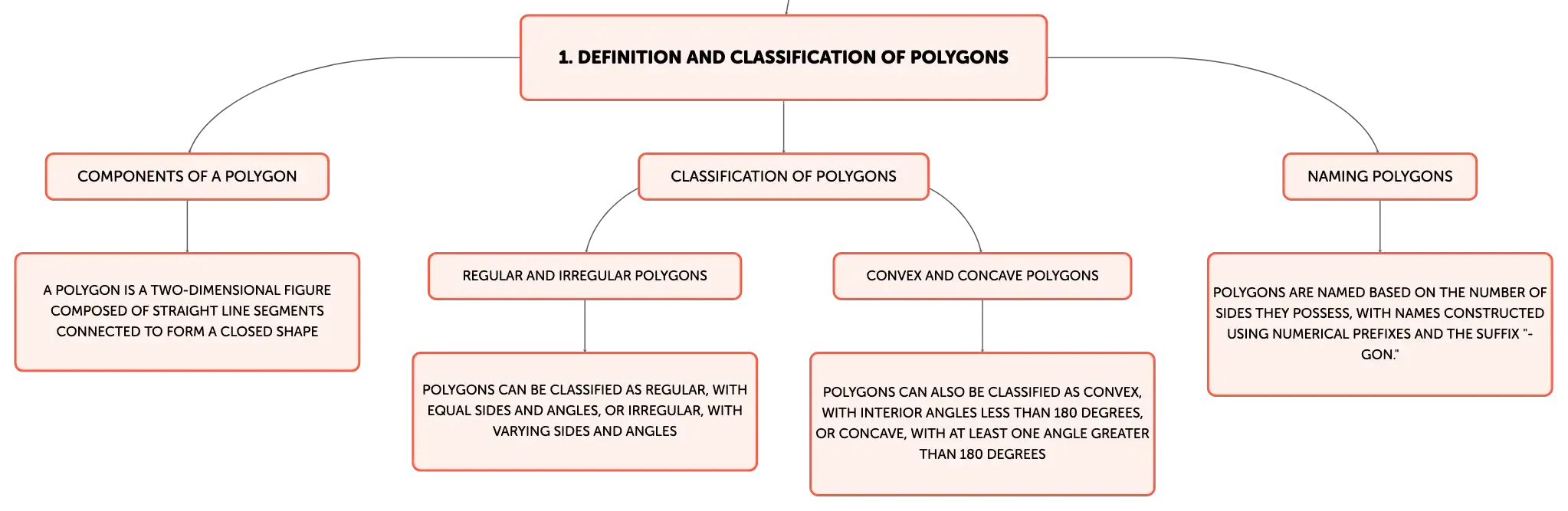

A polygon is a two-dimensional geometric figure composed of a finite number of straight line segments connected to form a closed polygonal chain or circuit. These segments are referred to as edges or sides, and the points where two edges meet are the vertices. Polygons are primarily classified by the number of sides they possess, starting with the triangle at three sides. The interior angles of a polygon are the angles inside the polygon at each vertex, and the sum of these angles depends on the number of sides. Polygons must have non-intersecting sides; if the sides intersect, the figure is not considered a polygon. Additionally, polygons do not include figures with curved sides, as all sides must be straight.

Assorted geometric shapes including a translucent blue hexagon, yellow triangle, red square, orange pentagon, green rectangle, and a gradient purple polygon.

Categorizing Polygons by Regularity and Convexity

Polygons are differentiated by their regularity and convexity. A regular polygon has all sides and all interior angles equal, such as an equilateral triangle or a square. An irregular polygon, in contrast, has sides and angles of differing lengths and measures, such as a scalene triangle or a rectangle. Convex polygons have interior angles less than 180 degrees, and no line segment between any two points in the polygon will lie outside of it. A concave polygon has at least one interior angle greater than 180 degrees, and at least one line segment between points in the figure will pass outside of the polygon. These classifications help in understanding the properties and relationships of various polygon types.

Naming Polygons Based on Side Count

Polygons are named according to the number of sides they have. The most commonly known polygons are the triangle (3 sides), quadrilateral (4 sides), pentagon (5 sides), hexagon (6 sides), heptagon (7 sides), and octagon (8 sides). For polygons with more than eight sides, names can be constructed using a numerical prefix followed by the suffix "-gon," such as a nonagon (9 sides) or decagon (10 sides). Alternatively, the term "n-gon" is used where 'n' represents the number of sides. The number of sides also determines the number of vertices and interior angles, as a polygon with 'n' sides will have 'n' vertices and 'n' interior angles.

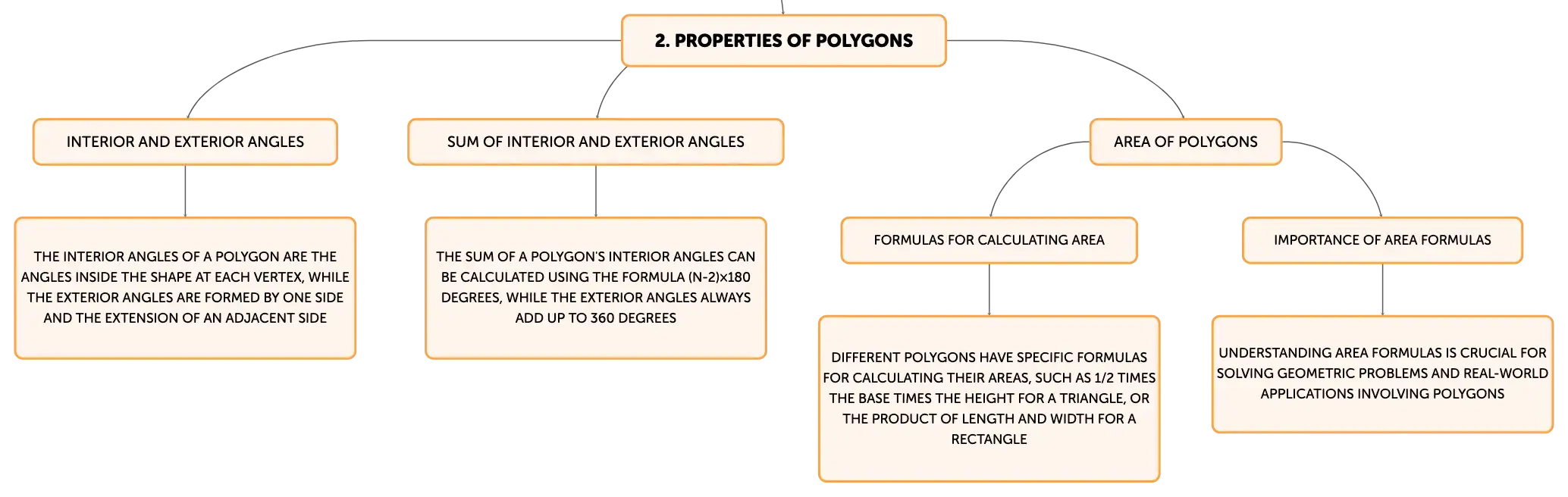

Determining Interior and Exterior Angles of Polygons

The sum of the interior angles of a polygon can be calculated using the formula (n-2)×180 degrees, where 'n' is the number of sides. For instance, a pentagon has five sides, and thus the sum of its interior angles is 540 degrees. In a regular polygon, the measure of each interior angle is equal and can be found by dividing the total sum of the interior angles by the number of angles. The exterior angles of a polygon—one at each vertex, formed by one side and the extension of an adjacent side—always sum to 360 degrees for any polygon. The measure of each exterior angle in a regular polygon is obtained by dividing 360 degrees by the number of sides.

Area Calculation for Various Polygons

The area of a polygon is the measure of the space enclosed by its sides. Different polygons have different formulas for calculating their areas. For a triangle, the area is 1/2 times the base times the height. A square's area is calculated by squaring the length of one of its sides. The area of a rectangle is the product of its length and width. For parallelograms and trapezoids, the area formulas involve the base and height, with trapezoids requiring the average of the two bases. The area of a rhombus is half the product of the lengths of its diagonals. These formulas are vital for solving various geometric problems and applications involving polygons.

Essential Insights on Polygons

In conclusion, polygons are a significant category of two-dimensional figures with straight, non-intersecting sides and a specific number of vertices and angles. They are classified as regular or irregular, and convex or concave, based on their sides and angles. The sum of a polygon's interior angles is given by a mathematical formula, while the exterior angles always add up to 360 degrees. A comprehensive understanding of the properties, classifications, and formulas related to polygons is indispensable for grasping more intricate geometric concepts and their practical applications.
