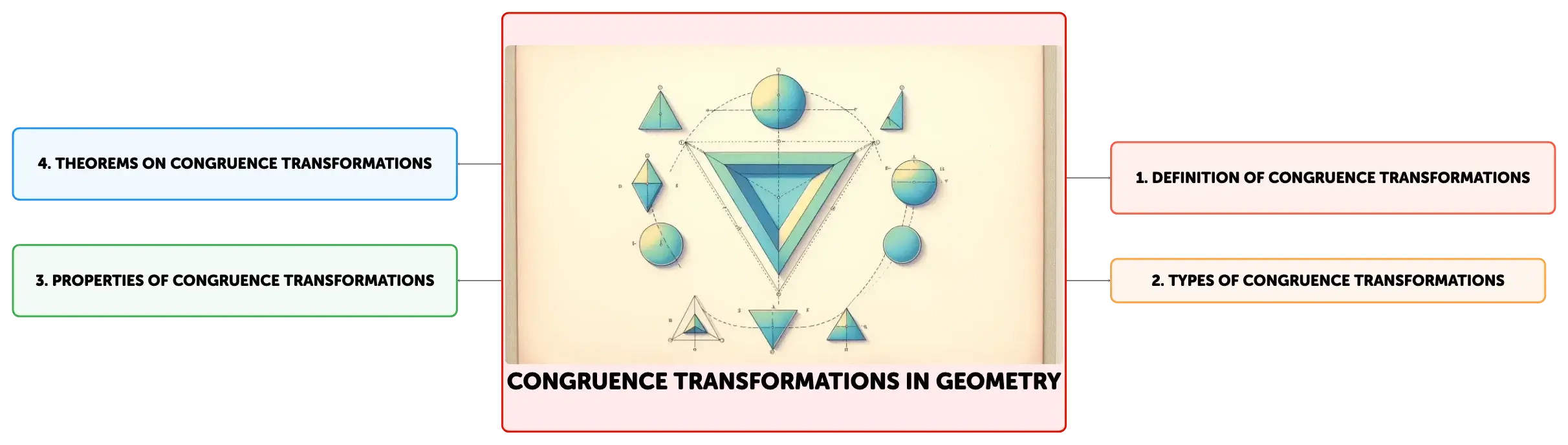

Congruence Transformations in Geometry

Exploring Congruence Transformations in Geometry

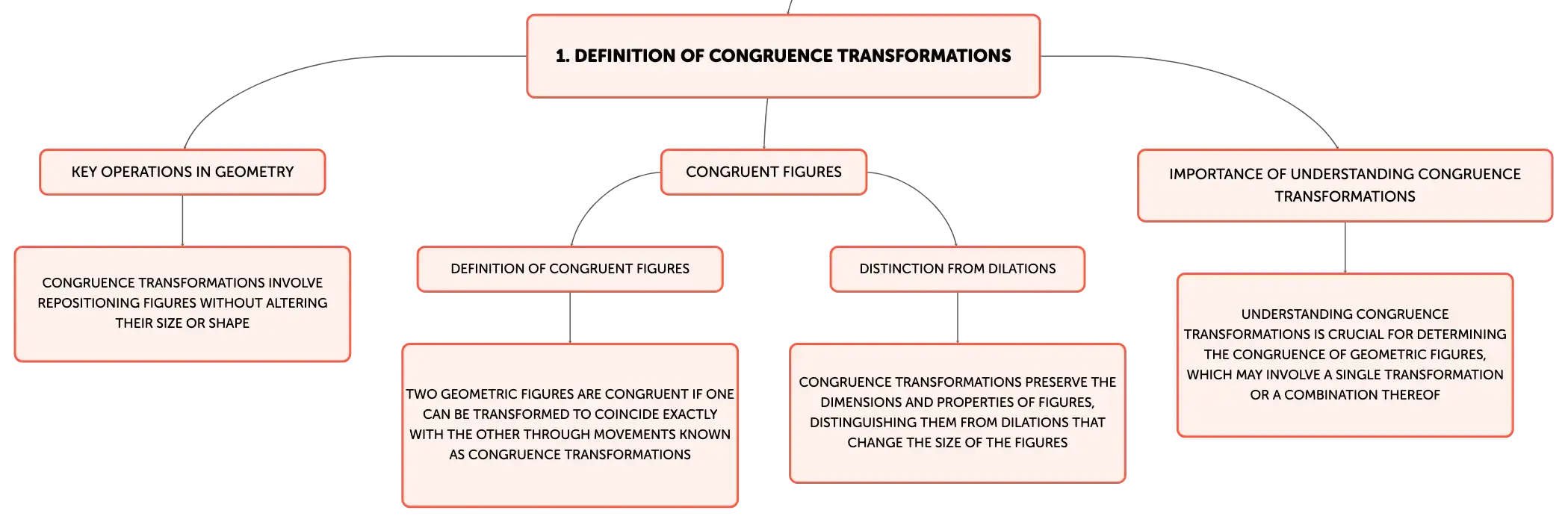

Congruence transformations are key operations in geometry that involve repositioning figures without altering their size or shape. Two geometric figures are congruent if one can be transformed to coincide exactly with the other through movements known as congruence transformations. These transformations, which include translation, reflection, and rotation, preserve the dimensions and properties of the figures, distinguishing them from dilations that change the size of the figures. Understanding congruence transformations is crucial for determining the congruence of geometric figures, which may involve a single transformation or a combination thereof.

Classifying Congruence Transformations

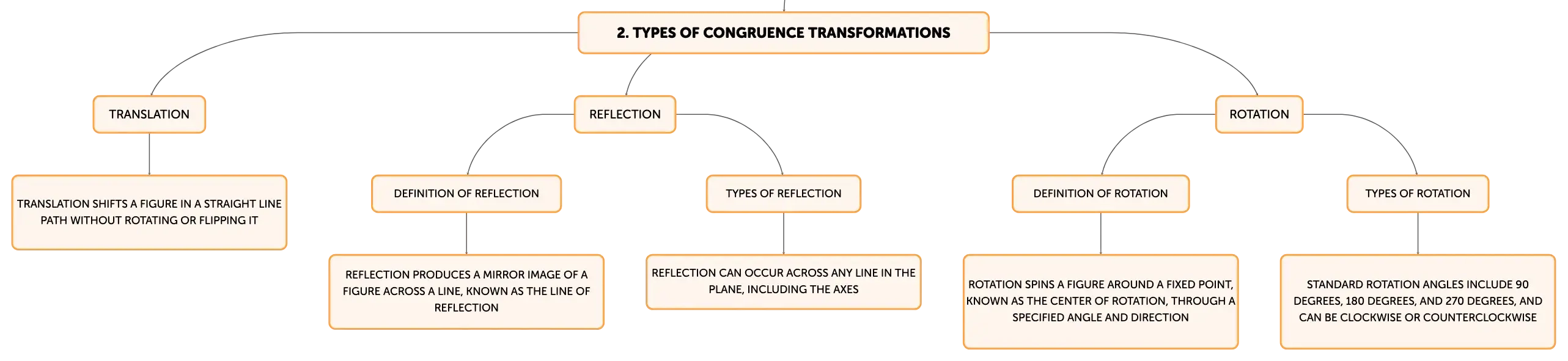

The three primary congruence transformations are translation, reflection, and rotation. Translation shifts a figure in a straight line path without rotating or flipping it. Reflection produces a mirror image of a figure across a line, known as the line of reflection, which can be any line in the plane, including the axes. Rotation spins a figure around a fixed point, known as the center of rotation, through a specified angle and direction. These transformations are isometries, meaning they preserve the distance between points, thereby maintaining the congruence of the figures involved.

Translation: Shifting Figures in the Plane

Translation moves a figure to a different position in the plane without changing its orientation. This transformation is described by a vector that specifies the direction and magnitude of the shift. For example, a translation vector of (3,4) indicates that every point of the figure moves three units right and four units up. Applying the same translation to all points of the figure ensures that the translated figure is congruent to the original, as only the position has been altered while the shape and size remain constant.

Reflection: Forming Symmetrical Images

Reflection creates a symmetrical image of a figure across a line of reflection. When reflecting across the y-axis, the x-coordinates of the figure's points are negated, while the y-coordinates remain unchanged. Conversely, reflecting across the x-axis changes the sign of the y-coordinates. Reflection over the line y=x results in an interchange of the x- and y-coordinates of each point. The figure after reflection is congruent to the original, as reflection is an isometry that preserves the figure's dimensions and shape.

Rotation: Circular Movement Around a Point

Rotation turns a figure around a point at a certain angle. Standard rotation angles include 90 degrees, 180 degrees, and 270 degrees, and can be clockwise or counterclockwise. The point of rotation can be any point in the plane, including the origin. For a 90-degree counterclockwise rotation about the origin, the coordinates (x,y) become (-y,x). A 180-degree rotation about the origin transforms (x,y) to (-x,-y). The congruence of the figure is preserved after rotation, as the distances between points remain unchanged.

Theorems Governing Congruence Transformations

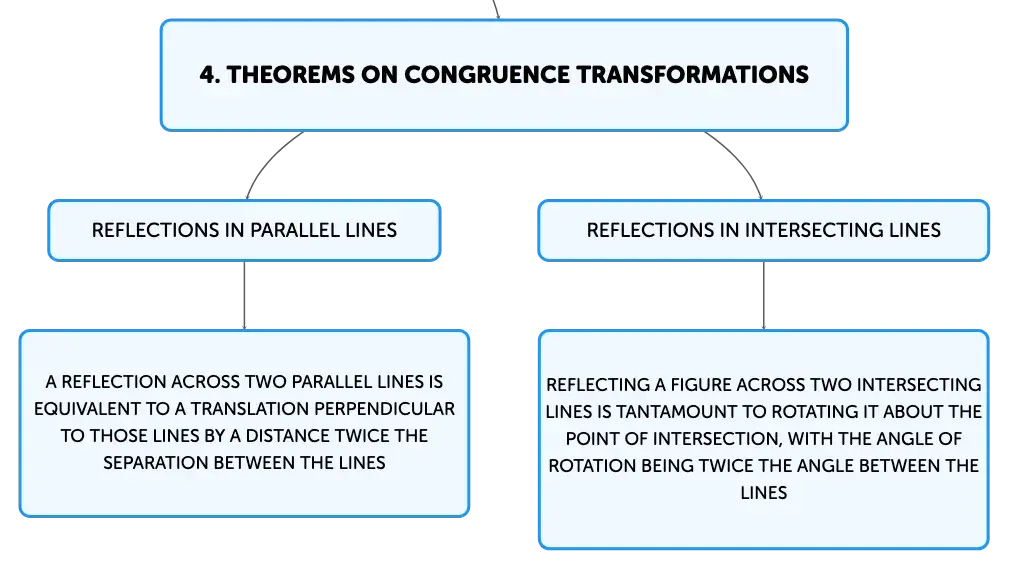

Two theorems that elucidate congruence transformations are the theorem on reflections in parallel lines and the theorem on reflections in intersecting lines. The first theorem states that a reflection across two parallel lines is equivalent to a translation perpendicular to those lines by a distance twice the separation between the lines. The second theorem asserts that reflecting a figure across two intersecting lines is tantamount to rotating it about the point of intersection, with the angle of rotation being twice the angle between the lines. These theorems provide valuable insights into the behavior of congruence transformations and their application in geometric reasoning.

Concluding Insights on Congruence Transformations

Congruence transformations, encompassing translation, reflection, and rotation, are indispensable in geometry for establishing the congruence of figures. They enable the manipulation of figures in the plane while preserving their intrinsic properties. Mastery of these transformations and their principles is essential for solving geometric problems and proving congruence, whether through individual transformations or a sequence of operations.
