Minimal Surfaces: A Fascinating Geometrical Entity

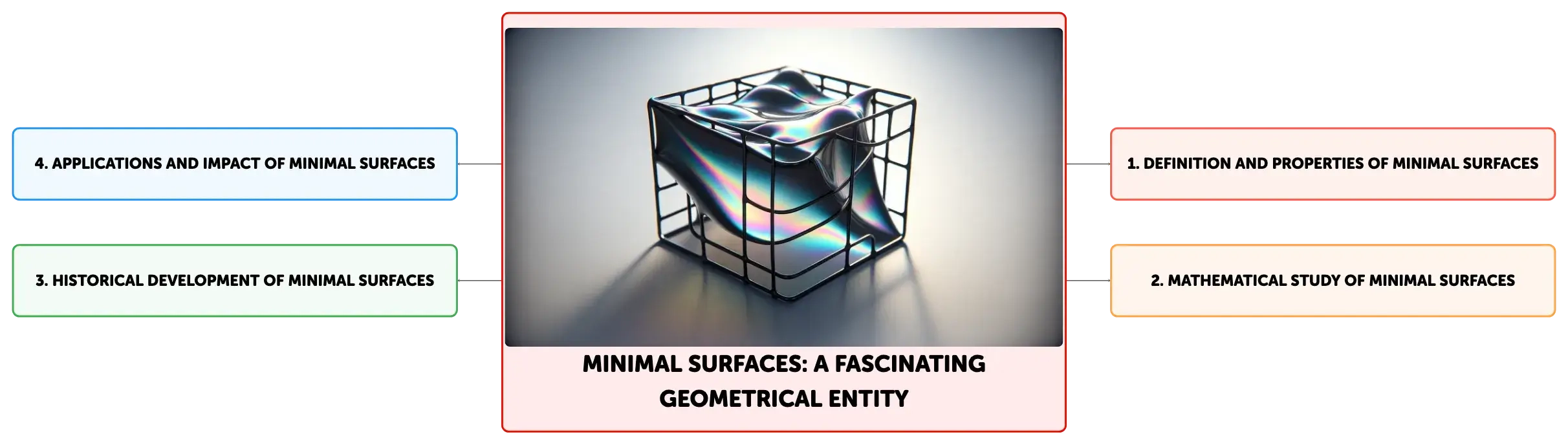

Concept Map
Minimal surfaces are unique geometrical structures with the least area for a given boundary, exhibiting zero mean curvature. Their study involves complex equations and has historical roots in the work of Meusnier and Euler. Applications range from materials science to architecture, with natural occurrences in soap films and insect wings. Computational tools have advanced their exploration, allowing for detailed visualization and analysis.
Summary
Outline
Exploring the Concept of Minimal Surfaces
Minimal surfaces are fascinating geometrical entities characterized by having the least area among all surfaces that span a given boundary. This property of being area-minimizing is local, meaning that any small, smooth change to the surface will result in a larger area. They are the higher-dimensional analogs to geodesics, which are the shortest paths between points on a curve. A hallmark of minimal surfaces is that they exhibit zero mean curvature at every point, which means that the sum of the principal curvatures at each point is zero, resulting in a surface that is neither concave nor convex at any location. While the term 'minimal' refers to the local minimization of area, it does not necessarily mean that these surfaces have the smallest possible total area globally. Real-world examples of minimal surfaces include the delicate shapes formed by soap films spanning wire loops, which naturally adopt minimal surface configurations to minimize energy due to surface tension.Mathematical Representation of Minimal Surfaces
The mathematical study of minimal surfaces involves the minimal surface equation, a nonlinear partial differential equation that is fundamental to understanding these surfaces. The equation is given by \(\nabla \cdot \left( \frac{\nabla f}{\sqrt{1 + |\nabla f|^2}} \right) = 0\), where the function \(z=f(x,y)\) describes the surface in three-dimensional space. This equation essentially states that the divergence of the normalized gradient of the function \(f\) is zero, which corresponds to the condition of zero mean curvature. Solving the minimal surface equation is a complex task that requires sophisticated techniques from the calculus of variations and differential geometry. The solutions to this equation yield a rich variety of shapes, each with unique geometrical and topological properties.The Historical Development of Minimal Surfaces
The study of minimal surfaces has a rich history, beginning in the 18th century with contributions from mathematicians such as Jean Baptiste Meusnier and Leonhard Euler. Meusnier identified the helicoid and catenoid as some of the earliest examples of minimal surfaces. The 19th century brought the Plateau problem, named after the Belgian physicist Joseph Plateau, which sought to determine whether surfaces of minimum area could exist within a given boundary. The solutions to this problem have significantly influenced the fields of calculus of variations and complex analysis. With the rise of computational power and techniques, the exploration of minimal surfaces has expanded, enabling mathematicians and scientists to study and visualize complex surfaces that were previously intractable.Classification and Characteristics of Minimal Surfaces
Minimal surfaces are diverse in form and complexity, ranging from simple geometrical shapes to intricate topologies. The Costa surface, discovered by Celso Costa in 1984, is a remarkable example with a complex structure that includes handles and boundaries, illustrating the potential complexity of minimal surfaces. Triply periodic minimal surfaces (TPMS) are a class of surfaces that repeat their pattern in three dimensions, similar to crystal structures. These surfaces are of particular interest in materials science and biology due to their optimal balance of structural efficiency and aesthetic appeal. The gyroid, discovered by Alan Schoen in 1970, is a notable TPMS with a non-reflective, chiral structure that is found both in synthetic materials and in natural systems.Applications and Natural Manifestations of Minimal Surfaces
Minimal surfaces have a wide array of applications in various scientific and engineering disciplines, showcasing the intersection of mathematics with the practical world. In materials science, they guide the design of new materials with desired porosity and mechanical properties. Architects and engineers draw upon the principles of minimal surfaces to create structures that are both visually striking and structurally sound. In the field of biomedical engineering, minimal surfaces inspire the development of medical implants and devices that are efficient and biocompatible. Nature itself exhibits minimal surfaces in phenomena such as soap films, cellular membranes, and the wings of insects like dragonflies, which embody the principle of minimizing energy. Architectural marvels like the Beijing National Aquatics Center, also known as the Water Cube, incorporate minimal surface designs to achieve both aesthetic beauty and structural efficiency.Computational Exploration of Minimal Surfaces
The analysis and visualization of minimal surfaces are greatly facilitated by computational methods and software. Solving the minimal surface equation often involves numerical techniques that approximate the solutions to this complex equation. Software such as Mathematica, Matlab, and Surface Evolver are designed to handle the intricate calculations required for studying minimal surfaces. These computational tools enable researchers to simulate various boundary conditions and to visualize the resulting surfaces, thus providing a bridge between abstract mathematical theory and concrete visual representation. Through these technologies, the intricate beauty and complexity of minimal surfaces can be explored and appreciated in both educational and research settings.
Show More

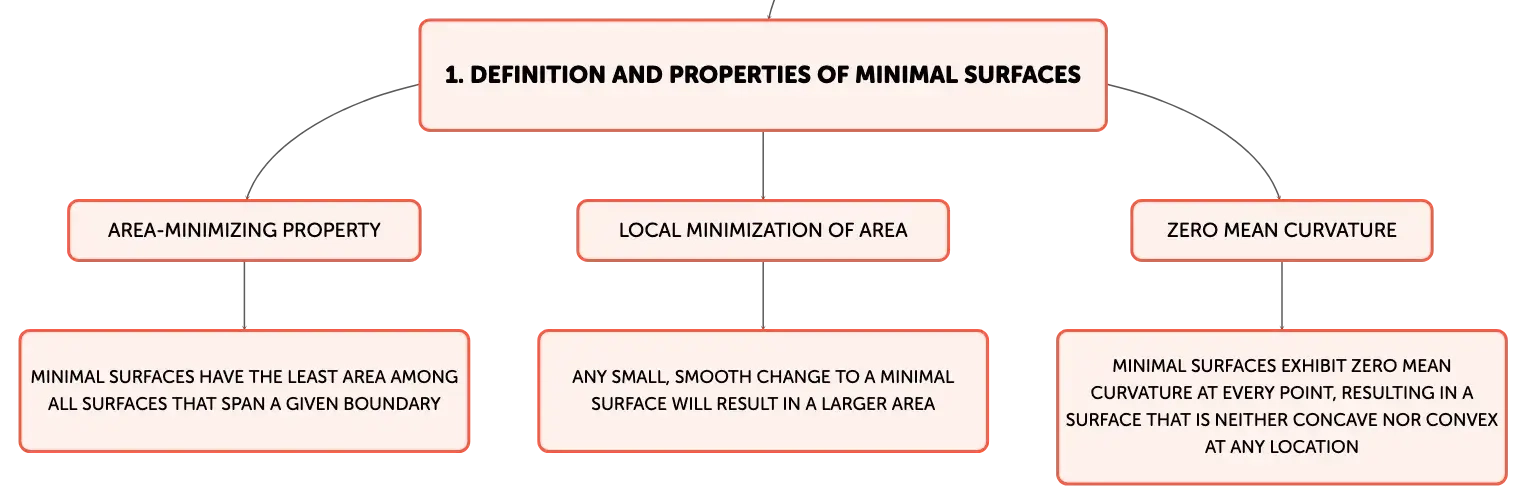

Definition and Properties of Minimal Surfaces
Area-minimizing Property
Minimal surfaces have the least area among all surfaces that span a given boundary
Local Minimization of Area
Any small, smooth change to a minimal surface will result in a larger area
Zero Mean Curvature
Minimal surfaces exhibit zero mean curvature at every point, resulting in a surface that is neither concave nor convex at any location

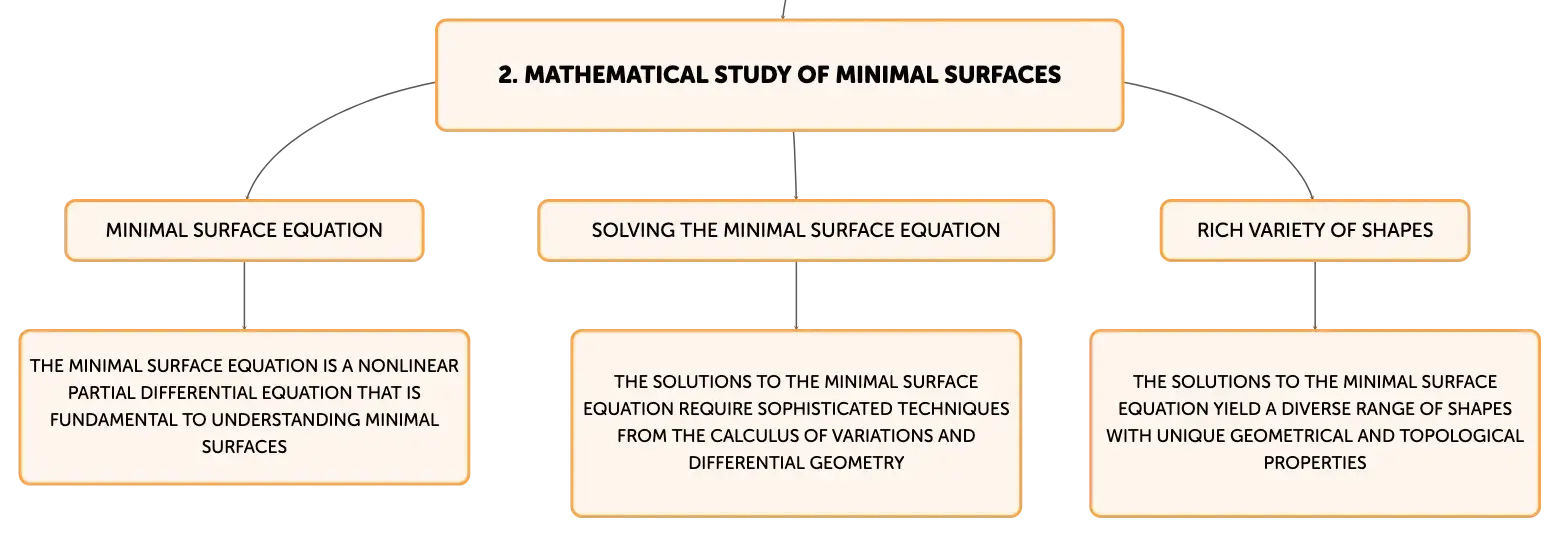

Mathematical Study of Minimal Surfaces
Minimal Surface Equation
The minimal surface equation is a nonlinear partial differential equation that is fundamental to understanding minimal surfaces
Solving the Minimal Surface Equation
The solutions to the minimal surface equation require sophisticated techniques from the calculus of variations and differential geometry
Rich Variety of Shapes
The solutions to the minimal surface equation yield a diverse range of shapes with unique geometrical and topological properties

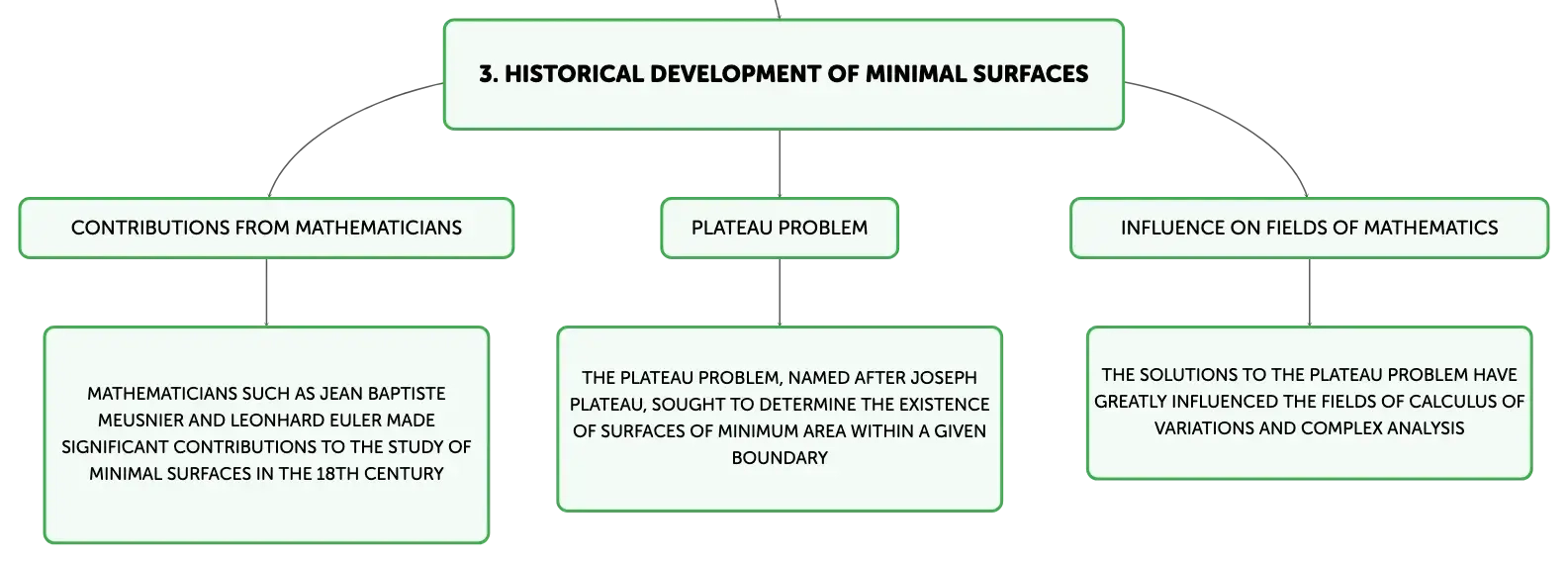

Historical Development of Minimal Surfaces
Contributions from Mathematicians
Mathematicians such as Jean Baptiste Meusnier and Leonhard Euler made significant contributions to the study of minimal surfaces in the 18th century
Plateau Problem
The Plateau problem, named after Joseph Plateau, sought to determine the existence of surfaces of minimum area within a given boundary
Influence on Fields of Mathematics
The solutions to the Plateau problem have greatly influenced the fields of calculus of variations and complex analysis

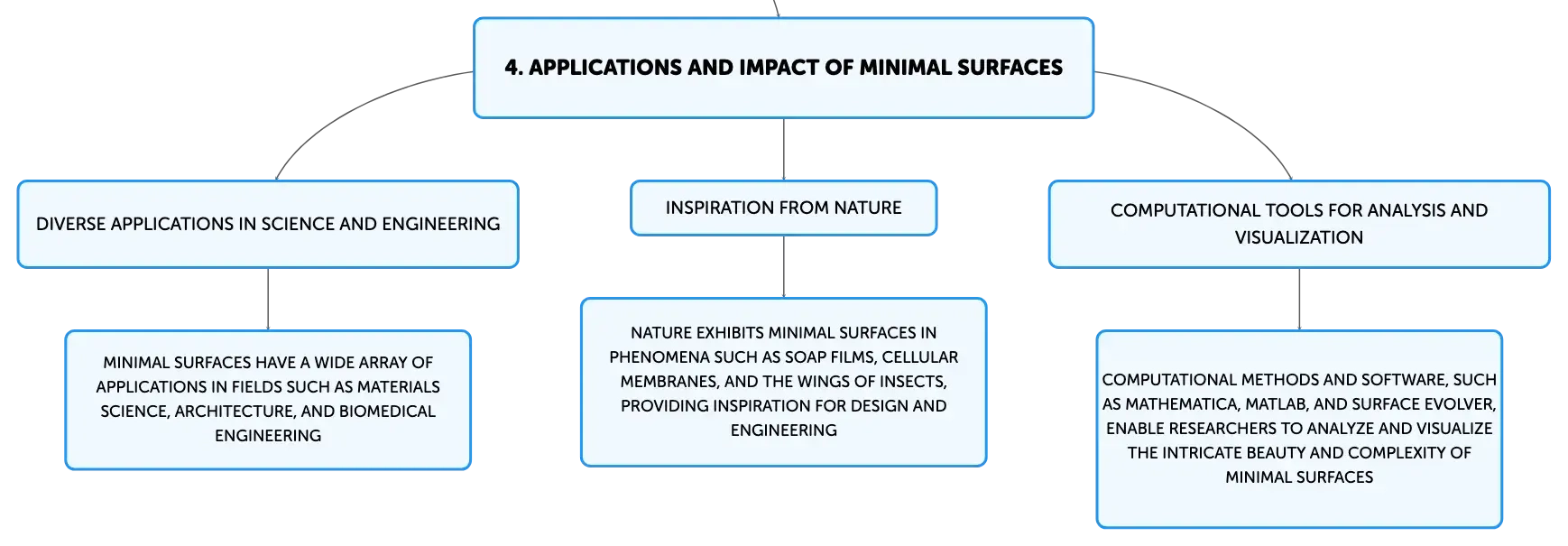

Applications and Impact of Minimal Surfaces
Diverse Applications in Science and Engineering
Minimal surfaces have a wide array of applications in fields such as materials science, architecture, and biomedical engineering
Inspiration from Nature
Nature exhibits minimal surfaces in phenomena such as soap films, cellular membranes, and the wings of insects, providing inspiration for design and engineering
Computational Tools for Analysis and Visualization
Computational methods and software, such as Mathematica, Matlab, and Surface Evolver, enable researchers to analyze and visualize the intricate beauty and complexity of minimal surfaces
Minimal Surfaces: A Fascinating Geometrical Entity
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Local minimization property of minimal surfaces
Minimal surfaces have the smallest area locally; any small perturbation increases area.
01
Mean curvature of minimal surfaces
Minimal surfaces exhibit zero mean curvature, sum of principal curvatures at each point is zero.
02
Global vs. local area minimization in minimal surfaces
Minimal surfaces are not necessarily the smallest area globally, despite local area-minimizing property.
