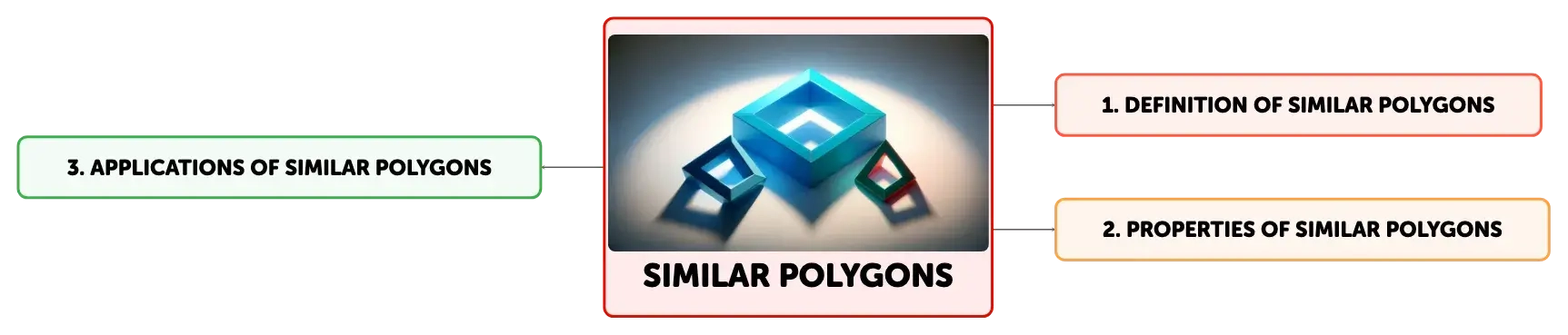

Similar Polygons

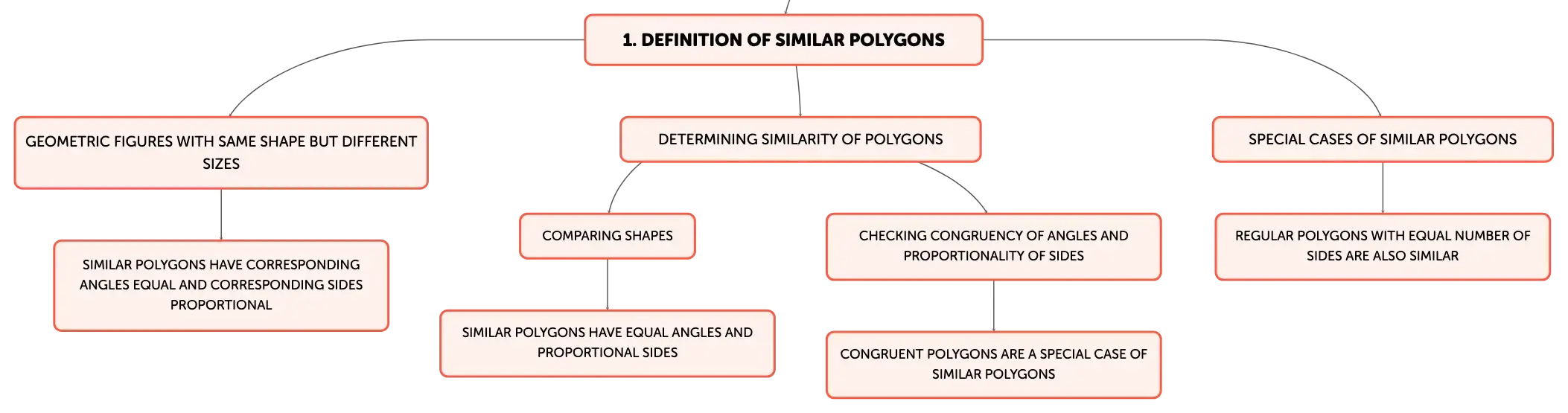

Understanding Similar Polygons

Similar polygons are geometric figures that have the same shape but may vary in size. These figures are characterized by having their corresponding angles equal and the lengths of corresponding sides proportional. To determine if two polygons are similar, one can compare their shapes or check the congruency of their angles and the proportionality of their sides. Congruent polygons, which have identical angles and side lengths, are a special case of similar polygons. Regular polygons with an equal number of sides are also similar because they have equal angles by definition. Similar polygons remain similar even after geometric transformations such as rotation, reflection, translation, and scaling.

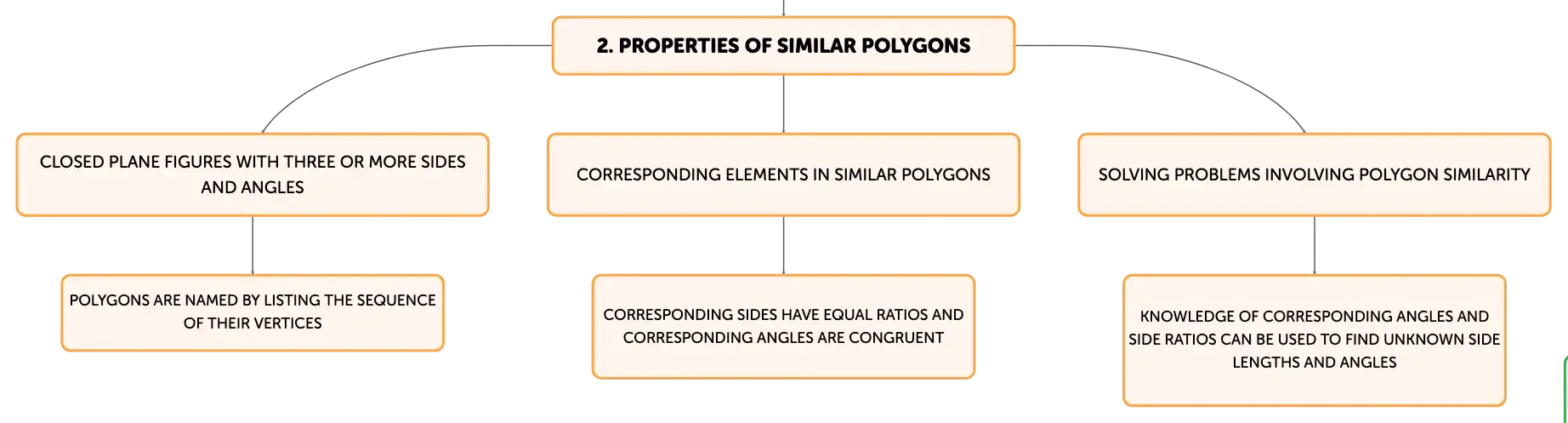

Characteristics and Identification of Polygons

Polygons are closed plane figures with three or more straight sides and angles. They are typically named by listing the sequence of their vertices, which is crucial for identifying corresponding elements in similar polygons. For instance, if polygons ABCD and WXYZ are similar, indicated by ABCD ∼ WXYZ, it implies that the side ratios AB/WX, BC/XY, CD/YZ, and DA/ZW are equal, and the angles at corresponding vertices are congruent (e.g., ∠A = ∠W). This correspondence is essential for solving problems involving polygon similarity.

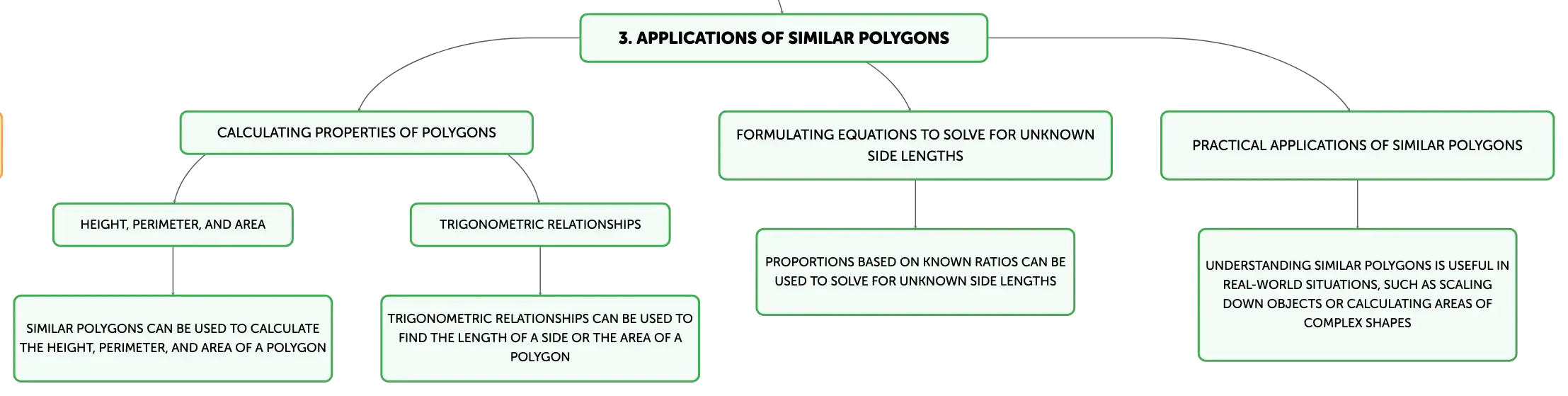

Applications of Similar Polygons in Problem-Solving

Similar polygons play a significant role in solving geometric problems, especially when it comes to finding unknown side lengths and angles. If the similarity of two polygons is established, one can use the proportionality of their sides and the congruence of their angles to calculate missing measurements. For example, if side AB of polygon ABCD measures 5 cm and its corresponding side WX in polygon WXYZ measures 7.5 cm, and if CD measures 6 cm, then the length of YZ can be determined by the ratio YZ/CD = WX/AB, resulting in YZ = 9 cm. The knowledge of corresponding angles also aids in deducing unknown angles, given that the sum of interior angles in a polygon depends on the number of sides.

Determining Properties of Polygons Using Similarity

The concept of similarity extends to calculating various properties of polygons, such as height, perimeter, and area. For instance, if two similar quadrilaterals have corresponding right angles, one can determine the length of a side or the area of one quadrilateral using the similarity ratio and trigonometric relationships. By decomposing complex shapes into simpler components like triangles and rectangles, the areas of these components can be calculated individually and then combined to find the total area of the polygon.

Formulating Equations with Similar Polygons

When direct measurements are not available, principles of similarity can be used to formulate equations to solve for unknown side lengths. In cases where the sides of similar polygons are expressed in terms of a variable, setting up proportions based on the known ratios allows for the solving of that variable. For complex problems, these proportions may lead to quadratic equations, which can be solved using methods such as factoring, applying the quadratic formula, or completing the square.

Practical Examples Involving Similar Polygons

The principles of similar polygons are applicable to a variety of practical situations. For example, to find the length of the smallest side of a polygon that is scaled down to a third of the size of the original, one can use the side-length proportionality. In another scenario, when designing a hanger from a triangular sheet by removing a smaller triangle, the area of the hanger can be calculated by finding the areas of both the original and the smaller triangles and then subtracting the area of the smaller from the original. These practical applications demonstrate the utility of understanding similar polygons in real-world contexts.
