Understanding Cones: Definition and Characteristics

A cone is a three-dimensional geometric shape that consists of a circular base and a curved surface culminating at a single point known as the apex or vertex. Cones are ubiquitous in the world around us, with examples including traffic cones, party hats, and ice cream cones. There are two primary types of cones: right circular cones and oblique cones. A right circular cone has its apex directly above the center of the base, forming a right angle with the base. An oblique cone, on the other hand, has an apex that is not aligned above the center of the base, giving it a tilted appearance. Despite their differences in orientation, both types have a circular base and converge to a point at the top.

3D model of a gray cone with a sharp apex and circular base beside a half-filled beaker of blue liquid on a wooden table, casting a soft shadow.

Volume Relationship Between Cones and Cylinders

The volume of a cone is mathematically related to that of a cylinder. Specifically, the volume of a cone is one-third the volume of a cylinder with an equivalent base and height. This relationship can be demonstrated empirically by filling a cone with a liquid and then emptying it into a cylinder with the same base area and height. It will take exactly three such cone volumes to fill the cylinder completely, confirming that the cone's volume is one-third that of the cylinder. This relationship is fundamental to the geometric understanding of volumes and serves as a basis for calculating the volume of a cone.

Calculating the Volume of a Cone

The volume of a cone can be calculated using a formula that is a derivative of the cylinder volume formula. The volume of a cylinder is found by multiplying the area of its base (πr^2) by its height (h). Therefore, the volume of a cone, which is one-third of a cylinder's volume, is given by the formula V = (1/3)πr^2h. This formula is applicable to both right and oblique cones due to Cavalieri's Principle, which asserts that solids with congruent heights and cross-sectional areas at every level have equal volumes. For instance, a cone with a base radius of 7 cm and a height of 8 cm would have a volume of approximately 410.52 cm^3, using the value of π as approximately 3.14159.

Determining Cone Volume Without Known Height

When the height of a cone is unknown, alternative geometric properties such as the slant height or an angle at the apex can be used to determine the missing dimension. If the slant height (l) is known, the Pythagorean theorem can be applied to find the perpendicular height (h = √(l^2 - r^2)). If an angle at the apex (θ) is given, trigonometric functions can be employed to find the height (h = r × tan(θ/2)). These methods enable the calculation of the cone's volume even when the height is not directly measurable.

Volume of a Cone's Frustum

A frustum is a truncated cone, created by slicing parallel to the base and removing the top portion. To calculate the volume of a frustum, one must account for the radii of both the top and bottom circular faces (r1 and r2, respectively) and the height (h) of the frustum. The volume of the frustum is found by subtracting the volume of the smaller, removed cone from the volume of the larger original cone. The formula for the volume of a frustum is V = (1/3)πh(r1^2 + r1r2 + r2^2). This calculation requires determining the volume of both the complete cone and the smaller truncated cone, then finding the difference between the two.

Practical Application: Volume of a Conical Funnel

The principles of cone volume calculation have practical applications, such as determining the volume of a conical funnel that is designed to fit inside a cylinder with a matching base and height. Given that the volume of the cone is one-third that of the cylinder, the volume of the funnel can be calculated by dividing the cylinder's volume by three. For example, a cylinder with a radius of 4.2 cm and a height of 10 cm has a volume of approximately 554.76 cm^3, which means the conical funnel that fits within it would have a volume of about 184.92 cm^3. This demonstrates the utility of understanding cone volumes in practical situations.

Key Takeaways on Cone Volume

In conclusion, a cone is a three-dimensional solid with a circular base and a pointed apex, existing in two main forms: right circular cones and oblique cones. The volume of a cone is a key geometric concept and is calculated as one-third the volume of a cylinder with the same base and height. This volume can be determined using the base area and height, or through alternative methods involving the slant height or apex angles. The concept of a frustum further extends the application of cone volume calculations to sections of cones. Mastery of these principles is crucial for solving various geometric problems and for practical applications in numerous fields.

The Volume of Cones

Concept Map

Summary

Outline

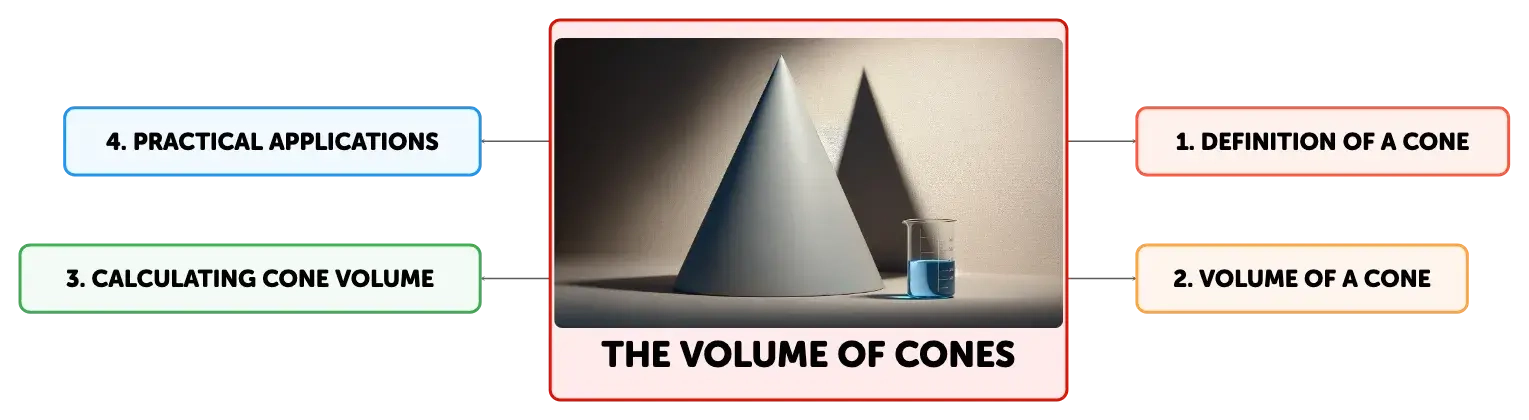

The Volume of Cones

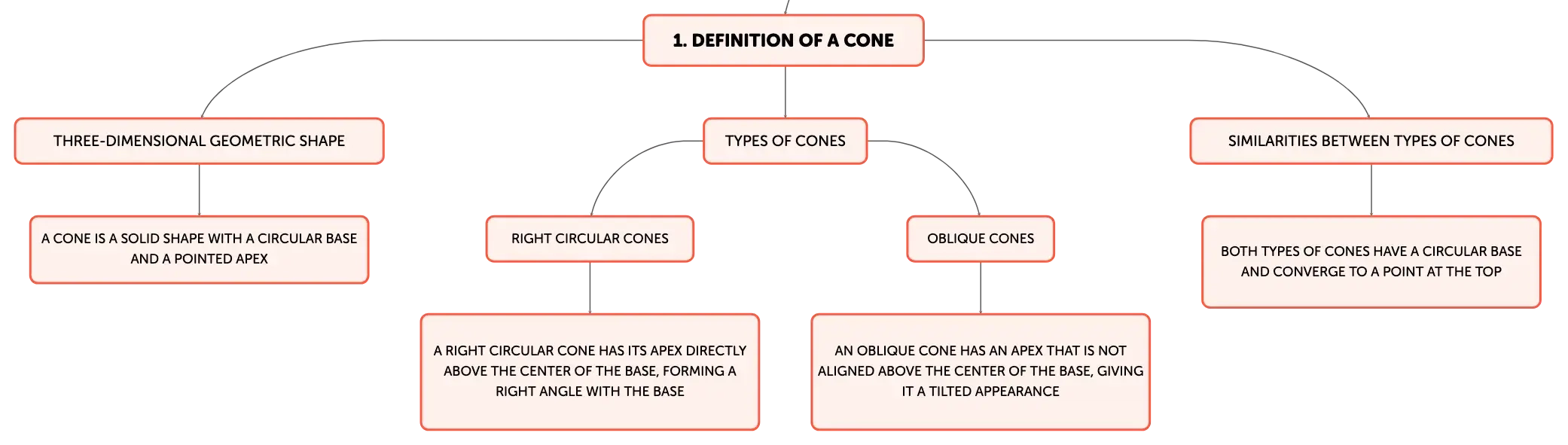

Definition of a Cone

Three-dimensional geometric shape

Types of cones

Similarities between types of cones

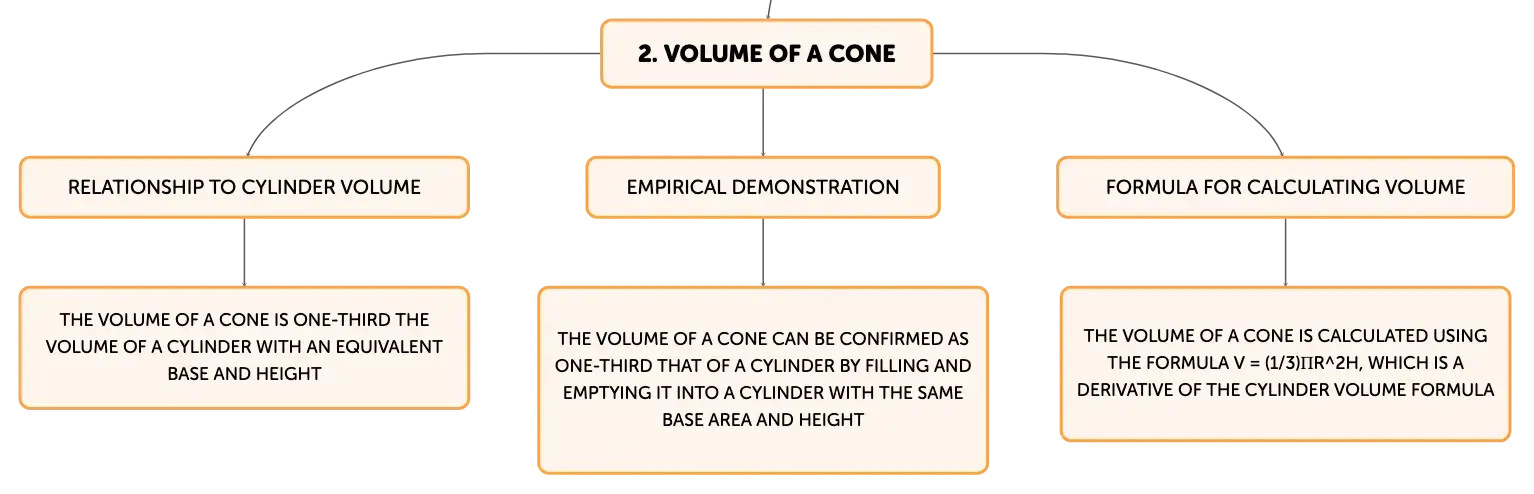

Volume of a Cone

Relationship to cylinder volume

Empirical demonstration

Formula for calculating volume

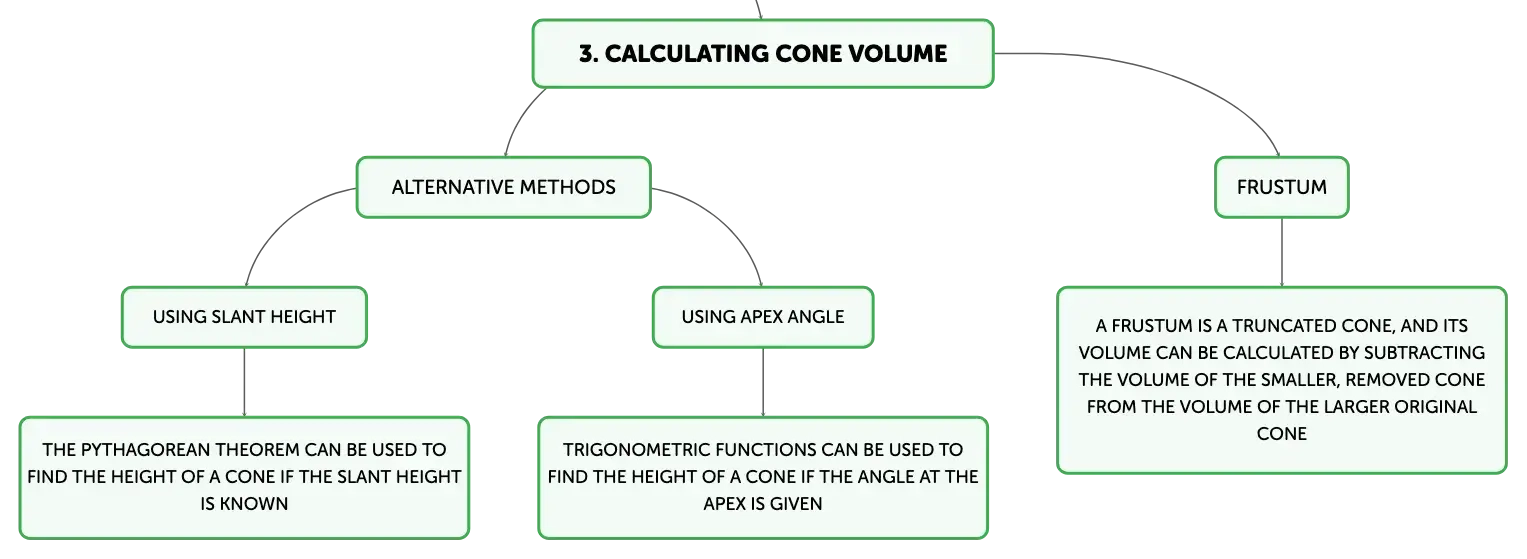

Calculating Cone Volume

Alternative methods

Frustum

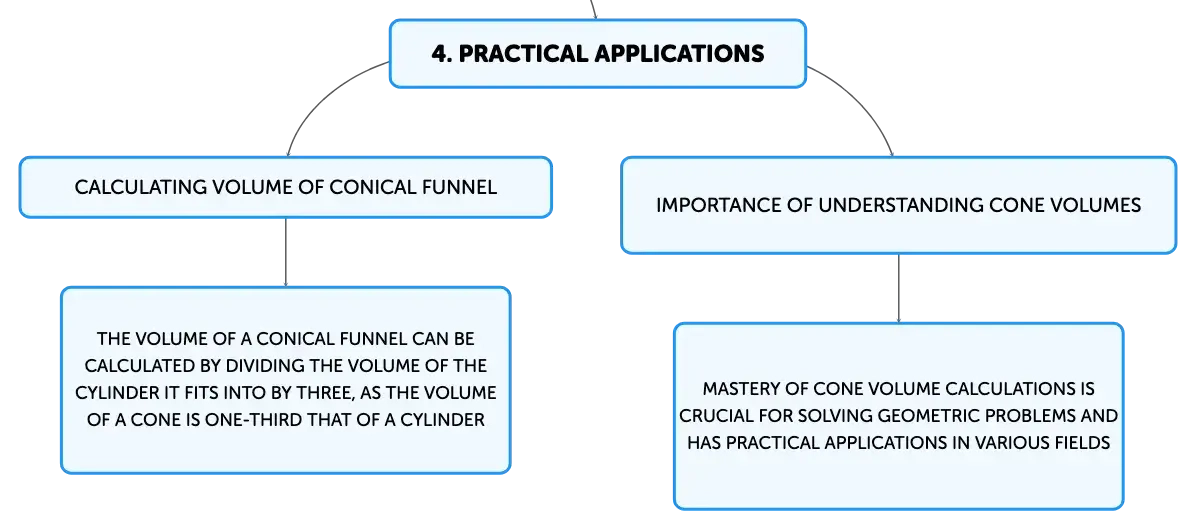

Practical Applications
