Exploring the Geometry of Prisms and Their Surface Areas

A prism is a polyhedron with two congruent and parallel faces, known as bases, and all other faces, called lateral faces, are parallelograms. The bases are connected by the lateral faces. The shape of the base determines the type of prism, which can be triangular, rectangular, or any polygonal shape. The surface area of a prism is the sum of the areas of all the faces. To calculate the surface area, one must add the areas of the two bases to the perimeter of the base multiplied by the height of the prism (the lateral surface area). This is often expressed as SA = 2B + Ph, where SA is the surface area, B is the area of one base, P is the perimeter of the base, and h is the height of the prism.

$Collection of geometric prisms on reflective surface with triangular glass prism refracting light into a color spectrum, alongside wooden and frosted glass prisms.$

Classifying Prisms by Base Shape and Properties

Prisms are categorized by the shape of their bases. A triangular prism has two triangular bases and three rectangular lateral faces. A rectangular prism, or cuboid, has six faces, each a rectangle, and a cube is a special case of a rectangular prism where all six faces are squares. A pentagonal prism has two pentagonal bases and five rectangular lateral faces. A trapezoidal prism has two trapezoidal bases and four lateral faces, which are rectangles. A hexagonal prism has two hexagonal bases and six rectangular lateral faces. Unlike these examples, a cylinder is not a prism because it has curved surfaces and does not have polygonal bases.

Detailed Method for Calculating Prism Surface Areas

To calculate the surface area of a prism, one must account for the area of the bases and the lateral surface area. The lateral surface area is the perimeter of the base multiplied by the height of the prism. The total surface area is the sum of the lateral surface area and the areas of the two bases. The formula for the surface area of a prism is SA = 2B + Ph, where B is the area of one base, P is the perimeter of the base, and h is the height. This formula simplifies the process by combining the areas of the lateral faces into a single calculation.

Surface Area Formulas for Common Prisms

The surface area formula for a prism can be adapted to fit the specific base shape. For a triangular prism, the formula is SA = bh + Ph, where b is the length of the base of the triangle, h is the height of the triangle, and P is the perimeter of the triangle. For a rectangular prism, the formula is SA = 2lw + 2lh + 2wh, where l is the length, w is the width, and h is the height of the prism. For a cube, with all sides of equal length s, the formula simplifies to SA = 6s². These formulas are derived by substituting the appropriate area and perimeter expressions for the base shape into the general prism surface area formula.

Practical Applications and Enhancing Problem-Solving Skills

Calculating the surface area of prisms has practical applications in fields such as architecture, engineering, and manufacturing. For example, it is essential for determining the amount of material required for construction or packaging. To develop problem-solving skills, students should practice with a variety of problems, including those that require additional steps such as using the Pythagorean theorem to find missing dimensions. By working through different scenarios, students can deepen their understanding of the concepts and become proficient in applying the formulas to calculate the surface area of prisms.

Key Concepts in Understanding Prism Surface Areas

Prisms are a fundamental class of polyhedra with two parallel and congruent bases connected by parallelogram lateral faces. The surface area of a prism is the total area of its faces, calculated by adding the areas of the bases to the lateral surface area. Familiarity with the properties of various prisms and the application of their respective surface area formulas is essential for accurately determining the surface area of these geometric figures. Mastery of these calculations is achieved through consistent practice and application to real-world problems, reinforcing the importance of these geometric concepts in both academic and practical contexts.

Prisms and Their Surface Area

Concept Map

Summary

Outline

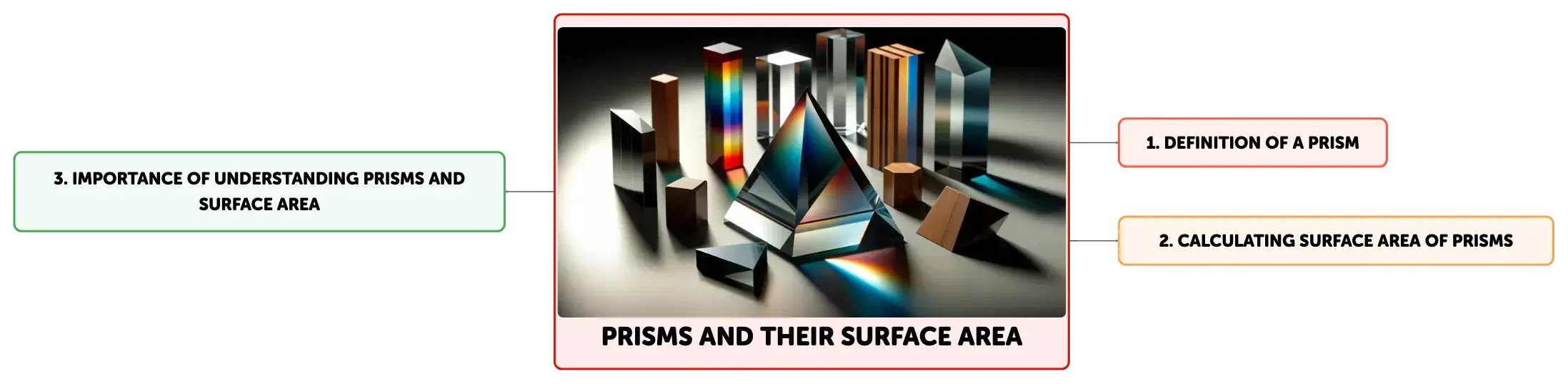

Prisms and Their Surface Area

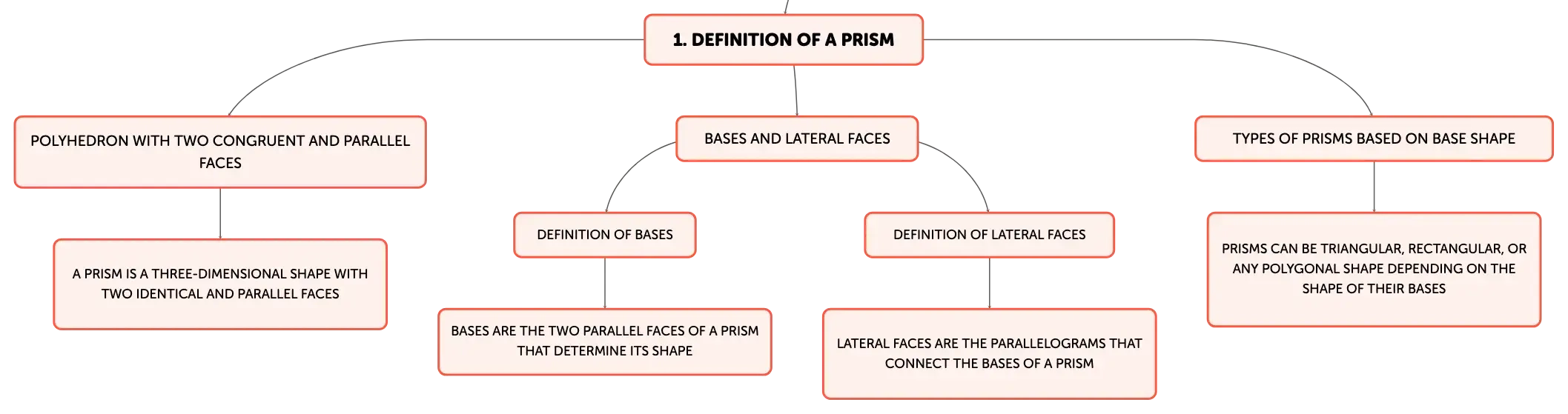

Definition of a Prism

Polyhedron with two congruent and parallel faces

Bases and lateral faces

Types of prisms based on base shape

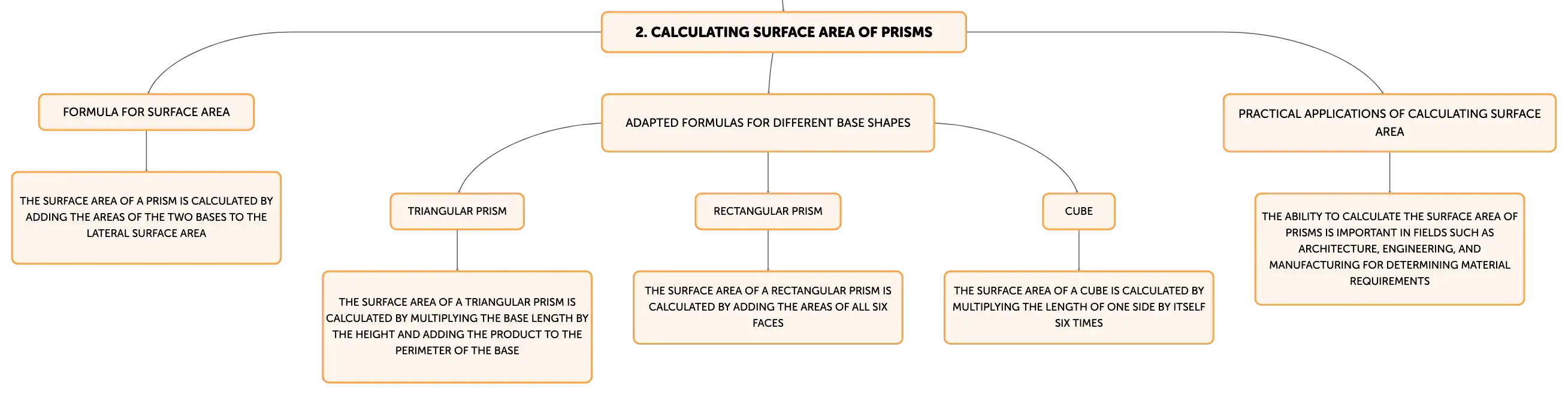

Calculating Surface Area of Prisms

Formula for surface area

Adapted formulas for different base shapes

Practical applications of calculating surface area

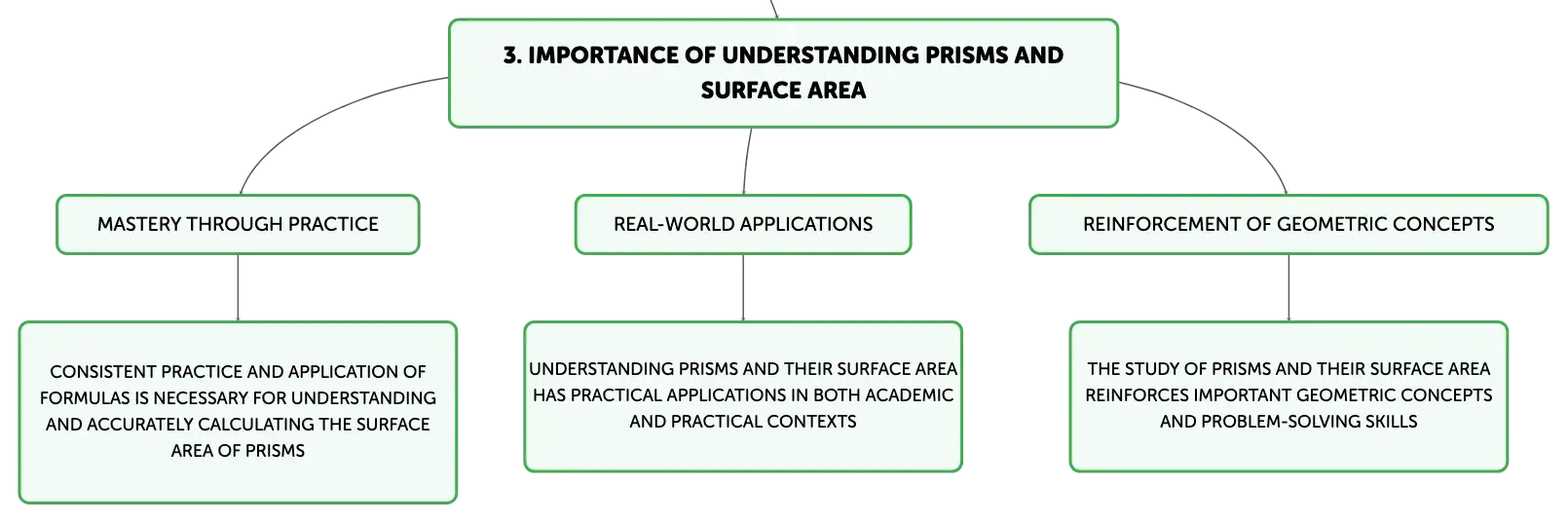

Importance of Understanding Prisms and Surface Area
