Geometric Planes

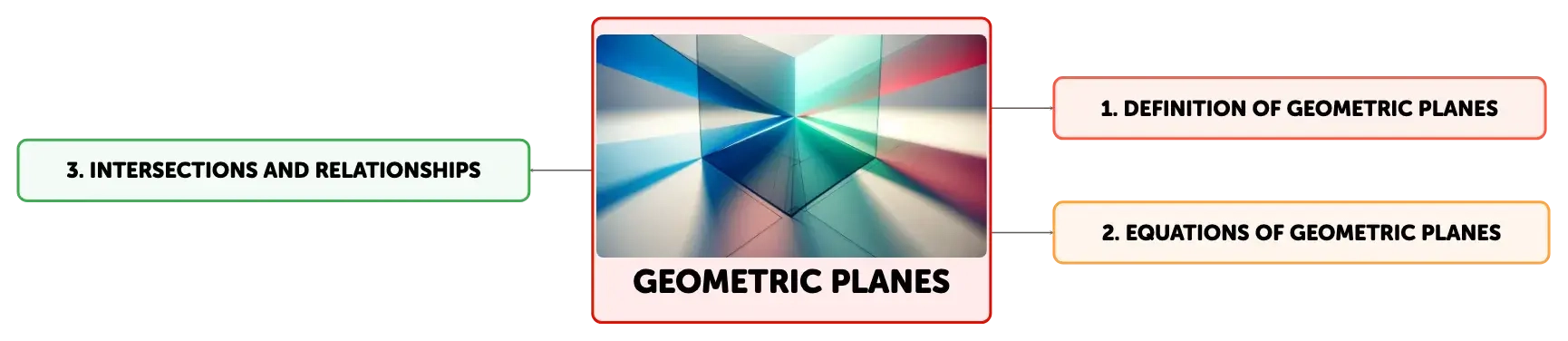

Exploring geometric planes, this content delves into their definition as two-dimensional spaces extending infinitely, the role they play in spatial environments, and their mathematical representation. It discusses how planes are constructed from points and vectors, their intersection with lines, and practical applications in fields like engineering and computer graphics. The text also touches on the Cartesian coordinate system and the importance of understanding planes for analyzing spatial relationships in three-dimensional geometry.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In mathematics, a ______ plane is an idealized surface that is perfectly flat and extends infinitely without any ______.

Click to check the answer

geometric thickness

2

A point is considered to have ______ dimensions, a line has ______, and a geometric plane contains ______ dimensions.

Click to check the answer

zero one two

3

Point in a plane

Click to check the answer

A point, such as point A, represents an exact location within a plane, no dimensions.

4

Line in a plane

Click to check the answer

A line, like line BC, extends infinitely in a plane, one-dimensional.

5

Planes in three-dimensional space

Click to check the answer

Three-dimensional space contains infinite planes; Cartesian system visualizes their intersections.

6

Definition of non-collinear points

Click to check the answer

Three points that do not lie on the same straight line and are not coincident.

7

Role of normal vector in plane determination

Click to check the answer

A vector perpendicular to every line on the plane, used with a point to define the plane.

8

Plane equation components from normal vector

Click to check the answer

The normal vector's components (a, b, c) are the coefficients in the plane's equation ax + by + cz = d.

9

Parallel planes in 3D space

Click to check the answer

Two planes that never intersect are parallel.

10

Line-plane intersection possibilities

Click to check the answer

A line can intersect a plane at a point, be parallel, or lie within the plane.

11

Perpendicular line to plane

Click to check the answer

A line is perpendicular to a plane if it intersects at a right angle; all such lines are parallel.

12

Equation form of a geometric plane

Click to check the answer

A geometric plane is expressed by the equation ax+by+cz=d, where a, b, c are coefficients and d is a constant.

13

Defining planes with points and vectors

Click to check the answer

Planes can be defined using a point for position and two non-collinear vectors for direction.

14

Role of planes in spatial relationships

Click to check the answer

Planes are used to analyze how different geometric figures, such as lines and points, interact in three-dimensional space.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Parametric Equations for Hyperbolas

Geometry

The SAS Congruence and Similarity Criteria in Euclidean Geometry

Geometry

Triangles and Circles: Basic Geometric Shapes

Geometry

Perpendicular Bisectors

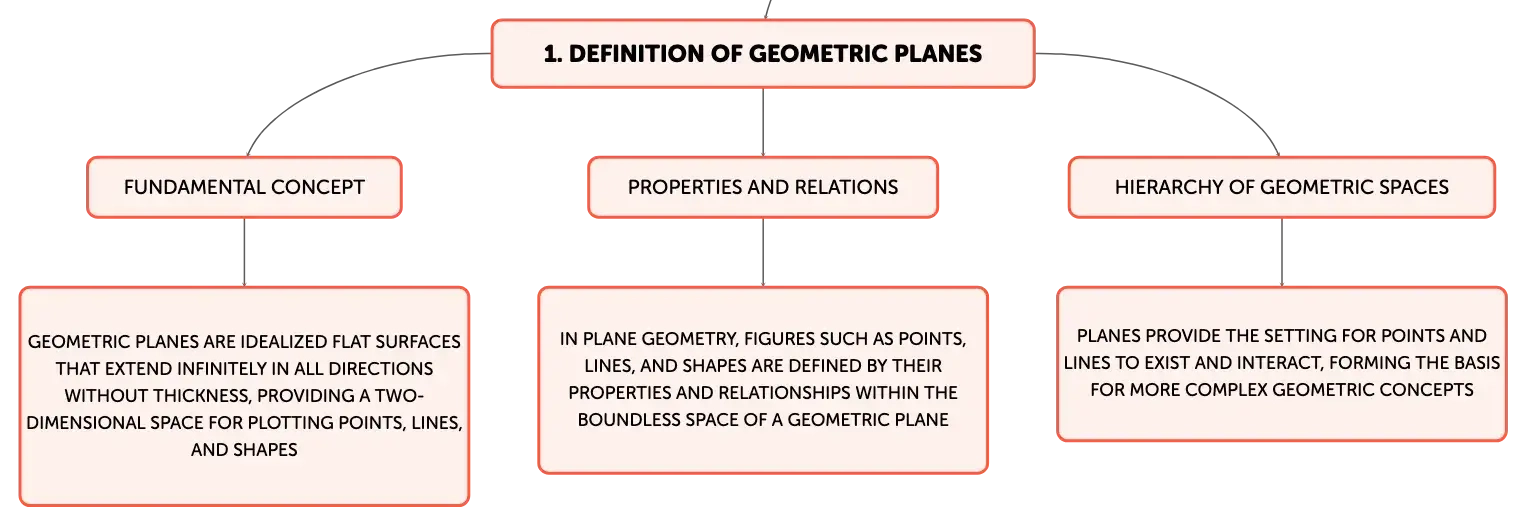

Exploring the Concept of Geometric Planes

A geometric plane is a fundamental concept in mathematics, representing an idealized flat surface that extends infinitely in all directions without thickness. It is a two-dimensional space where we can plot points, lines, and various shapes such as circles, triangles, and polygons. In plane geometry, these figures are defined by their properties and relations within this boundless space. Points are considered to have zero dimensions, while lines have one dimension, and the plane itself encompasses two dimensions. Understanding planes is essential for studying the relationships between different geometric entities and forms the basis for more complex geometric concepts.
Three translucent geometric planes in blue, green, and red intersecting along a bold diagonal line against a gradient gray background, creating a 3D effect.

The Role of Planes in Spatial Environments

In the hierarchy of geometric spaces, planes provide the setting for points and lines to exist and interact. A point, such as point \(A\), or a line, such as line \(BC\), can be depicted within a plane in geometric diagrams. Extending beyond two dimensions, a three-dimensional space contains an infinite number of planes. This is exemplified in the three-dimensional Cartesian coordinate system, which allows for the visualization and analysis of multiple planes and their intersections, providing a deeper understanding of spatial relationships.

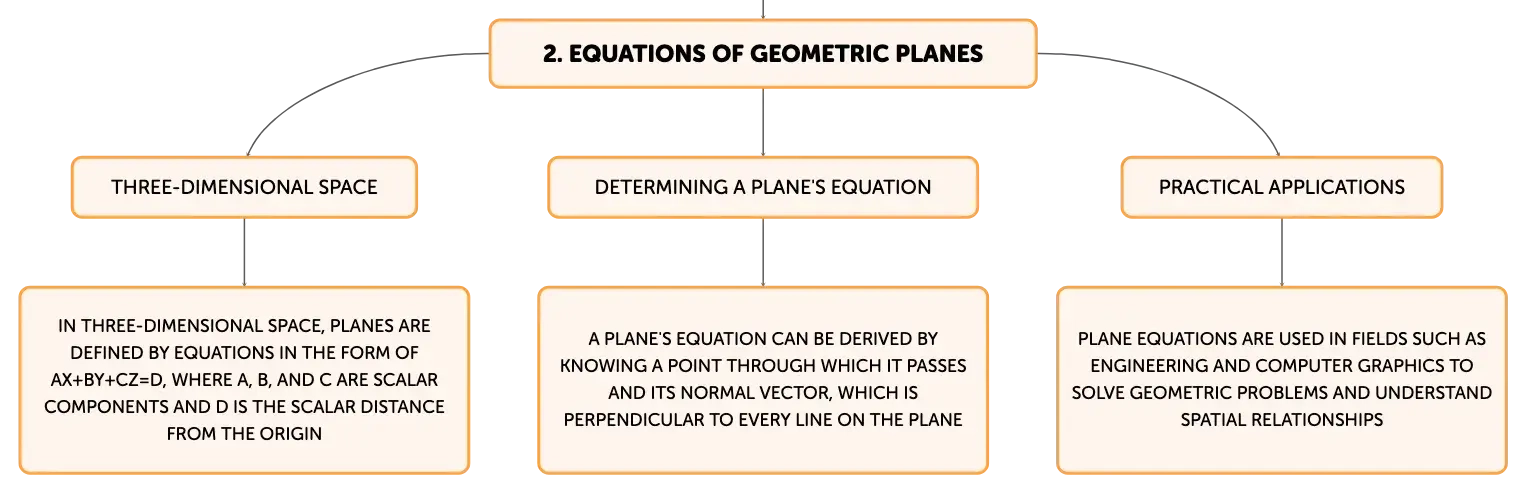

Mathematical Representation of Planes

The equation of a plane in three-dimensional space is more complex than that of a line in two dimensions. A plane's equation is typically written in the form \(ax+by+cz=d\), where \(a\), \(b\), and \(c\) are the scalar components of the normal vector to the plane, and \(d\) is the scalar distance from the origin to the plane along the normal vector. This equation is crucial for determining a plane's orientation and position within a three-dimensional coordinate system and is a key tool in fields such as vector calculus and analytical geometry.

Constructing a Plane from Points and Vectors

A plane can be uniquely determined by three non-collinear points, which means that no two of them are coincident, and they do not all lie on a single line. Alternatively, a plane can be defined by a point and a normal vector, which is perpendicular to every line lying on the plane. The normal vector's components correspond to the coefficients \(a\), \(b\), and \(c\) in the plane's equation. By knowing a point through which the plane passes and the normal vector, one can derive the complete equation of the plane, which is essential for many geometric calculations.

Planes in the Three-Dimensional Cartesian System

In a three-dimensional Cartesian coordinate system, points are expressed with coordinates \((x, y, z)\). There are three primary planes associated with the axes of this system: the \(xy\)-plane, the \(yz\)-plane, and the \(xz\)-plane, defined by the equations \(z=0\), \(x=0\), and \(y=0\) respectively. Each plane divides the space into four quadrants based on the signs of the \(x\) and \(y\) coordinates. To determine if a point lies on a particular plane, one must verify that the coordinate corresponding to the plane's absent axis is zero.

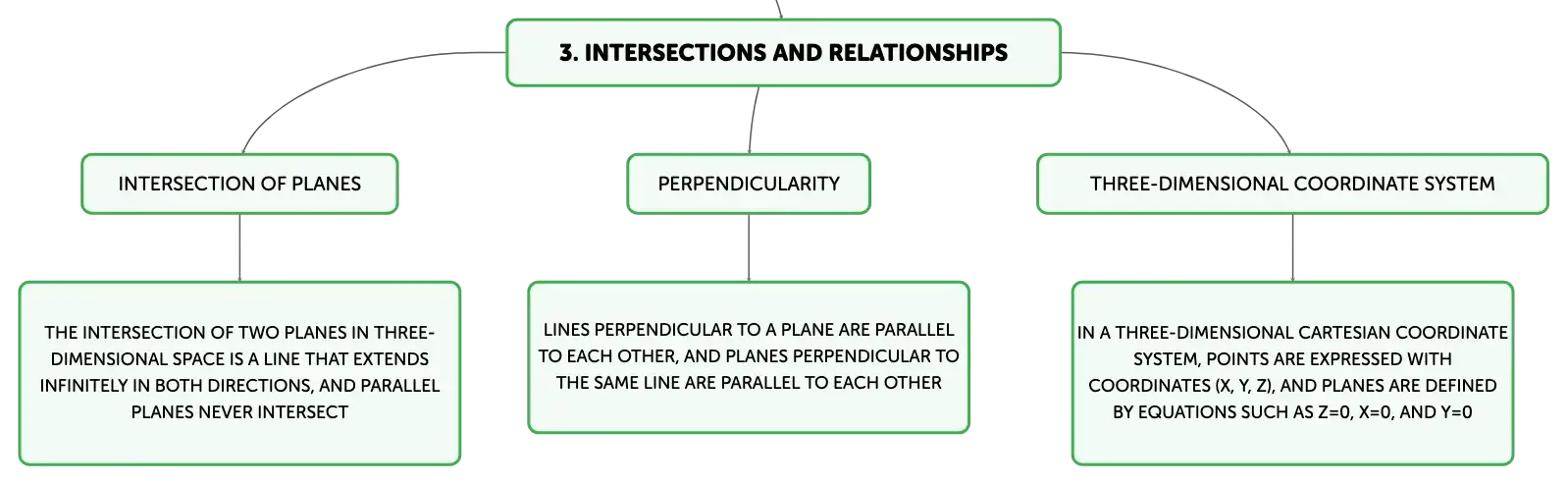

Intersecting Planes and Lines

The intersection of two planes in three-dimensional space is a line that extends infinitely in both directions. If two planes never intersect, they are parallel. A line can either intersect a plane at a single point, be parallel to the plane, or lie entirely within the plane. When a line intersects a plane at a right angle, it is perpendicular to the plane, and all lines perpendicular to a plane are parallel to each other. Similarly, planes that are perpendicular to the same line are parallel to each other. These relationships are fundamental to the study of three-dimensional geometry.

Practical Application of Plane Equations

Plane equations are used in various practical applications, such as in engineering and computer graphics. For example, consider a plane \(P\) with a normal vector \(7i+6j-4k\) and a point \((3,2,8)\) on it. The equation of plane \(P\) is derived by using the normal vector's components as coefficients, resulting in \(7x+6y-4z=d\). By substituting the coordinates of the point into the equation, we can solve for \(d\), thus obtaining the specific equation for plane \(P\). This process is crucial for solving geometric problems and understanding the spatial relationships between different geometric entities.

Concluding Insights on Geometric Planes

Geometric planes are vital two-dimensional constructs in the study of geometry, characterized by an equation of the form \(ax+by+cz=d\). They act as the ambient space for points and lines and can be defined using a combination of points and vectors. The understanding of planes is crucial for analyzing spatial relationships and intersections between various geometric figures in three-dimensional space. Mastery of plane geometry is foundational for advanced mathematical studies and applications in science and engineering.
