Cylinders and their Surface Area
Cylinder geometry is a fundamental aspect of mathematics, involving the study of solid figures with circular bases. This overview covers the classification of cylinders, formulas for computing lateral and total surface areas, and insights on calculating the surface area for half and capped half cylinders. Understanding these concepts is essential for practical applications in various fields.
See moreExploring the Fundamentals of Cylinder Geometry

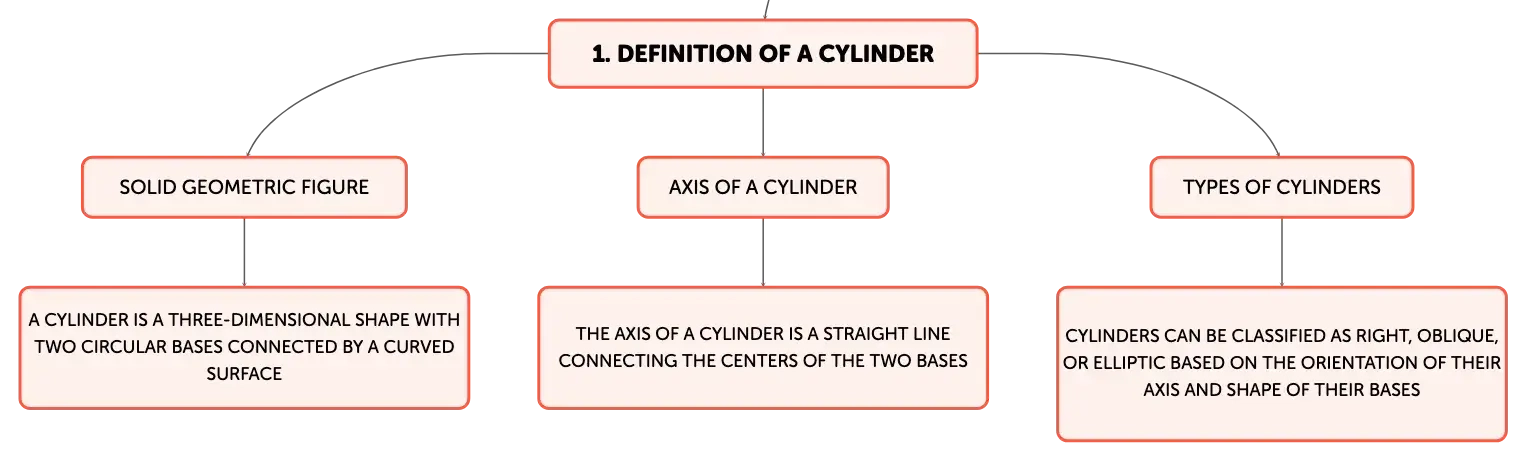

A cylinder is a solid geometric figure with two parallel and congruent circular bases connected by a curved surface. The axis of a cylinder is the straight line segment with its endpoints at the centers of the two bases. If the axis is perpendicular to the bases, the cylinder is a 'right cylinder,' otherwise, it is an 'oblique cylinder.' The side surface, when "unrolled," is a rectangle whose height is the same as the height of the cylinder and whose width is the circumference of the base.Classifying Cylinders by Their Attributes
Cylinders are primarily classified by the orientation of the axis and the shape of the bases. A 'right circular cylinder' has a perpendicular axis to its circular bases, while an 'oblique cylinder' has an axis that is not perpendicular. An 'elliptic cylinder' features elliptical bases. This discussion will concentrate on right circular cylinders, which are commonly referred to as cylinders for simplicity.Computing the Lateral Surface Area of a Cylinder

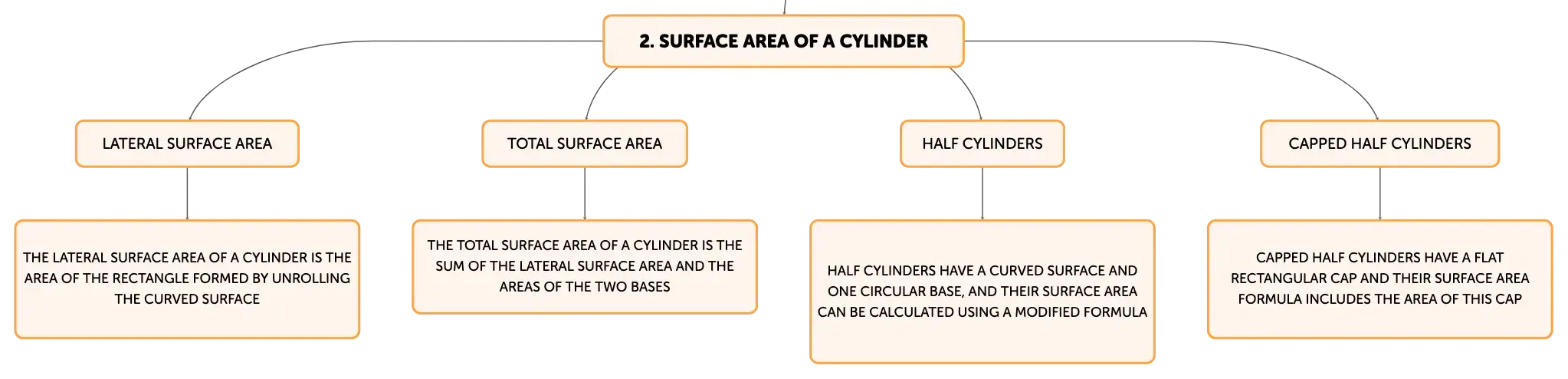

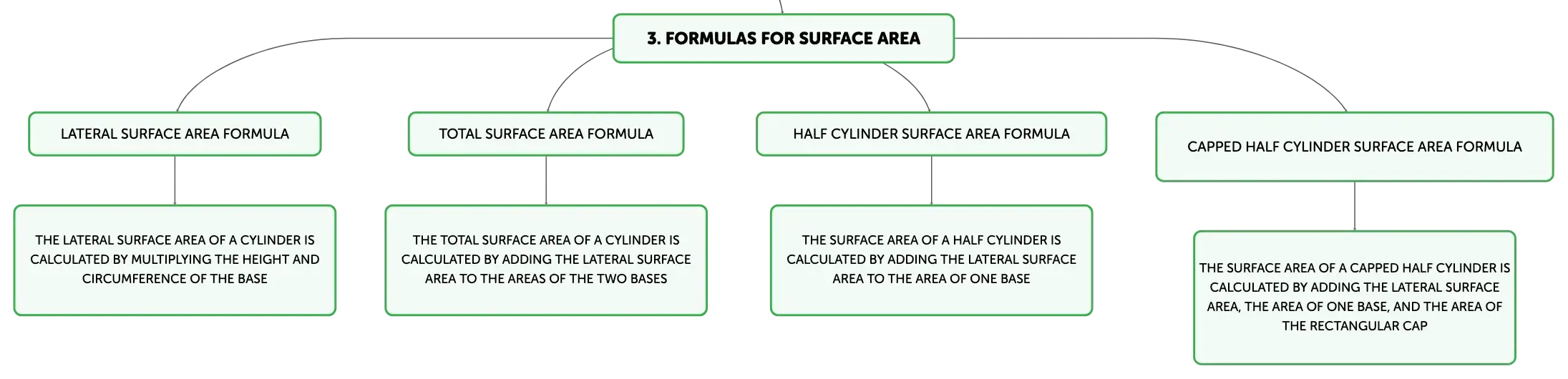

The lateral surface area of a cylinder is the area of the rectangle that represents the unrolled side surface. To calculate this area, one must know the height (h) of the cylinder and the radius (r) of the base circle. The lateral surface area is determined by the product of the height and the circumference of the base, calculated as \(2\pi rh\). This formula is based on the rectangle's length being equal to the circumference of the base circle, which is \(2\pi r\).Calculating the Total Surface Area of a Cylinder
The total surface area of a cylinder is the sum of the lateral surface area and the areas of the two bases. The area of one base is \(\pi r^2\), and since there are two identical bases, their combined area is \(2\pi r^2\). Thus, the total surface area formula for a cylinder is \(2\pi rh + 2\pi r^2\), which simplifies to \(2\pi r(h + r)\).Determining the Surface Area of a Half Cylinder
A half cylinder is created when a cylinder is bisected longitudinally. To find the surface area of a half cylinder, one must consider the lateral surface area and the area of one base, as the other base is no longer present. The formula for the surface area of a half cylinder is \(\pi rh + \pi r^2\), which simplifies to \(\pi r(h + r)\), accounting for the curved surface and one circular base.Surface Area Calculation for a Capped Half Cylinder
A capped half cylinder has a flat rectangular surface capping the previously open side. To calculate its surface area, one must add the area of this rectangular cap, which is the product of the height and the diameter of the base (\(2rh\)), to the surface area of the half cylinder. The formula for the surface area of a capped half cylinder is therefore \(\pi r(h + r) + 2rh\).Essential Insights on Cylinder Surface Area Calculations
In conclusion, understanding the surface area of cylinders is crucial for various applications. The lateral surface area is given by \(2\pi rh\), and the total surface area, including the bases, is \(2\pi r(h + r)\). For half cylinders and capped half cylinders, the formulas are modified to reflect the changes in the structure. Mastery of these formulas is vital for accurately determining the surface area of cylindrical shapes in practical scenarios.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
A ______ is a 3D shape with two congruent circles that are parallel and linked by a curved surface.
Click to check the answer
2
Right Circular Cylinder Axis Orientation
Click to check the answer
3
Elliptic Cylinder Base Shape
Click to check the answer
4
Cylinder lateral surface area formula
Click to check the answer
5
Cylinder base area formula
Click to check the answer
6
The formula for calculating the surface area of a longitudinally bisected cylinder, or a half cylinder, is ______ r(h + r).
Click to check the answer
7
Components of capped half cylinder surface area
Click to check the answer
8
Rectangular cap area calculation
Click to check the answer
9
The formula for calculating the lateral surface area of a cylinder is ______.
Click to check the answer
10
To find the total surface area of a cylinder, including its bases, one would use the formula ______.
Click to check the answer
