Fundamentals of Rotational Transformations in Geometry

Rotational transformations are operations in geometry that involve turning a figure around a fixed point, known as the center of rotation, through a specified angle. This process can be visualized by considering the Earth's rotation about its axis, which leads to the cyclical pattern of day and night. In a rotational transformation, each point of the figure maintains a constant distance from the center, and the rotation can occur in a clockwise or counterclockwise direction. The angle of rotation is denoted by a positive value for counterclockwise movement and a negative value for clockwise movement. It is important to note that rotational transformations result in an image that is congruent to the original figure, meaning that the size and shape of the figure are preserved.

Mechanical gyroscope in motion with reflective rotor and concentric gimbals on a matte black base, showcasing angular momentum and precession.

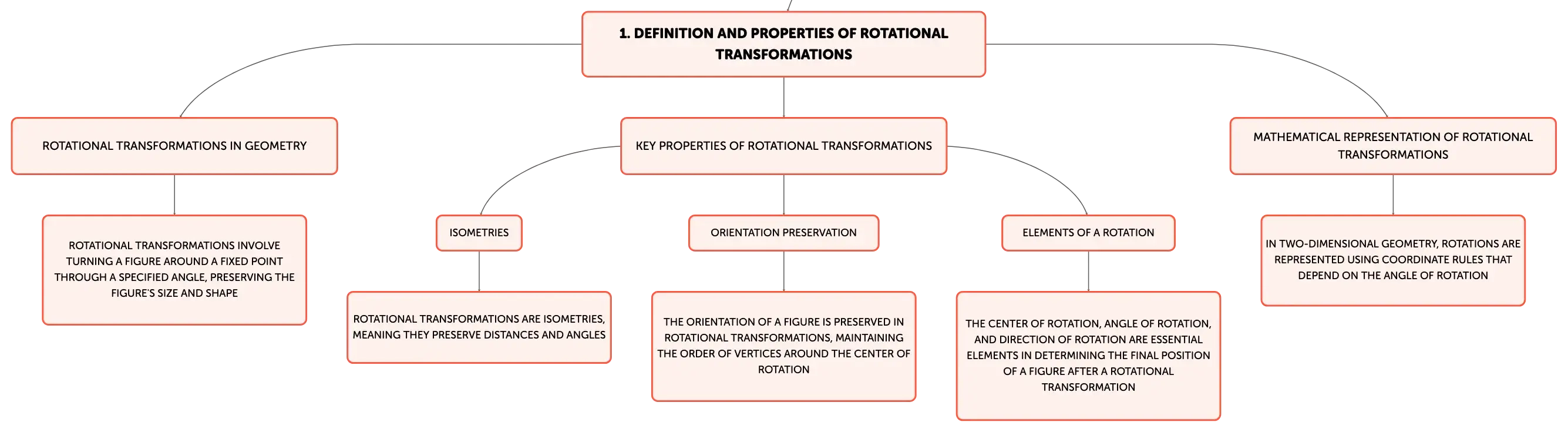

Characteristics and Principles of Rotational Transformations

Rotational transformations are characterized by several key properties that define their geometric behavior. These transformations are isometries, as they preserve distances and angles, ensuring that the pre-image and image are congruent. The orientation of the figure is also preserved, meaning that the order of vertices around the center of rotation remains the same after the transformation. When executing a rotation, it is essential to identify the center of rotation, which may be a point on the figure or an external point, the angle of rotation, and the direction of rotation (clockwise or counterclockwise). These elements are critical in determining the final position of the figure after the transformation.

Mathematical Representation of Rotational Transformations

In two-dimensional geometry, rotations are mathematically represented using coordinate rules that depend on the angle of rotation. For a point \((x, y)\) on the plane, a \(90^{\circ}\) clockwise rotation results in the new coordinates \((y, -x)\), while a \(90^{\circ}\) counterclockwise rotation yields \((-y, x)\). A rotation of \(180^{\circ}\), which is the same in either direction, maps the point to \((-x, -y)\). For a \(270^{\circ}\) rotation, the rules are similar to those for \(90^{\circ}\) but in the reverse direction. These coordinate rules are essential for accurately performing rotations in various applications, including computer graphics, engineering, and mathematics, where precise rotational movements are crucial.

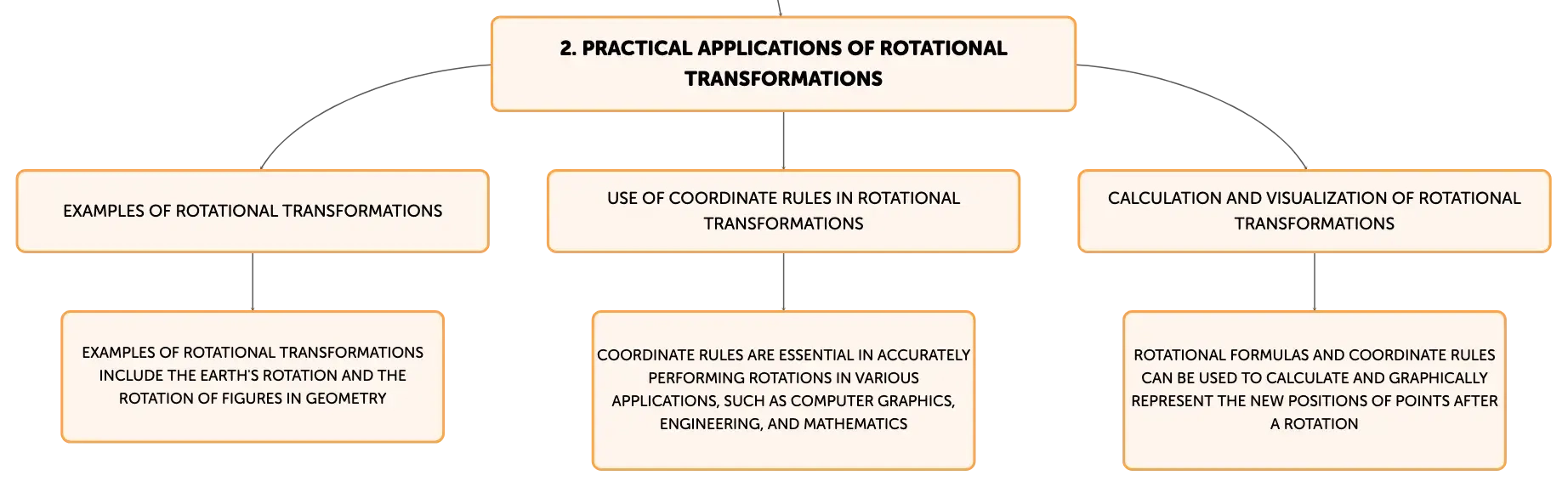

Application of Rotational Transformations in Practice

Consider a practical example where a triangle with vertices at \(A (2, 1), B (3, 1), C (3, 2)\) is rotated \(90^{\circ}\) clockwise. By applying the rotation rule, the vertices are transformed to \(A' (1, -2), B' (1, -3), C' (2, -3)\). In another scenario, a figure \(XYZ\) with vertices \(X (1, 1), Y (5, 5), Z (-2, 4)\) rotated \(270^{\circ}\) counterclockwise will have its vertices relocated to \(X' (-1, 1), Y' (-5, 5), Z' (-4, 2)\). These examples demonstrate the practical use of rotation formulas to calculate the new positions of points after a rotation, which can then be graphically represented to visualize the transformation.

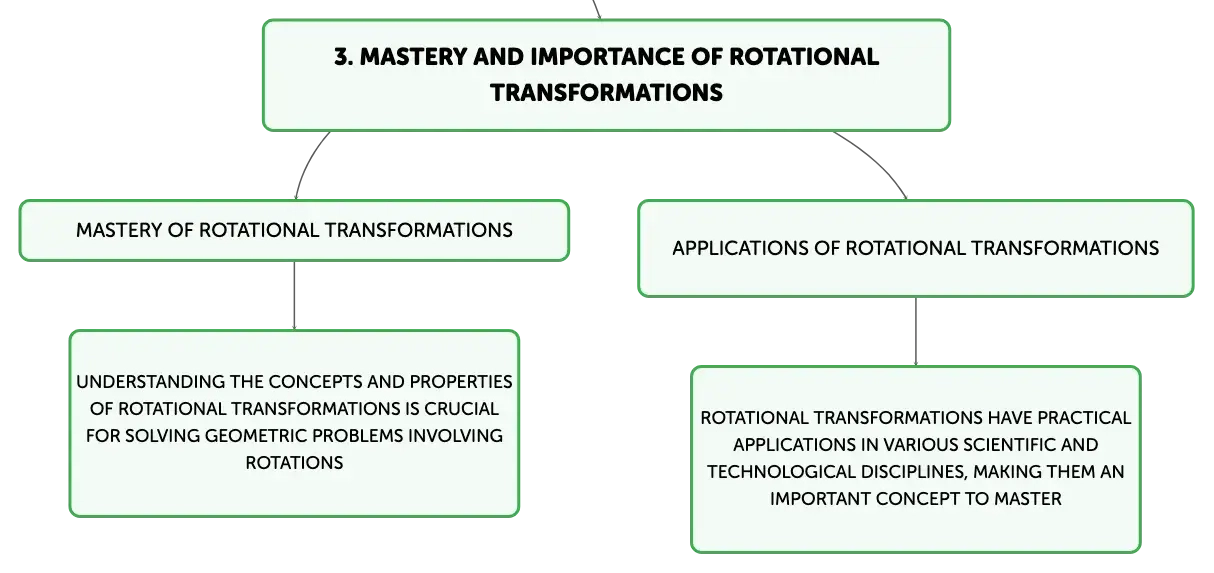

Concluding Insights on Rotational Transformations

In conclusion, rotational transformations are geometric operations where a figure is pivoted around a fixed point through a designated angle, in either a clockwise or counterclockwise direction. These transformations are congruence-preserving isometries that maintain the figure's size, shape, and orientation. The notation \(R_{\text{angle}}\) is used to denote a rotation by a specific angle, and the established formulas for \(90^{\circ}\), \(180^{\circ}\), and \(270^{\circ}\) rotations facilitate the computation of the image's coordinates. Mastery of these concepts is crucial for addressing geometric problems involving rotations and for their application across various scientific and technological disciplines.
