Dilation in Geometry

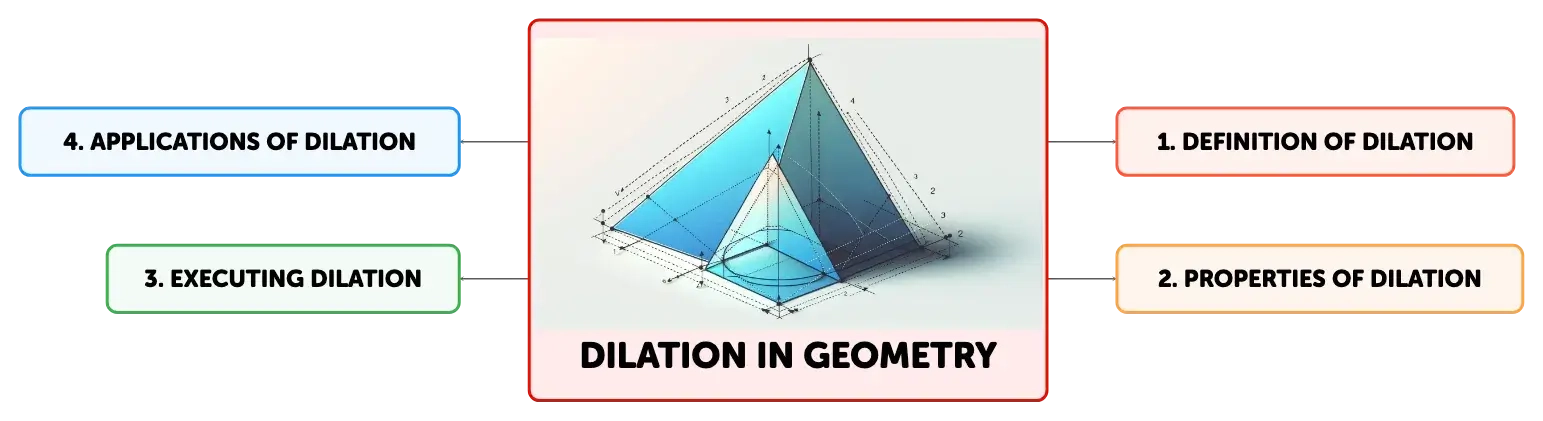

Concept Map
Dilation in geometry is a transformation that alters the size of a figure without changing its shape. It involves a center of dilation and a scale factor that dictates the resizing extent. This process preserves angles, parallelism, and proportional segment lengths, making it crucial for understanding geometric similarity and real-world applications like scale models.
Summary
Outline
Exploring the Concept of Dilation in Geometry
Dilation is a transformation in geometry that proportionally resizes a figure, altering its dimensions while preserving its shape. This transformation is characterized as non-isometric, as it changes the figure's size but maintains its proportions and angles. Dilation occurs with respect to a fixed point known as the center of dilation and involves a scale factor that dictates the degree of resizing. A scale factor greater than one causes an enlargement of the figure, while a scale factor between zero and one results in a reduction. A scale factor exactly equal to one implies that the figure's size remains unchanged, as the image is congruent to the pre-image.Geometric Properties Preserved by Dilation
Dilation retains the intrinsic shape of a figure, ensuring that all angles remain equal to their corresponding angles in the original figure. It also preserves the properties of parallelism and perpendicularity; thus, lines that are parallel or perpendicular before dilation maintain those relationships afterward. Furthermore, the proportionality of segments is maintained, meaning that the ratio of lengths of corresponding segments in the pre-image and image is constant and equal to the scale factor. This includes the preservation of midpoints, where the midpoint of any segment in the dilated figure will correspond to the midpoint of the related segment in the pre-image.Implementing Dilation with a Scale Factor
The scale factor is the key to performing a dilation. It is defined as the ratio of any linear dimension of the image to the corresponding dimension of the pre-image. To execute a dilation, one multiplies the coordinates of the pre-image's vertices by the scale factor, which adjusts their positions relative to the center of dilation. If the center of dilation is the origin of the coordinate system, the vertices' coordinates are directly scaled. If the center is not at the origin, one must consider the vectors from the center to the vertices, scaling these vectors to find the new positions of the vertices in the dilated figure.Simplified Dilation at the Origin
When the origin of the coordinate system serves as the center of dilation, the transformation is straightforward. Each coordinate of the pre-image is scaled by the scale factor to determine the coordinates of the image. For example, a scale factor of 2 means that the distance from the origin to each vertex is doubled, enlarging the figure by a factor of two. Conversely, a scale factor of 0.5 reduces the distance to half, resulting in a figure half the size of the original.Dilation Centered at an Arbitrary Point
Dilation with a center point other than the origin requires additional steps. One must first calculate the vectors from the center of dilation to each vertex of the pre-image. These vectors are then multiplied by the scale factor to determine the corresponding vectors for the image. The endpoints of these new vectors give the coordinates of the vertices of the dilated figure, effectively resizing the figure while keeping the center of dilation fixed.Real-World Applications of Dilation
Dilation is not only a theoretical concept but also has practical applications. For instance, consider a square with vertices at (1,1), (1,2), (2,2), and (2,1) and a scale factor of 2. Multiplying the coordinates by the scale factor results in a square twice the size. In another example, a triangle with vertices at (3,4), (6,4), and (4,7) and a scale factor of 0.5 would produce a triangle half the size. If the scale factor is negative, the figure is both resized and reflected across the center of dilation, creating an image on the opposite side of the center.Calculating the Scale Factor from Coordinates
When the scale factor is unknown, it can be determined using the coordinates of the pre-image and the image. By comparing the distances between corresponding points or the lengths of corresponding segments in the image and pre-image, one can calculate the scale factor. This ratio should be consistent for all corresponding points or segments, confirming the uniform scaling of the figure.Concluding Insights on Dilation in Geometry
Dilation is a fundamental transformation in geometry that resizes figures around a fixed center point using a scale factor. It is a non-isometric transformation that alters the size but not the shape of figures, preserving angles, parallelism, and proportional segment lengths. The scale factor determines the extent of resizing, with negative values indicating a reflection in addition to resizing. Mastery of dilation is essential for understanding geometric similarity, scale models, and various applications in real-world contexts.
Show More

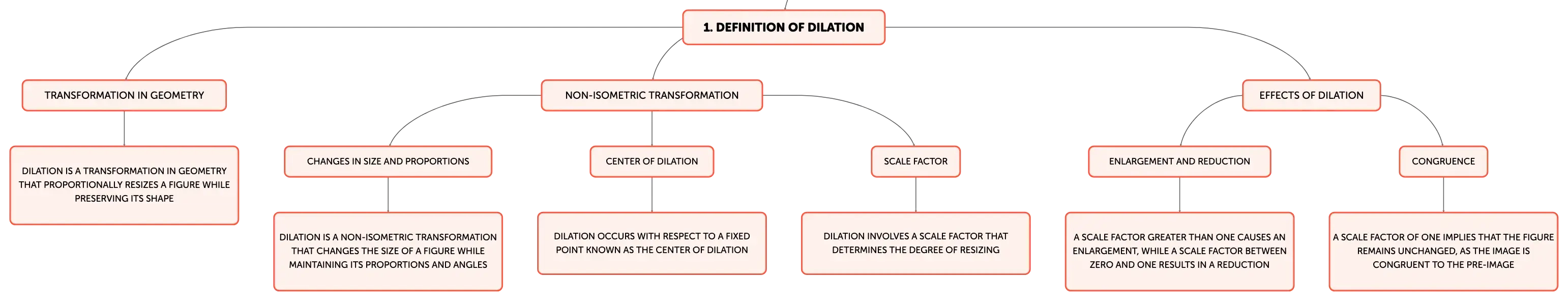

Definition of Dilation
Transformation in geometry
Dilation is a transformation in geometry that proportionally resizes a figure while preserving its shape
Non-isometric transformation
Changes in size and proportions
Dilation is a non-isometric transformation that changes the size of a figure while maintaining its proportions and angles
Center of dilation
Dilation occurs with respect to a fixed point known as the center of dilation
Scale factor
Dilation involves a scale factor that determines the degree of resizing
Effects of Dilation
Enlargement and reduction
A scale factor greater than one causes an enlargement, while a scale factor between zero and one results in a reduction
Congruence
A scale factor of one implies that the figure remains unchanged, as the image is congruent to the pre-image

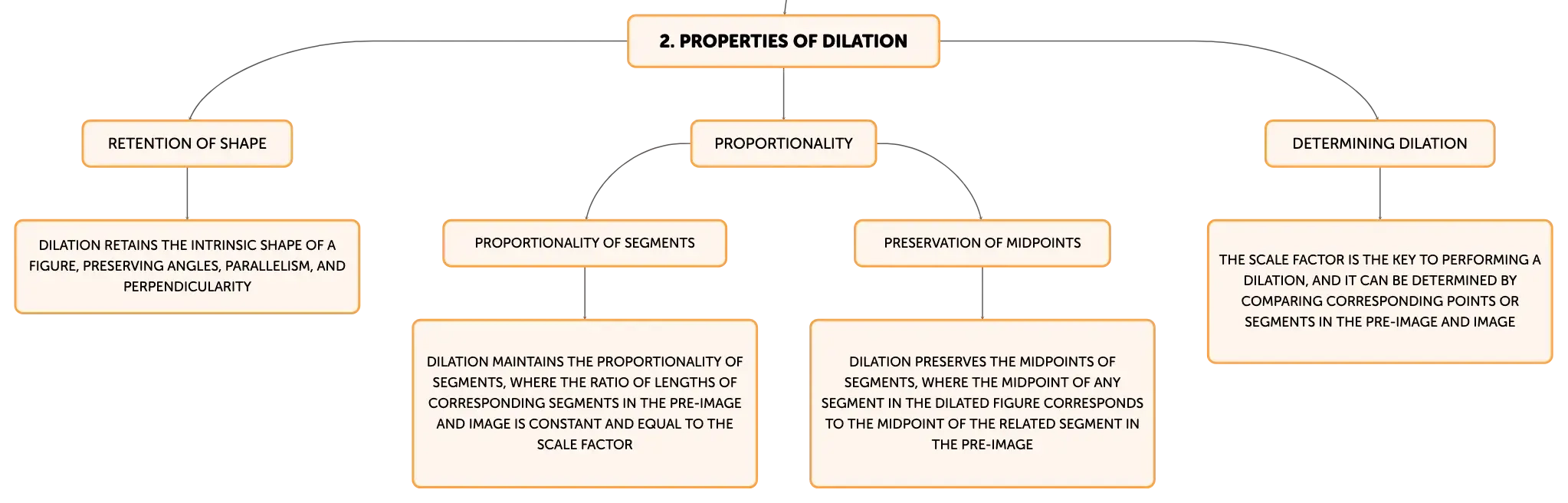

Properties of Dilation
Retention of shape
Dilation retains the intrinsic shape of a figure, preserving angles, parallelism, and perpendicularity
Proportionality
Proportionality of segments
Dilation maintains the proportionality of segments, where the ratio of lengths of corresponding segments in the pre-image and image is constant and equal to the scale factor
Preservation of midpoints
Dilation preserves the midpoints of segments, where the midpoint of any segment in the dilated figure corresponds to the midpoint of the related segment in the pre-image
Determining Dilation
The scale factor is the key to performing a dilation, and it can be determined by comparing corresponding points or segments in the pre-image and image

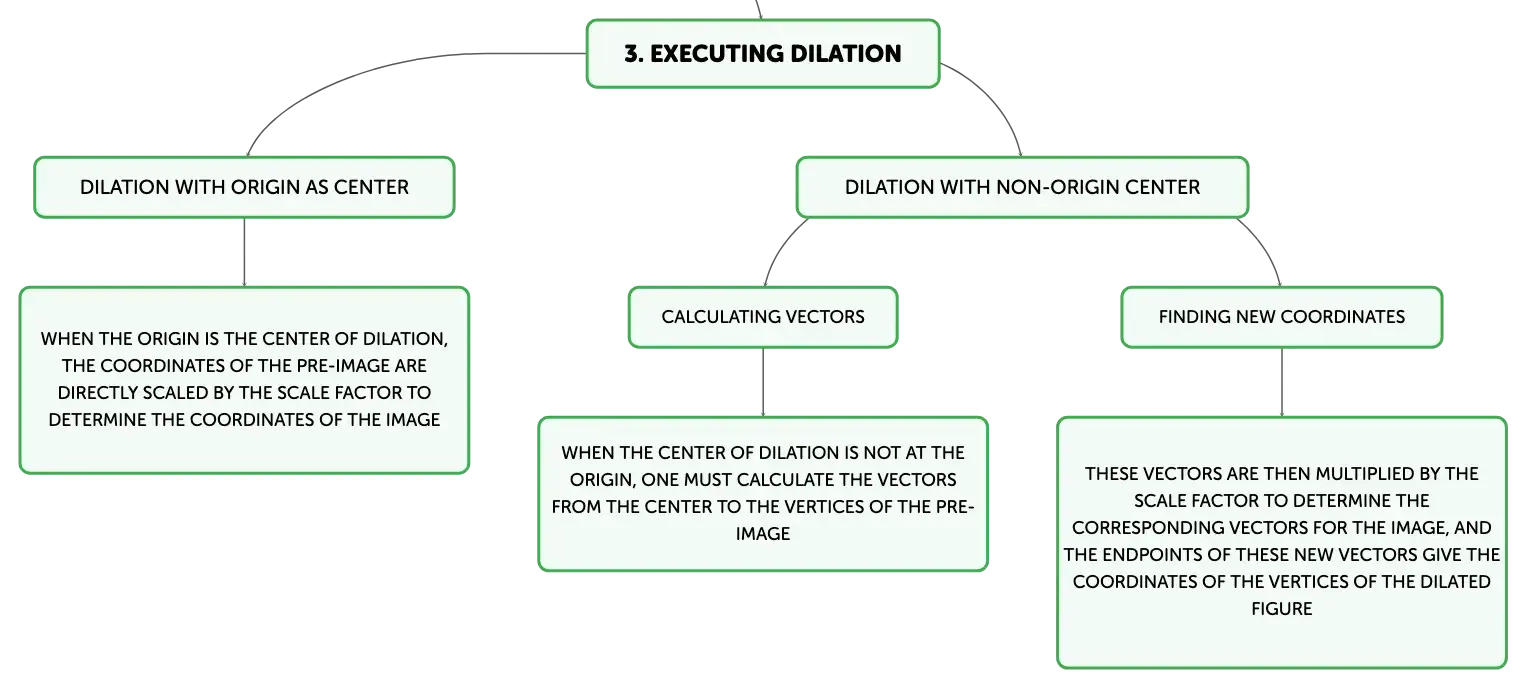

Executing Dilation
Dilation with origin as center
When the origin is the center of dilation, the coordinates of the pre-image are directly scaled by the scale factor to determine the coordinates of the image
Dilation with non-origin center
Calculating vectors
When the center of dilation is not at the origin, one must calculate the vectors from the center to the vertices of the pre-image
Finding new coordinates
These vectors are then multiplied by the scale factor to determine the corresponding vectors for the image, and the endpoints of these new vectors give the coordinates of the vertices of the dilated figure

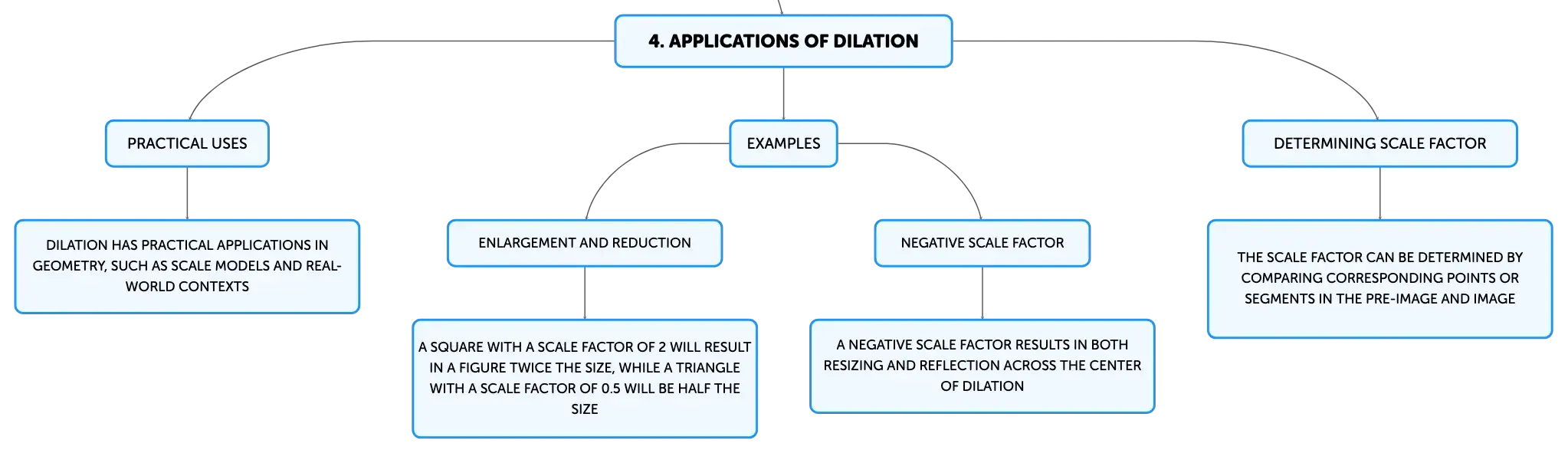

Applications of Dilation
Practical uses
Dilation has practical applications in geometry, such as scale models and real-world contexts
Examples
Enlargement and reduction
A square with a scale factor of 2 will result in a figure twice the size, while a triangle with a scale factor of 0.5 will be half the size
Negative scale factor
A negative scale factor results in both resizing and reflection across the center of dilation
Determining scale factor
The scale factor can be determined by comparing corresponding points or segments in the pre-image and image
Dilation in Geometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
A scale factor above one will ______ a figure, whereas a factor less than one but greater than zero ______ it.
enlarge
reduces
01
Dilation: Angle Preservation
All angles remain equal to corresponding angles in original figure.
02
Dilation: Segment Proportionality
Ratio of lengths of corresponding segments equals scale factor.
