Understanding the Geometry of a Circle Sector

A sector of a circle is a region enclosed by two radii and the arc between them. This shape is analogous to a wedge cut from a round object, such as a pie or a pizza, where each piece represents a sector. The central angle, measured at the circle's center and subtended by the arc, is a defining feature of a sector. It determines the fraction of the circle's area that the sector occupies. Mastery of the sector concept is essential in geometry, as it has practical applications in fields ranging from architecture to astronomy.

Analog wall clock at 10:10 with red second hand over a blurred background featuring a partially sliced pizza with colorful toppings.

Distinguishing Between Major and Minor Sectors

Sectors of a circle are categorized as either major or minor based on the central angle's size. A major sector has a central angle greater than 180 degrees and encompasses the larger area of the circle, while a minor sector has a central angle less than 180 degrees and covers a smaller area. Understanding the distinction between major and minor sectors is vital for accurately computing their areas and for grasping the geometric principles that govern circular segments.

Calculating the Area of a Sector in Degrees

To calculate the area of a sector when the central angle is given in degrees, one must relate this angle to the circle's total area. The formula A_sector = (θ/360)πr^2 is derived from the fact that a full circle measures 360 degrees and has an area of πr^2, where r is the radius. For instance, the area of a sector with a 60-degree central angle and a radius of 8 cm is computed as (60/360)π(8^2), which equals approximately 33.51 cm^2, not 33.49 cm^2 as previously stated.

Area Calculation of a Sector Using Radians

When the central angle of a sector is expressed in radians, the area is calculated using the formula A_sector = (θ/2)r^2. This formula arises from the conversion between degrees and radians, where 2π radians equal 360 degrees. Applying this relationship to the degree-based area formula yields the radian-based formula. For example, the area of a sector with a radius of 1.4 meters (half of the diameter) and a central angle of 0.54 radians is (0.54/2)(1.4)^2, which results in approximately 0.53 m^2, correcting the initial miscalculation.

Determining Sector Area Using Arc Length

The area of a sector can also be determined using the arc length, which is a portion of the circle's circumference, 2πr, corresponding to the central angle θ. If θ is in degrees, the arc length is (θ/360)2πr. The sector area formula A_sector = (θ/360)πr^2 can be reformulated using the arc length as A_sector = arc length * (r/2). Thus, the area of a sector is the product of the arc length and half the radius. For example, a sector with an arc length of 12 cm and a radius of 8 cm has an area of 48 cm^2, as calculated by 12 * (8/2).

Comprehensive Insights on Circle Sectors

In conclusion, a sector is an integral part of circular geometry, characterized by two radii and an intervening arc. Major and minor sectors are differentiated by their central angles. The area of a sector can be calculated using the central angle in degrees or radians, or by employing the arc length. These methods are crucial for a thorough understanding of circular properties and are widely applicable in various scientific and practical contexts.

Algorino

Edit available

Sectors of a Circle

Concept Map

Summary

Outline

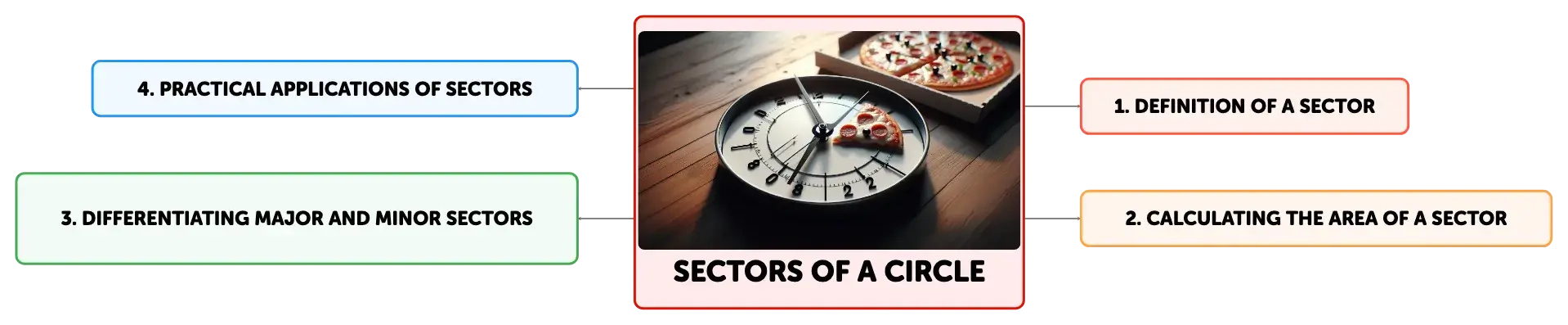

Sectors of a Circle

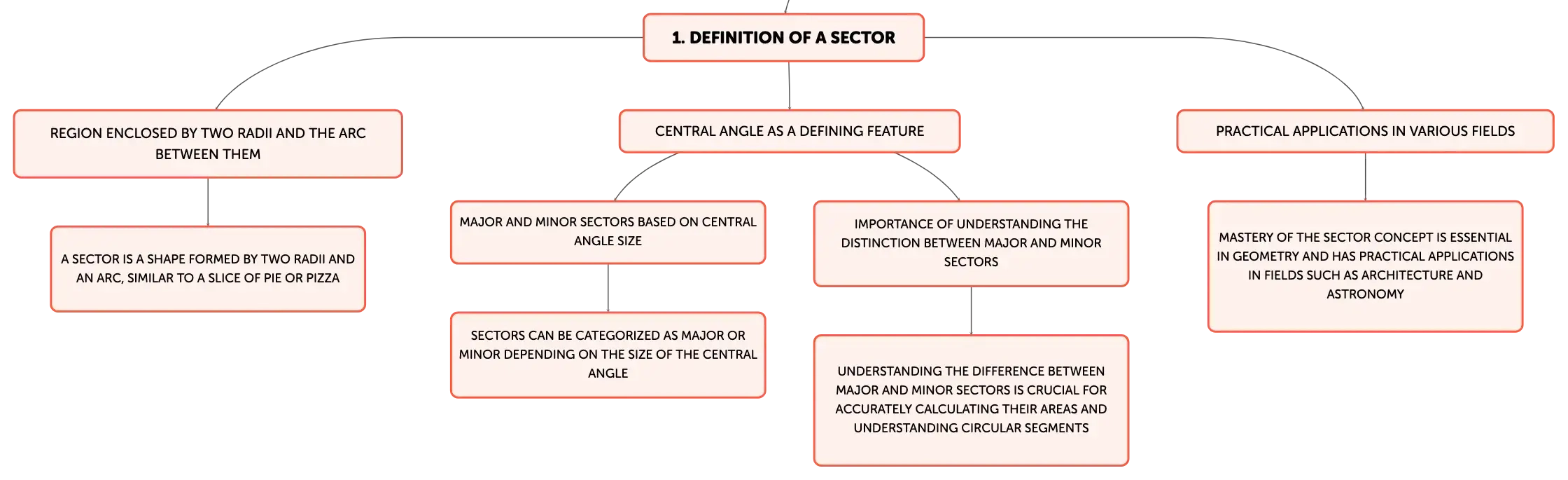

Definition of a Sector

Region enclosed by two radii and the arc between them

Central angle as a defining feature

Practical applications in various fields

Calculating the Area of a Sector

Using the central angle in degrees

Using the central angle in radians

Using the arc length

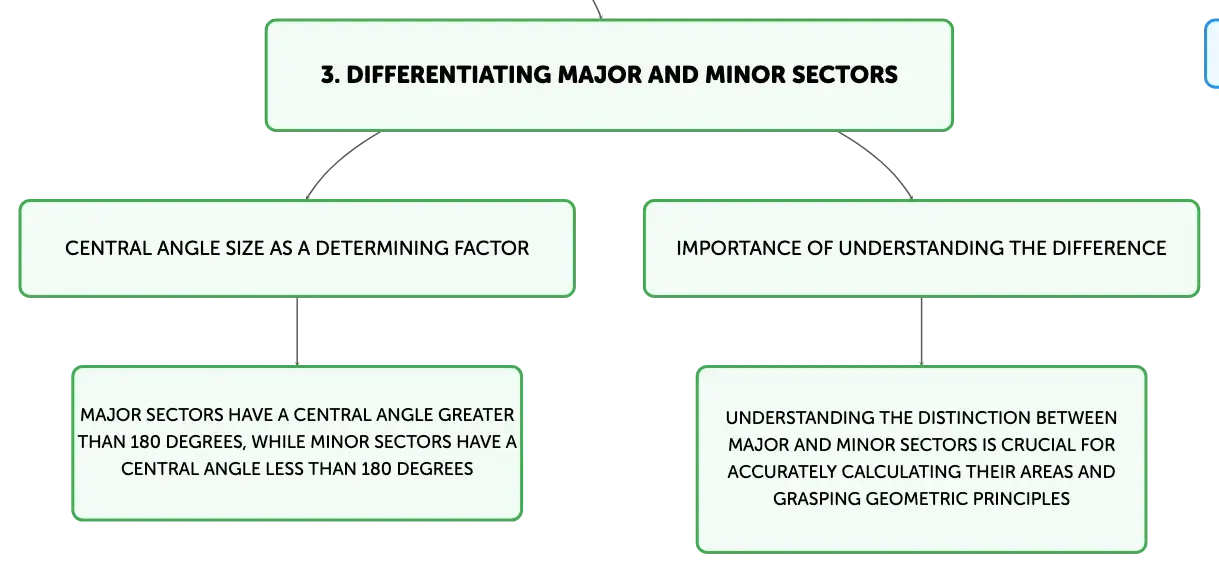

Differentiating Major and Minor Sectors

Central angle size as a determining factor

Importance of understanding the difference

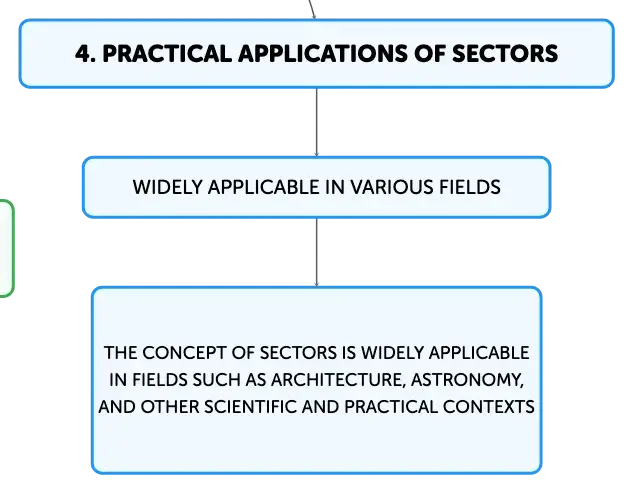

Practical Applications of Sectors

Widely applicable in various fields
