Reflection in Geometry

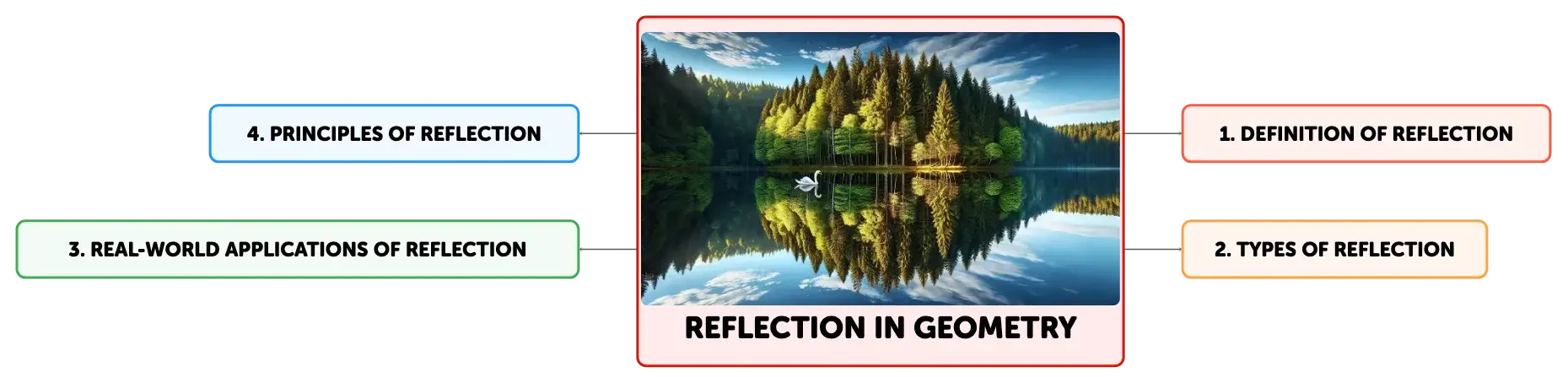

Concept Map

Algorino

Edit available

Geometric reflection is a transformation in geometry that flips a shape across an axis to produce a mirror image. This process involves changing the coordinates of a figure's vertices to create an image that is congruent to the original. Reflections can occur across the x-axis, y-axis, or diagonal lines like y = x and y = -x. The principles of reflection are observable in everyday life, such as in mirrors, water surfaces, and polished materials, where they demonstrate the spatial relationships in our environment.

Summary

Outline

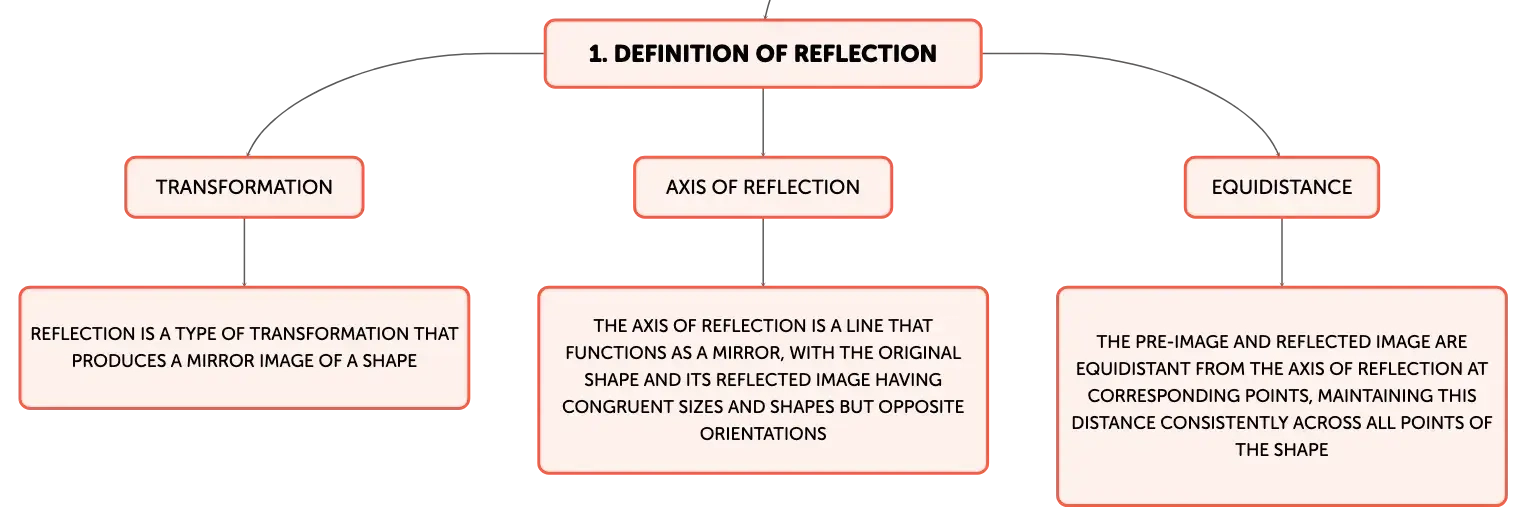

The Principles of Geometric Reflection

In geometry, reflection is a type of transformation that produces a mirror image of a shape by flipping it across a line known as the axis of reflection. This axis functions similarly to a mirror, with the original shape (the pre-image) and its mirror image (the reflected image) having congruent sizes and shapes but opposite orientations. The pre-image and reflected image are equidistant from the axis of reflection at corresponding points, and this distance is maintained consistently across all points of the shape.

Serene lake with still water mirroring a dense forest and a graceful swan, under a clear blue sky, showcasing natural symmetry.

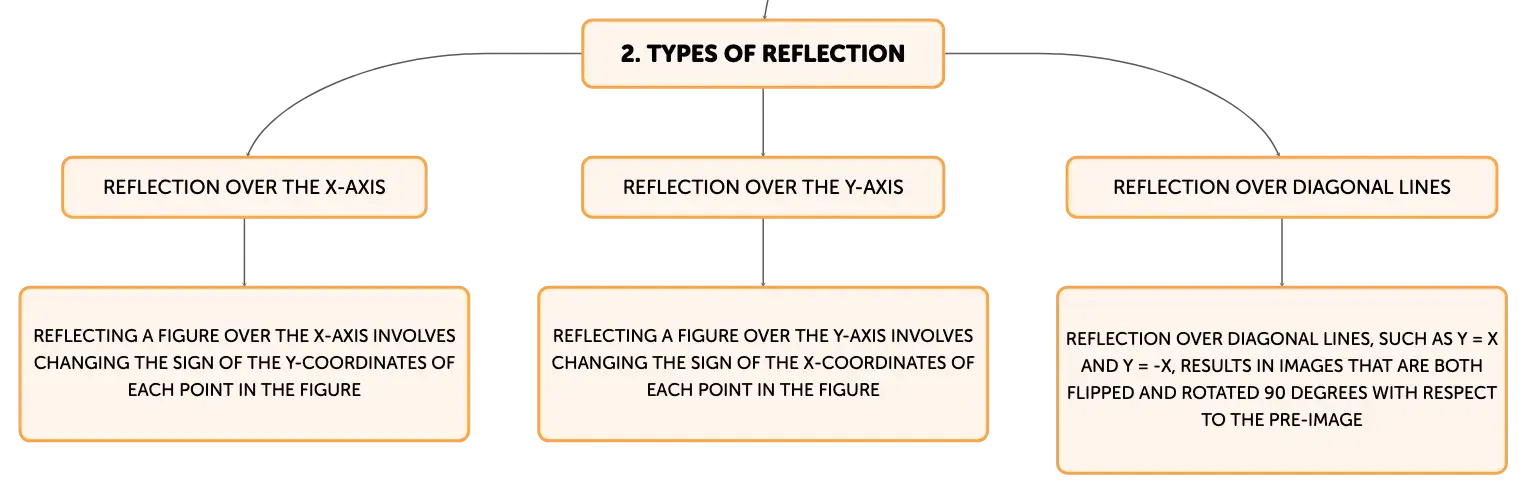

Reflection Across the Coordinate Axes

Reflecting a figure across the x-axis involves changing the sign of the y-coordinates of each point in the figure, while the x-coordinates remain unchanged. This is represented by the transformation \((x, y) \rightarrow (x, -y)\). Conversely, reflection across the y-axis changes the sign of the x-coordinates and leaves the y-coordinates unchanged, following the transformation \((x, y) \rightarrow (-x, y)\). To perform these reflections, each vertex of the original figure is transformed according to these rules, and the new vertices are connected to form the reflected image, ensuring that the figure retains its original size and shape.

Diagonal Reflections in the Coordinate Plane

Reflections over the lines \(y = x\) and \(y = -x\) result in images that are not only flipped but also rotated 90 degrees with respect to the pre-image. For a reflection over the line \(y = x\), the coordinates of each point are interchanged, leading to the transformation \((x, y) \rightarrow (y, x)\). In the case of reflection over the line \(y = -x\), the coordinates are interchanged and their signs are reversed, resulting in the transformation \((x, y) \rightarrow (-y, -x)\). These reflections are more complex than those over the x-axis or y-axis because they involve both a flip and a rotation, but the principles of maintaining size, shape, and equidistance from the line of reflection still apply.

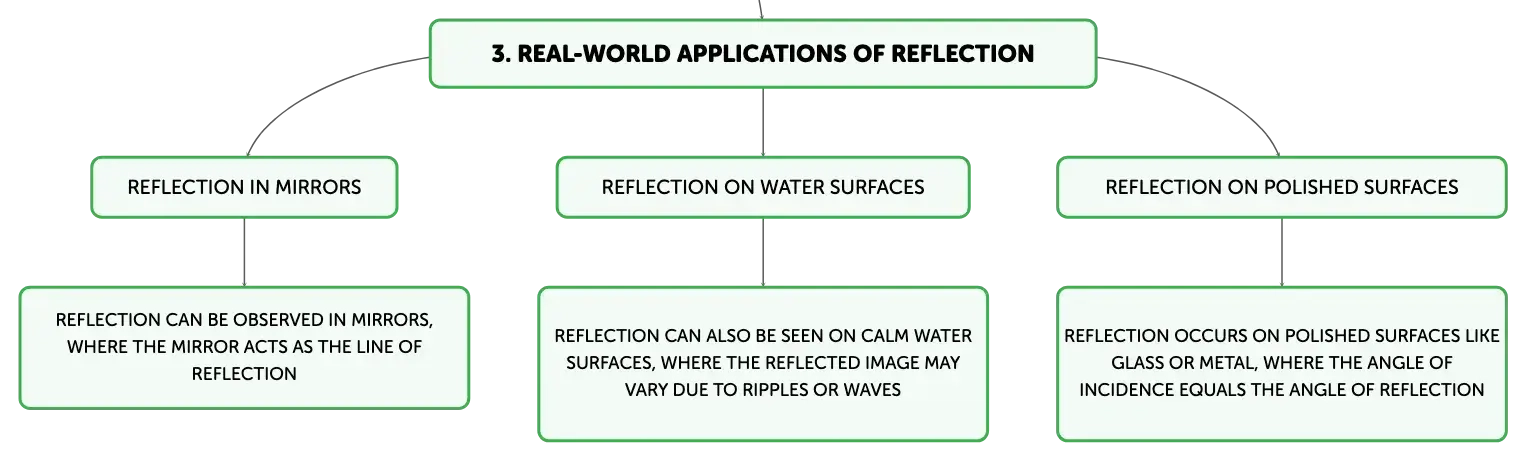

Reflection in the Real World

The concept of reflection extends beyond mathematical theory and can be observed in various real-world scenarios. A person looking into a mirror experiences a reflection similar to geometric reflection, where the mirror acts as the line of reflection. Reflections are also seen on calm water surfaces, where the reflected image may vary due to ripples or waves. Additionally, reflections occur on polished surfaces like glass or metal, where the angle of incidence equals the angle of reflection. These everyday occurrences of reflection provide practical examples of the geometric principles at work and help to contextualize the concept for learners.

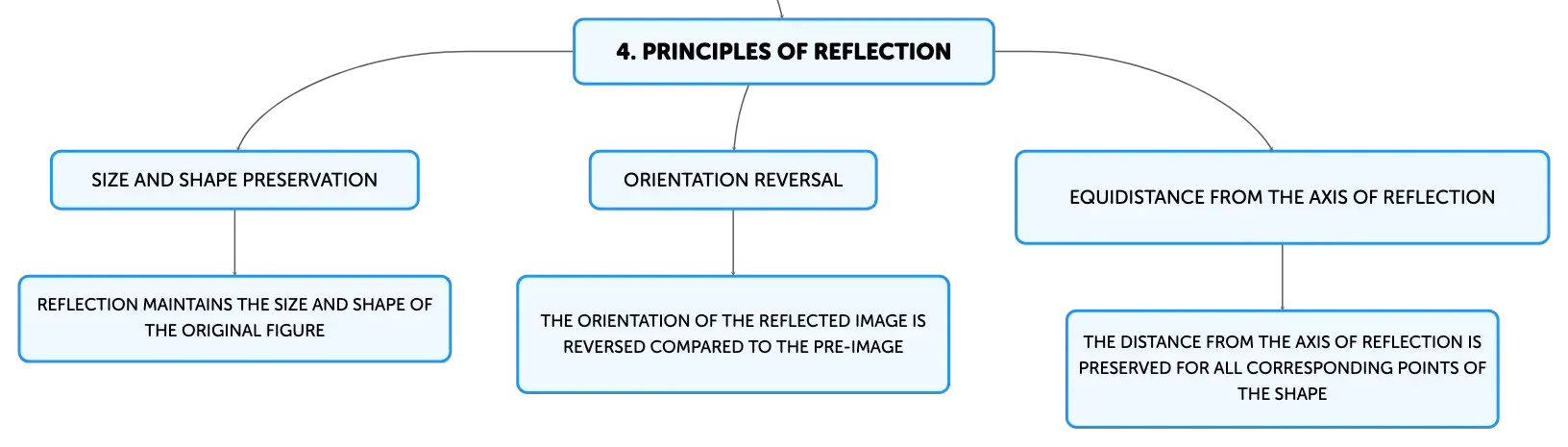

Comprehensive Understanding of Geometric Reflection

Reflection is a transformative process in geometry that mirrors a shape across a line, creating an image that is congruent to the original. The orientation of the reflected image is reversed, and the distance from the axis of reflection is preserved for all corresponding points. Reflections can occur across various lines, including the x-axis, y-axis, and diagonal lines such as \(y = x\) and \(y = -x\), each with its own set of transformation rules. These principles are essential for solving geometric problems involving reflection and for recognizing reflections in the physical world, thereby enriching our understanding of the spatial relationships that define our environment.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

The original figure and its reflection have identical ______ and sizes, but their orientations are ______.

shapes

opposite

01

Reflection across x-axis transformation rule

Transform (x, y) to (x, -y); y-coordinates sign changes.

02

Reflection across y-axis transformation rule

Transform (x, y) to (-x, y); x-coordinates sign changes.
