Congruent Triangles
Concept Map
Understanding equality and congruence is fundamental in geometry. Equality pertains to the exactness of measurements, while congruence means identical form and dimensions. Triangles are congruent if all corresponding sides and angles match, allowing for superposition without altering their intrinsic properties. Congruence postulates like SSS, SAS, ASA, AAS, and HL are crucial for proving triangle congruence without needing to measure every side and angle.
Summary
Outline
Understanding the Concepts of Equality and Congruence in Geometry
Geometry distinguishes between the concepts of equality and congruence to describe the relationships between figures. Equality refers to the exactness of measure, such as the length of segments or the degree of angles. When geometric figures are described as equal, it implies that a particular measurement or attribute, such as area or perimeter, is the same. Congruence, on the other hand, is a term used to indicate that two figures are identical in form and dimensions. Congruent figures have all corresponding sides and angles equal, which means they can be superimposed onto one another through rigid motions like rotation, reflection, or translation, without altering their intrinsic properties.The Nature of Congruent Triangles
Triangles are congruent when their corresponding sides and angles are equal in measure, allowing one triangle to be exactly superimposed onto the other, regardless of their initial positions. This means that congruent triangles are identical in shape and size but may be differently oriented. For example, two congruent right triangles may be mirror images, but if one can be moved to completely cover the other without resizing or reshaping, they are congruent. This illustrates that congruence is independent of the figures' orientation or position in space.Recognizing and Denoting Congruent Triangles
Congruent triangles are identified by visual cues and notations that highlight corresponding congruent parts. Sides of equal length are marked with the same number of tick marks, and angles of equal measure are indicated with matching arc marks. This visual language ensures clarity when determining which parts of the triangles correspond to each other. The congruence of triangles is formally denoted using the congruence symbol (≅), as in the statement "△ABC≅△DEF," signifying that triangle ABC is congruent to triangle DEF, with corresponding vertices listed in order.Differentiating Congruent and Non-Congruent Triangles
It is essential to differentiate congruent triangles from non-congruent ones. Congruent triangles remain congruent under any rigid motion, such as rotation or translation, which does not alter their size or shape. In contrast, transformations that change a triangle's size or shape, like scaling, result in non-congruent triangles. Triangles that have the same shape but different sizes are similar, not congruent. They have proportional sides and equal angles but do not coincide when superimposed due to the difference in size.Establishing Triangle Congruence
To determine triangle congruence, one must verify that all corresponding sides and angles are equal. Direct measurement is one approach, but it is often impractical. Instead, congruence postulates or theorems are used to establish congruence with less information. For instance, the Angle-Side-Angle (ASA) postulate states that if two angles and the included side of one triangle are equal to two angles and the included side of another triangle, the triangles are congruent. These postulates simplify the process of proving congruence.Utilizing Congruence Postulates and Theorems
Several congruence postulates and theorems facilitate the determination of triangle congruence. These include Side-Side-Side (SSS), Side-Angle-Side (SAS), Angle-Side-Angle (ASA), Angle-Angle-Side (AAS), and for right triangles, the Hypotenuse-Leg (HL) theorem. By applying these postulates and theorems, congruence can be concluded by comparing a subset of a triangle's sides and angles, rather than all of them. These principles are vital in geometry, as they provide a structured approach to proving the congruence of triangles in mathematical proofs and real-world applications.
Show More

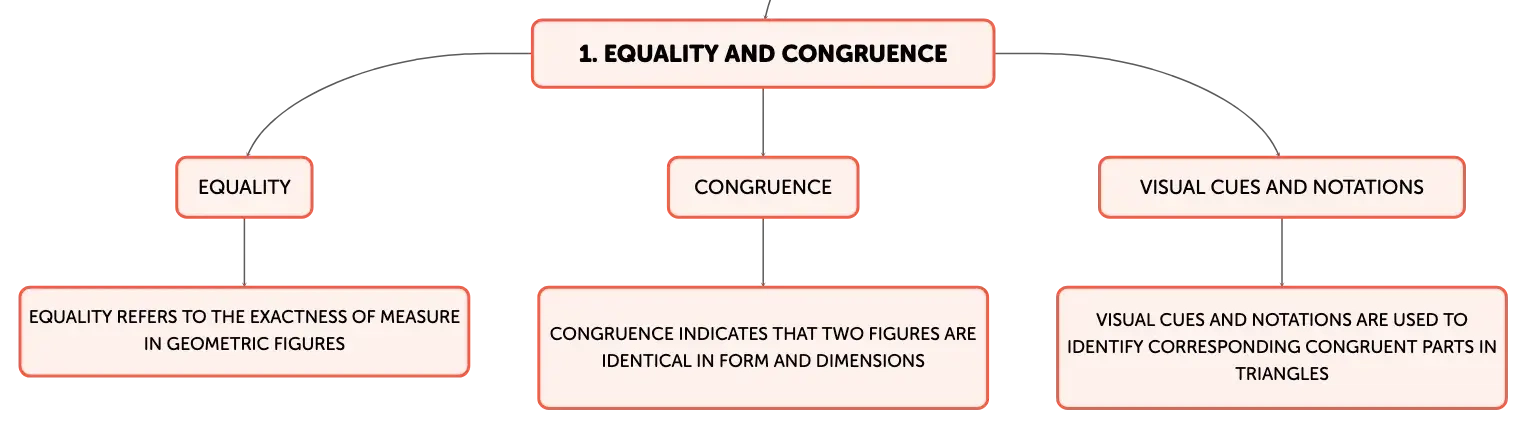

Equality and Congruence
Equality
Equality refers to the exactness of measure in geometric figures
Congruence
Congruence indicates that two figures are identical in form and dimensions
Visual Cues and Notations
Visual cues and notations are used to identify corresponding congruent parts in triangles
Congruent Triangles
Definition
Congruent triangles have all corresponding sides and angles equal, allowing them to be superimposed without altering their intrinsic properties
Identification
Congruent triangles are identified by visual cues and notations that highlight corresponding congruent parts
Congruence Symbol
The congruence symbol (≅) is used to formally denote the congruence of triangles

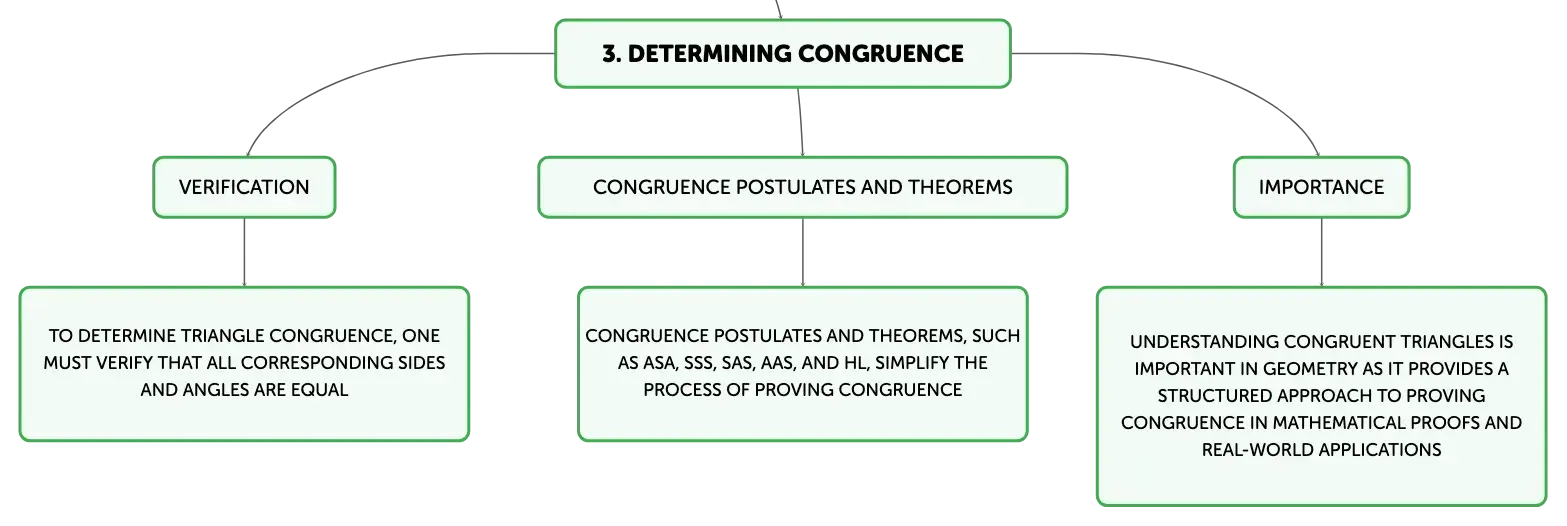

Determining Congruence
Verification
To determine triangle congruence, one must verify that all corresponding sides and angles are equal
Congruence Postulates and Theorems
Congruence postulates and theorems, such as ASA, SSS, SAS, AAS, and HL, simplify the process of proving congruence
Importance
Understanding congruent triangles is important in geometry as it provides a structured approach to proving congruence in mathematical proofs and real-world applications
Congruent Triangles
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Figures that are ______ can be perfectly overlaid through movements such as rotation, ______, or translation, maintaining their fundamental characteristics.
congruent
reflection
01
Definition of congruent triangles
Triangles with equal corresponding sides and angles, identical in shape and size.
02
Superimposition of congruent triangles
One triangle can be placed over another, matching exactly without resizing or reshaping.
