Chords in Circle Geometry

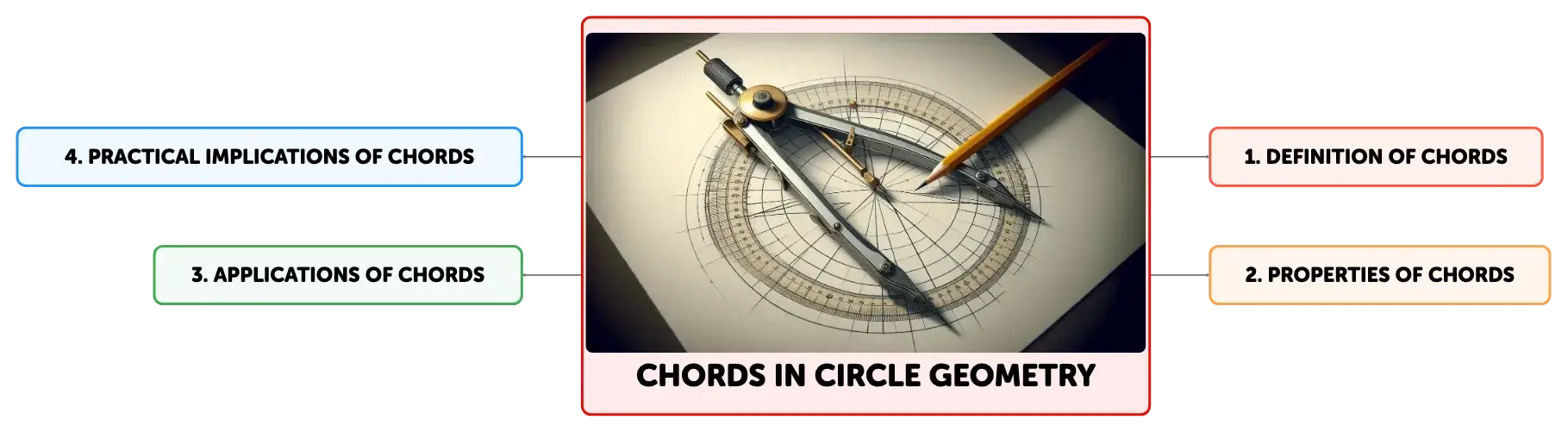

Exploring the basics of chords in circle geometry, this overview discusses their properties, such as bisecting chords with perpendicular radii, congruent chord lengths, and the significance of angles subtended by chords. It also covers the intersecting chords theorem and methods for computing chord lengths using geometric formulas. These principles are crucial for understanding and solving complex geometric problems involving circles.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The ______, which is the longest chord in a circle, cuts the shape into two equal ______.

Click to check the answer

diameter semicircles

2

Equal chord lengths imply what about their distance from the center?

Click to check the answer

Chords of equal length are equidistant from the circle's center.

3

What is the relationship between equal chords and central angles?

Click to check the answer

Equal chords subtend congruent central angles.

4

Why are chord properties important in circle geometry?

Click to check the answer

Chord properties help solve problems involving geometric relationships within a circle.

5

A line that intersects the center of the circle and is at right angles to the chord, splitting it into two identical parts, is known as the ______ ______ of a chord.

Click to check the answer

perpendicular bisector

6

Congruent Chords Definition

Click to check the answer

Chords of equal length in a circle.

7

Radii to Chords Relationship

Click to check the answer

Radii drawn to congruent chords are equal and perpendicular.

8

Chord Segments Equality

Click to check the answer

Segments of each congruent chord are identical in length.

9

In geometry, the theorem concerning ______ chords is useful for calculating the lengths of chord segments in a circle.

Click to check the answer

intersecting

10

Definition of angles subtended by chords

Click to check the answer

Angles formed when two line segments extend from a chord's endpoints to an external point.

11

Application of chord and angle relationship

Click to check the answer

Used to calculate unknown angles or segment lengths in circle geometry problems.

12

The ______ of a chord can be found using the circle's radius and the ______ of half the subtended angle.

Click to check the answer

length sine

13

Equal Chords Bisected by Radius

Click to check the answer

If two chords of equal length are bisected by a radius, the bisecting radii are also equal.

14

Perpendicular Chord Segmentation

Click to check the answer

A chord perpendicular to another divides it into two equal segments, aiding in length calculations.

15

Chords with the same length also have ______ subtended angles at the circle's center and are equidistant from it.

Click to check the answer

congruent

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Parallel Lines and Transversals

Geometry

Three-Dimensional Shapes and Their Properties

Geometry

Triangles and Circles: Basic Geometric Shapes

Geometry

Perpendicular Bisectors

Exploring the Basics of Chords in Circle Geometry

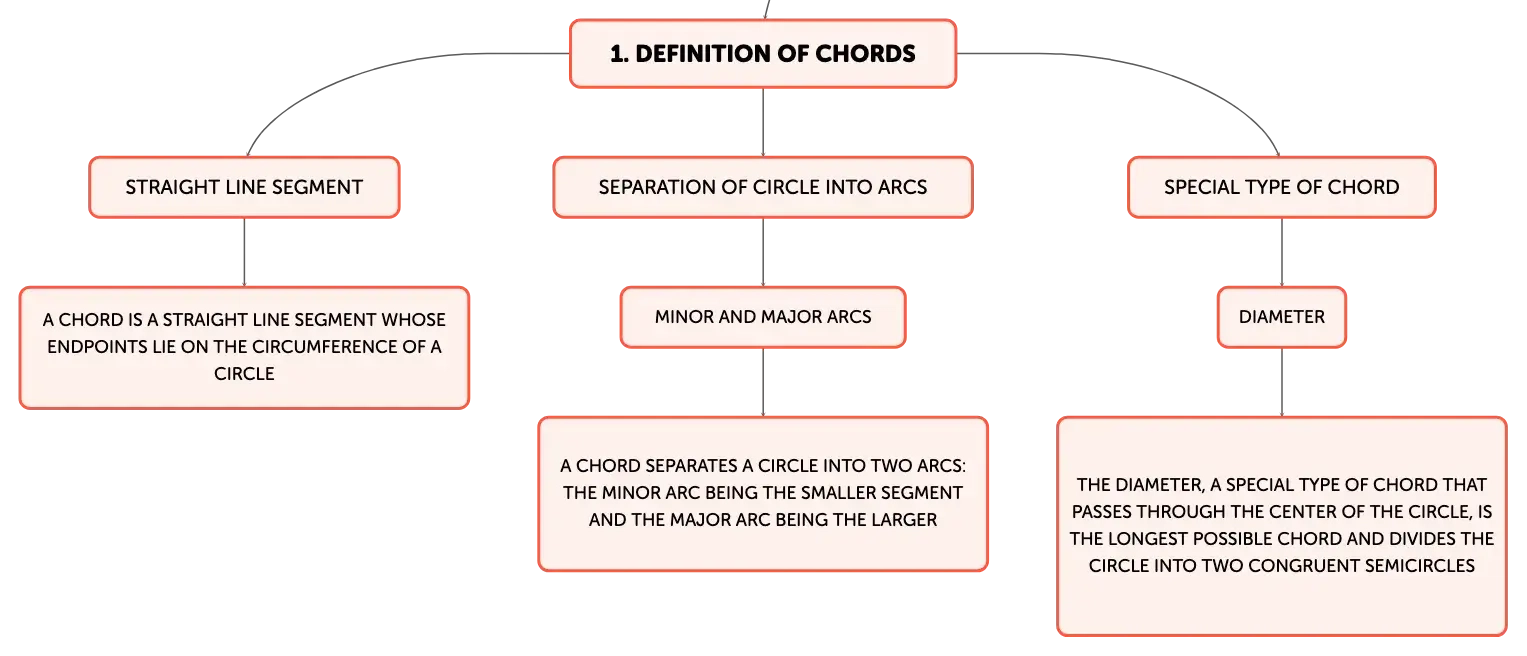

In the study of circle geometry, a chord is defined as a straight line segment whose endpoints lie on the circumference of the circle. It is a key element in understanding the structure of circles, as it separates the circle into two arcs: the minor arc being the smaller segment and the major arc being the larger. The diameter, a special type of chord that passes through the center of the circle, is the longest possible chord and divides the circle into two congruent semicircles. The properties of chords are integral to solving a variety of geometric problems related to circles.
Close-up view of a metallic compass with pencil drawing an incomplete circle and intersecting chords on white paper, with soft shadows.

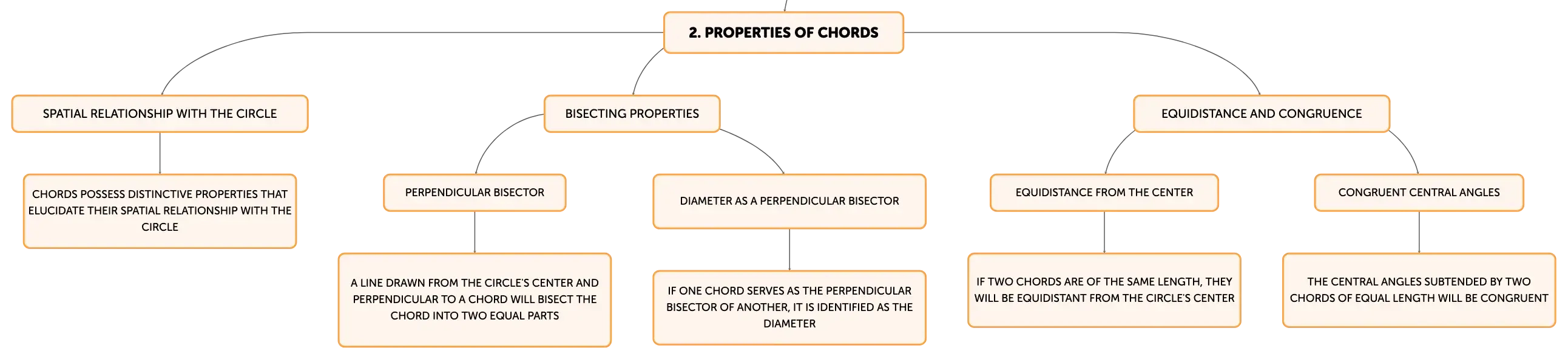

Fundamental Properties of Chords

Chords possess distinctive properties that elucidate their spatial relationship with the circle. A line drawn from the circle's center and perpendicular to a chord will bisect the chord into two equal parts. Additionally, if two chords are of the same length, they will be equidistant from the circle's center, and the central angles they subtend will be congruent. These properties are vital for grasping the geometric relationships that exist within a circle and are instrumental in resolving problems that involve chords.

The Role of Perpendicular Bisectors in Determining Chord Lengths

The perpendicular bisector of a chord is a line that passes through the center of the circle and is perpendicular to the chord, thereby dividing it into two equal segments. If one chord serves as the perpendicular bisector of another, it is identified as the diameter. Understanding these relationships is crucial for calculating chord lengths, particularly when additional information, such as the radius of the circle or the angle subtended by the chord at the center, is provided.

Equidistant Congruent Chords and Their Consequences

Congruent chords, which are chords of equal length, maintain an equal distance from the center of the circle. This equidistance is verified by the congruence of the radii drawn from the center to the chords. When these radii are also perpendicular to the chords, they confirm the congruence of the chords and indicate that the segments of each chord are identical in length. This characteristic is particularly useful in geometric problems that require determining the lengths of segments within the circle.

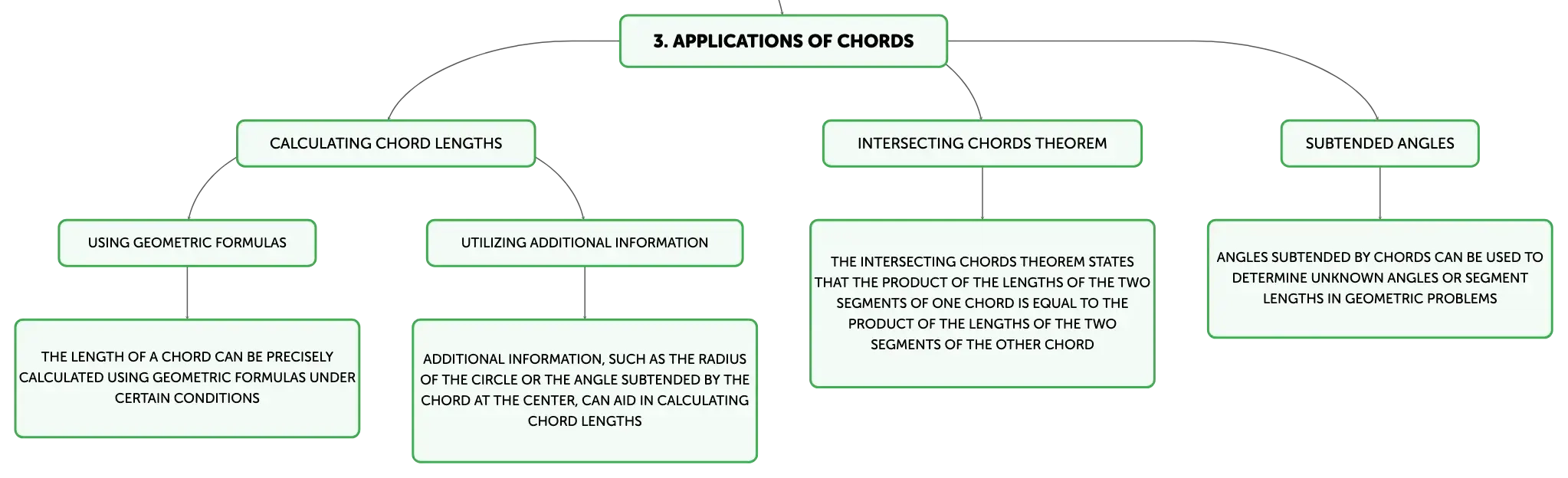

Intersecting Chords and the Power of the Chord Theorem

The behavior of intersecting chords within a circle reveals interesting geometric relationships. According to the intersecting chords theorem, the product of the lengths of the two segments of one chord is equal to the product of the lengths of the two segments of the other chord. This theorem is a valuable asset in solving problems that involve finding the lengths of chord segments and underscores the interrelated nature of geometric figures within a circle.

The Significance of Angles Subtended by Chords

Angles subtended by chords occur when two line segments extend from the endpoints of a chord to any point outside the chord, forming an angle. Chords of equal length will subtend equal angles at the center of the circle, a property that can be utilized to determine unknown angles or segment lengths in geometric problems. Mastery of the relationship between chords and subtended angles is essential for a comprehensive understanding of circle geometry.

Computing Chord Lengths with Geometric Formulas

The length of a chord can be precisely calculated using geometric formulas under certain conditions. When the subtended angle at the center or the perpendicular distance from the center to the chord is known, specific formulas can be applied. For instance, the chord length can be determined using the circle's radius and the sine of half the subtended angle, or through the Pythagorean theorem if the radius and the perpendicular distance to the chord are given. These formulas are indispensable for accurate computations in the realm of circle geometry.

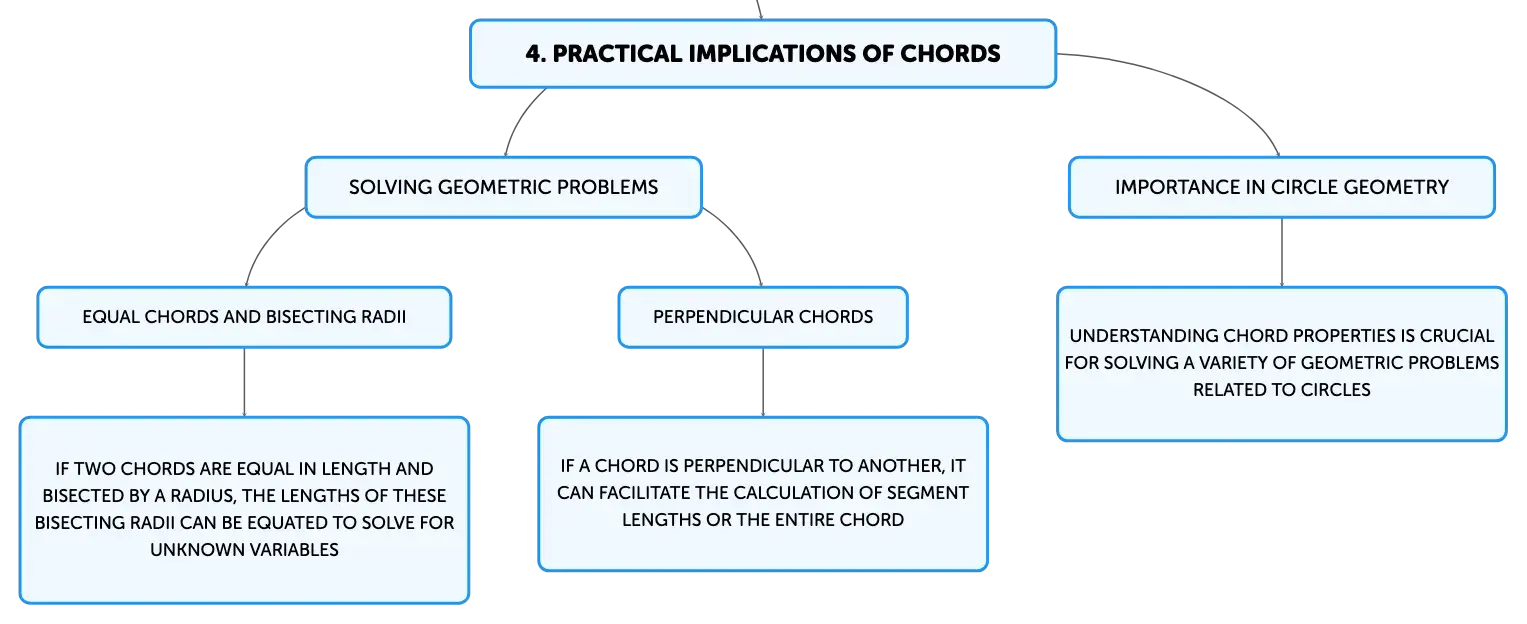

Applying Chord Properties to Solve Geometric Problems

The theoretical properties of chords have practical implications for solving geometric problems. For example, if two chords are equal in length and bisected by a radius, the lengths of these bisecting radii can be equated to solve for unknown variables. If a chord is perpendicular to another, it can facilitate the calculation of segment lengths or the entire chord. These applications demonstrate how understanding chord properties can lead to effective solutions in geometric challenges.

Key Insights into Chord Properties in Circle Geometry

To conclude, chords are not merely line segments within a circle; they are endowed with unique properties that dictate their interactions with the geometry of the circle. Chords create arcs, can be bisected by perpendicular radii from the center, and their lengths can be deduced using geometric principles. Chords of equal length have congruent subtended angles at the center and maintain an equal distance from it. These properties form the foundation for delving into the complexities of circle geometry and are invaluable for students and practitioners in the field of mathematics.
