Cylinders: A Versatile Geometric Shape

Exploring cylinders' role in daily life reveals their presence in objects like cans and tubes. This text delves into classifying cylinders by orientation, calculating their volume, and applying Cavalieri's Principle for oblique cylinders. It also discusses units of measure and the volume of semicircular and composite shapes, with practical examples such as tissue roll storage.

See more

1/3

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

A ______ is a 3D shape with two identical ______ linked by a curved side.

Click to check the answer

cylinder circles

2

Right Circular Cylinder Characteristics

Click to check the answer

Bases aligned perpendicular to axis, common in jars and bottles.

3

Oblique Circular Cylinder Appearance

Click to check the answer

Bases tilted at an angle to axis, results in slanted appearance.

4

To find the base area of a cylinder, one uses the circle area formula ______ = π______^2.

Click to check the answer

A r

5

Cavalieri's Principle Definition

Click to check the answer

If two solids have equal heights and cross-sections, their volumes are equal.

6

Volume Formula for Right Circular Cylinder

Click to check the answer

V = πr^2h, where V is volume, r is radius, and h is height.

7

In the realm of fluids and cooking, volume might be denoted in ______, knowing that this is equal to 1,000 cubic centimeters.

Click to check the answer

liters

8

Base shape of a semicircular cylinder

Click to check the answer

Semicircle

9

Applications of semicircular cylinders

Click to check the answer

Architecture, machine parts

10

In ______, ______, and product design, breaking down complex shapes into basic geometric forms helps calculate total volume.

Click to check the answer

architecture engineering

11

Calculating cylinder volume excluding hollow core

Click to check the answer

Subtract volume of hollow core from total cylinder volume to find solid material volume.

12

Geometric concepts in resource management

Click to check the answer

Use geometric calculations to optimize the use and allocation of resources in practical scenarios.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Parametric Equations for Hyperbolas

Geometry

Parallel Lines and Transversals

Geometry

The SAS Congruence and Similarity Criteria in Euclidean Geometry

Geometry

Angle Measurement in Geometry

Exploring the Role of Cylinders in Daily Life

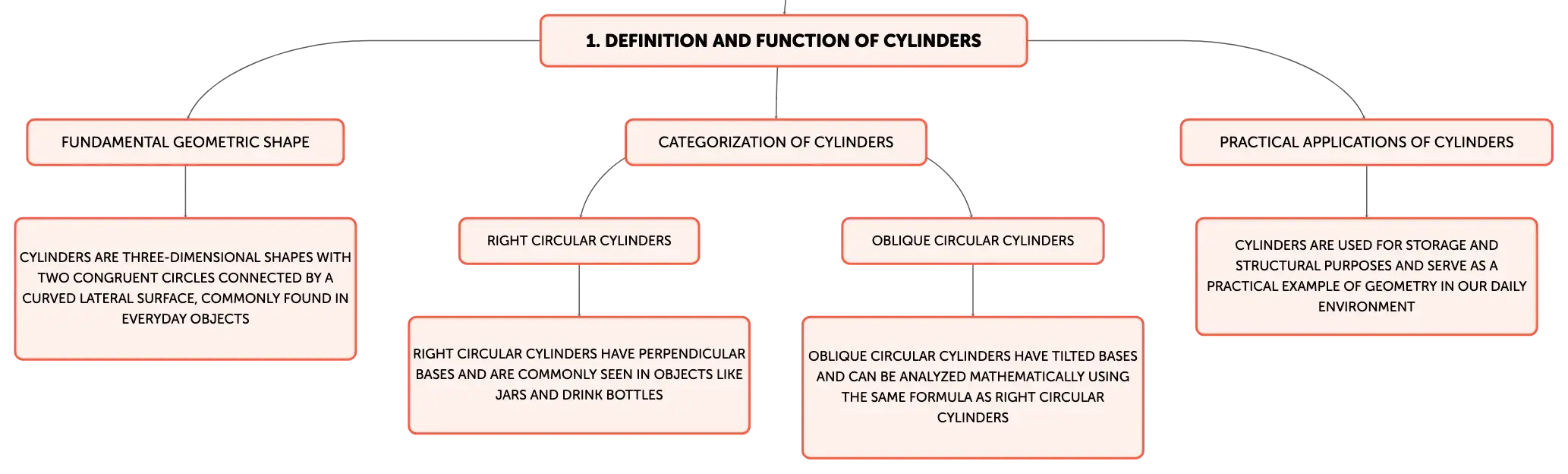

Cylinders are a fundamental geometric shape encountered frequently in everyday objects, such as cans, tubes, and storage containers. Defined as a three-dimensional shape with two congruent circles connected by a curved lateral surface, cylinders are integral to understanding the design and function of many items. Their uniform shape makes them ideal for storage and structural purposes, and they serve as a practical example of geometry in our daily environment.
Assorted cylindrical objects including a glass vase with colorful flowers, a silver kitchen canister, a wooden log, colored pencils in a holder, and a rolled blue yoga mat.

Classifying Cylinders by Their Orientation

Cylinders are categorized based on the orientation of their bases relative to their axis. A right circular cylinder has bases that are aligned perpendicular to the axis, making it the more common variant seen in objects like jars and drink bottles. An oblique circular cylinder, however, has bases that are tilted at an angle to the axis, resulting in a slanted appearance. Both types share similar attributes and can be analyzed mathematically to determine their volume and surface area.

Volume Calculation for Right Circular Cylinders

To calculate the volume of a right circular cylinder, one must multiply the base area by the height of the cylinder. The base area is found using the formula for the area of a circle, A = πr^2, where r represents the radius. Thus, the volume formula for a right circular cylinder is V = πr^2h. This formula is vital for practical applications such as determining the capacity of cylindrical containers in various industries.

Utilizing Cavalieri's Principle for Oblique Cylinders

Cavalieri's Principle is a geometric theorem that asserts if two solids have the same height and all corresponding cross-sectional areas are equal, then their volumes are identical. This principle enables the volume of an oblique cylinder to be calculated with the same formula as a right circular cylinder, V = πr^2h, despite the oblique cylinder's angled sides. This demonstrates the versatility of geometric principles in solving real-world problems.

Units of Measure for Cylinder Volume

Cylinder volume is commonly measured in cubic units, such as cubic centimeters (cm^3) or cubic meters (m^3). In contexts involving fluids or culinary measurements, volume may also be expressed in liters (L), with the understanding that 1 liter is equivalent to 1,000 cubic centimeters. Familiarity with these units and their conversions is crucial for accuracy in fields such as engineering, cooking, and science.

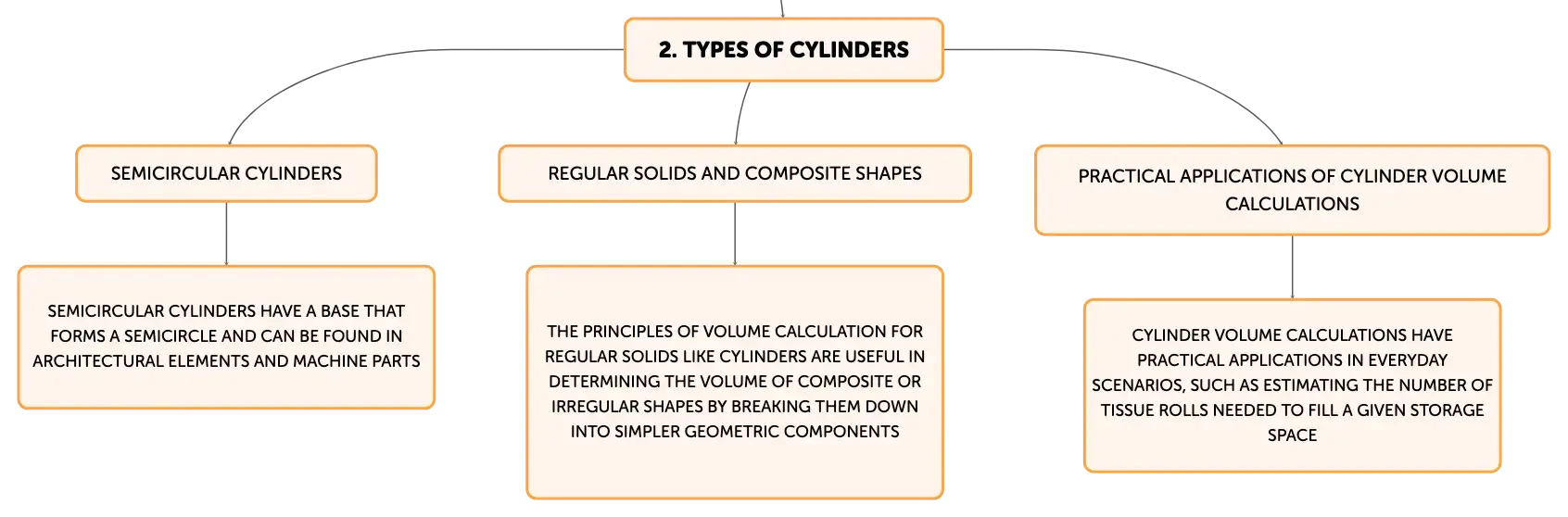

Calculating the Volume of Semicircular Cylinders

A semicircular cylinder, or a half-cylinder, has a base that forms a semicircle. To determine its volume, one calculates the volume of a full right circular cylinder and then divides the result by two, yielding the formula V = (πr^2h)/2. Though not as common as full cylinders, semicircular cylinders can be found in various architectural elements and machine parts.

Volume Calculations for Composite Shapes

The principles of volume calculation for regular solids like cylinders are instrumental in determining the volume of composite or irregular shapes. By breaking down a complex shape into simpler geometric components, such as cylinders, prisms, or spheres, and calculating the volume of each, the total volume of the composite shape can be ascertained. This approach is widely used in architecture, engineering, and product design to understand and manipulate complex volumes.

Practical Example: Estimating Tissue Roll Storage

The practical applications of cylinder volume calculations extend to everyday scenarios, such as estimating the number of tissue rolls needed to occupy a given storage space. By computing the volume of a single tissue roll, accounting for the hollow core, and comparing it to the storage space's volume, one can determine the required quantity of rolls. This example underscores the relevance of geometric concepts in practical problem-solving and resource management.
