Line segment length is a key concept in geometry, involving the distance between two points. Learn how to calculate it using coordinates, the Pythagorean theorem, and trigonometry for circular segments. The text also covers determining lengths from midpoints and endpoints, providing a comprehensive understanding necessary for geometric problem-solving.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Definition of line segment length

Measure of straight path between two points, no width, denoted by endpoints, e.g., AB or c.

Applications of segment length

Used for calculating distances, constructing geometric figures, and in various mathematical equations.

The ______ formula, which is based on the Pythagorean theorem, calculates the distance between two points on a plane using their coordinates.

distance

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Modern cityscape with parallel skyscrapers, a transversal road, and vibrant vehicles under a gradient blue sky, highlighting architectural parallelism.

Parallel Lines and Transversals

Chalk-drawn hyperbola with marked foci and vertices, flanked by two faint ellipses and a parabola with a marked vertex on a green chalkboard.

Parametric Equations for Hyperbolas

Clear acrylic equilateral and scalene triangles aligned by one side on a matte black surface, reflecting faintly with a light-induced color spectrum.

The SAS Congruence and Similarity Criteria in Euclidean Geometry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Pythagorean Theorem and Segment Length

The Pythagorean theorem is instrumental in computing the length of a segment between two points. This theorem posits that in a right triangle, the square of the hypotenuse (the side opposite the right angle) equals the sum of the squares of the other two sides. By conceptualizing a right triangle with the segment as the hypotenuse, one can use the differences in the x and y coordinates as the lengths of the other sides to find the segment length using the formula d = √[(x2 - x1)² + (y2 - y1)²].

Segment Length from Midpoints and Endpoints

When the endpoints of a segment are unknown, but the midpoint and one endpoint are given, the length can still be determined. The midpoint is the point that bisects the segment into two congruent segments. By applying the midpoint formula in reverse, one can find the missing endpoint: if M(xm, ym) is the midpoint and B(x2, y2) is the known endpoint, then the unknown endpoint A(x1, y1) can be found using x1 = 2xm - x2 and y1 = 2ym - y2. The segment length is then calculated using the distance formula.

Determining the Length of Circular Segments

In a circle, a segment is the area enclosed by an arc and a chord, which is a line segment whose endpoints lie on the circle. The length of a circular segment can refer to the length of the chord. For a chord not passing through the center, the length can be calculated using the formula d = 2r × sin(θ/2), where r is the radius and θ is the central angle subtended by the arc. This formula is based on trigonometric relationships and provides the chord length from the radius and the central angle.

Comprehensive Overview of Segment Length

Segment length is a fundamental measure in geometry, representing the distance between two points on a line segment. It can be precisely calculated using the Pythagorean theorem when the coordinates of the endpoints are known. If only a midpoint and an endpoint are available, the other endpoint can be deduced, allowing for the calculation of the segment length. In circles, segment length may refer to the diameter or a chord, with the latter calculable through trigonometric functions. Mastery of these concepts is vital for tackling a broad spectrum of geometric problems.

Segment Length in Geometry

Concept Map

Summary

Outline

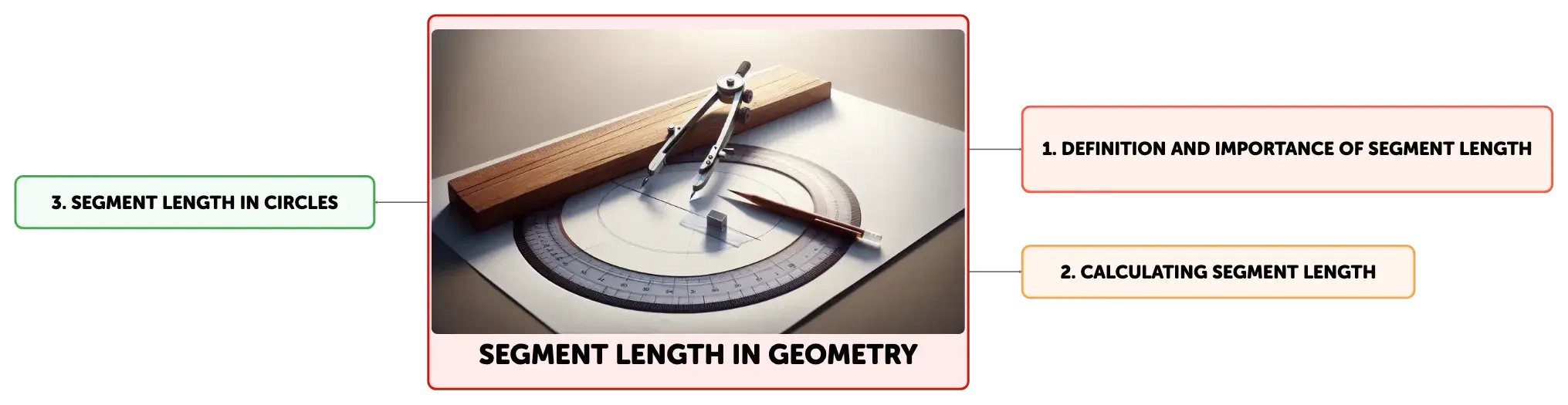

Segment Length in Geometry

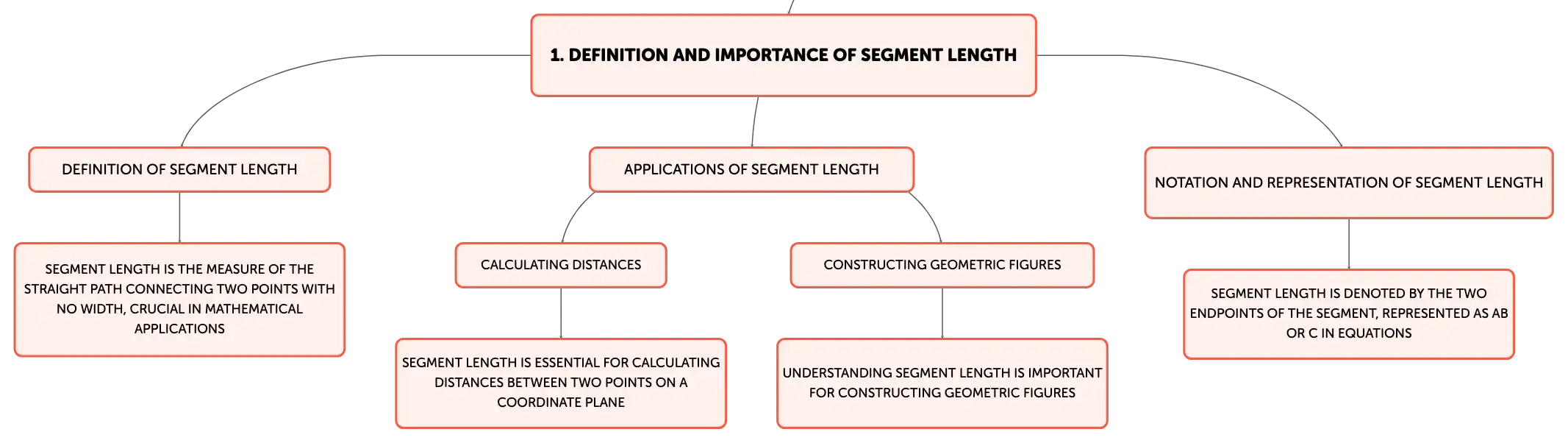

Definition and Importance of Segment Length

Definition of Segment Length

Applications of Segment Length

Notation and Representation of Segment Length

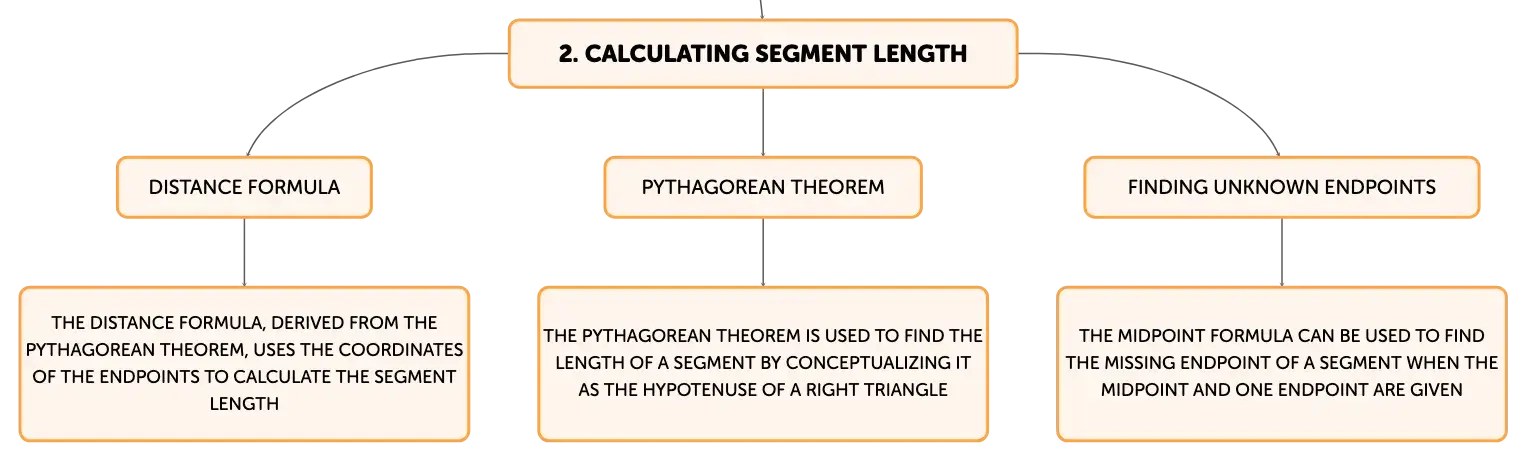

Calculating Segment Length

Distance Formula

Pythagorean Theorem

Finding Unknown Endpoints

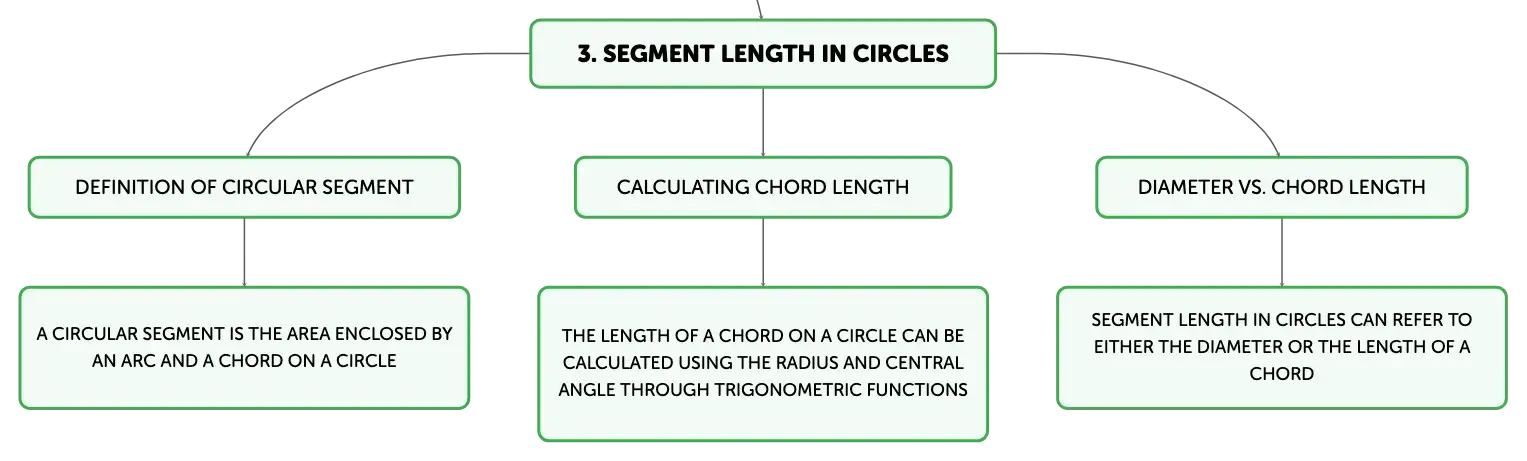

Segment Length in Circles

Definition of Circular Segment

Calculating Chord Length

Diameter vs. Chord Length
