Linear Measurement

Linear measurement is key in fields like physics, engineering, and construction, where distance between two points is crucial. This overview covers the basics of lines and segments, the importance of precision, tools for measuring length, and understanding of both imperial and metric systems. It also touches on geometric principles such as collinearity and the segment addition postulate, essential for solving geometric problems.

See more
Open map in editor

1

3

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of linear measurement

Click to check the answer

Determining distance between two points.

2

Impact of inaccurate linear measurements

Click to check the answer

Compromises model accuracy, structural integrity, and sports fairness.

3

A ______ ______ is a portion of a line bounded by two unique endpoints, and its length is determined by linear measurement.

Click to check the answer

line segment

4

Impact of finer divisions on precision

Click to check the answer

Finer divisions on instruments increase precision by allowing more exact measurements.

5

Relationship between smallest division and absolute error

Click to check the answer

Absolute error is half the smallest division, indicating the range of expected true measurement.

6

Role of smallest division in measurement uncertainty

Click to check the answer

Smaller divisions reduce measurement uncertainty by providing a closer approximation to the actual value.

7

In geometry, ______ means that points are arranged in a straight line.

Click to check the answer

Collinearity

8

The ______ postulate is crucial for calculating unknown distances in geometry.

Click to check the answer

segment addition

9

Measuring extensive distances - appropriate tools?

Click to check the answer

Use measuring tapes and wheels for distances like building or road lengths.

10

Precision tools for small objects?

Click to check the answer

Rulers with inches or centimeters are preferred for small object measurement.

11

Tools for detailed measurements?

Click to check the answer

Vernier calipers and micrometers are used when greater detail is required.

12

When changing units within the same system or to a different one, it's essential to use ______ factors and ______ analysis.

Click to check the answer

conversion dimensional

13

Choosing Measurement Tools & Units

Click to check the answer

Select based on object size, accuracy need; ensures precision in quantifying distances.

14

Collinearity & Segment Addition in Geometry

Click to check the answer

Collinearity: points on same line. Segment addition: sum of segments equals whole; vital for length calculations.

15

Imperial vs Metric Systems

Click to check the answer

Know both systems; proficiency in unit conversion ensures accurate, universal understanding of measurements.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Perpendicular Bisectors

View document

Geometry

The SAS Congruence and Similarity Criteria in Euclidean Geometry

View document

Geometry

Triangles and Circles: Basic Geometric Shapes

View document

Geometry

Angle Measurement in Geometry

View document

The Fundamentals of Linear Measurement

Linear measurement is the process of determining the distance between two points. It is a critical concept in disciplines such as physics, engineering, and construction, where precise measurements are necessary for the creation of accurate models, the integrity of structures, and the fairness of sports. The accuracy of linear measurements is vital, as it influences the credibility and dependability of the results in these fields.

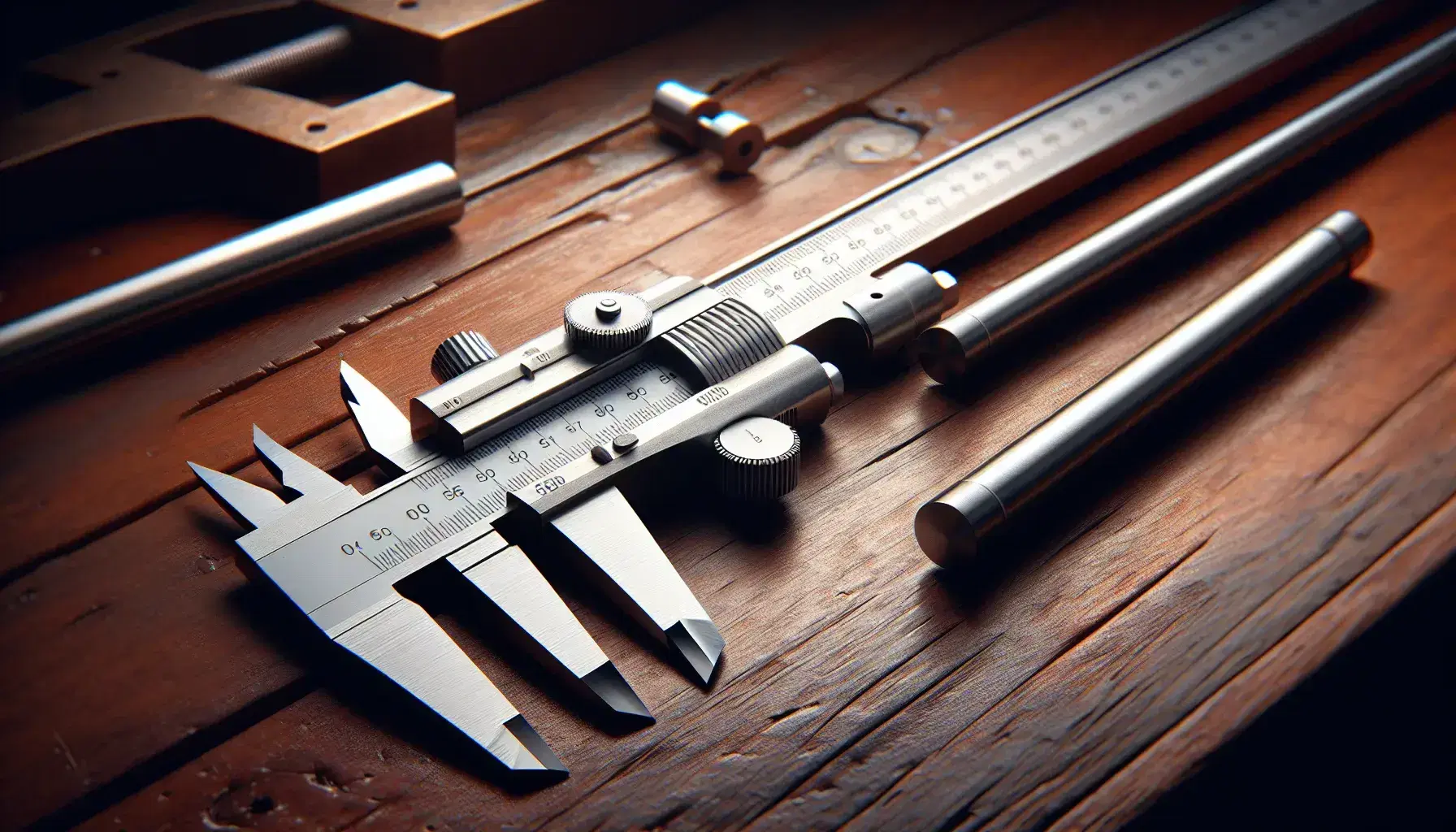

Close-up view of an open stainless steel vernier caliper on a wooden workbench beside a cylindrical metal rod, with soft lighting and blurred workshop background.

Geometric Principles: Understanding Lines and Line Segments

Within the realm of geometry, a line is defined as a collection of points that extends indefinitely in both directions. A line segment, on the other hand, is a part of a line that is confined by two distinct endpoints. The distance between these endpoints is measured using the concept of linear measurement. Standardized units of measure, such as inches or centimeters, are utilized, and instruments like rulers or tape measures are employed to ascertain the number of units that span the length of the segment.

Achieving Precision in Linear Measurements

The precision of linear measurements is contingent upon the smallest division marked on the measuring instrument. For example, if a ruler is marked in quarter-inch increments, the measurement can only be precise to that division. Utilizing instruments with finer divisions can increase precision, thereby minimizing measurement uncertainty. The smallest division also determines the absolute error, which is the range within which the actual measurement is expected to lie, calculated by taking half of the smallest division.

Collinearity and the Segment Addition Postulate

Collinearity in geometry refers to the alignment of points along the same straight line. The segment addition postulate states that if point C lies between points A and B on a line segment, then the lengths of segments AC and CB together equal the total length of AB. This postulate is instrumental in solving geometric problems that involve finding unknown distances by using the known lengths of other segments.

Selecting the Appropriate Tools for Measuring Length

A variety of tools are available for measuring length, each offering different levels of precision. For extensive distances, such as the length of a building or road, tools like measuring tapes and wheels, which measure in larger units like feet or meters, are appropriate. For smaller objects, precision tools such as rulers marked with inches or centimeters are preferred. For measurements requiring greater detail, vernier calipers and micrometers are used. For very long distances, laser measuring tools provide a high degree of accuracy and convenience.

Understanding Imperial and Metric Measurement Systems

Linear measurements can be expressed using units from the imperial system, such as inches, feet, yards, and miles, or the metric system, which is based on multiples of ten and includes millimeters, centimeters, meters, and kilometers. Converting between units within the same system or between different systems involves using conversion factors and dimensional analysis to ensure that the measurement represents the same physical quantity, regardless of the unit used.

Conclusion: The Significance of Linear Measurement and Precision

Linear measurement is a fundamental aspect of quantifying distances in various contexts, and achieving precision is crucial for its effective application. The selection of a measurement tool and unit depends on the object's size and the desired level of accuracy. In geometry, understanding the concepts of collinearity and segment addition is essential for calculating lengths. Familiarity with both the imperial and metric systems, as well as the ability to convert between units, is necessary for precise and accurate linear measurements.
