Circle Geometry and Arc Measures

Circle geometry and arc measures are fundamental concepts in mathematics. An arc is part of a circle's circumference, defined by its endpoints and central angle. This text delves into calculating arc measures using the radius and arc length with the formula S = rθ, or by using the circumference with the formula θ/360° = S/C. Understanding degrees and radians is also crucial for these calculations, as they are standard units for angular measurements.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ geometry includes the study of arc measures, which are crucial for grasping a circle's geometric characteristics.

Click to check the answer

Circle

2

Full circle in degrees

Click to check the answer

360 degrees - A full circle is divided into 360 equal degrees.

3

Definition of a radian

Click to check the answer

One radian - Angle subtended by an arc equal in length to the radius of the circle.

4

Importance of angle conversion mastery

Click to check the answer

Crucial for solving arc problems - Understanding degrees and radians is key to arc measures in math.

5

The equation ______ = rθ is used to determine the length of an arc given the radius and the angle in radians.

Click to check the answer

S

6

Arc Measure Formula Without Radius

Click to check the answer

θ/360° = S/C, where θ is arc measure in degrees, S is arc length, C is circumference.

7

Calculating Arc Measure in Degrees

Click to check the answer

Rearrange formula to θ = (360° × S)/C to find arc measure.

8

Example Calculation of Arc Measure

Click to check the answer

For S = 5.5 units, C = 10 units, θ = (360° × 5.5)/10 simplifies to 198 degrees.

9

In circle geometry, the ______ is a portion of the circle's perimeter, and its size is determined by the distance between its endpoints.

Click to check the answer

arc

10

The formula to calculate the measure of an arc using the radius and arc length is ______ = rθ.

Click to check the answer

S

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

Perpendicular Bisectors

Geometry

Parametric Equations for Hyperbolas

Geometry

Triangles and Circles: Basic Geometric Shapes

Geometry

Angle Measurement in Geometry

Exploring the Fundamentals of Circle Geometry and Arcs

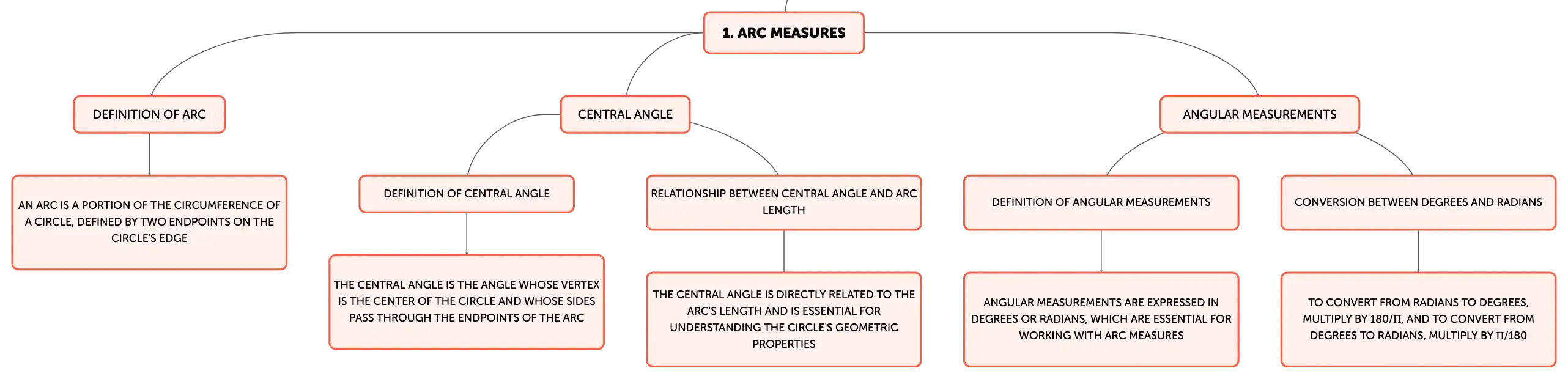

Circle geometry is a foundational topic in mathematics, with arc measures playing a pivotal role. An arc is a portion of the circumference of a circle, defined by two endpoints on the circle's edge. The measure of an arc is determined by the central angle, which is the angle whose vertex is the center of the circle and whose sides pass through the endpoints of the arc. This central angle is directly related to the arc's length and is essential for understanding the circle's geometric properties.
Metallic compass on white paper with drawn circle, two radii, and shaded arc segment on a wooden surface, illustrating geometry concepts.

Degrees and Radians: Comparing Angular Units

Angular measurements are expressed in degrees or radians, which are essential for working with arc measures. A full circle is 360 degrees, a familiar unit of measure for angles. Radians provide a natural connection between the angle size and the arc length, where one radian is the angle subtended by an arc equal in length to the radius of the circle. To convert from radians to degrees, multiply by 180/π, and to convert from degrees to radians, multiply by π/180. Mastery of these conversions and familiarity with common angles in both units is crucial for solving problems involving arcs.

Arc Measure Calculation with Radius and Arc Length

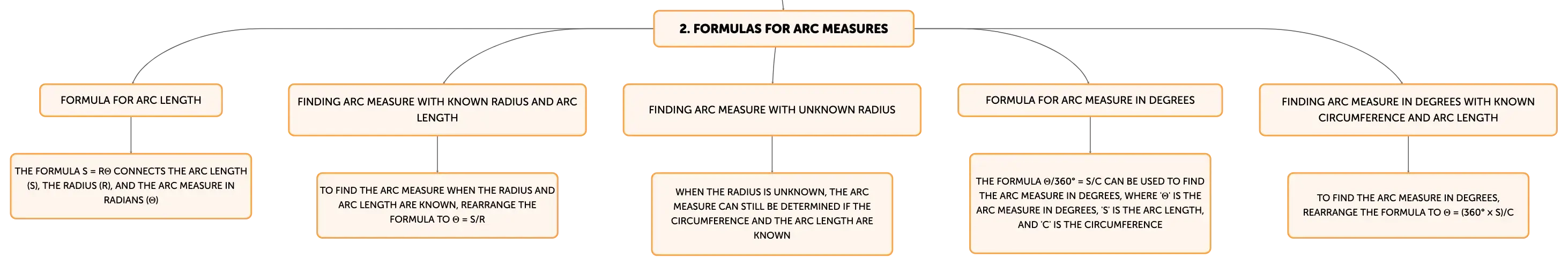

The formula S = rθ connects the arc length (S), the radius (r), and the arc measure in radians (θ). To find the arc measure when the radius and arc length are known, rearrange the formula to θ = S/r. This relationship is particularly useful in problems where the radius is given, and the arc measure is sought. For instance, with an arc length of 13 units and a radius of 'r', the arc measure 'θ' in radians is calculated as θ = 13/r.

Computing Arc Measure Using Circumference and Arc Length

When the radius is unknown, the arc measure can still be determined if the circumference and the arc length are known. The formula θ/360° = S/C, where 'θ' is the arc measure in degrees, 'S' is the arc length, and 'C' is the circumference, can be used. This formula is derived from the proportionality of the arc measure to the circle's total angle (360 degrees) and the arc length to the circumference. To find the arc measure in degrees, rearrange the formula to θ = (360° × S)/C. For example, with an arc length of 5.5 units and a circumference of 10 units, the arc measure 'θ' is θ = (360° × 5.5)/10, which simplifies to 198 degrees.

Essential Concepts of Arc Measures in Circle Geometry

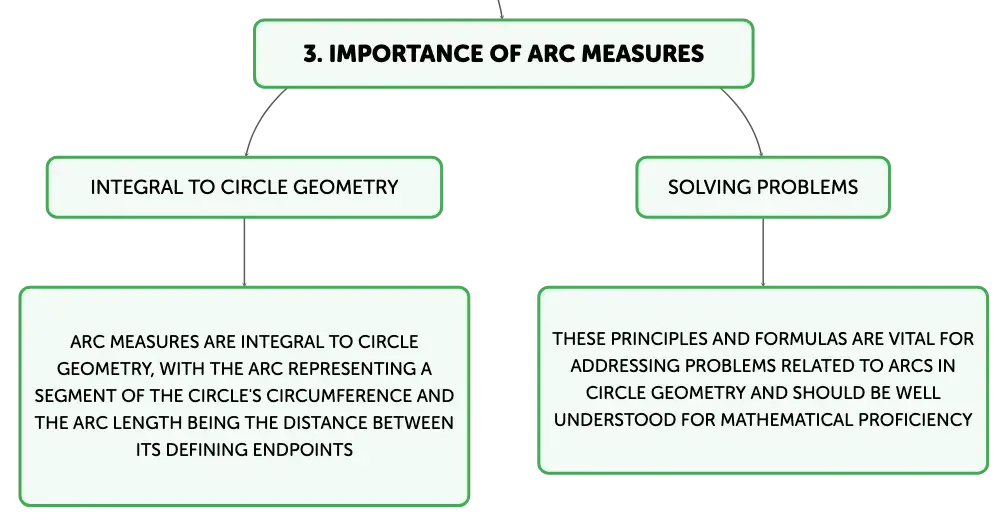

In conclusion, arc measures are integral to circle geometry, with the arc representing a segment of the circle's circumference and the arc length being the distance between its defining endpoints. The arc measure corresponds to the central angle subtended by the arc. To calculate the arc measure, one can use the radius and arc length with the formula S = rθ, or the circumference and arc length with the formula θ/360° = S/C. These principles and formulas are vital for addressing problems related to arcs in circle geometry and should be well understood for mathematical proficiency.
