Circle Geometry

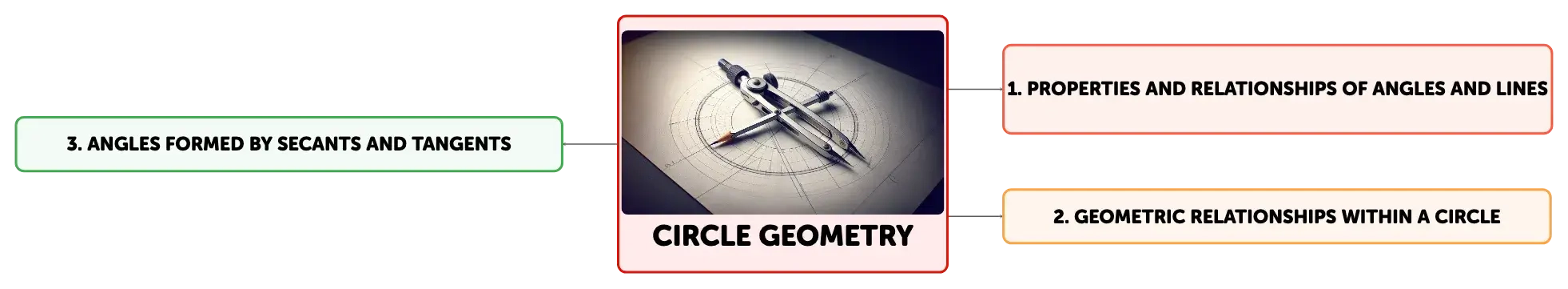

Concept Map
Circle geometry explores the relationships of angles and lines within and around a circle. Central angles, formed by two radii, and inscribed angles, created by intersecting chords, are fundamental concepts. Understanding chord-chord angles, as well as the impact of secants and tangents, is essential for solving complex geometric problems involving circles. These principles are interconnected and provide a comprehensive approach to circle geometry.
Summary
Outline
Fundamentals of Circle Geometry: Angles Within a Circle
Circle geometry is a branch of mathematics that deals with the properties and relationships of angles and lines within and around a circle. A circle is a closed curve with all points equidistant from a fixed point, known as the center. Angles within a circle can be categorized based on their location and the lines that form them. Central angles have their vertex at the center and are formed by two radii, while inscribed angles have their vertex on the circle itself and are formed by two intersecting chords. The measure of an inscribed angle is always half that of the central angle that subtends the same arc, which is a fundamental concept in circle geometry.Defining Central and Inscribed Angles
Central angles are formed by two radii that extend from the center to the circumference of a circle, creating an angle at the center. Inscribed angles are created when two chords intersect on the circle's circumference. The measure of an inscribed angle is precisely half the measure of the central angle that subtends the same arc on the circle. This relationship is a cornerstone of circle geometry and is essential for solving various geometric problems involving circles.Intersecting Chords and Chord-Chord Angles
Chord-chord angles are formed when two chords intersect within a circle. The measure of a chord-chord angle is calculated by taking the average of the measures of the arcs subtended by the angle's sides. This principle is vital for understanding the geometric relationships within a circle and is frequently used to solve problems involving intersecting chords. The properties of vertical angles and linear pairs are also utilized to determine unknown angle measures in these contexts.The Role of Secants and Tangents in Circle Geometry
Secants and tangents are lines that intersect or touch a circle, respectively. A secant intersects the circle at two distinct points, while a tangent touches the circle at exactly one point. The angles formed at the intersection points, or vertices, of secants and tangents are influenced by the arcs they intercept. Inner arcs are located within the circle, and outer arcs extend outside the circle, defined by the points of intersection of these lines.Calculating Angles with Secants and Tangents
The angles formed by intersecting secants, or by a secant and a tangent, are determined by the difference in the measures of the intercepted arcs. Specifically, the angle at the vertex is equal to half the difference between the measures of the outer arc and the inner arc. This rule also applies to angles formed by two tangents intersecting outside the circle, where the angle is half the difference between the measures of the intercepted arcs.Comprehensive Understanding of Circle Angle Theorems
The study of angles in circles is an integral part of geometry, involving a variety of theorems and relationships. Central and inscribed angles are foundational for determining unknown measures within a circle. The chord-chord angle theorem and the principles for calculating angles formed by secants and tangents are critical for addressing geometric problems involving circles. These concepts are interrelated and provide a systematic approach to analyzing the properties of circles and their components, enabling a deeper understanding of circle geometry.
Show More

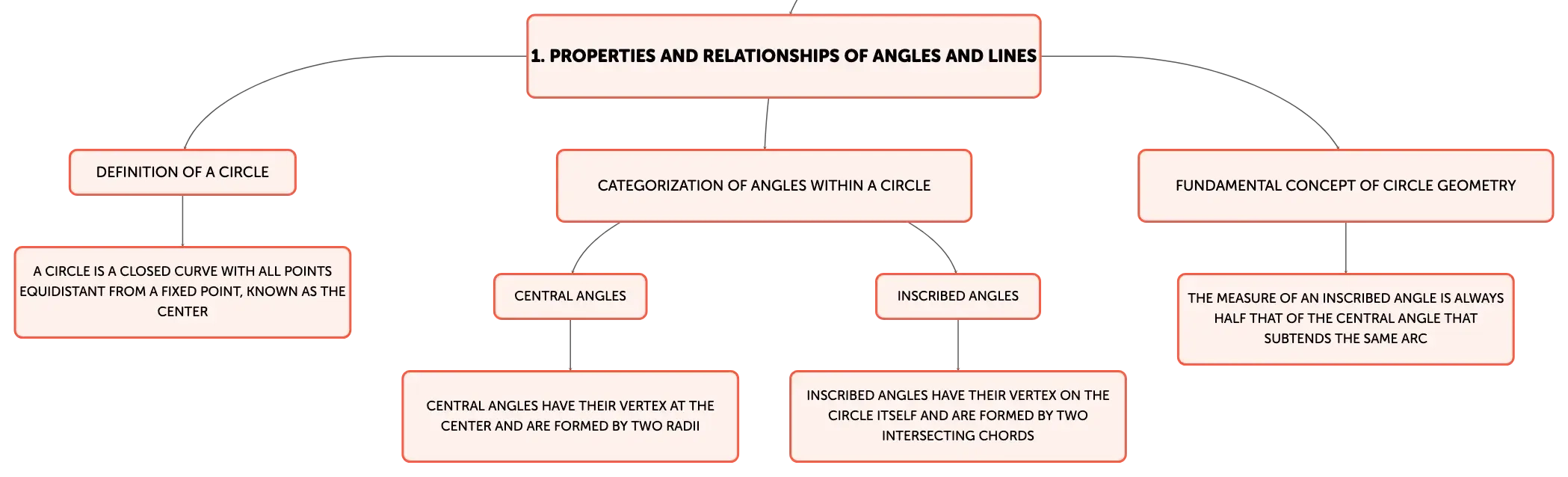

Properties and Relationships of Angles and Lines
Definition of a Circle
A circle is a closed curve with all points equidistant from a fixed point, known as the center
Categorization of Angles within a Circle
Central Angles
Central angles have their vertex at the center and are formed by two radii
Inscribed Angles
Inscribed angles have their vertex on the circle itself and are formed by two intersecting chords
Fundamental Concept of Circle Geometry
The measure of an inscribed angle is always half that of the central angle that subtends the same arc

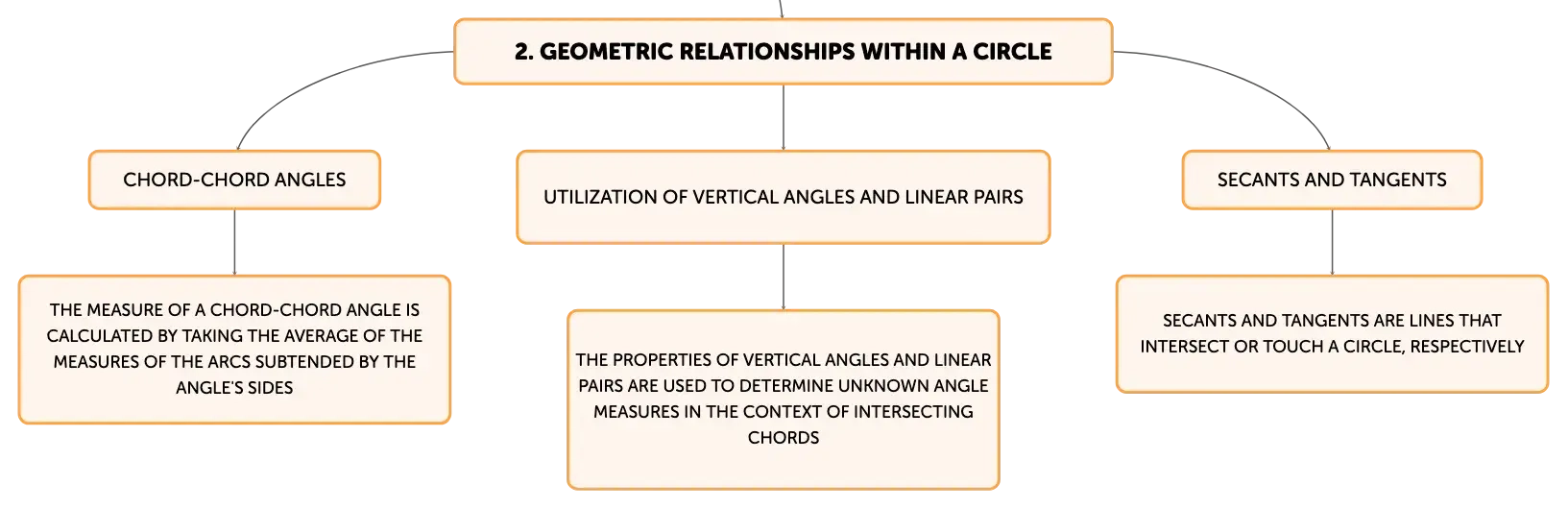

Geometric Relationships within a Circle
Chord-Chord Angles
The measure of a chord-chord angle is calculated by taking the average of the measures of the arcs subtended by the angle's sides
Utilization of Vertical Angles and Linear Pairs
The properties of vertical angles and linear pairs are used to determine unknown angle measures in the context of intersecting chords
Secants and Tangents
Secants and tangents are lines that intersect or touch a circle, respectively

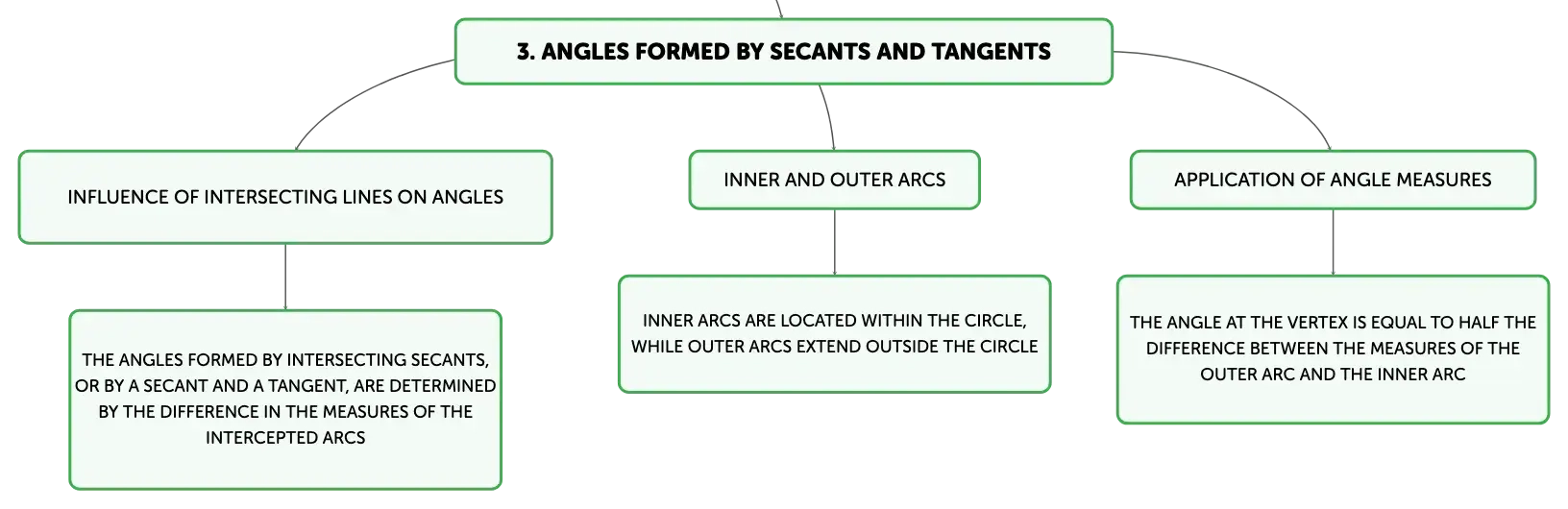

Angles Formed by Secants and Tangents
Influence of Intersecting Lines on Angles
The angles formed by intersecting secants, or by a secant and a tangent, are determined by the difference in the measures of the intercepted arcs
Inner and Outer Arcs
Inner arcs are located within the circle, while outer arcs extend outside the circle
Application of Angle Measures
The angle at the vertex is equal to half the difference between the measures of the outer arc and the inner arc
Circle Geometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In the study of ______, a ______ is defined as a closed curve with all points at an equal distance from a fixed point called the ______.
circle geometry
circle
center
01
Central vs Inscribed Angle Location
Central angle: formed by 2 radii, at circle center. Inscribed angle: formed by 2 chords, on circumference.
02
Inscribed Angle Measure Relation
Inscribed angle measure equals half the central angle measure subtending the same arc.
