Similarity in Geometry

Concept Map

Exploring geometric similarity, this overview discusses the concept where figures share shapes but differ in size. It covers fundamental properties like congruent angles and proportional sides, key theorems such as AA, SAS, SSS, and RHS, and extends the principle to all polygons. Practical applications in architecture and problem-solving are also highlighted, emphasizing the importance of similarity in geometry.

Summary

Outline

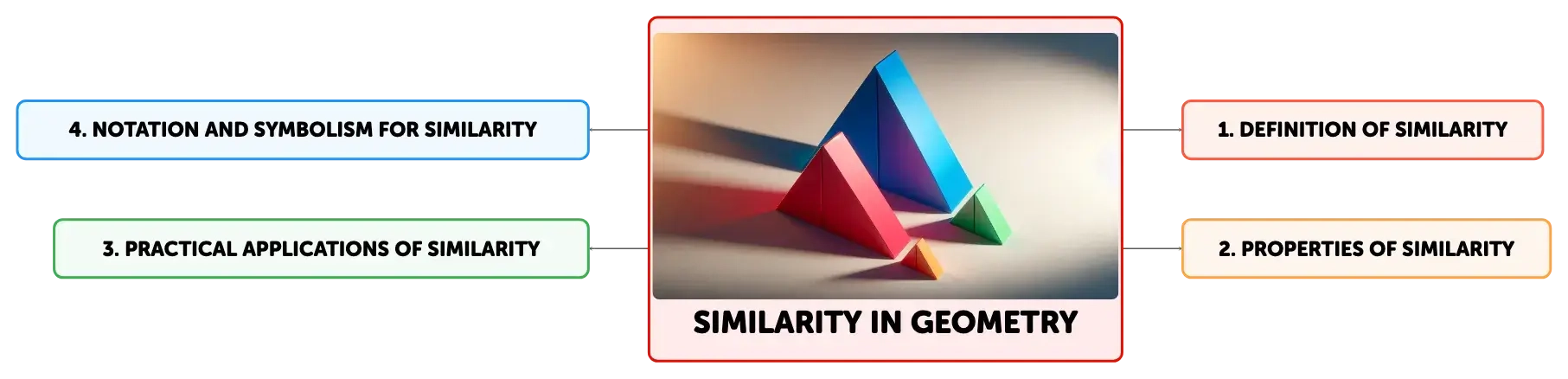

Similarity in Geometry

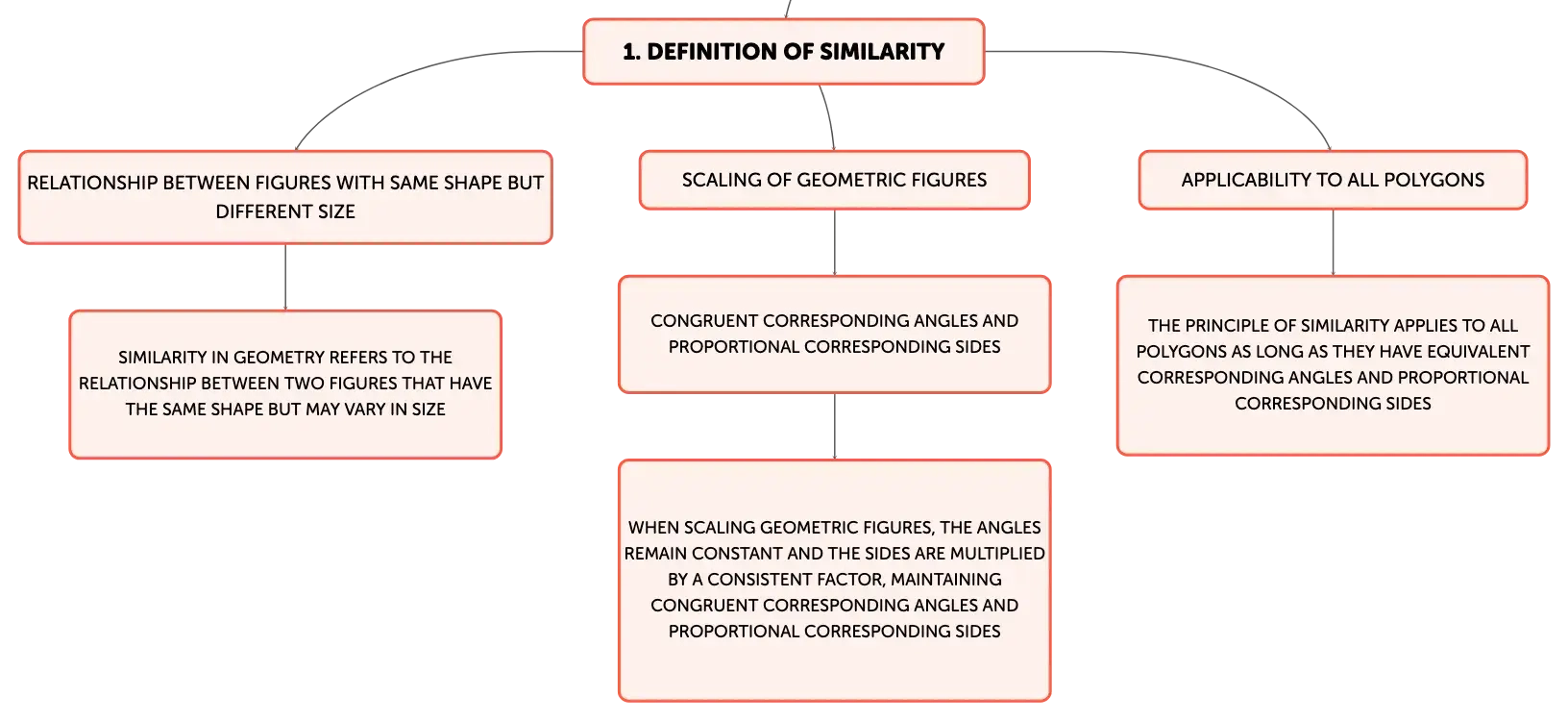

Definition of Similarity

Relationship between figures with same shape but different size

Similarity in geometry refers to the relationship between two figures that have the same shape but may vary in size

Scaling of geometric figures

Congruent corresponding angles and proportional corresponding sides

When scaling geometric figures, the angles remain constant and the sides are multiplied by a consistent factor, maintaining congruent corresponding angles and proportional corresponding sides

Applicability to all polygons

The principle of similarity applies to all polygons as long as they have equivalent corresponding angles and proportional corresponding sides

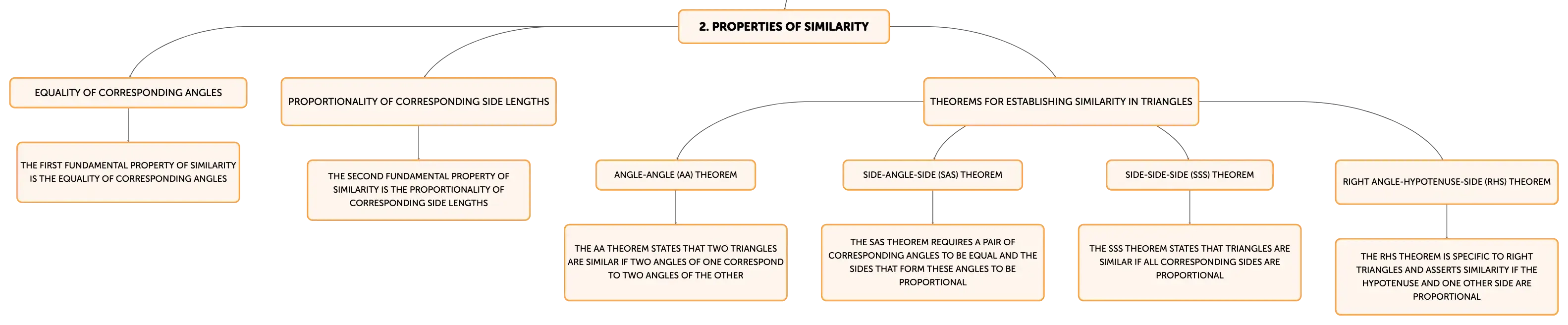

Properties of Similarity

Equality of corresponding angles

The first fundamental property of similarity is the equality of corresponding angles

Proportionality of corresponding side lengths

The second fundamental property of similarity is the proportionality of corresponding side lengths

Theorems for establishing similarity in triangles

Angle-Angle (AA) theorem

The AA theorem states that two triangles are similar if two angles of one correspond to two angles of the other

Side-Angle-Side (SAS) theorem

The SAS theorem requires a pair of corresponding angles to be equal and the sides that form these angles to be proportional

Side-Side-Side (SSS) theorem

The SSS theorem states that triangles are similar if all corresponding sides are proportional

Right Angle-Hypotenuse-Side (RHS) theorem

The RHS theorem is specific to right triangles and asserts similarity if the hypotenuse and one other side are proportional

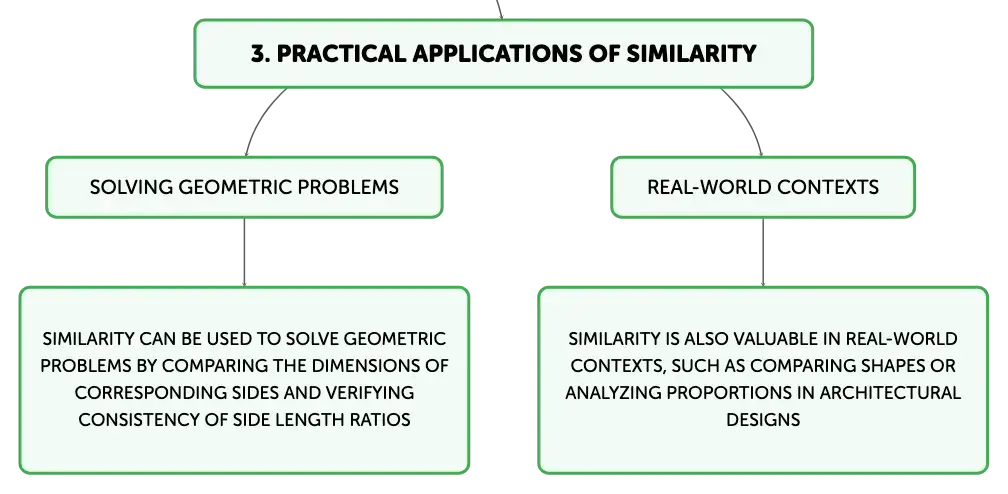

Practical Applications of Similarity

Solving geometric problems

Similarity can be used to solve geometric problems by comparing the dimensions of corresponding sides and verifying consistency of side length ratios

Real-world contexts

Similarity is also valuable in real-world contexts, such as comparing shapes or analyzing proportions in architectural designs

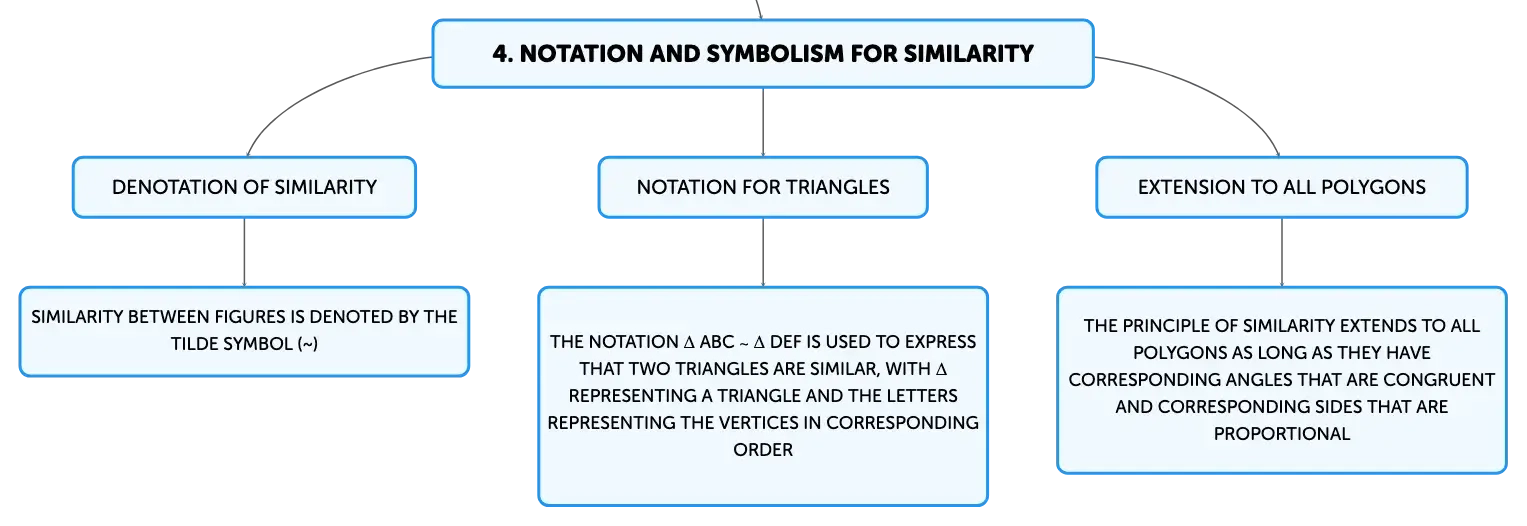

Notation and Symbolism for Similarity

Denotation of similarity

Similarity between figures is denoted by the tilde symbol (~)

Notation for triangles

The notation Δ ABC ∼ Δ DEF is used to express that two triangles are similar, with Δ representing a triangle and the letters representing the vertices in corresponding order

Extension to all polygons

The principle of similarity extends to all polygons as long as they have corresponding angles that are congruent and corresponding sides that are proportional

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

For two geometric figures to be similar, they must have ______ angles and sides that are ______ to each other.

congruent corresponding

proportional

AA Theorem Criteria

Two triangles are similar if two angles of one match two angles of the other.

SAS Theorem Requirements

Triangles are similar if one pair of corresponding angles is equal and the sides forming those angles are proportional.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Geometric illustration of a T-shaped figure with a perpendicular bisector at the midpoint of a straight line segment on a white background.

Perpendicular Bisectors

$Assorted geometric shapes on a light background featuring a refractive cube, reflective sphere, red cone, blue cylinder, and yellow pyramid.$

Three-Dimensional Shapes and Their Properties

Clear acrylic equilateral and scalene triangles aligned by one side on a matte black surface, reflecting faintly with a light-induced color spectrum.

The SAS Congruence and Similarity Criteria in Euclidean Geometry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring the Concept of Similarity in Geometry

Similarity in geometry is defined as a relationship where two figures share the same shape but may vary in size. This foundational concept is essential for understanding the scaling of geometric figures, where similar figures maintain congruent corresponding angles and proportional corresponding sides. When a figure is an enlarged or reduced version of another, the angles remain constant, and the sides are multiplied by a consistent factor. This principle of similarity is applicable to all polygons, not just triangles, as long as they fulfill the criteria of having equivalent corresponding angles and sides that are proportional.

Three equilateral triangles in ascending sizes and colors blue, red, and green, aligned by angles, casting soft shadows on a plain background.

Fundamental Properties and Theorems of Similarity

The properties of similarity are integral to the identification of similar figures. The two fundamental properties are the equality of corresponding angles and the proportionality of corresponding side lengths. These properties underpin several theorems that are instrumental in establishing similarity in triangles, including the Angle-Angle (AA) theorem, the Side-Angle-Side (SAS) theorem, the Side-Side-Side (SSS) theorem, and the Right Angle-Hypotenuse-Side (RHS) theorem. The AA theorem posits that two triangles are similar if two angles of one correspond to two angles of the other. The SAS theorem requires a pair of corresponding angles to be equal and the sides that form these angles to be proportional. The SSS theorem states that triangles are similar if all corresponding sides are proportional. The RHS theorem is specific to right triangles, asserting similarity if the hypotenuse and one other side are proportional.

Practical Applications of Similarity in Problem Solving

Similarity serves as a practical tool for solving geometric problems. For example, by knowing the dimensions of corresponding sides of two triangles, one can use the SSS similarity theorem to determine if the triangles are similar by verifying the consistency of the side length ratios. This practical application of similarity is also valuable in real-world contexts, such as in the comparison of shapes or in the analysis of proportions within architectural designs.

Symbolism and Notation for Expressing Similarity

In geometry, similarity between figures is denoted by the tilde symbol (~). To express that two triangles are similar, the notation Δ ABC ∼ Δ DEF is employed, where Δ signifies a triangle and the letters represent the vertices of the triangles in corresponding order. This notation is crucial for clear mathematical communication, allowing for the concise expression of the similarity relationship between geometric figures.

Extending the Principle of Similarity to Other Polygons

Although triangles are frequently the focus of discussions on similarity, the principle extends to all polygons. For polygons to be considered similar, they must have corresponding angles that are congruent and corresponding sides that are proportional. This broadens the application of similarity to encompass a variety of polygonal shapes, such as rectangles, pentagons, and hexagons, provided they meet the established criteria.

Key Insights into Geometric Similarity

Geometric similarity is a pivotal concept that facilitates the comparison of shapes through their form and proportions. The properties and theorems associated with similarity offer a structured approach to identifying and proving the similarity of geometric figures. Mastery of these principles is crucial for a wide range of mathematical and practical applications, including academic problem-solving and real-world design and architectural projects. The established notation and symbolism for similarity contribute to the clear communication and comprehension of these geometric relationships.
