Isometries in Geometry
Isometry in geometry refers to transformations that maintain the original size and shape of figures, resulting in congruent shapes. These include translations, reflections, and rotations, which are classified as either orientation-preserving or orientation-reversing. Understanding these concepts is crucial for studying geometric congruence and symmetry.
See moreExploring the Concept of Isometry in Geometric Transformations

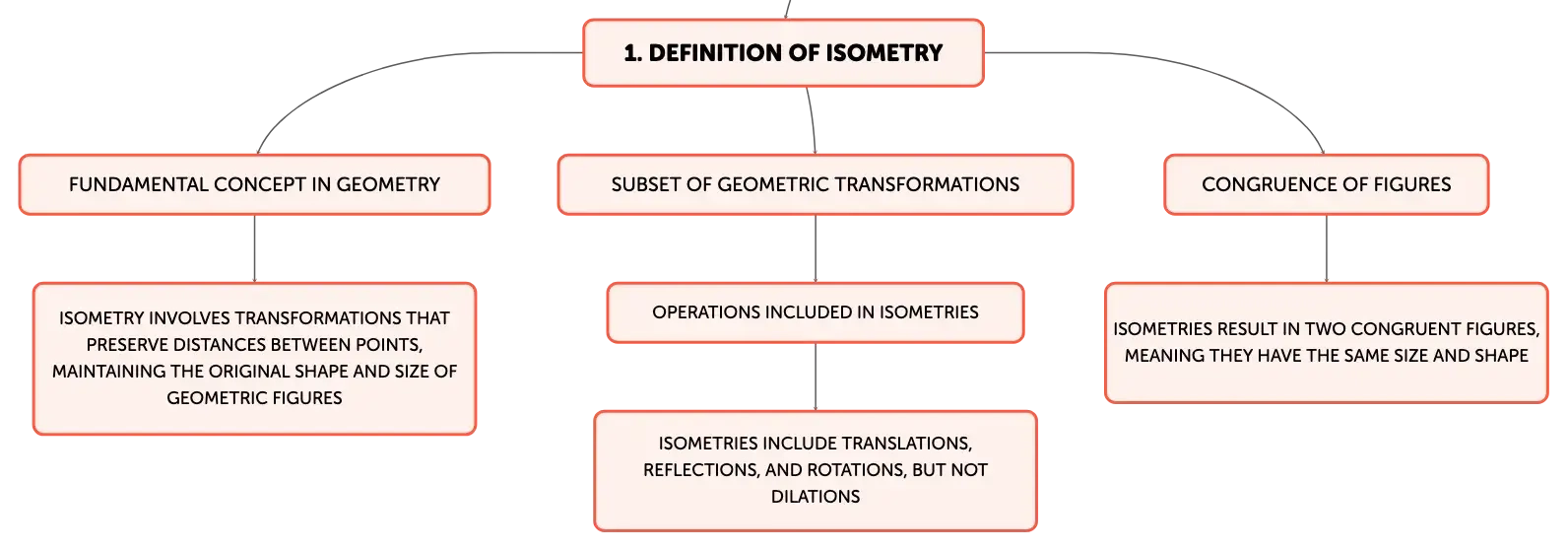

Isometry is a fundamental concept in geometry, involving transformations that preserve the distances between points, thereby maintaining the original shape and size of geometric figures. These transformations result in two figures that are congruent, meaning they have the same size and shape. Isometries are a subset of geometric transformations and include operations such as translations, reflections, and rotations. It is important to note that transformations like dilations, which change the size of figures, are not considered isometries because they do not preserve all the distances between points.Characteristics and Varieties of Isometric Transformations

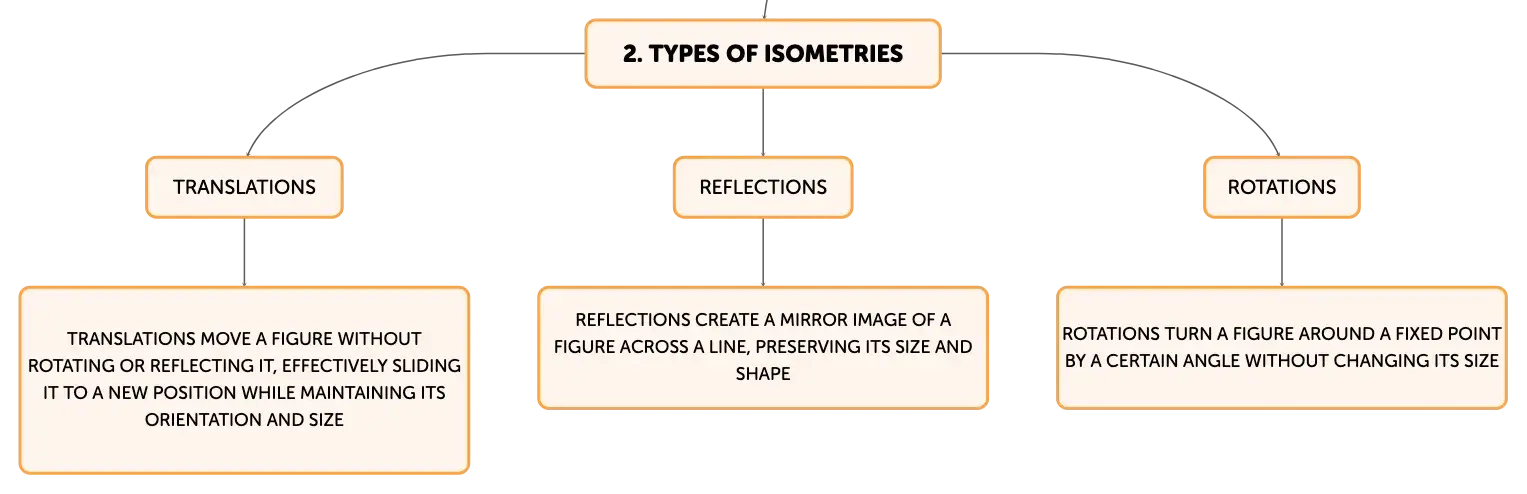

Isometric transformations are classified into three main types: translations, reflections, and rotations. Translations move a figure without rotating or reflecting it, effectively sliding it to a new position while maintaining its orientation and size. For instance, translating a shape along a vector changes its position without altering its form. Reflections create a mirror image of a figure across a line, called the axis of reflection, while preserving its size and shape. Rotations turn a figure around a fixed point, known as the center of rotation, by a certain angle in a specific direction, such as 90 degrees clockwise, without changing the figure's size.Orientation-Preserving and Orientation-Reversing Isometries

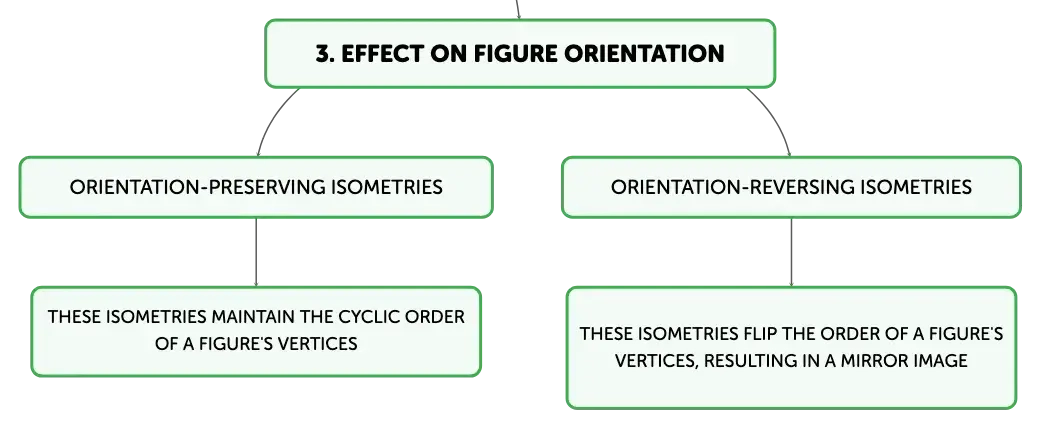

Isometries can also be categorized based on their effect on a figure's orientation. Orientation-preserving isometries, which include translations and rotations, maintain the cyclic order of the vertices of a figure. This means that the vertices of a polygon, for example, will follow the same clockwise or counterclockwise progression after the transformation. On the other hand, orientation-reversing isometries, such as reflections, flip the order of vertices, resulting in a figure that is a mirror image of the original, with vertices following the opposite sequence.The Importance of Isometry in Geometry

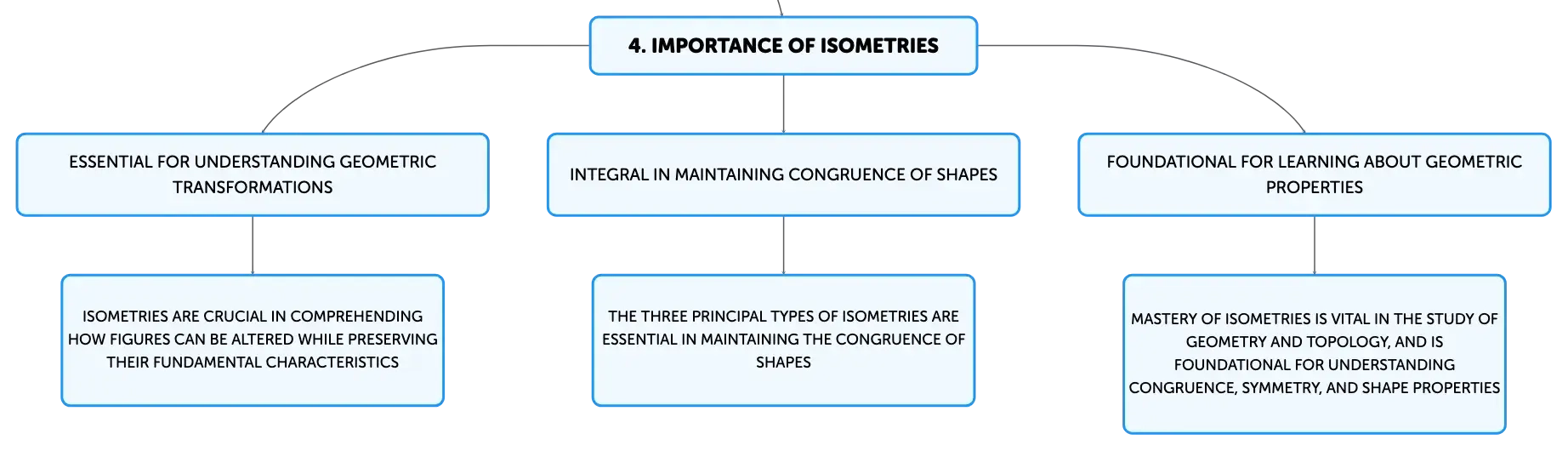

Isometric transformations are essential for comprehending the ways in which geometric figures can be altered within a plane or space while preserving their fundamental characteristics. The three principal types of isometries—translations, reflections, and rotations—are integral to maintaining the congruence of shapes. Understanding the difference between orientation-preserving and orientation-reversing isometries is crucial, as it influences the final orientation of the transformed figure. Mastery of isometric transformations is vital in the study of geometry and topology and is foundational for students learning about geometric congruence, symmetry, and the properties of shapes.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Isometry Impact on Shape and Size
Click to check the answer
2
Types of Isometric Transformations
Click to check the answer
3
Congruence in Isometries
Click to check the answer
4
______ are a type of isometric transformation that slides a figure to a different location without changing its shape or orientation.
Click to check the answer
5
When a figure is ______ around a fixed point by a specific angle, the process is known as rotation, which keeps the figure's size intact.
Click to check the answer
6
Examples of orientation-preserving isometries
Click to check the answer
7
Effect of orientation-reversing isometries on vertices
Click to check the answer
8
Definition of isometry in geometry
Click to check the answer
9
The three main isometries, which are ______, ______, and ______, are crucial for preserving shape congruence.
