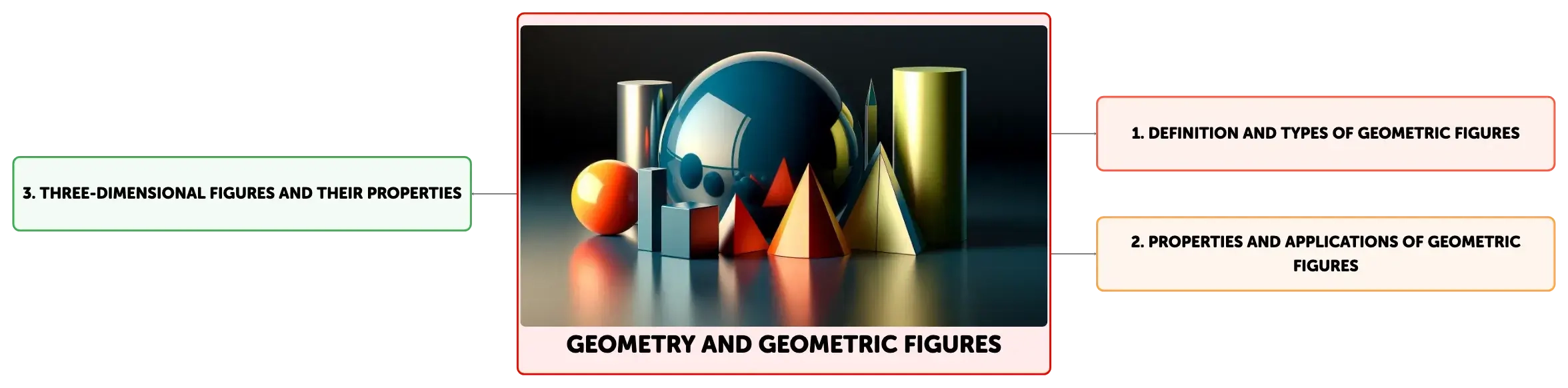

Geometry and Geometric Figures

Exploring the Fundamentals of Geometric Figures

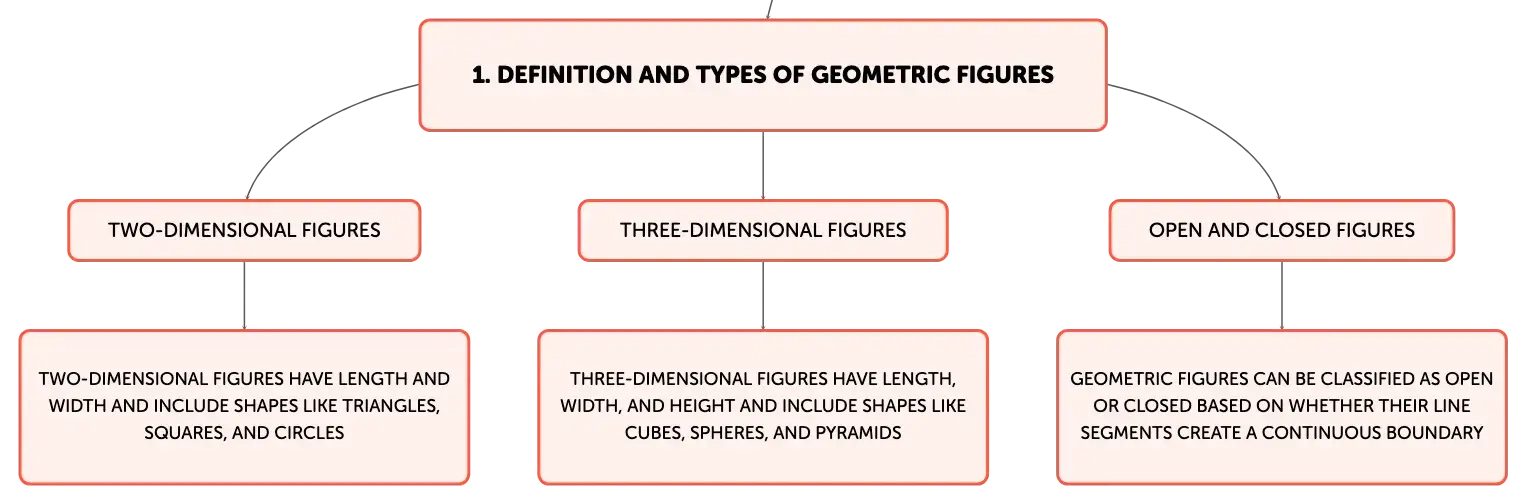

Geometry is the branch of mathematics that studies the properties and relations of points, lines, surfaces, and solids. A geometric figure is a set of points that forms a shape with a specific structure. These figures are categorized into two main types: two-dimensional (2-D) figures, which include shapes like triangles, squares, and circles that have length and width; and three-dimensional (3-D) figures, such as cubes, spheres, and pyramids, which have length, width, and height. Understanding the properties of these figures, such as their sides, angles, and faces, is essential for the study of geometry.

Differentiating Open and Closed Geometric Figures

Geometric figures are further classified as open or closed based on whether their line segments create a continuous boundary. An open figure, such as a line or arc, does not enclose a space as its endpoints do not connect. A closed figure, like a polygon or circle, has segments that join to form an enclosed area. Recognizing this distinction is important for various geometric operations, including calculating area and perimeter.

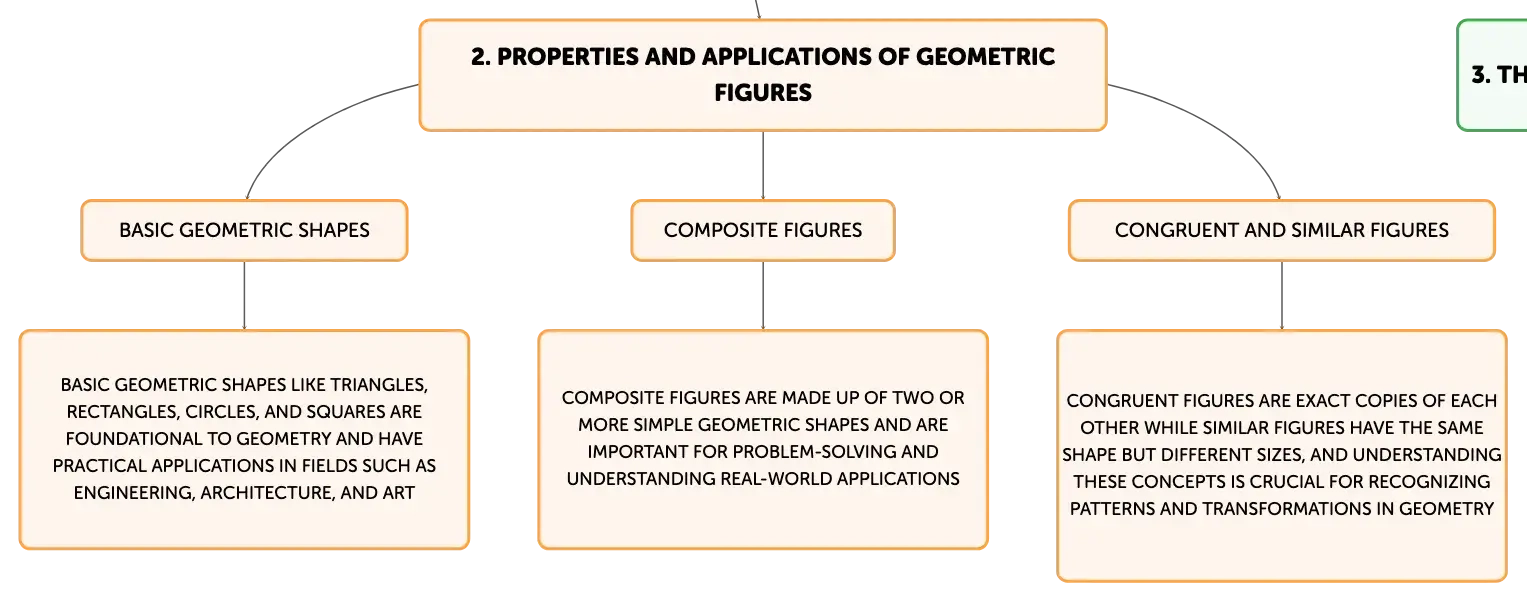

The Importance of Basic Geometric Shapes

Basic geometric shapes such as triangles, rectangles, circles, and squares are foundational to geometry. These shapes are omnipresent in the environment and serve as the building blocks for more complex figures. Mastery of these basic shapes is crucial for advancing in geometric understanding and for their practical application in fields such as engineering, architecture, and art.

Understanding Composite Figures in Geometry

Composite figures are shapes that consist of two or more simple geometric shapes combined. For instance, a house shape might be modeled by a rectangle for the walls and a triangle for the roof. Analyzing composite figures often involves breaking them down into their simpler components to solve problems related to area and perimeter. This decomposition is a key skill in geometry, particularly in real-world problem-solving.

Area and Perimeter of Composite Figures

Calculating the area and perimeter of composite figures requires an understanding of the formulas for simple shapes. To find the area, one must calculate the area of each simple shape within the composite figure and then sum these areas. The perimeter is found by adding the lengths of all the outer sides, taking care to include only the sides that contribute to the outer boundary. This process may involve algebraic manipulation to find missing lengths based on the properties of the constituent shapes.

Exploring Congruence and Similarity in Geometry

Congruent figures are exact copies of one another in both shape and size, and can be mapped onto each other through transformations such as translation, rotation, or reflection. Similar figures have the same shape but are different in size, with corresponding sides being proportional and corresponding angles being equal. These concepts are fundamental in geometry for understanding shape preservation under various transformations and for recognizing patterns within different figures.

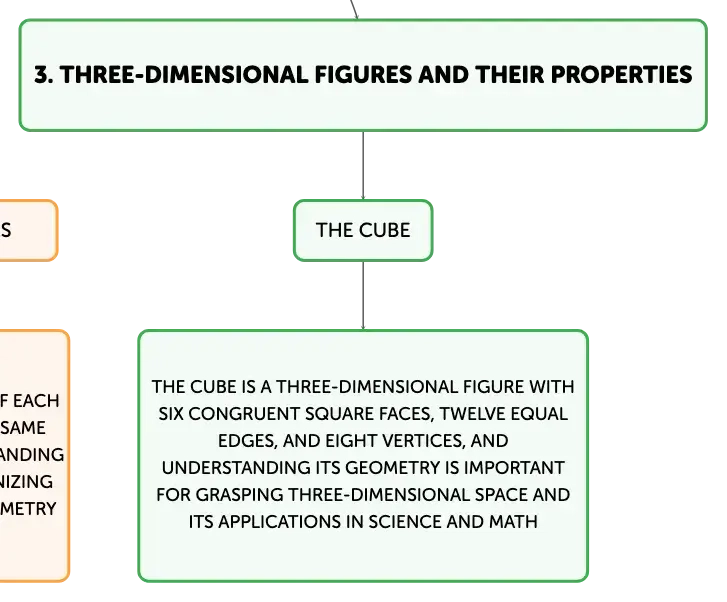

The Cube as a Representative of 3-D Geometry

The cube is a perfect example of a three-dimensional figure, with six congruent square faces, twelve equal edges, and eight vertices where three edges meet. It is a polyhedron, a solid with flat faces, straight edges, and sharp corners. Understanding the cube's geometry, including its symmetry and the relationships between its faces, edges, and vertices, is important for grasping the nature of three-dimensional space and for applications in various scientific and mathematical contexts.

Concluding Thoughts on Geometric Figures

Geometric figures form the core of geometric study, encompassing a wide range of shapes from simple 2-D outlines to intricate 3-D solids. They can be characterized as open or closed, basic or composite, and congruent or similar. Each category of figure possesses distinct properties and plays a role in both theoretical and practical applications of geometry. A thorough understanding of these figures is indispensable for students and practitioners who utilize geometric concepts in diverse real-world situations.
