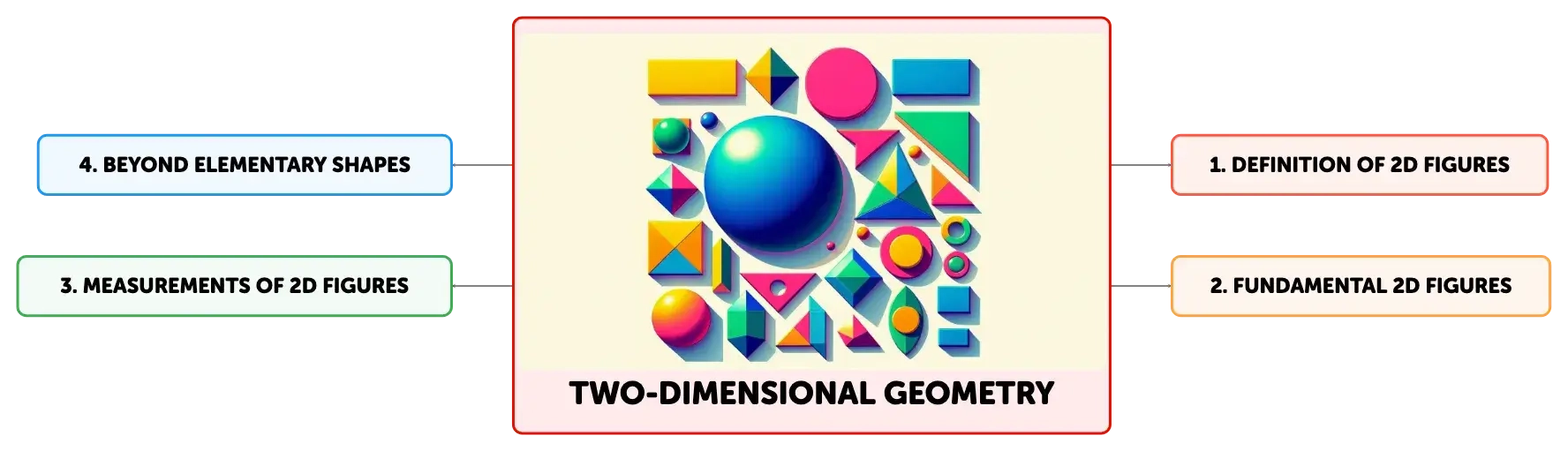

Two-Dimensional Geometry

Exploring the Basics of Two-Dimensional Geometry

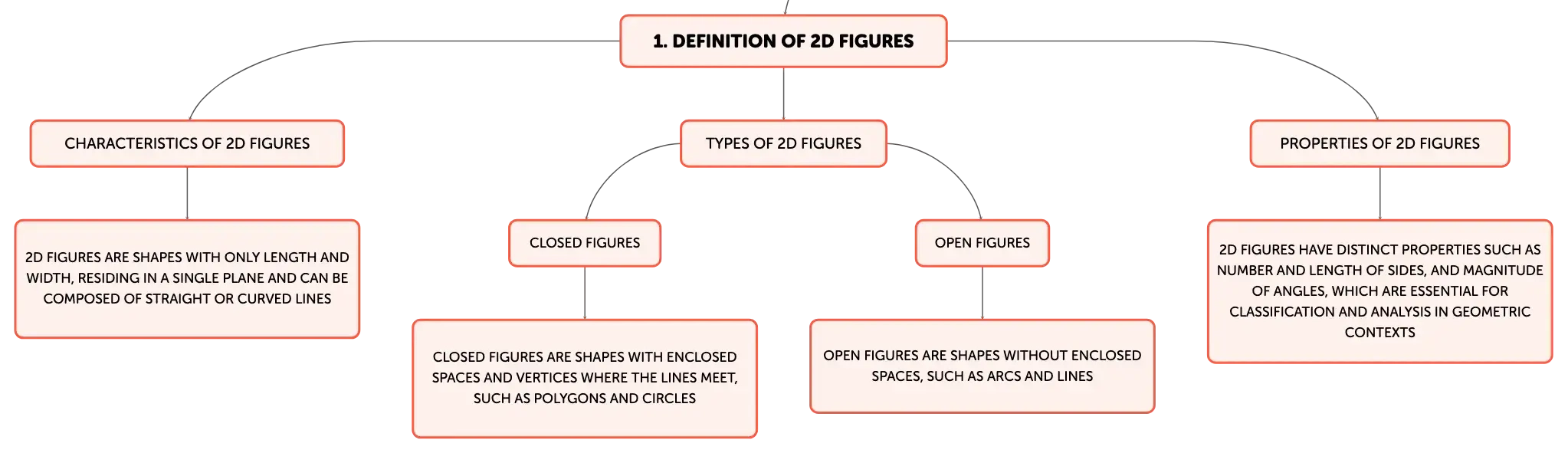

In the realm of geometry, two-dimensional (2D) figures are shapes with only length and width, residing entirely in a single plane. These figures can be composed of straight or curved lines and can form either closed figures, such as polygons and circles, or open ones, like arcs and lines. Closed figures are particularly significant in geometry, characterized by their enclosed spaces and vertices where the lines meet. The study of 2D figures encompasses a wide range of shapes, each with distinct properties such as the number and length of sides, and the magnitude of angles, which are essential for classification and analysis in geometric contexts.

The Cornerstones of Two-Dimensional Shapes: Triangles, Quadrilaterals, and Circles

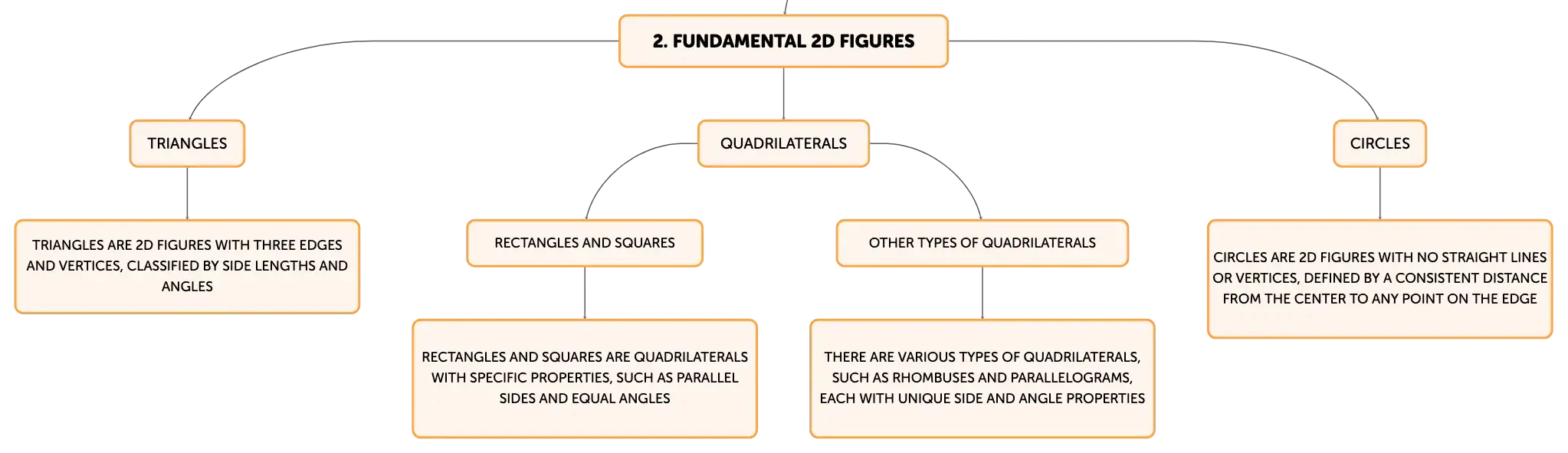

Fundamental to the study of 2D shapes are triangles, quadrilaterals—including squares and rectangles—and circles. Triangles, with three edges and vertices, are classified by side lengths (equilateral, isosceles, scalene) and angles (acute, right, obtuse). The internal angles of a triangle always sum to 180 degrees. Quadrilaterals are four-sided polygons with two pairs of parallel sides in the case of rectangles and squares. Squares have four equal sides and angles, while rectangles have equal opposite sides and angles. Circles, with no straight lines or vertices, are defined by a consistent distance from the center to any point on the edge, known as the radius. The diameter, twice the radius, passes through the center, connecting two points on the circle.

Calculating Perimeters of Two-Dimensional Figures

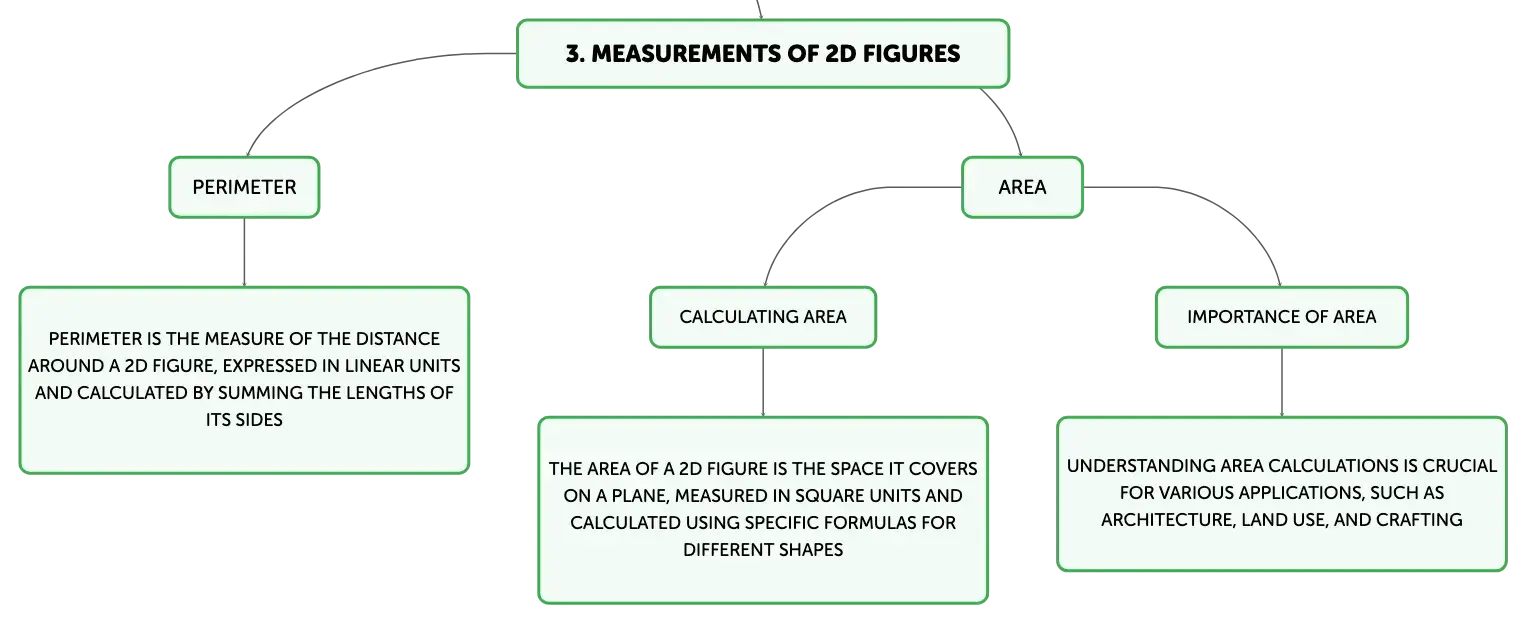

The perimeter of a 2D figure is the measure of the distance around it. For polygons, it is the sum of the lengths of their sides. The perimeter of a triangle is the sum of its three sides, and for quadrilaterals, it is the sum of all four sides. The perimeter of a circle, known as the circumference, is determined by the formula \( C = 2\pi r \), where \( r \) is the radius. Perimeter measurements are crucial for understanding the extent of a figure's boundary and are expressed in linear units, such as meters or inches.

Area Measurement of Two-Dimensional Shapes

The area of a 2D shape quantifies the space it covers on a plane, measured in square units. The area of a triangle is calculated with \( A = \frac{1}{2}bh \), where \( b \) is the base and \( h \) is the height perpendicular to the base. For squares, the area formula is \( A = s^2 \), with \( s \) representing the side length, and for rectangles, \( A = lw \), where \( l \) is the length and \( w \) is the width. The area of a circle is found using \( A = \pi r^2 \), with \( r \) as the radius. Mastery of area calculations is vital for various applications, including architecture, land use, and crafting.

The Rich Diversity of Two-Dimensional Figures

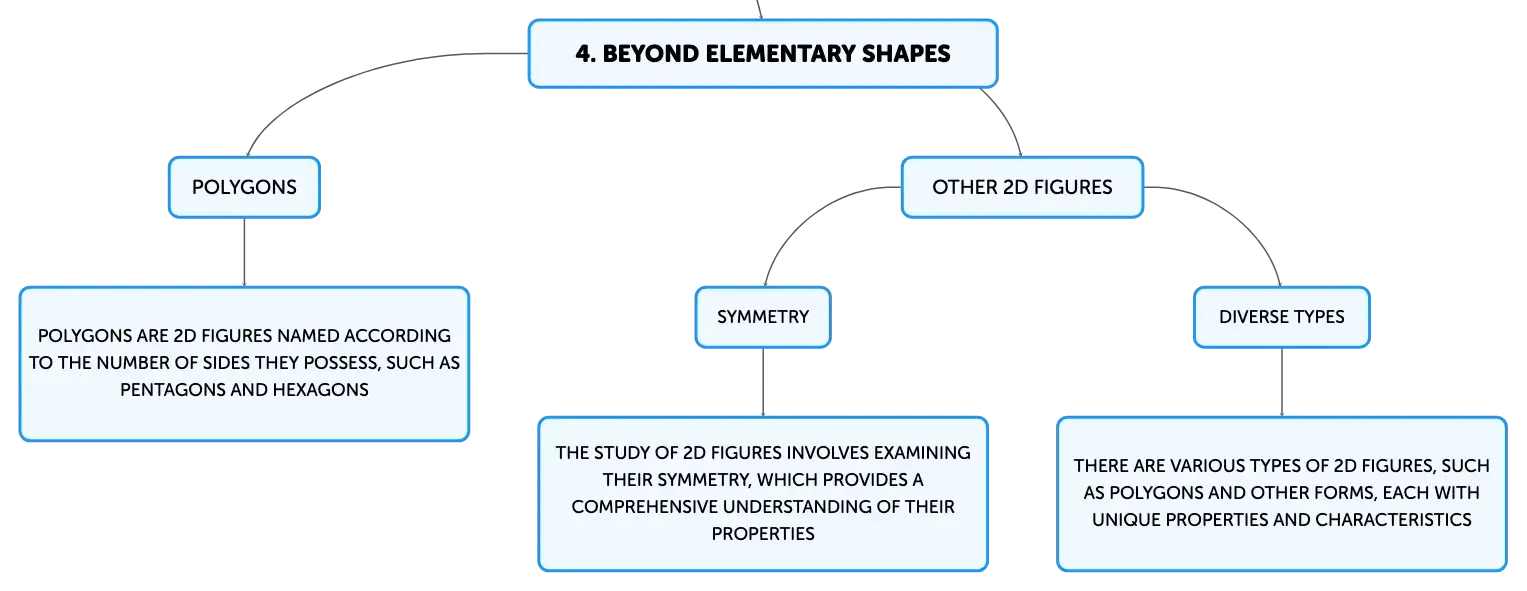

The spectrum of 2D figures extends beyond the elementary shapes to include a multitude of polygons and other forms. Polygons are named according to the number of sides they possess, such as pentagons (five sides) and hexagons (six sides). Among quadrilaterals, there are diverse types like rhombuses and parallelograms, each with unique side and angle properties. The study of these figures involves examining their sides, vertices, angles, and symmetry, which provides a comprehensive understanding of two-dimensional geometry. This exploration enriches students' mathematical knowledge and enhances their spatial reasoning skills.
