Similarity Transformations in Geometry

Exploring the Fundamentals of Similarity in Geometry

Similarity transformations in geometry are operations that alter the size of a figure while preserving its shape. These transformations are based on the principles of similarity, where figures are considered similar if they have the same shape but may differ in size. Similar figures have corresponding angles that are equal and corresponding sides that are proportional. The ratio of any two corresponding sides in one figure is the same as the ratio of the corresponding sides in the other figure, ensuring that the overall shapes are identical despite the difference in size.

The Process of Similarity Transformations

Similarity transformations can be achieved through dilation, which either enlarges or reduces a figure. The original figure is called the pre-image, and the altered figure is known as the image. The transformation is controlled by a scale factor, denoted by 'k'. When the scale factor is less than 1 (0

Implementing Similarity Transformations Using Scale Factors

To execute a similarity transformation, the scale factor 'k' is applied to the coordinates of the pre-image. If the center of dilation is the origin (0,0), each coordinate (x, y) of the pre-image is multiplied by 'k' to produce the coordinates of the image. This operation scales the pre-image up or down, ensuring that the image retains the same shape with sides that are proportionally longer or shorter than those of the pre-image.

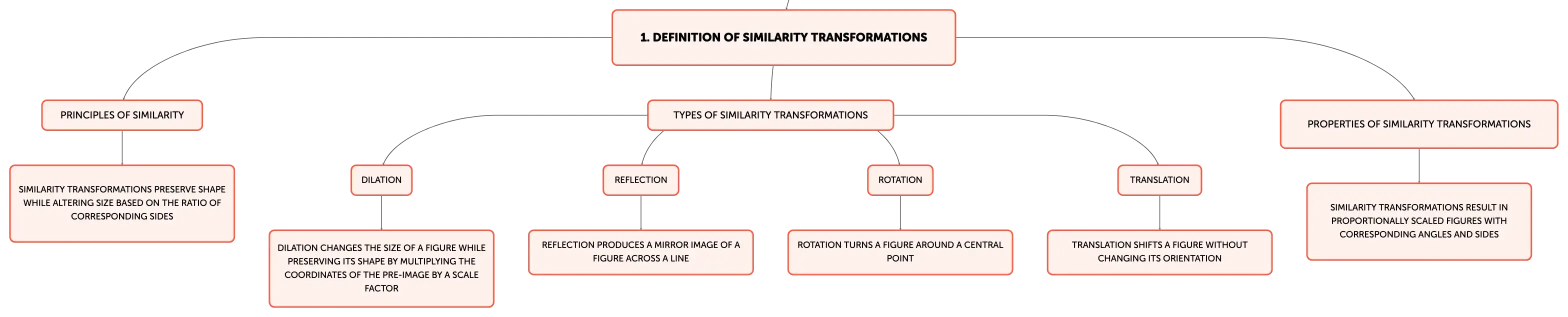

Characteristics of Similarity Transformations

Similarity transformations are defined by several properties. The image resulting from a similarity transformation is a proportionally scaled version of the pre-image, either larger or smaller. The sides of the pre-image and image are proportional, as are the coordinates of corresponding points. The scale factor 'k' is crucial, as it dictates the relative size of the image. Additionally, similarity transformations preserve angles, meaning that corresponding angles of the pre-image and image remain equal.

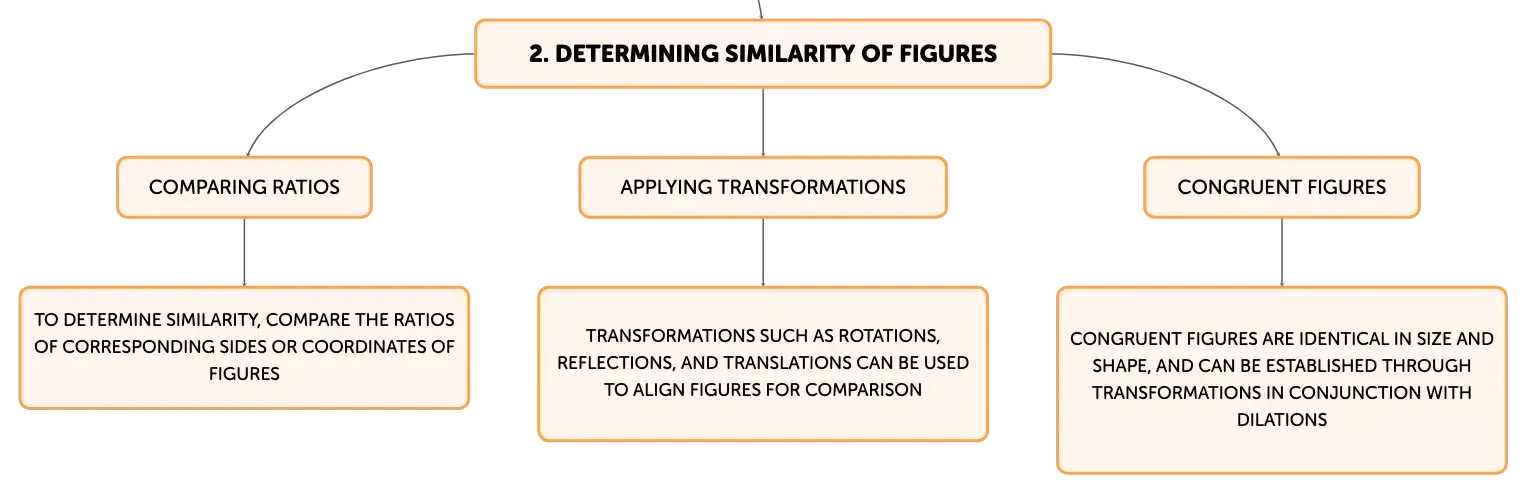

Assessing Similarity in Geometric Figures

To determine if two figures are similar, one must compare the ratios of their corresponding sides or coordinates. If these ratios are consistent, the figures are similar. This can be done by setting up proportions with the lengths of corresponding sides or by comparing the coordinates of corresponding vertices. When figures are not oriented or positioned identically, it may be necessary to apply rotations, reflections, or translations to align them before evaluating their similarity.

Complementary Geometric Transformations and Similarity

In addition to dilations, which are central to similarity transformations, other geometric transformations include reflections, rotations, and translations. Reflections produce mirror images across a line, rotations turn figures around a central point, and translations shift figures without rotation or reflection. These transformations result in congruent figures—figures that are identical in size and shape. However, they can be used in conjunction with dilations to establish the similarity of figures that are not readily comparable due to differences in orientation or position.
