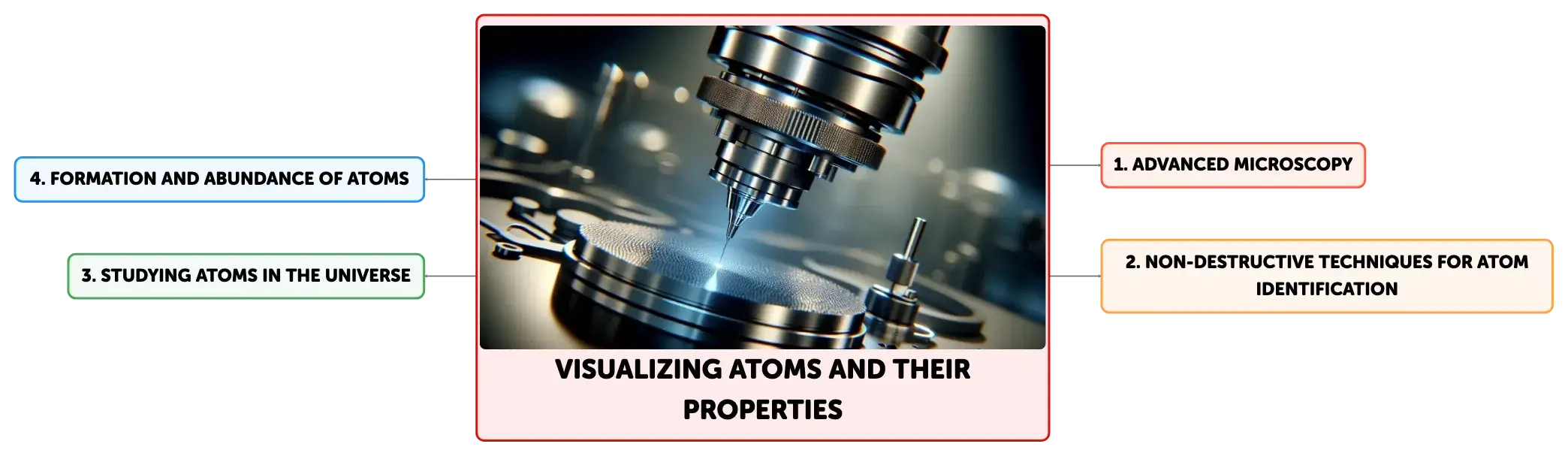

Exploring the realm of atoms, this overview discusses techniques like STM and mass spectrometry for visualizing and identifying atomic structures. It delves into non-destructive identification methods and the study of atoms in the cosmos, detailing the formation and abundance of elements, Earth's atomic makeup, and rare atomic matter.

Summary

Outline

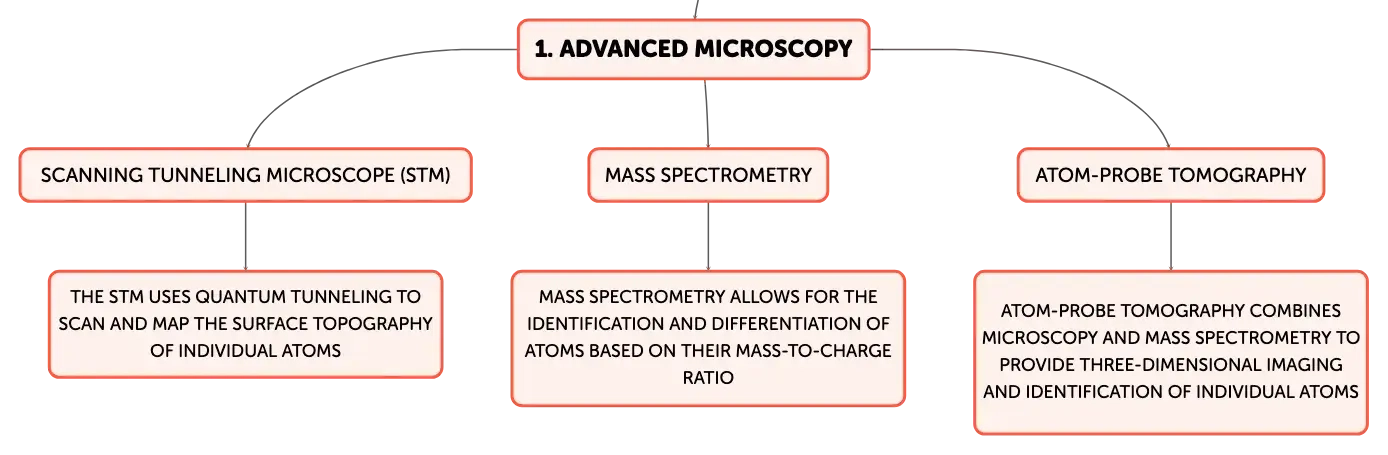

Visualizing Atoms with Advanced Microscopy

Atoms are the smallest units of matter that retain the identity of an element, and while they are invisible to the naked eye, modern technology has enabled us to visualize them. The scanning tunneling microscope (STM) is one such instrument that allows us to see individual atoms on a surface. It operates on the principle of quantum tunneling, where electrons can pass through a barrier that would be impermeable in classical physics. The STM tip, which is refined to a single atom, scans the surface and maintains a constant tunneling current, thereby providing an atomic-scale map of the surface topography. This method reveals the spatial arrangement of atoms and provides information about the electronic states at the surface.

Scanning tunneling microscope in operation in laboratory, with sharp probe near reflective surface, defocused controlled environment.

Identifying Atoms and Their Masses

Identifying atoms and measuring their masses are fundamental tasks in many scientific investigations. Mass spectrometry is a powerful analytical technique that ionizes chemical species and sorts the ions based on their mass-to-charge ratio. The trajectory of these ions in a magnetic field reveals their identity, allowing for the differentiation of isotopes and the analysis of elemental composition. Additionally, atom-probe tomography combines field ion microscopy with time-of-flight mass spectrometry to provide three-dimensional imaging and identification of individual atoms, offering insights into the material's structure and composition at the atomic level.

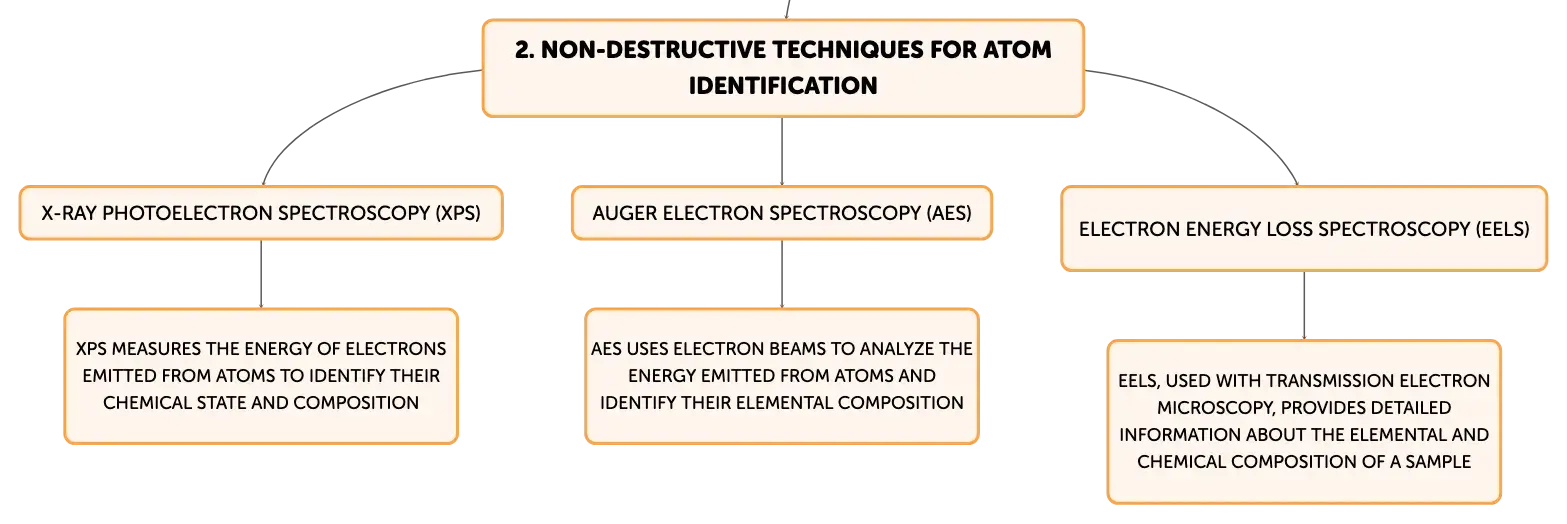

Non-Destructive Atomic Species Identification

Non-destructive techniques are essential for analyzing materials without altering their structure. X-ray photoelectron spectroscopy (XPS) and Auger electron spectroscopy (AES) are two such methods that measure the energy of electrons emitted from an atom when it is irradiated with X-rays or electron beams. These energies are characteristic of the atomic species and their chemical state, providing a fingerprint for identifying the elements within the sample. Electron energy loss spectroscopy (EELS) is another technique used in conjunction with transmission electron microscopy to analyze the energy lost by electrons as they pass through a specimen, offering detailed information about the sample's elemental and sometimes chemical composition.

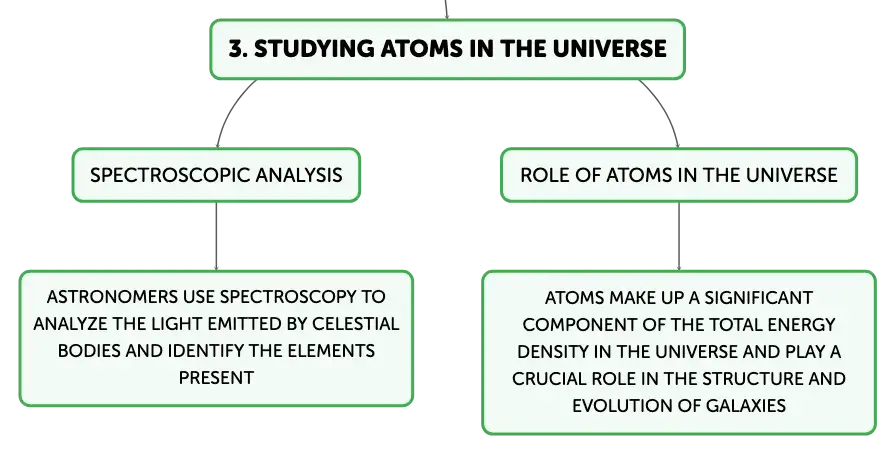

Studying Atoms in the Universe

The study of atoms extends to the vast reaches of the universe. Astronomers analyze the light emitted by stars and other celestial bodies to determine their atomic composition. The spectra of this light contain distinct patterns that correspond to the energy levels of atoms, enabling the identification of elements present in these distant objects. This spectroscopic analysis has been instrumental in discovering elements such as helium, which was first identified in the solar spectrum. Atoms make up the baryonic matter in the universe, which is a small but significant component of the total energy density, playing a crucial role in the structure and evolution of galaxies.

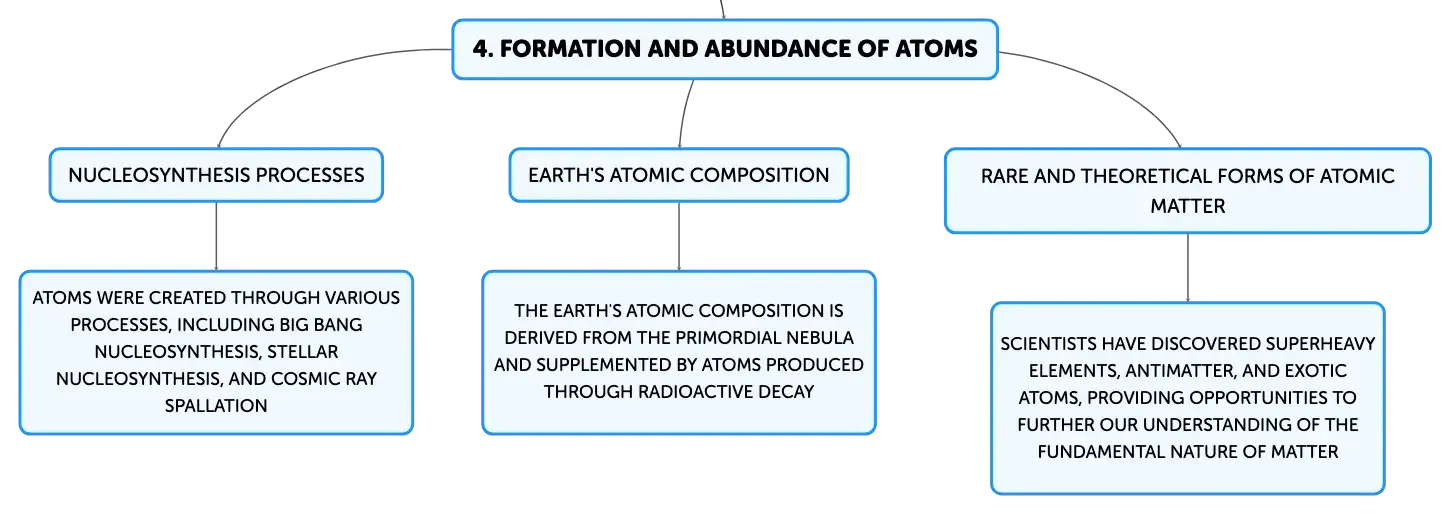

Formation and Abundance of Atoms

Atoms were created through various nucleosynthesis processes in the universe. The Big Bang nucleosynthesis is responsible for the formation of light elements such as hydrogen, helium, and traces of lithium. Stars produce heavier elements up to iron through stellar nucleosynthesis, while elements heavier than iron are formed in the explosive environments of supernovae and neutron star mergers, known as the r-process, or in the outer layers of aging stars through the s-process. Cosmic ray spallation also contributes to the synthesis of certain light elements. These processes collectively enrich the cosmos with a diverse array of atomic elements.

The Earth's Atomic Composition

The Earth's atomic composition is derived from the primordial nebula that gave birth to the Solar System, supplemented by atoms produced through radioactive decay. Radiometric dating techniques utilize the decay rates of radioactive isotopes to estimate the age of Earth and geological materials. The Earth's atmosphere is predominantly composed of nitrogen and oxygen molecules, while the crust is made up of a variety of minerals and compounds. Human activities have introduced additional elements, including transuranic elements, which are not naturally occurring on Earth.

Rare and Theoretical Forms of Atomic Matter

The exploration of atomic matter has led to the discovery of superheavy elements, which are typically unstable and have short half-lives. However, theoretical predictions suggest the existence of an "island of stability" where certain superheavy elements may exhibit increased stability. Antimatter, the counterpart to ordinary matter, is extremely rare in the universe due to annihilation events when it comes into contact with matter. In laboratory conditions, scientists have created antihydrogen to study its properties. Exotic atoms, in which standard particles like protons or electrons are replaced with other subatomic particles, provide unique opportunities to test the principles of physics and further our understanding of the fundamental nature of matter.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Smallest unit of matter retaining element identity

Atoms are the smallest units that maintain the properties of an element.

01

Principle enabling STM to visualize atoms

Quantum tunneling allows electrons to pass through barriers, used by STM to map atoms.

02

Information provided by STM beyond topography

STM reveals spatial atom arrangement and surface electronic states.
